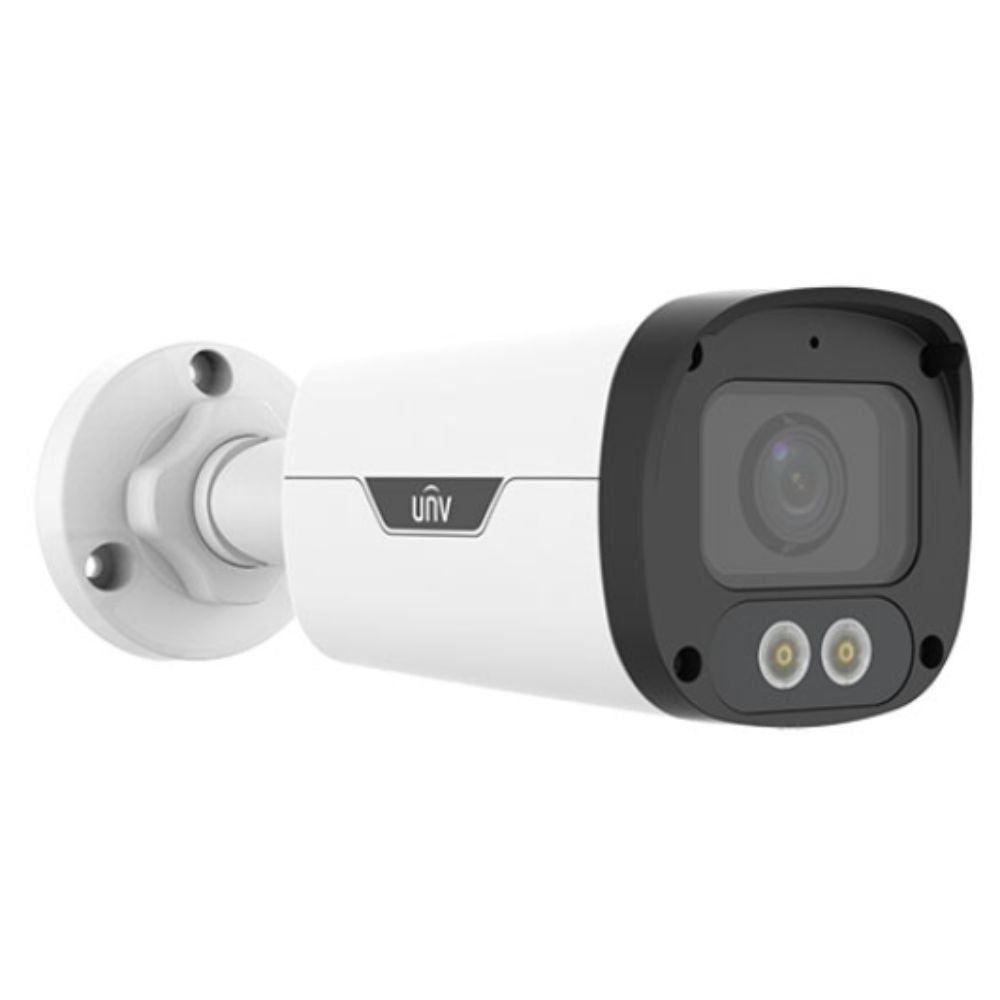

UNV IPC2314LE-ADF28KM-WL 4MP HD ColorHunter Fixed Bullet Network Camera

• High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m white light distance
• Supports 128 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

• Camera: Sensor: 1/1.8″, 4.0 megapixel, progressive scan, CMOS; Minimum Illumination: Color: 0.0005lux (F1.0, AGC ON); Shutter: Auto/Manual, 1 ~ 1/100000s; Adjustment Angle: Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°; WDR: 120dB; S/N: >52dB
• Lens: Lens: 2.8mm@F1.0, 4.0mm@F1.0; Iris: Fixed; Field of View (H): 110.4°, 89.4°; Field of View (V): 60.5°, 48.2°; Field of View (D): 115.2°, 94.7°
• DORI: DORI Distance (Lens (mm)): 2.8, 4.0; DORI Distance (Detect（m）): 43.4(142.5ft), 62.1(203.6ft); DORI Distance (Observe（m）): 17.4(57.0ft), 24.8(81.5ft); DORI Distance (Recognize（m）): 8.7(28.5ft), 12.4(40.7ft); DORI Distance (Identify（m）): 4.3(14.3ft), 6.2(20.4ft)
• Illuminator: LED Distance: Up to 30m (98ft); LEDs Number: 2; LED On/Off Control: Auto/Manual
• Video: Video Compression: Ultra265, H.265, H.264, MJPEGH.264 code profile: Baseline profile, Main profile, High profile; Frame Rate: Main Stream: 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640*360,Max 30fps; Video Bit Rate: 128 Kbps~6144Kbps; U-code: Support; OSD: Up to 4 OSDs; Privacy Mask: Up to 4 areas; ROI: Up to 8 areas; Video Stream: Dual streams
• Image: White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2; Digital noise reduction: 2D/3D DNR; Smart Illumination: Support; Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise; Dewarping: N/A; HLC: Support; BLC: Support; Defog: Digital Defog
• Events: Basic Detection: Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
• Audio: Audio Compression: G.711U, G.711AAudio Bitrate: 64 Kbps; Two-way audio: N/A; Suppression: Support; Sampling Rate: 8KHZ
• Storage: Edge Storage: Micro SD, up to 128GB; Network Storage: ANR, NAS(NFS)
• Network: Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS; Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK; User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation, EZView, EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
• Interface: Audio I/O: N/A; Alarm I/O: N/A; Serial Port: N/A; Built-in Mic: Support; Built-in Speaker: N/A; WiFi: N/A; Network: 1 * RJ45 10M/100M Base-TX Ethernet; Video Output: N/A
• Certifications: EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035); FCC: (FCC 47 CFR part15 B); Safety: CE LVD (EN 62368-1); CB: (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Protection: IP67 (IEC 60529)
• General: Power: DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 5.9W; Power Interface: Ø 5.5mm coaxial power plug; Dimensions (L × W × H): 206 × 73 × 73mm (8.1” × 2.9” × 2.9”); Weight: 0.47kg(1.04lb); Material: Graphene + Metal; Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing); Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing); surge protection: 4KV; Reset Button: Supported
