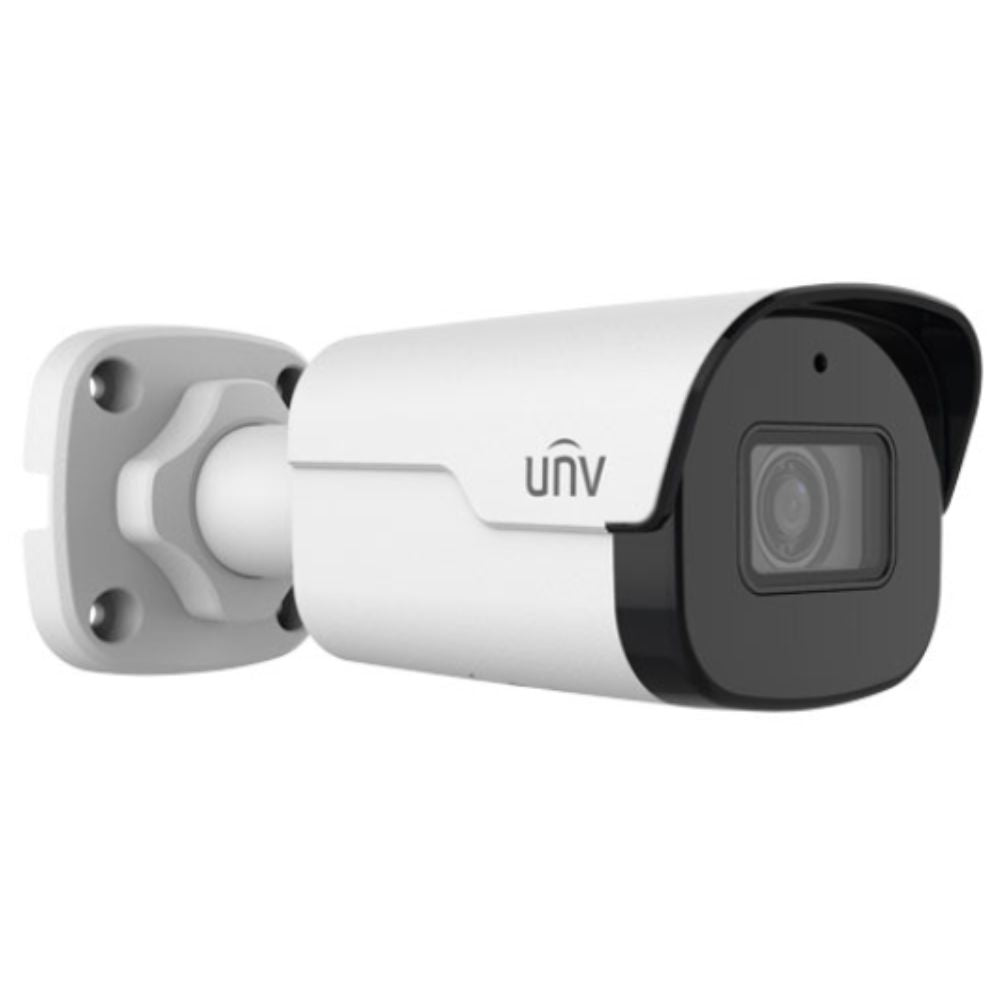

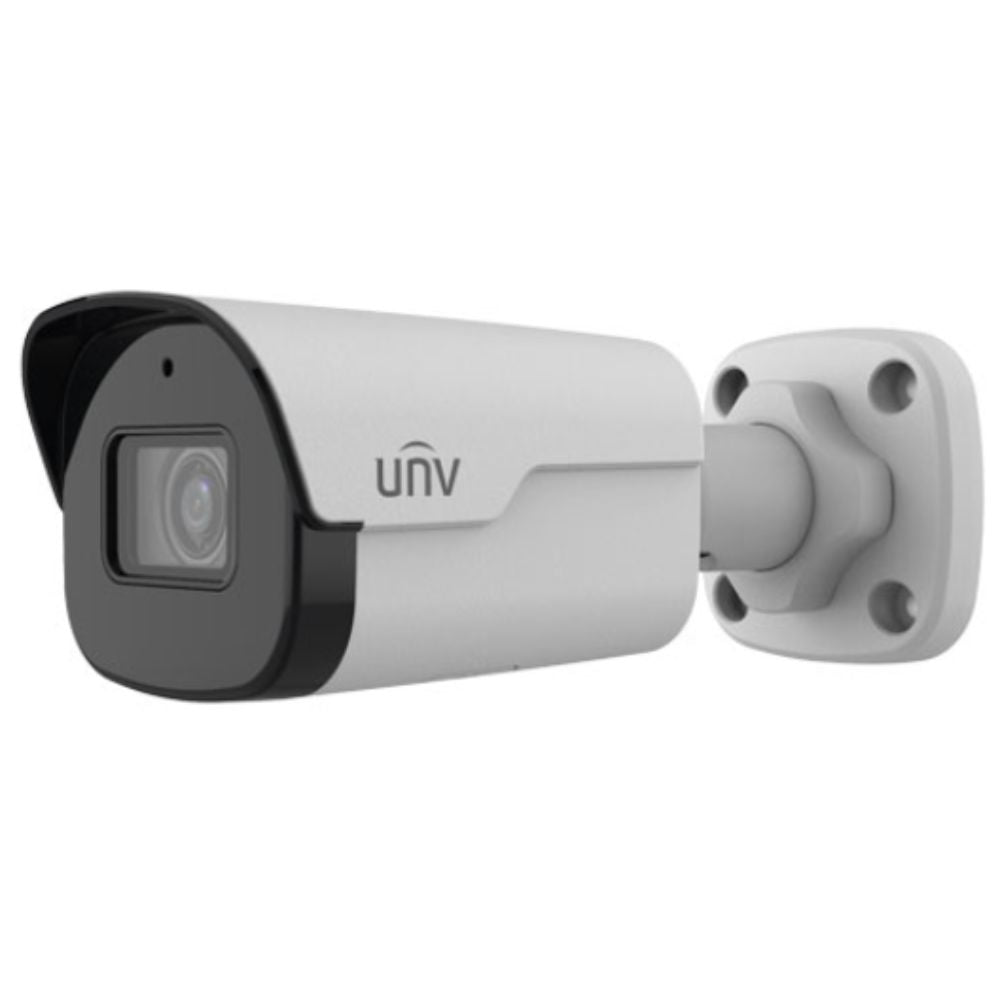

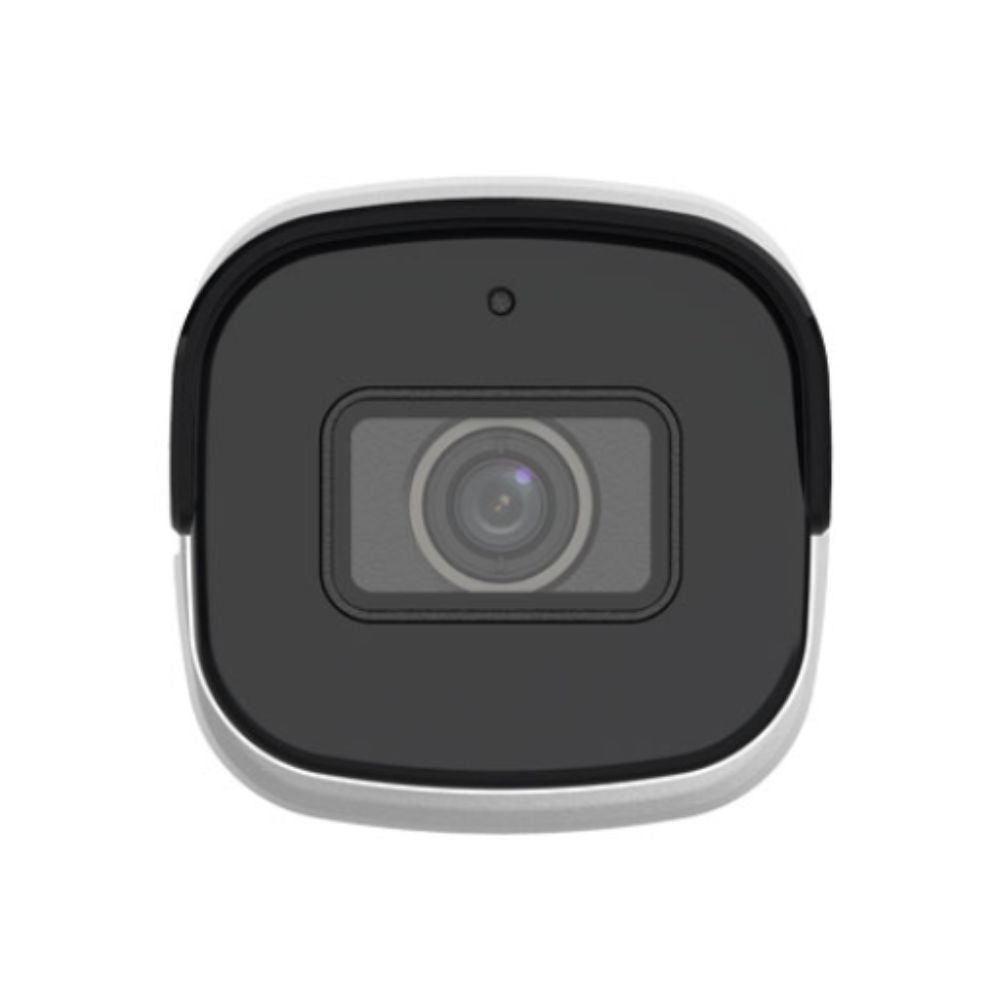

UNV IPC2128SB-ADF28KM-I0 8MP HD Intelligent LightHunter IR Fixed Bullet Network Camera

• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection

• Camera: Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS; Minimum Illumination: Color: 0.0025 lux (F1.6, AGC ON), 0 lux with IR on; Day/Night: IR-cut filter with auto switch (ICR); Shutter: Auto/Manual, 1 ~ 1/100000s; Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°; WDR: 120dB; S/N: >56dB
• Lens: Lens: 2.8mm@F1.6, 4.0mm@F1.6; Iris: Fixed; Field of View (H): 112.4°, 86.5°; Field of View (V): 60.1°, 44.1°; Field of View (D): 146.1°, 112.5°
• DORI: DORI Distance (Lens (mm)): 2.8, 4.0; DORI Distance (Detect (m)): 84.0, 120.0; DORI Distance (Observe (m)): 33.6, 48.0; DORI Distance (Recognize (m)): 16.8, 24.0; DORI Distance (Identify (m)): 8.4, 12.0
• Illuminator: IR Range: Up to 30m (98 ft); Wavelength: 850nm; IR On/Off Control: Auto/Manual
• Video: Video Compression: Ultra 265, H.265, H.264, MJPEG; H.264 Code Profile: Baseline profile, Main profile, High profile; Frame Rate: Main Stream: 8MP (38402160), Max 20fps; 5MP (30721728), Max 30fps; 4MP (25601440), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Video Bit Rate: 128 Kbps~16 Mbps; U-code: Support; OSD: Up to 8 OSDs; Privacy Mask: Up to 4 areas; ROI: Up to 8 areas; Video Stream: Triple streams
• Image: White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2; Digital Noise Reduction: 2D/3D DNR; Smart IR: Support; Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise; Dewarping: Support; HLC: Support; BLC: Support; Defog: Digital Defog; Intelligent: Smart intrusion prevention, Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection, Statistical Analysis: People counting, support tripwire people counting and area people counting
• Events: Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
• Audio: Audio Compression: G.711U, G.711A; Audio Bitrate: 64 Kbps; Two-way Audio: N/A; Suppression: Support; Sampling Rate: 8KHZ
• Storage: Edge Storage: Micro SD, up to 256GB; Network Storage: ANR, NAS(NFS)
• Network: Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS ,RTMP,SSL/TLS, SSH; Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK; User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation, EZView, EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
• Interface: Audio I/O: N/A; Alarm I/O: N/A; Serial Port: RS485; Built-in Mic: Support; Built-in Speaker: N/A; WiFi: N/A; Network: 1 * RJ45 10M/100M Base-TX Ethernet; Video Output: N/A
• Certifications: EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020); FCC: (FCC CFR 47 part15 B, ANSI C63.4-2014); Safety: CE LVD (EN 62368-1:2014+A11:2017); CB: (IEC 62368-1:2014); UL: (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS: (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• General: Power: DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 6.0W; Power Interface: Ø 5.5mm coaxial power plug; Dimensions (L × W × H): 156 × 63 × 63mm (6.1” × 2.5” × 2.5”); Weight: 0.41kg ( 0.90lb); Material: Metal; Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing); Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing); Surge Protection: 4KV; Reset Button: Supported
