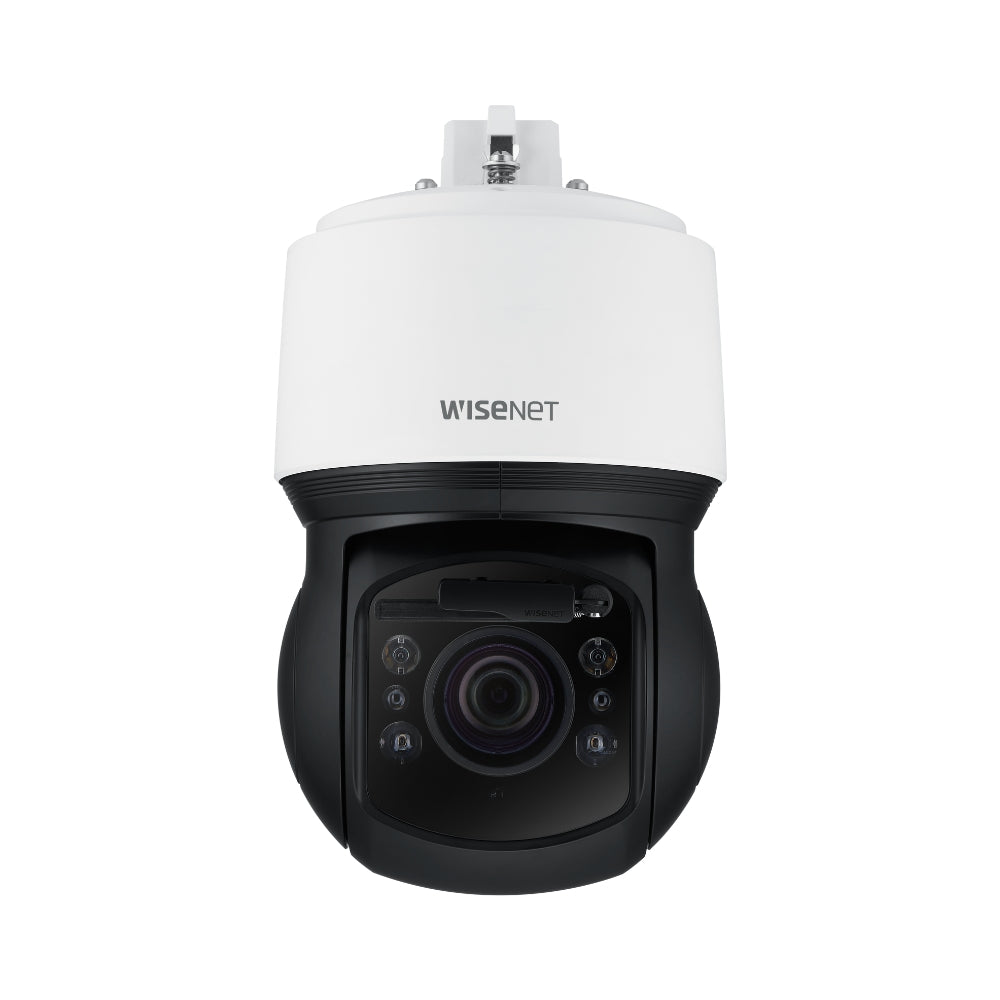

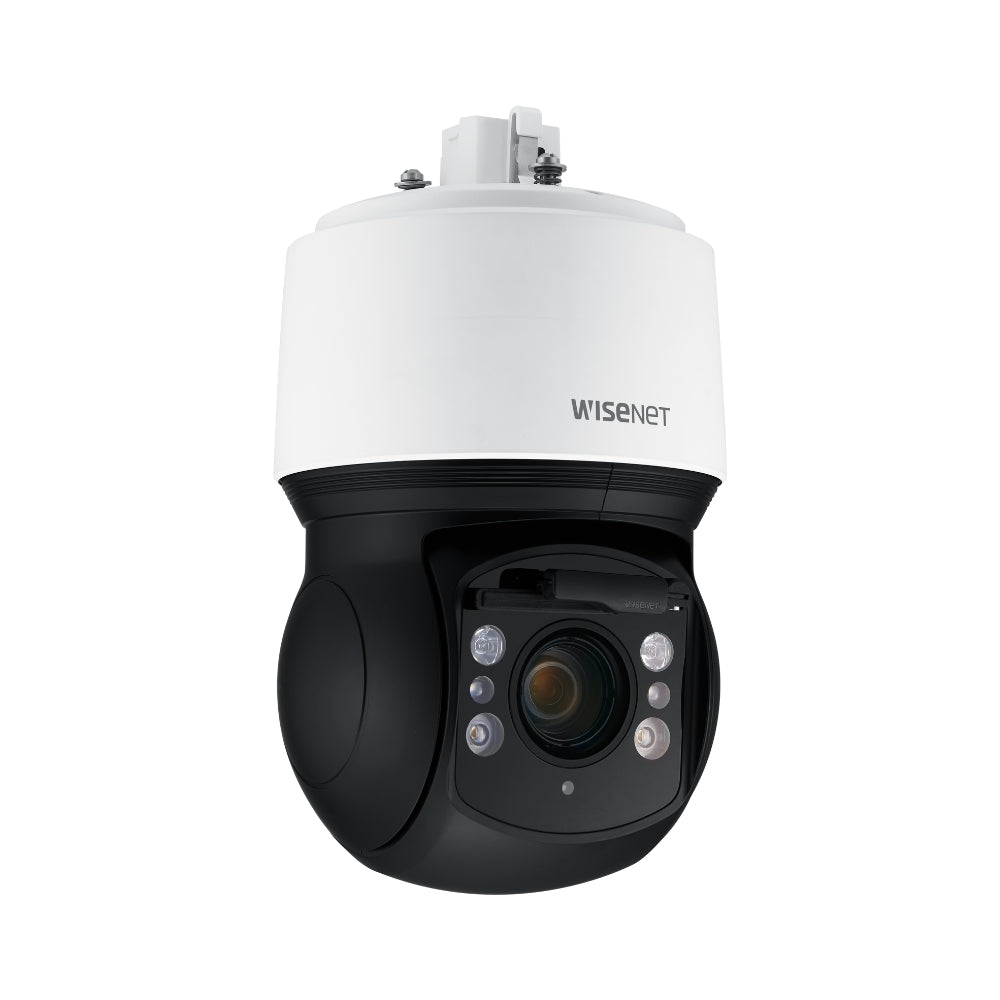

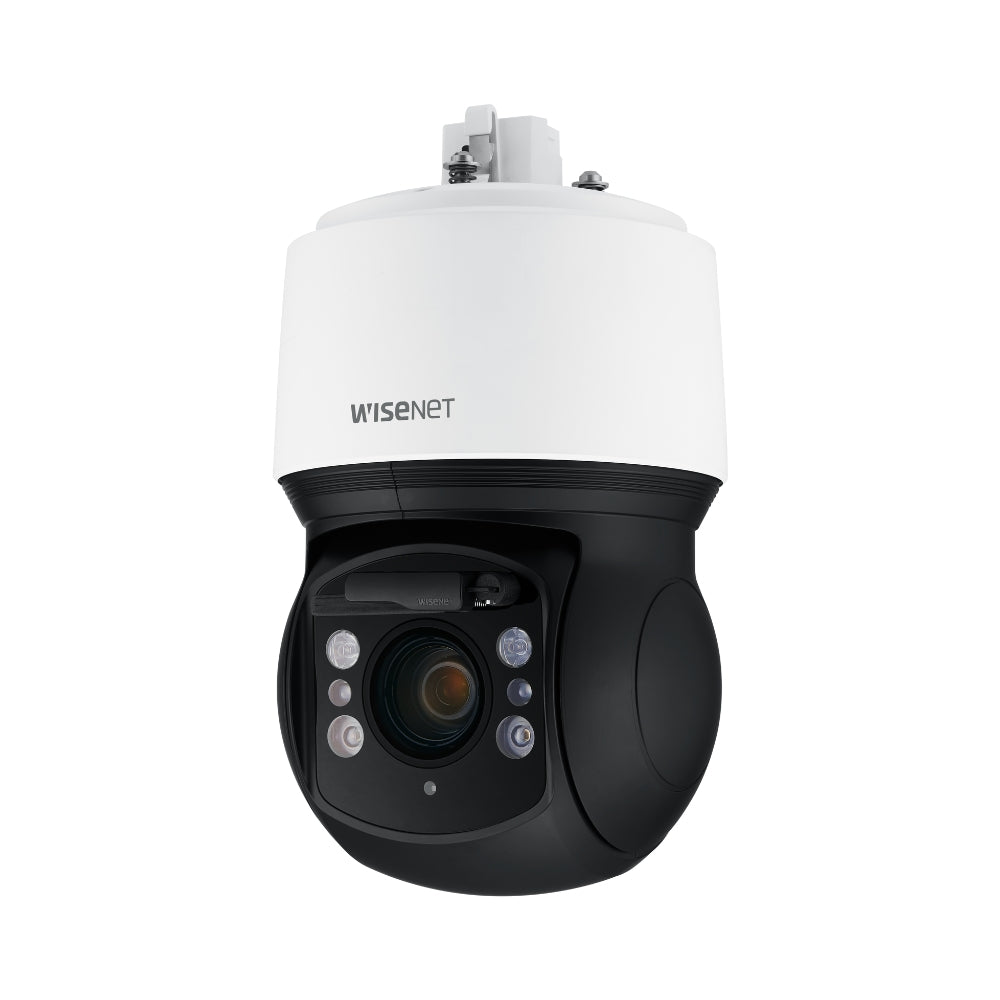

Hanwha Vision 4K 30x IR PTZ Camera with Built-In Wiper | HAN-XNP-9300RW

Hanwha Vision 4K 30x IR PTZ Camera with Built-In Wiper | HAN-XNP-9300RW

The XNP-9300RW PTZ PLUS features our Wisenet 7 chipset, to deliver a 4K resolution 30X optical zoom camera. It features an increased look-up tilt range, 360° endless pan, wiper, and IR illumination, in a new compact, lightweight form factor for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR, advanced video analytics and sound classification (I/O box required for audio detection/classification), true D/N, dual SD card slots, DIS (Gyro), HPoE, IP66/IK10, temperature range from -40°F ~ +131°F.

Features

• 4K resolution
• IR viewable length: 200m (656ft)
• 30x optical zoom lens (5mm ~150mm) (57.42° ~ 2.19°)
• -20° tilt look-up capability to see above the horizon
• H.265, H.264, MJPEG triple codec support
• Multiple streaming, WiseStream II support
• Day & Night (ICR), extreme WDR
• DIS with Built-in Gyro sensor
• Azimuth display (Cardinal & intermediate directions)
• AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
• Dual Memory slots (Maximum 512GB x 2)
• IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
• HPoE (IEEE802.3bt, Class6, Type3, Injector included)
• UL CAP Cybersecurity certified
• Optional SPM-4210 Network I/O box for alarm & audio I/O

Technical Specifications

• Video

• Imaging: Device 1/2.8" CMOS
• Resolution: 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination: Color: 0.1Lux(F1.6, 1/30sec)
• BW: 0Lux(IR LED On)
• Lens

• Focal Length (Zoom Ratio): 5~150mm(30x) zoom (digital 32x, total 960x zoom)
• Max. Aperture Ratio: F1.6(Wide) - F4.56(Tele)
• Angular Field of View: H: 57.42(Wide)~2.19(Tele) / V: 33.54(Wide)~1.25(Tele)
• Min. Object Distance: 3m(9.84ft)
• Focus Control: Oneshot AF, Focus save
• Lens Type: DC auto iris
• Pan / Tilt / Rotate

• Pan Range: 360 Endless
• Pan Speed: Max. 500/sec, Manual: 0.024/sec~250/sec
• Tilt Range: 110(-20~90)
• Tilt Speed: Max. 350/sec, Manual: 0.024/sec~250/sec
• Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy: ±0.1, Pan/Tilt correction
• Operational

• Camera Title: Displayed up to 85 characters
• Direction Indicator: Support
• Day & Night: Auto(ICR)/Color/BW/Schedule
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: Extreme WDR(120dB)
• Digital Noise Reduction: SSNRⅤ
• Digital Image Stabilization: Support(built-in gyro sensor)
• Defog: Support
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, Quadrangle Support
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Manual / Max
• White Balance: ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
• * Audio detection, Sound classification(with NW I/O Box)
• Alarm Triggers: Analytics, Network disconnect
• * Alarm input(with NW I/O Box)
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• PTZ Preset
• Handover
• * Alarm output(with NW I/O Box)
• IR Viewable Length: 200m(656.17ft), Wise IR

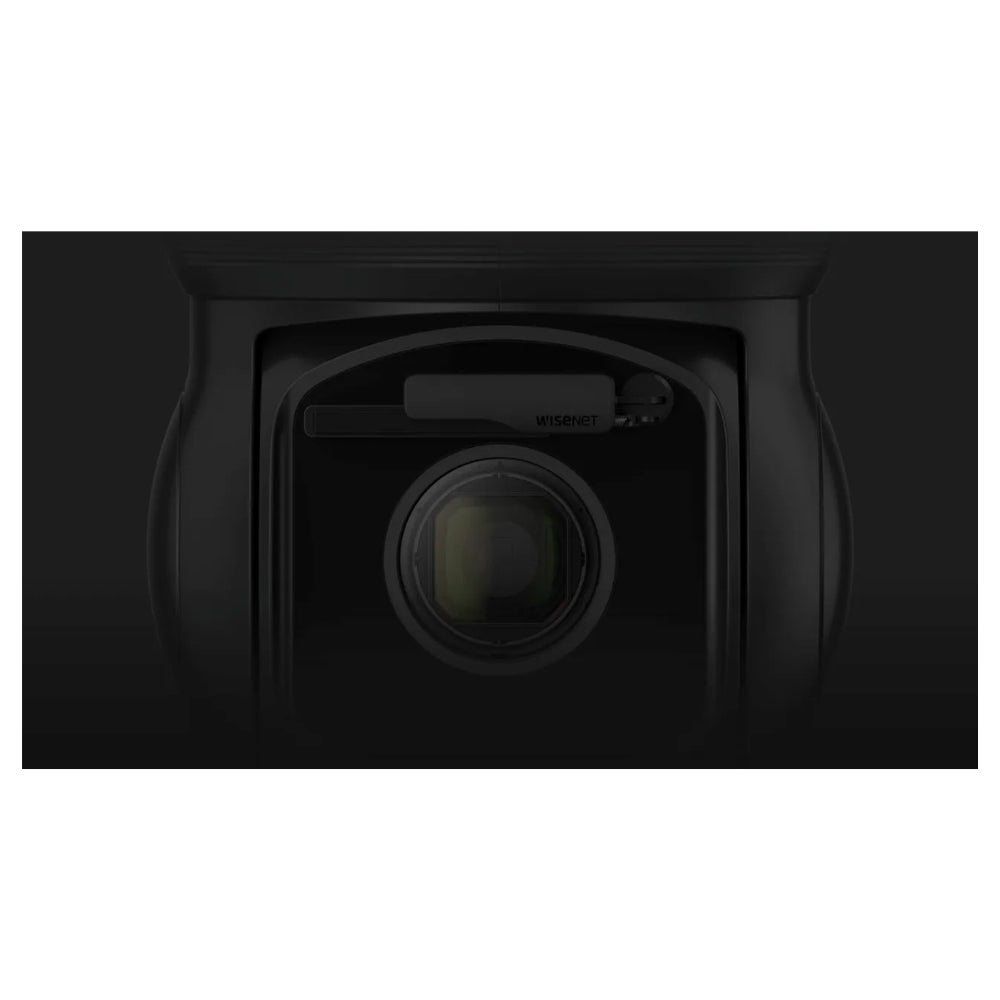

• Water Removal: Support(with wiper)
• Auto Tracking: Object auto-tracking(Person/Vehicle), Target lock tracking
• Network

• Ethernet: Metal shielded RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast (128 users)
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device certificate(Hanwha Techwin Root CA)
• Cyber security assurance program UL CAP(UL 2900-1)
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2slot 1TB
• Memory: 4GB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity:
• -40°C~+55°C(-40°F ~ +131°F) /
• +74°C/+165°F (MAX) based on NEMA-TS 2(2.2.7)
• * Start-up should be done at above -30°C
• Less than 95% RH(Non-condensing)
• Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification: IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
• Input Voltage: HPoE(IEEE802.3bt, Class6, Type3, Injector included)
• Power Consumption: Typical 20W, Max 42W
• Mechanical

• Color / Material: White, Black / Aluminum+Polycarbontate
• RAL Code: White: RAL9003 / Black: RAL9005
• Product Dimensions / Weight: Ø184.9x318.8mm(7.28x12.55") / 5.4Kg(11.90lb)
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): Wide: 140.2m(460.0ft) / Tele: 4018.1m(13182.6ft)
• Observe (63PPM/ 19PPF): Wide: 56.1m(184.0ft) / Tele: 1607.2m(5273.1ft)
• Recognize (125PPM/ 38PPF): Wide: 28.0m(92.0ft) / Tele: 803.6m(2636.5ft)
• Identify (250PPM/ 76PPF): Wide: 14.0m(46.0ft) / Tele: 401.8m(1318.3ft)
