Hanwha Vision 4K 30xAI IR PTZ Camera with Built-In Wiper | HAN-XNP-C9303RW

Hanwha Vision 4K 30xAI IR PTZ Camera with Built-In Wiper | HAN-XNP-C9303RW

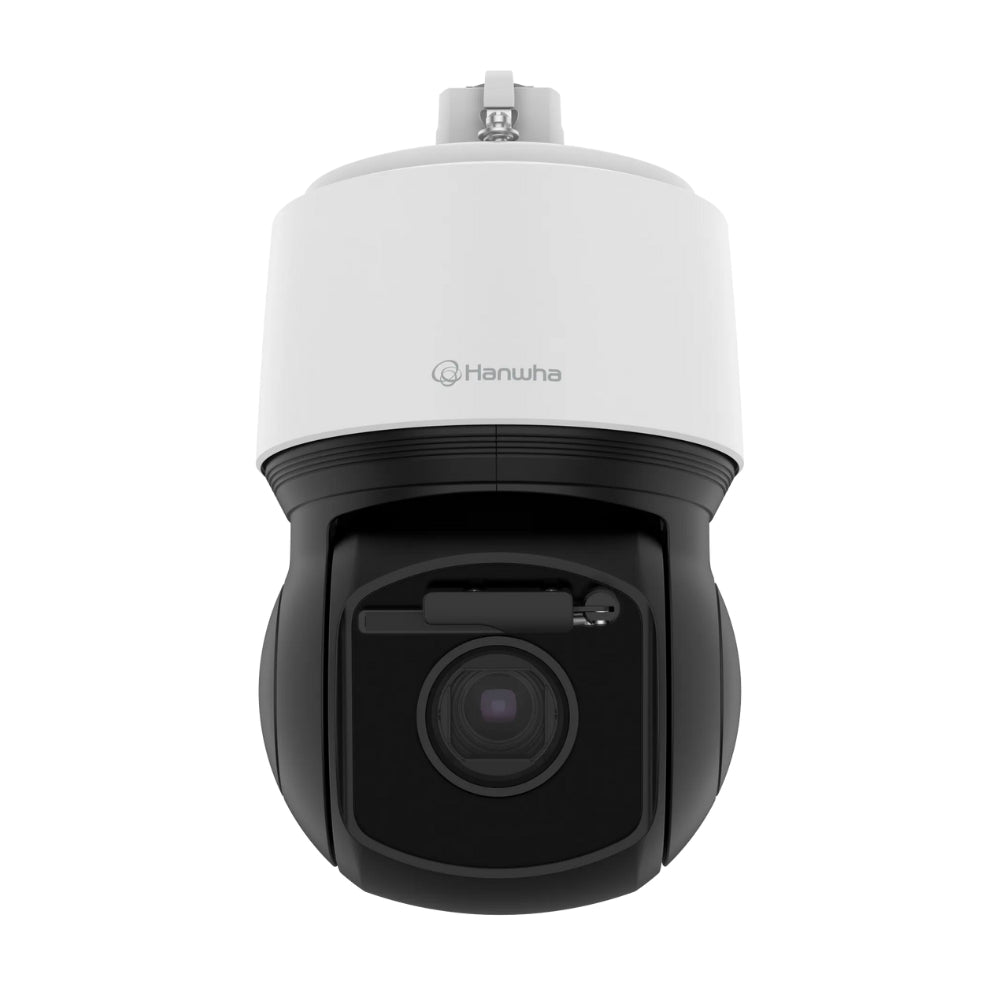

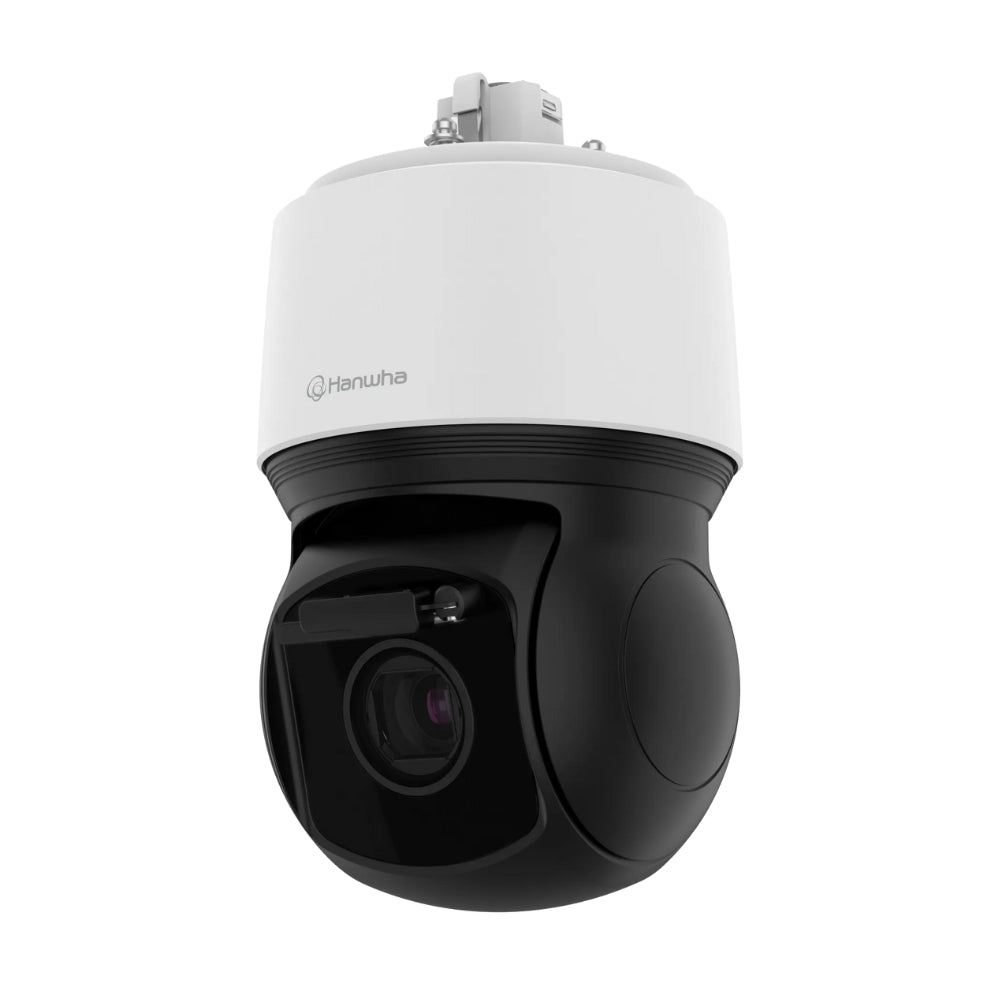

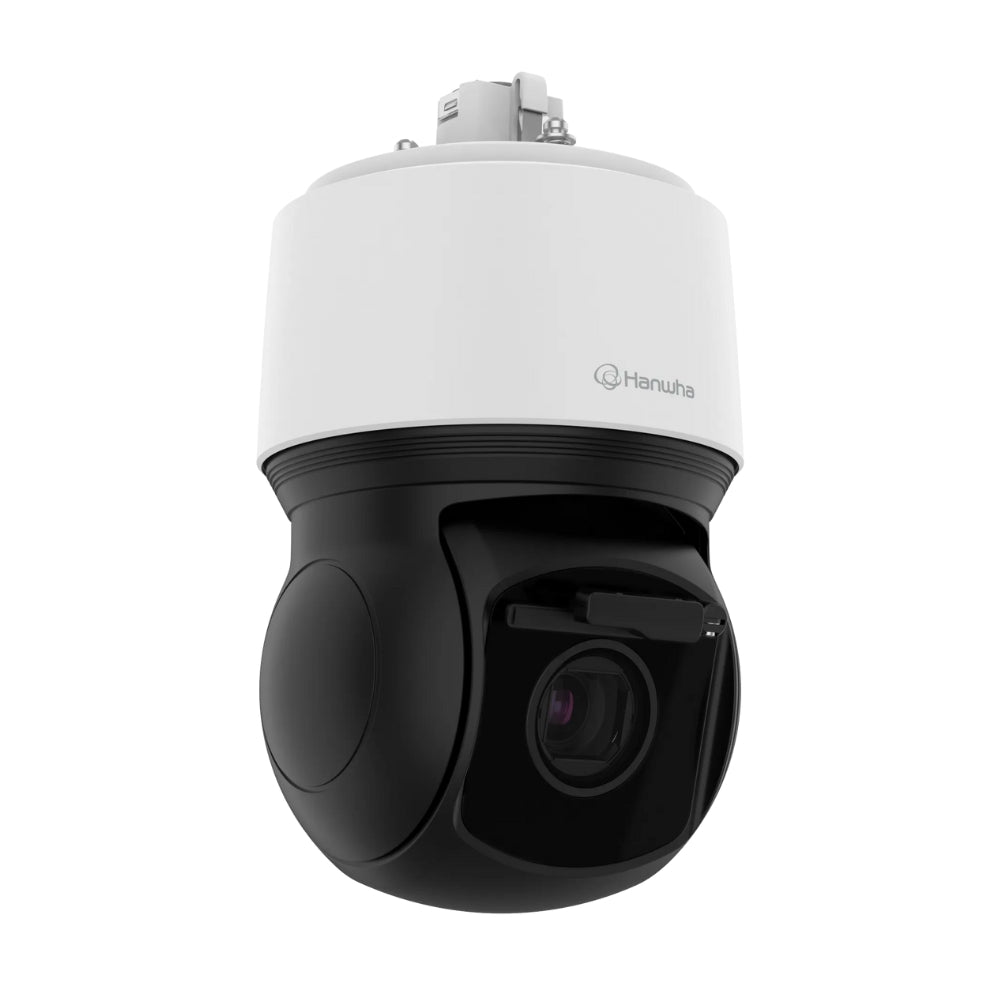

The XNP-C9303RW 4K 30x AI IR Wiper PTZ Camera from Hanwha Vision features a 5-150mm 30x optical zoom lens and captures up to UHD 4K 3840 x 2160 resolution at 30 fps. It uses H.265, H.264, and MJPEG codecs and allows multi-streaming. A wiper and lens heater allow for water and snow removal.

With the integration of AI, real-time detection, and classification of people, vehicles, and faces, license plates are now possible. This filters out unnecessary movements such as waving leaves, shadows, or animals and therefore the operational efficiency increases when multiple objects appear. In other words, non-AI cameras based on motion detection detect multiple objects as a single object but AI PTZ Plus cameras detect persons individually and classify vehicles into specific types.

One notable feature of the AI PTZ PLUS camera is its auto-following supported by the AI engine. Because the AI PTZ Plus camera distinguishes humans and vehicles, the AI PTZ Plus camera constantly follows moving target objects, even if there are other people or vehicles around. Moreover, auto-following does not miss the target object even if the object briefly disappears, which indicates auto-following does not depend on the background, such as low light and complex nocturnal settings.

AI PTZ Plus Cameras provide wide coverage with pan, tilt, and zoom features. Besides these functions, a clear view up to 200m during nighttime is supported by the IR feature. AI PTZ Plus camera’s IR provides efficient monitoring of whether the environment is dark or bright.

Features

• 4K resolution
• IR viewable length: 200m (656ft)
• 30x optical zoom lens (5mm ~ 150mm) (57.42° ~ 2.19°)
• -20° tilt look-up capability to see above the horizon
• Wiper & lens heater for water/snow removal
• H.265, H.264, MJPEG triple codec support
• Multiple streaming, WiseStream III support
• Day & Night (ICR), extreme WDR
• DIS with Built-in Gyro sensor
• Azimuth display (Cardinal & intermediate directions)
• AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
• Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
• Dual Memory slots (Maximum 512GB x 2)
• IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
• HPoE (IEEE802.3bt, Class6, Type3, Injector included)
• TPM 2.0 with FIPS 140-2 level 2
• Optional SPM-4210 Network I/O box for alarm & audio I/O
• Operating Temperature -40°C~+55°C (-40°F ~ +131°F)

Technical Specifications

• Video

• Imaging Device: 1/2.8" CMOS
• Resolution: 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
• Min. Illumination: Color: 0.1Lux(F1.6, 1/30sec)
• BW: 0Lux(IR LED On)
• Lens

• Focal Length (Zoom Ratio): 5~150mm(30x) zoom (digital 32x, total 960x zoom)
• Max. Aperture Rati:o F1.6(Wide) - F4.56(Tele)
• Angular Field of View: H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele)
• Min. Object Distance: 3m(9.84ft)
• Focus Control: Oneshot AF, Focus save
• Lens Type: DC auto iris
• Pan / Tilt / Rotate

• Pan Range: 360° Endless
• Pan Speed: Max. 500°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Range: 110°(-20°~90°)
• Tilt Speed: Max. 350°/sec, Manual: 0.024°/sec~250°/sec
• Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy: Up to ±0.1°, Pan/Tilt correction
• Operational

• Camera Title: Displayed up to 85 characters
• Direction Indicator: Support
• Day & Night: Auto(ICR)/Color/BW/Schedule
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: Extreme WDR(120dB)
• Digital Noise Reduction: SSNRⅤ
• Digital Image Stabilization: Support(built-in gyro sensor)
• Defog: Support
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, Quadrangle Support
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Manual / Max
• White Balance: ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics:
• Classified object type: Person/Face/Vehicle/License plate
• Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
• Support DetectionShot
• Analytics events based on AI engine
• - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
• Analytics events
• - Defocus detection, Motion detection, Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear)
• * Audio detection, Sound classification(with NW I/O Box)
• Alarm Triggers: Analytics, Network disconnect
• * Alarm input(with NW I/O Box)
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• PTZ Preset
• Handover
• * Alarm output(with NW I/O Box)
• IR Viewable Length: 200m(656.17ft), Wise IR
• Water Removal: Support(Wiper)
• Auto Tracking: Object auto-tracking(Person/Vehicle), Target lock tracking
• Network

• Ethernet: Metal shielded RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast (128 users)
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Security

• OS / Firmware Protect: Secure boot, Signed firmware, Firmware encryption
• User authentication: Digest Authentication, Prevent brute-force attack
• Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication: HTTPS, SRTP, WSS(Web socket secure)
• Access Control: IP address filtering
• Data Protect: Authentication information encryption, ZIP compression encryption
• Audit: User Access/System/Event log
• Device ID: Device Certificate(Hanwha Techwin Root CA, pre-installed)
• Secure Storage: TPM 2.0 with FIPS 140-2 level2
• Security Certificate: Secure by default
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2slot 1TB
• Memory: 4GB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity:
• -40°C~+55°C(-40°F ~ +131°F) /
• +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7)
• * Start-up should be done at above -30°C
• 0~95% RH(Non-condensing)
• Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH
• Certification: IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
• Input Voltage: HPoE(IEEE802.3bt, Class6, Type3, Injector included)
• Power Consumption: Typical 26W, Max 46W
• Mechanical

• Color / Material: White, Black / Aluminum+Polycarbontate
• RAL Code: White: RAL9003 / Black: RAL9005
• Product Dimensions / Weight: ø184.9x318.8mm(7.28x12.55") / 5.6kg (12.34lb)
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): Wide: 140.2m(460ft) / Tele: 4018.1m(13182.6ft)
• Observe (63PPM/ 19PPF): Wide: 56.1m(184ft) / Tele: 1607.2m(5273.1ft)
• Recognize (125PPM/ 38PPF): Wide: 28.0m(92ft) / Tele: 803.6m(2636.5ft)
• Identify (250PPM/ 76PPF): Wide: 14.0m(46ft) / Tele: 401.8m(1318.3ft)
