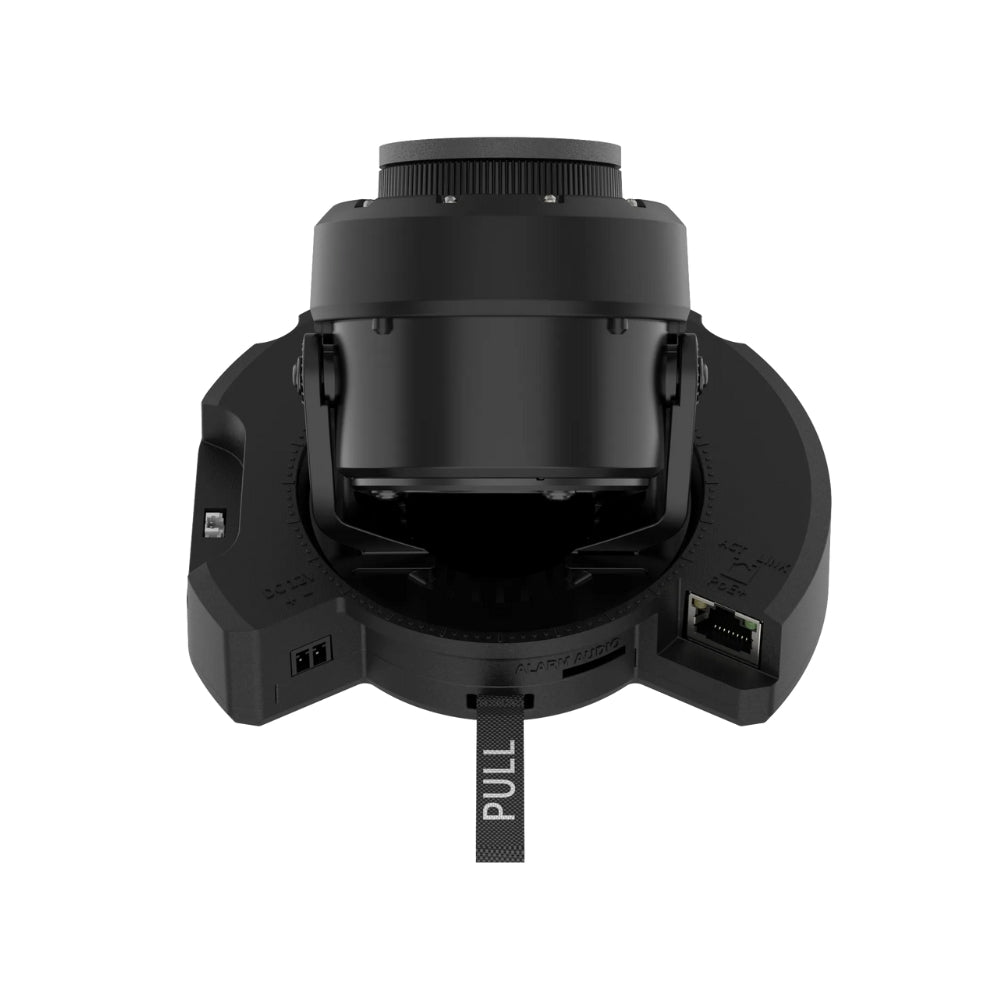

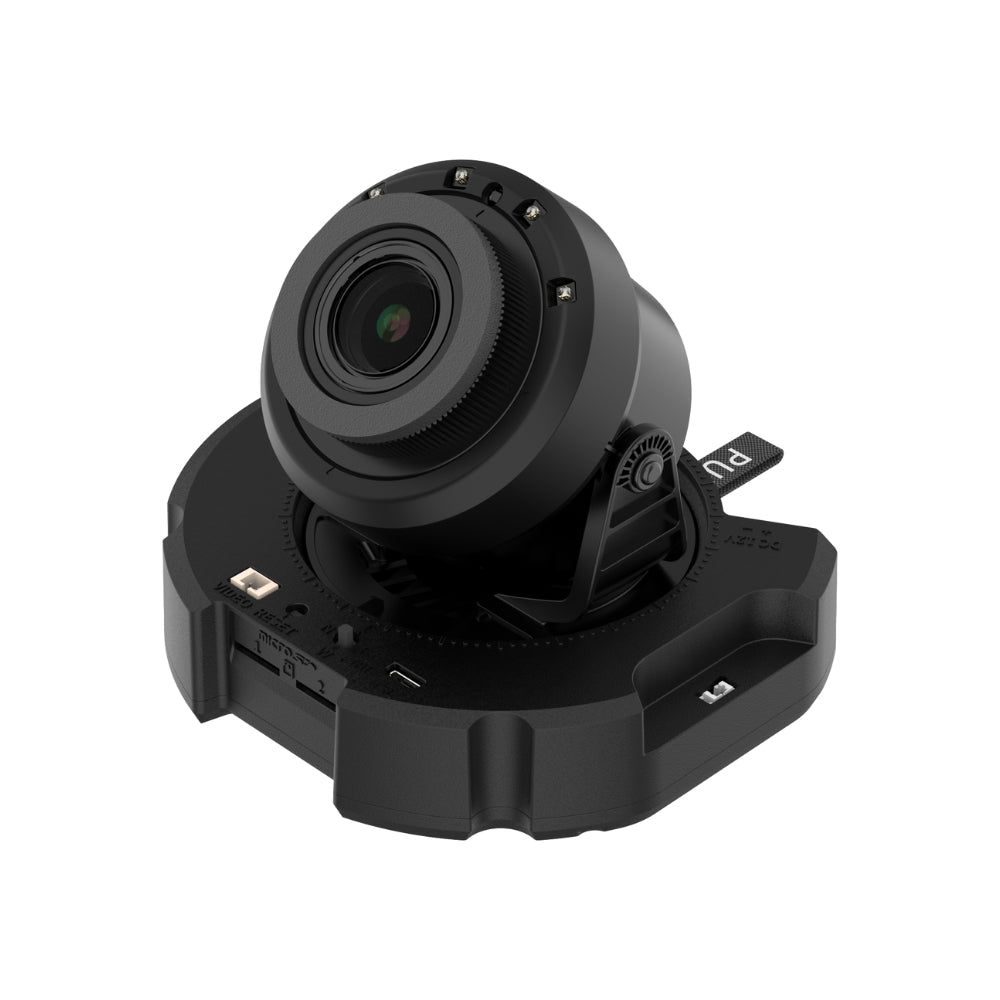

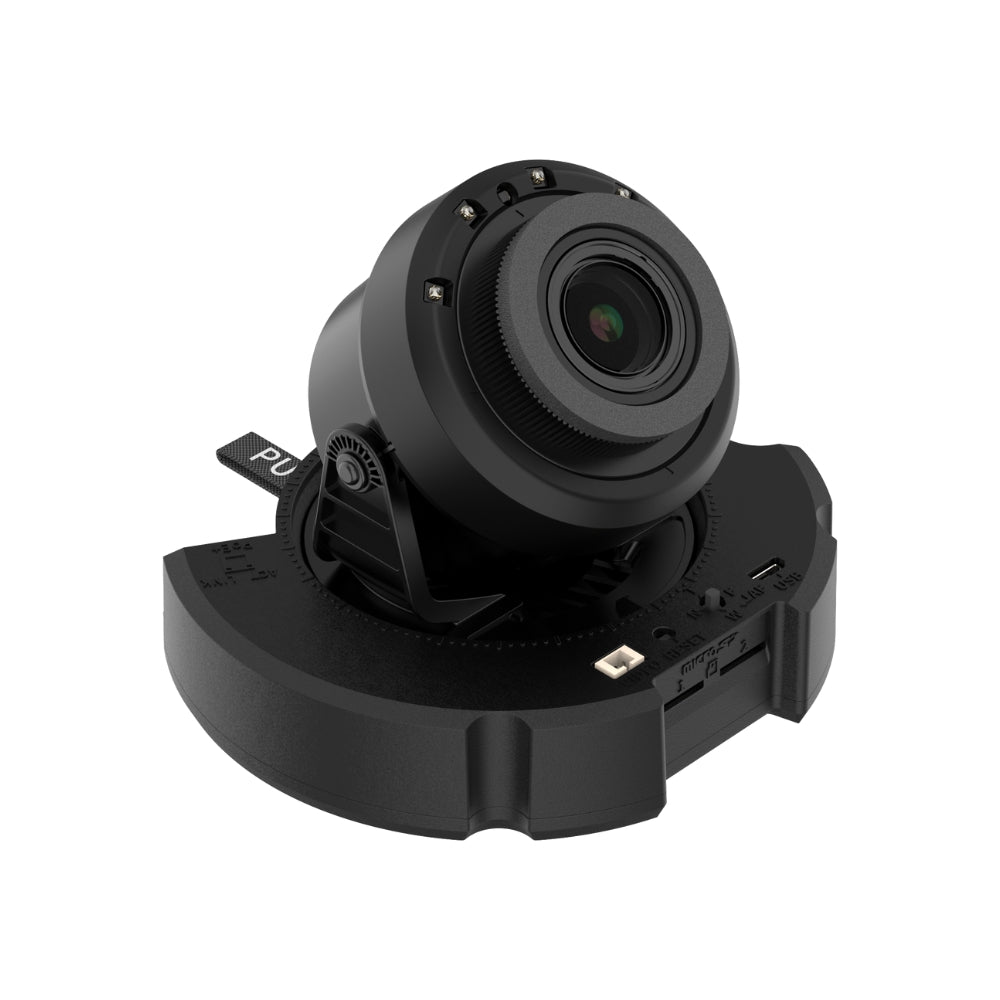

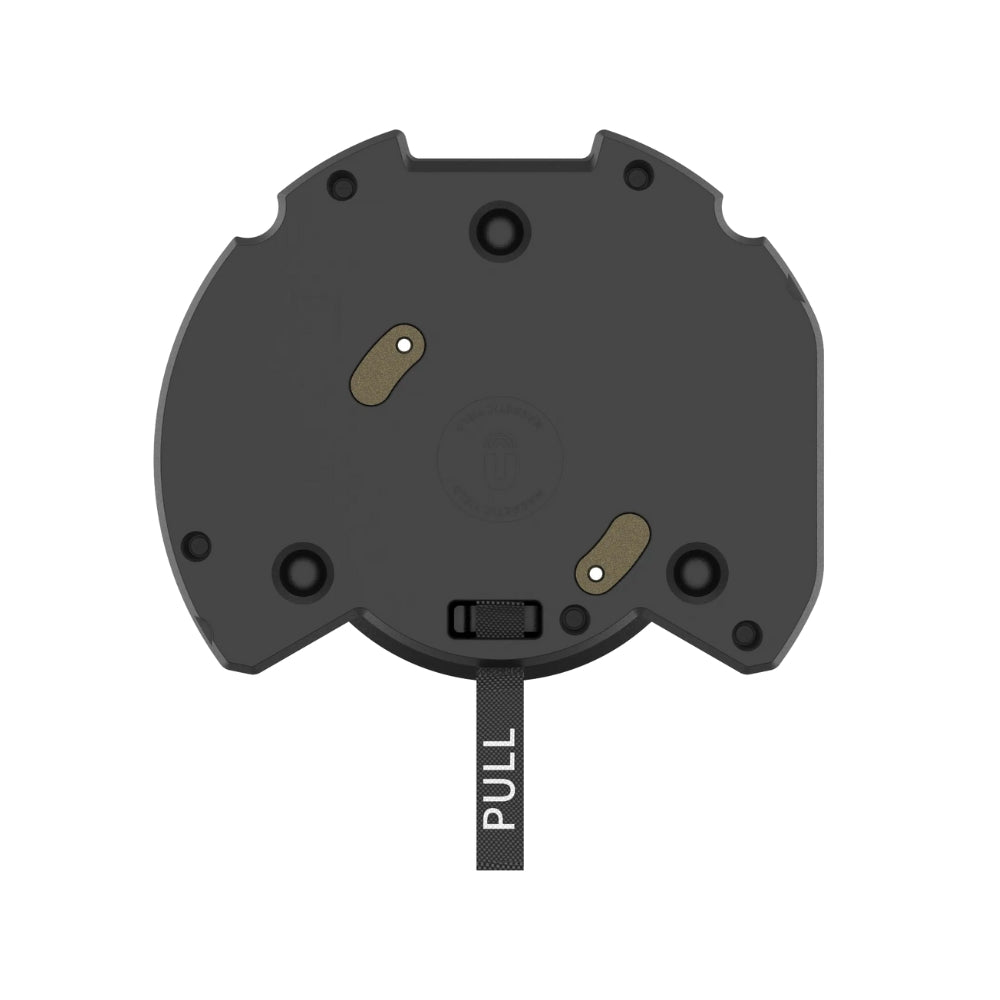

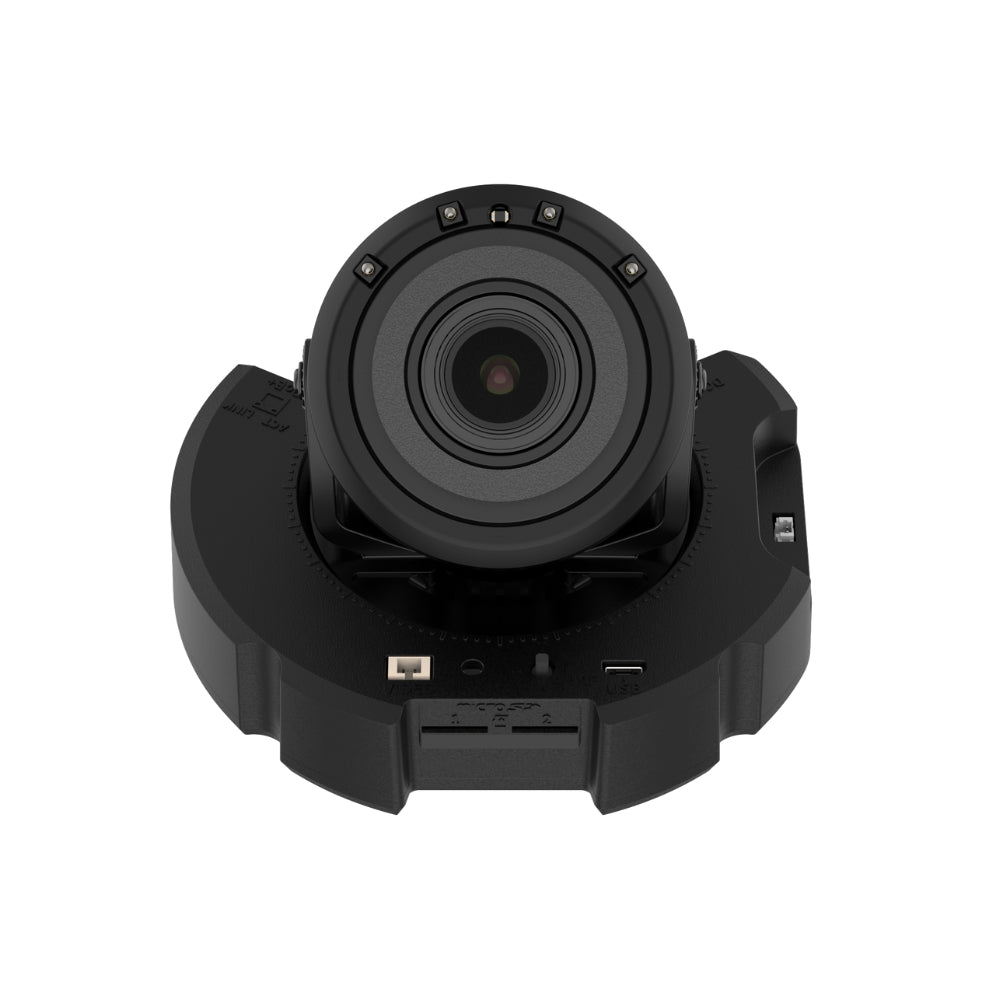

Hanwha Vision 4K IR Outdoor Vandal AI Camera Module | HAN-PNV-A9081RX
Upgrade an indoor modular camera for outdoor use with the black PNV-A9081RX 4K UHD Outdoor Network Dome Camera Module from Hanwha Techwin. This unit uses a 1/1.8" CMOS sensor to capture 4K UHD resolution video at 30 fps. IR LEDs provide up to 98' of night vision. A 4.5-10mm motorized varifocal lens delivers a 102 to 45° horizontal field of view. Two-way audio is possible thanks to an audio input and output. Dual card slots, each accepting microSD/SDHC/SDXC cards up to 512GB for a storage total of up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Note: Camera Module Only (No Housing included)
Features
- Camera module for easy upgrade of existing indoor modular cameras.
- 4K / 8 megapixel (3840 x 2160) resolution
- 0.05Lux@F1.6 (Color), 0 Lux (B/W IR LED On)
- 30fps@all resolutions (H.265/H.264)
- Video Analytics based on AI
- - Object detection and classification(Person, Face, Vehicle, License Plate)
- - Face mask detection, Social distancing detection
- - Attribute, BestShot
-
Edge Storage: Micro SD/SDHC/SDXC 2slots 512GB
-
30m (98ft) IR illumination
-
4.5~10mm (2.2x) motorized varifocal lens
-
H.265, H.264, MJPEG codec supported, multiple streaming
-
Day & Night (ICR), WDR (120dB), P-Iris
-
Digital image stabilization with built-in Gyro sensor
-
PTZ Handover, audio event playback, digital auto tracking
-
Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
-
Hallway view, WiseStream III support
-
LDC support (Lens Distortion Correction)
-
PoE+ / 12V DC, Bi-directional audio support
-
IP66 / IP67 / IP6K9K, IK10+, NEMA4X rated (Based on housing specs)
Technical Specifications
-
Video
- Imaging Device: 1/1.8" CMOS
- Resolution: 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
- MJPEG: Max. 30fps(@8MP Max. 5fps)
- Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec)
- BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
- Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
- USB: Micro USB Type B, 1280x720 for installation
-
Lens
- Focal Length (Zoom Ratio): 4.5~10mm(2.2x) motorized varifocal
- Max. Aperture Ratio: F1.6(Wide)~F2.65(Tele)
- Angular Field of View:
- H: 102°(Wide)~45°(Tele)
- V: 54°(Wide)~25°(Tele)
- D: 121°(Wide)~52°(Tele)
- Min. Object Distance: 0.5m(1.64ft)
- Focus Control: Simple focus
- Lens Type: P-iris
-
Pan / Tilt / Rotate
- Pan / Tilt / Rotate Range: 0~360 / -45~85 / 0~355
-
Operational
- Camera Title: Displayed up to 85 characters
- Day & Night: Auto(ICR)
- Backlight Compensation: BLC, WDR, SSDR
- Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
- Digital Image Stabilization: Support(built-in gyro sensor)
- Motion Detection: 8ea, polygonal zones
- Privacy Masking: 6ea, Rectangle zones
- - Color: Gray/Black/White
- Gain Control: Low / Middle / High
- White Balance: ATW / AWC / Manual / Indoor / Outdoor
- LDC: Support
- Electronic Shutter Speed: Minimum / Maximum / Anti-flicker(1/5~1/12,000sec)
- Prefer shutter control(Based on AI engine)
- Video Rotation: Flip, Mirror, Hallway view(90-/270-)
- Analytics: Classified object type: Person/Face/Vehicle/License plate
- Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color)
- Support Bestshot per object
- Analytics events based on AI engine
- - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Facemask detection, Digital auto tracking, Social distancing detection
- Analytics events
- - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- *Some of the video analytics only works with people and vehicle detection
- Business Intelligence: Based on AI engine: People counting, Queue management, Heatmap
- Alarm I/O: 2 configurable I/O ports, DC 12V output(Max. 50mA)
- Alarm Triggers: Analytics, Network disconnect, Alarm input
- Alarm Events: When alarm trigger occurred
- - File upload(image): e-mail/FTP
- - Notification: e-mail
- - Recording: SD/SDHC/SDXC or NAS recording at event triggers
- - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- - Alarm output
- - Audio clip playback
- Audio In: Selectable(mic in/line in)
- Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
- Audio Out: Line out, Max. output level: 1Vrms
- IR Viewable Length: 30m(98.42ft)
-
Network
- Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
- Video Compression: H.265/H.264: Main/High, MJPEG
- Audio Compression: G.711 u-law /G.726 Selectable
- G.726(ADPCM) 8KHz, G.711 8KHz
- G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
- AAC-LC: 48Kbps at 16KHz
- Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
- Video Quality Adjustment: H.264/H.265: Target bitrate level control
- MJPEG: Target bitrate level control
- Bitrate Control: H.264/H.265: CBR or VBR
- MJPEG: VBR
- Streaming: Unicast(6 users) / Multicast
- Multiple streaming(Up to 3 profiles)
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
- Security: HTTPS(SSL) Login Authentication
- Digest Login Authentication
- IP Address Filtering
- User access log
- 802.1X Authentication(EAP-TLS, EAP-LEAP)
- Device Certificate(Hanwha Vision Root CA)
- Secure boot
- Application Programming Interface: ONVIF Profile S/G/T/M
- SUNAPI(HTTP API)
- Wisenet open platform
-
General
- Webpage Language: English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
- Edge Storage: Micro SD/SDHC/SDXC 2slots 512GB
- Memory: 4GB RAM, 512MB Flash
-
Environmental & Electrical
- Operating Temperature / Humidity:
- When using the camera with housing
- -40°C~+55°C(-40°F~+131°F) / 0~90% RH
- * Start-up should be done at above -30°C
- * Support housing: PNV-A9081R/PNVA6081R/XNV-9083R/XNV-8083R/XNV-6083R/XNV-9082R/XNV-8082R
- Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / 0~90% RH
- Certification: IP66/IP67/IP6K9K, IK10+, NEMA4X
- * When using the camera with housing PNV-A9081R/PNVA6081R/XNV-9083R/XNV-8083R/XNV-6083R/XNV-9082R/XNV-8082R
- Input Voltage: PoE+(IEEE802.3at type2, class4), 12VDC
- Power Consumption: PoE+: Max 20.00W, typical 17.00W
- 12VDC: Max 18.70W, typical 15.00W
-
Mechanical
- Color / Material: Black / Aluminum
- Product Dimensions / Weight: ø137.7x104.9mm(ø5.42x4.13"), 750g(1.66lb)
-
DORI (EN62676-4 standard)
- Detect (25PPM/ 8PPF): Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft)
- Observe (63PPM/ 19PPF): Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft)
- Recognize (125PPM/ 38PPF): Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft)
- Identify (250PPM/ 76PPF): Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft)
