Hanwha Vision 4K IR Indoor Vandal Dome AI Camera | HAN-PND-A9081RV

Hanwha Vision 4K IR Indoor Vandal Dome AI Camera | HAN-PND-A9081RV

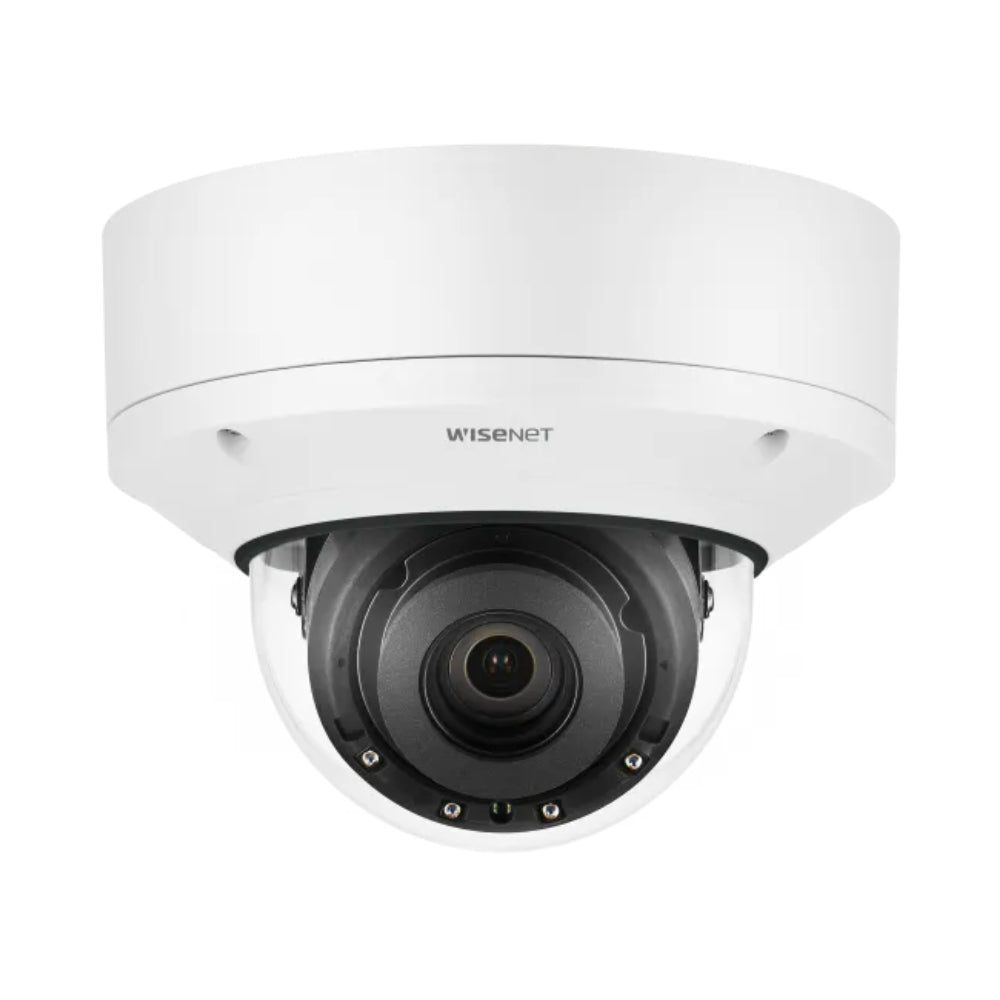

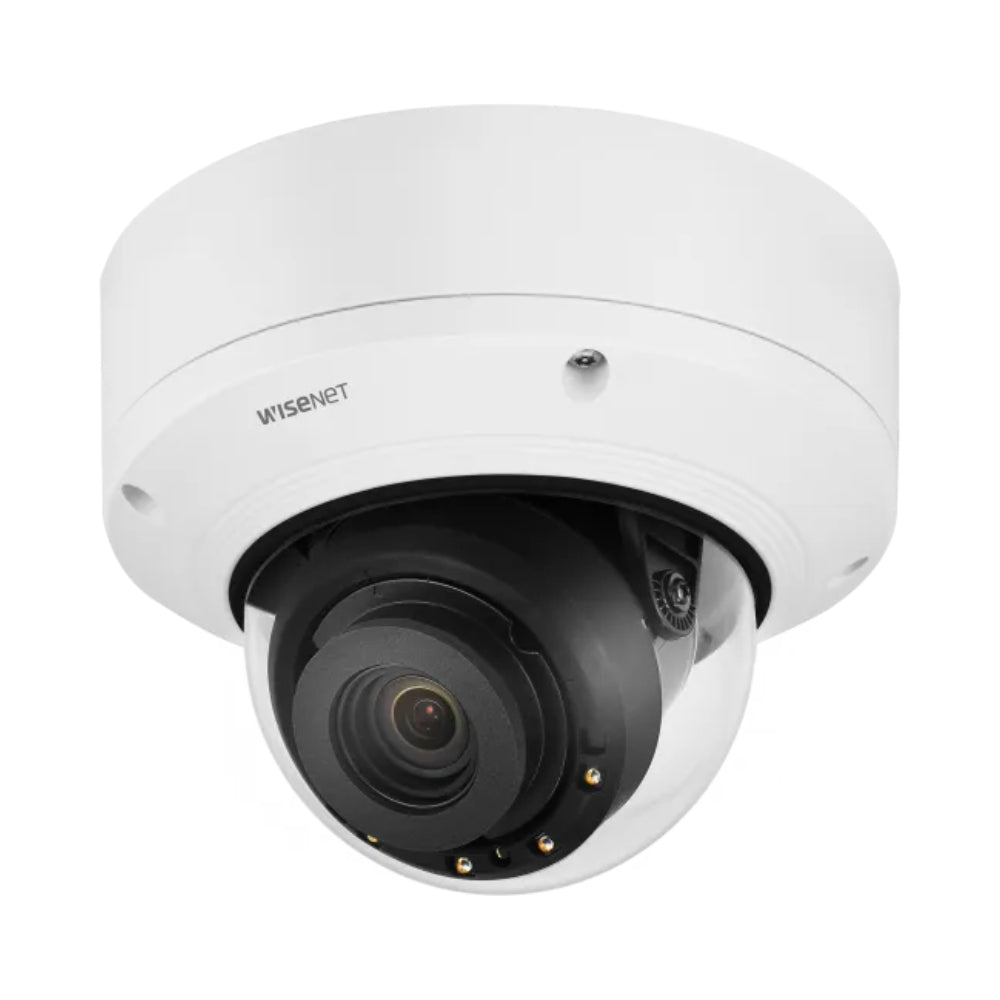

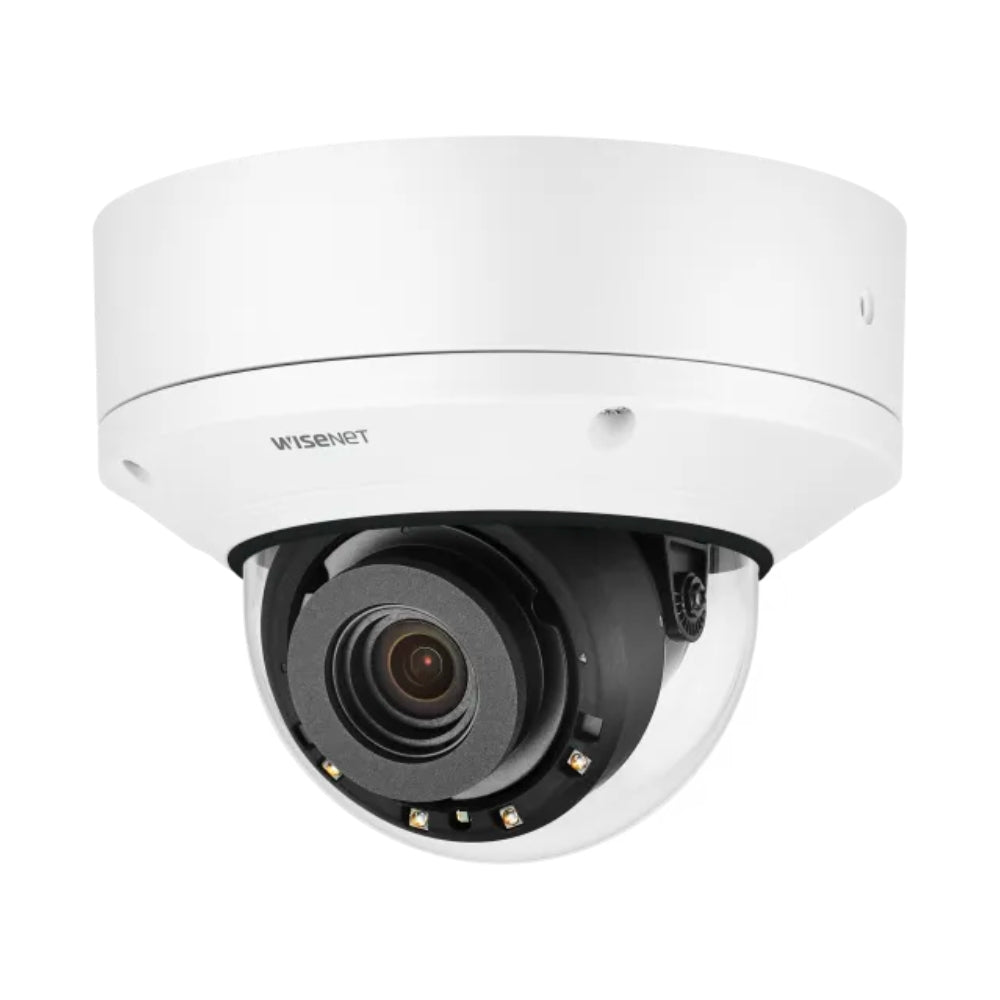

Monitor a room or hallway with the white PND-A9081RV 4K UHD Network Dome Camera from Hanwha Techwin. This unit uses a 1/1.8" CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 4.5-10mm motorized varifocal lens delivers a 101.4 to 45.5° horizontal field of view and 2.2x optical zoom. Two-way audio is possible thanks to a built-in microphone, an audio input, and an audio output. Dual memory card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Features

• 4K / 8 megapixel (3840 x 2160) resolution
• 0.05Lux@F1.6 (Color), 0 Lux (B/W IR LED On)
• 30fps@all resolutions (H.265/H.264)
• Video Analytics based on AI
• Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
• Modular structure for easy installation
• 4.5~10mm (2.2x) motorized varifocal lens
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & Night (ICR), WDR (120dB), P-Iris
• Digital image stabilization with built-in Gyro sensor
• Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection
• Motion detection, PTZ Handover, audio event playback, digital auto-tracking
• 30m (98ft) IR Illumination
• Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
• Hallway view, WiseStream III support
• LDC support (Lens Distortion Correction)
• PoE+ / 12V DC, Bi-directional audio support
• IP52 / IK10 rated

Technical Specifications

• Video

• Imaging Device: 1/1.8" CMOS
• Resolution: 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
• Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec)
• BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
• Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
• USB: Micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 4.5~10mm(2.2x) motorized varifocal
• Max. Aperture Ratio: F1.6(Wide)~F2.65(Tele)
• Angular Field of View: H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
• Min. Object Distance: 0.5m(1.64ft)
• Focus Control: Simple focus
• Lens Type: DC auto iris, P iris
• Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range: 0~360 / -45~85 / 0~355
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, WDR, SSDR
• Digital Noise Reduction: SSNRⅤ
• Digital Image Stabilization: Stabilization Support(built-in gyro sensor)
• Motion Detection: 8ea, polygonal zones
• Privacy Masking: 6ea, rectangle zones
• - Color: Gray/Black/White
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC: Support
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000sec)
• Video Rotation: Flip, Mirror, Hallway view(90/270)
• Analytics: - Classified object type: Person/Face/Vehicle/License plate with attributes, BestShot per object
• - Analytics events based on AI engine: Object detection, Face mask detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line, Social distancing detection
• - Analytics events: Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection
• Business Intelligence: People counting, Queue management, Heatmap based on AI engine
• Alarm I/O: Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Handover
• Audio playback
• Audio In: Selectable(mic in/line in/built-in mic)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• IR Viewable Length: 30m(98.42ft)
• Network

• Ethernet: Metal shielded RJ-45(10/100/1000 BASE-T)
• Video Compression: H.265/H.264: Main/High, MJPEG
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Video Quality Adjustment: H.264/H.265: Target bitrate level control
• MJPEG: Target bitrate level control
• Bitrate Control: H.264/H.265: CBR or VBR

• MJPEG: VBR
• Streaming: Unicast(6 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Secure boot
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General

• Webpage Language: English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer: Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14
• Recommended Browser: Google Chrome
• Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple
• Safari(Mac OS X only)
• Edge Storage: Micro SD/SDHC/SDXC 2slots 512GB
• Memory: 4096MB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity: -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
• Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification: IP52, IK10
• Input Voltage: PoE+(IEEE802.3at), 12VDC
• Power Consumption: PoE+: Max 20.00W, typical 16.00W
• 12VDC: Max 17.70W, typical 14.00W
• Mechanical

• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product Dimensions / Weight: Ø160x125mm(6.30x4.92"), Weight : 1.60Kg (3.53lb)
• Compatible Conduit hole / Gangbox: 1/2"(M20)
• single, double, 4"octagon, 4"square
• Hanging Mount (Dome): SBP-167HMW
• Skin Cover (Dome): SBC-160B
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft)
• Observe (63PPM/ 19PPF): Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft)
• Recognize (125PPM/ 38PPF): Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft)
• Identify (250PPM/ 76PPF): Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft)

Product Literature

• Hanwha Vision 4K IR Indoor Vandal Dome AI Camera Data Sheet
