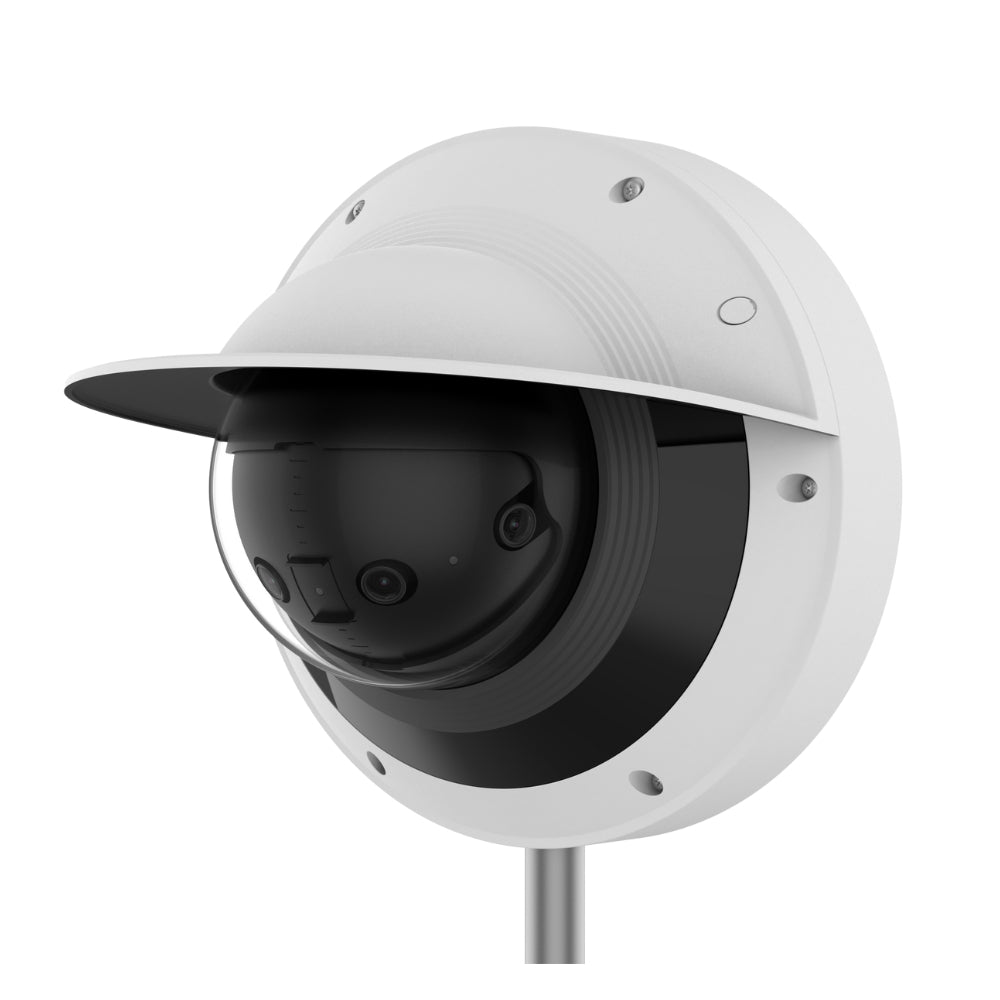

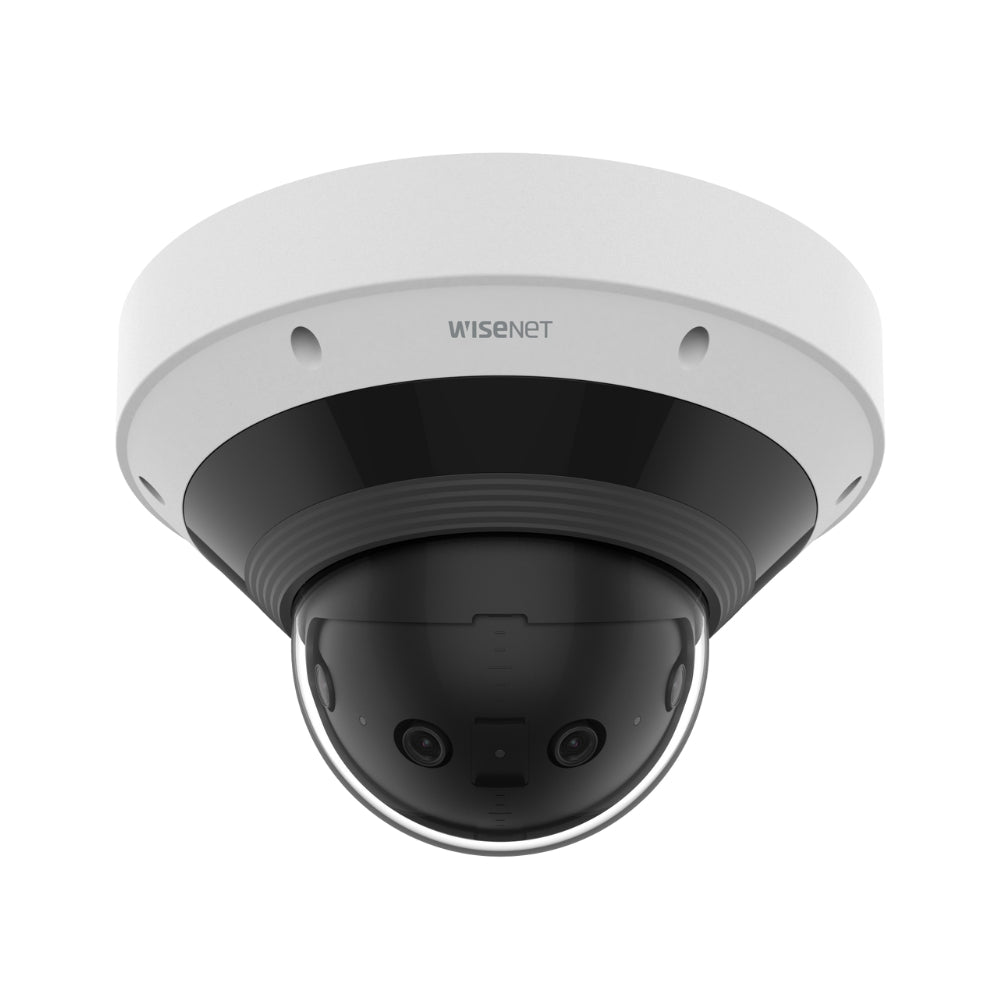

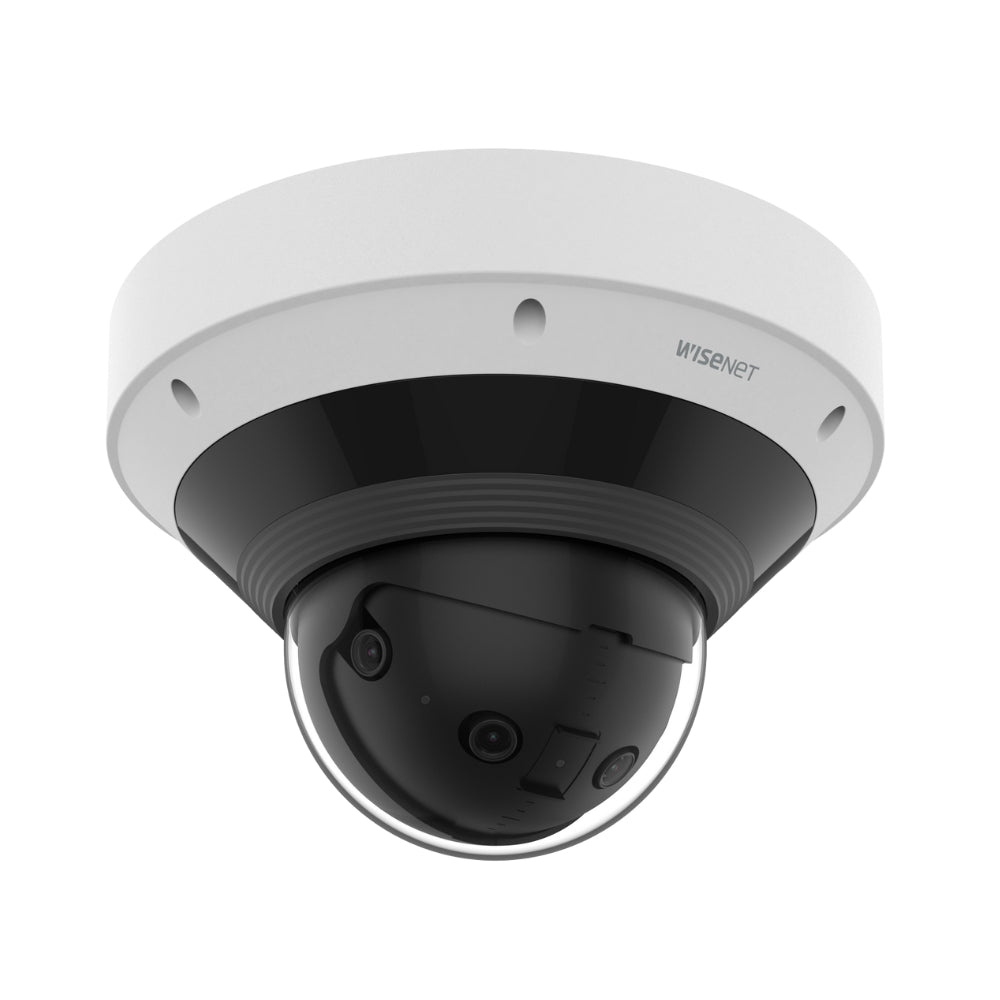

Hanwha Vision 8MP AI Panoramic Camera with IR | HAN-PNM-C9022RV

Hanwha Vision 8MP  AI Panoramic Camera with IR | HAN-PNM-C9022RV

This multi-sensor camera uses four 1/2.8" CMOS sensors to capture video at a combined stitched resolution of 8MP at 20 fps. WiseIR provides up to 66' of night vision. The camera is equipped with four 2.8mm fixed lenses that deliver a 209° panoramic stitched horizontal field of view. Two-way audio is possible thanks to an audio input and output. Dual card slots each accept microSD/SDHC/SDXC cards up to 512GB for a storage total of up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Features

• 8MP 5120X1568 resolution
• 209⁰ panoramic stitching image
• IR viewable length Maximum 20m (65.6ft), WiseIR
• 20fps at all resolutions (H.265/H.264/MJPEG)
• H.265, H.264, MJPEG codec, WiseStream III supported
• WiseNRⅡ(Based on AI engine)
• Analytics events based on AI engine: Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
• Standard analytic events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
• micro SD/SDHC/SDXC 2 slots, PoE+/12v DC, IP66, IK10
• Hard-coated dome bubble
• TPM 2.0 with FIPS 140-2, Secure OS/Boot/Storage, Verify firmware forgery
• USB connector for easy setup with optional Wi-Fi adapter

Technical Specifications

• Video

• Imaging Device: 1/2.8" CMOS (x4)
• Resolution: 5120X1568, 3648X1152, 2560X784, 1280X392
• Max. Framerate: H.265/H.264: Max. 20fps(60Hz/50Hz)
• MJPEG: Max. 20fps(60Hz/50Hz)
• Min. Illumination: Color: 0.1Lux(F2.0, 1/30sec)
• BW: 0.01Lux(F2.0, 1/30sec), 0Lux(IR LED on)
• Video Out: USB: Micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 2.8mm fixed focal (x4)
• Max. Aperture Ratio: F2.0
• Angular Field of View: H: 209°, V: 60°
• Min. Object Distance: 5m(16.4ft)
• Focus: Control Fixed
• Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range: 0°~360° / 0°~65° / -
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
• Motion Detection: 8ea, 8point Polygonal zones
• Privacy Masking: 10ea, Rectangular zones
• - Color: Gray, Green, Red, Blue, Black, White
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Prefer / Anti-flicker (2~1/12,000sec)
• Auto prefer shutter control(Based on AI engine)
• Video Rotation: Flip, Mirror
• Analytics: Classified object type: Person/Vehicle
• Attributes: Not support
• Support BestShot
• Analytics events based on AI engine
• - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
• Analytics events
• - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
• Alarm I/O: 2 configurable I/O ports
• Alarm Triggers: Analytics, Network disconnect, Alarm input, App event, Time schedule
• Alarm Events: When alarm trigger occurred
• - File upload(image) : e-mail/FTP
• - Notification: e-mail
• - Recording: SD/SDHC/SDXC or NAS recording at event triggers
• - Alarm output
• - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
• - Audio clip playback
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• IR Viewable Length: WiseIR 20m(65.62ft)
• 4 individual zones with Automatic/Manual level adjustment
• Network

• Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 3 profiles, 2 virtual channel support)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Device Certificate(Hanwha Techwin Root CA, pre-installed)
• Secure by default certificate
• Secure OS/Boot/Storage, Verify firmware forgery
• TPM 2.0 with FIPS 140-2 level2
• Application Programming Interface: ONVIF Profile S/G/T/M
• SUNAPI(HTTP API)
• Wisenet open platform
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage: Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
• Memory: 4GB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity :-40°C ~ +55°C(-40°F ~ +131°F) / 0 ~ 95% RH(non-condensing)
• Storage Temperature / Humidity: -30°C ~ +60°C(-22°F ~ +140°F)/ 0~90% RH
• Input Voltage: PoE+(IEEE802.3at, Class4), 12VDC
• Power Consumption: PoE+: Max 24.5W, typical 11.3W
• 12VDC: Max 22.0W, typical 10.4W
• Power redundancy failover
• Mechanical

• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product Dimensions / Weight: Ø253x170mm(9.96"x6.69"), 2900g(6.39lb)
• Compatible Conduit hole / Gangbox: 3/4"(M25) /
• Single, Double, 4"Octagon, Square
• Hanging Mount (Dome): SBP-276HMW
• Certifications & Standards

• EMC: FCC 47 CFR 15 Subpart B Class A
• ICES-3(A)/NMB-3(A)
• CE/UKCA
• - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
• VCCI CISPR 32 Class A
• RCM AS/NZS CISPR 32 Class A
• KS C 9832 Class A, KS C 9835
• Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• IEC/EN 62471
• Environment: IEC/EN 63000
• IEC/EN 60529 IP66, IEC/EN 62262 IK10
• NEMA 250 type 4X
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): 52.2m(171.25ft)
• Observe (63PPM/ 19PPF): 20.9m(68.50ft)
• Recognize (125PPM/ 38PPF): 10.4m(34.25ft)
• Identify (250PPM/ 76PPF): 5.2m(17.13ft)
