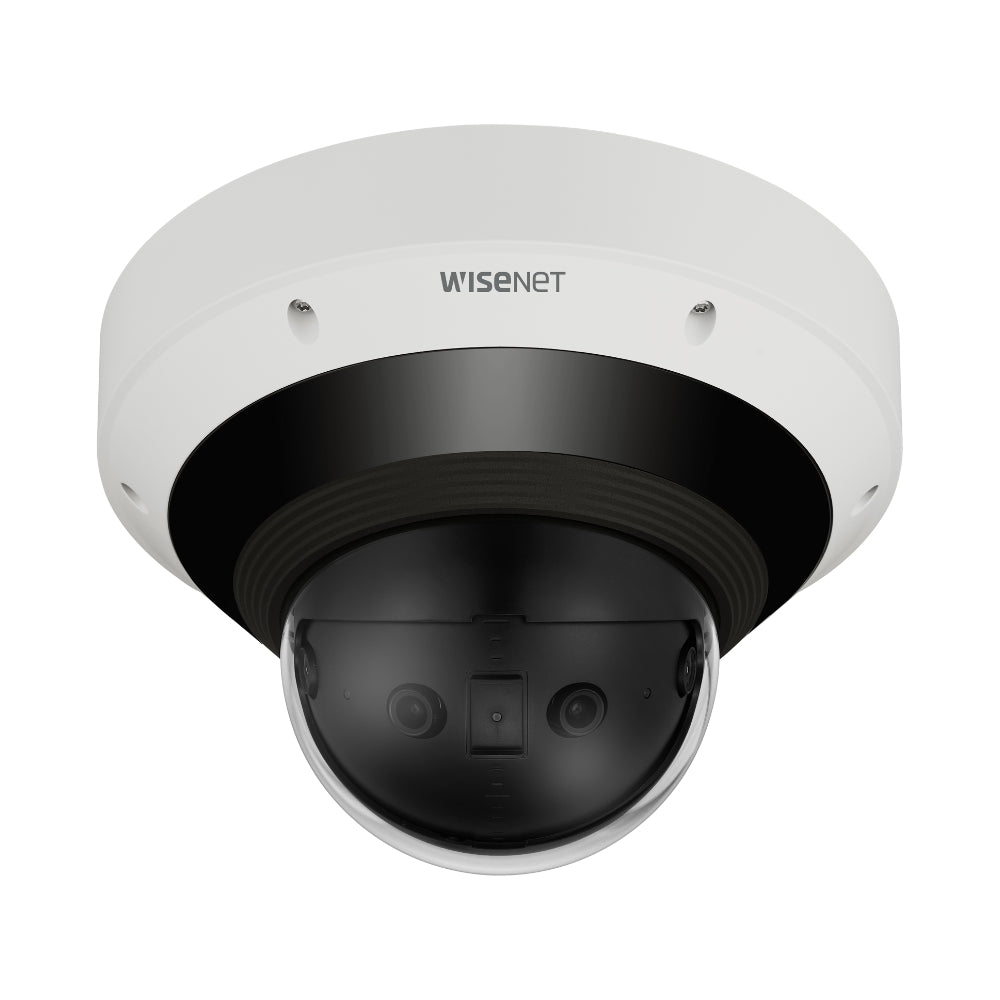

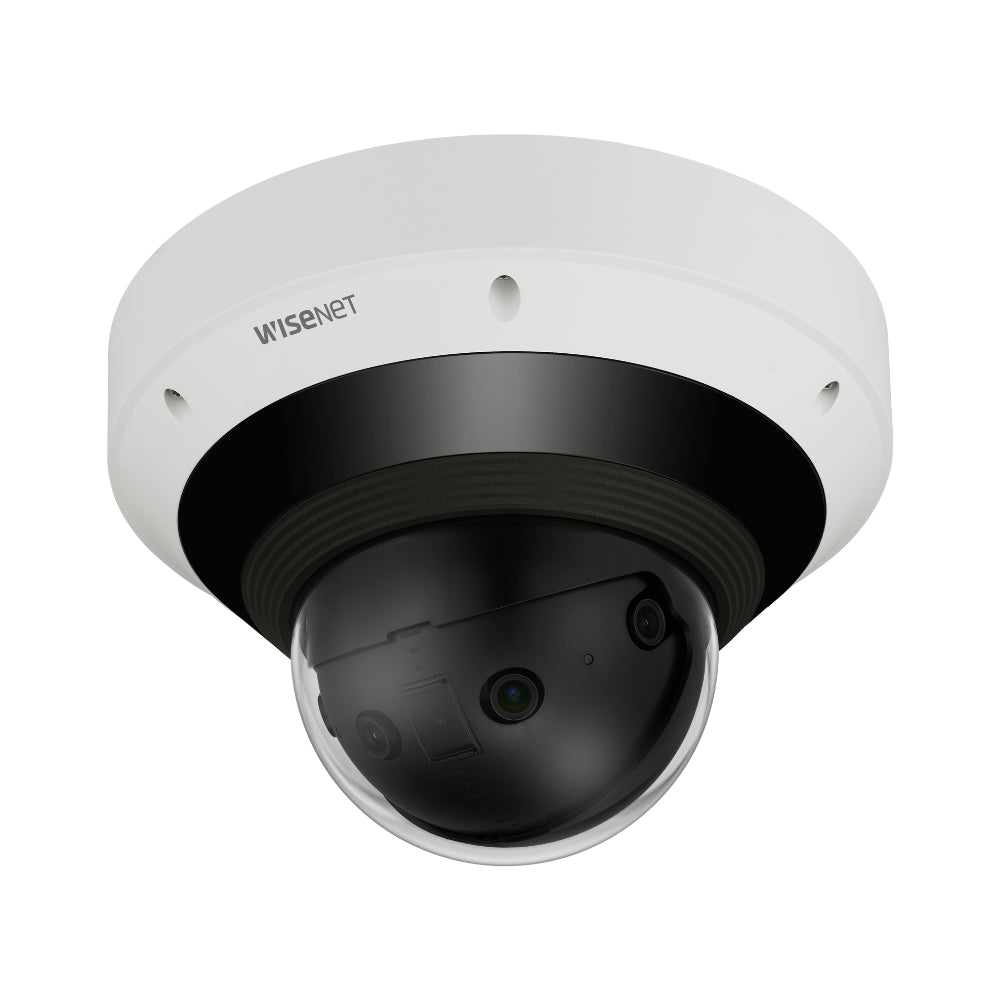

Hanwha Vision 15MP Panoramic Camera | HAN-PNM-9031RV

 Hanwha Vision 15MP Panoramic Camera | HAN-PNM-9031RV

Network vandal outdoor Multi-sensor dome camera, panoramic view with stitched image, (5MP X 4 sensors) 15MP @ 20fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, IR viewable length 20m (65.5'), built-in video analytics and sound classification, Heatmap, Bi-directional audio support, Micro SD 2 slots, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2) for enhanced cybersecurity, PoE+/12VDC powered.

Features

• 15MP 192° panoramic stitching image
• Panoramic channel
• IR viewable length Maximum 20m (65.6ft), WiseIR
• H.265 / H.264: Max. 20fps
• MJPEG: Max. 15fps
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Motion, Defocus detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+,
• IP66, IK10, NEMA4X
• TPM 2.0 (FIPS 140-2 level 2)

Technical Specifications

• Video

• Imaging Device: 1/2.8" 5MP CMOS (x4)
• Resolution: 6720x2240, 5952x1984, 4992x1664, 3840x1280, 3072x1024, 1920x640, 1152x384
• Max. Framerate: H.265/H.264: Max. 20fps/20fps(60Hz/50Hz)
• MJPEG: Max. 15fps(60Hz/50Hz)
• Min. Illumination: Color: 0.1Lux(F1.6, 1/30sec)
• BW: 0.01Lux(F1.6, 1/30sec), 0Lux(IR LED on)
• Video Out: USB: Micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 4.3mm Fixed
• Max. Aperture Ratio: F1.6
• Angular Field of View: 192°(H) x 65°(V)
• Min. Object Distance: 5m(9.84ft)
• Focus Control: Fixed
• Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range: 0~360 / 0~60 / -
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: SSNRⅤ
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 6ea, rectangular zones
• - Color: Grey/Green/Red/Blue/Black/White
• Gain Control: Low / Middle / High

• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
• Business Intelligence: Heatmap
• Alarm I/O: Selectable 2 port
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC at event triggers
• Alarm output
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• IR Viewable Length: Wise IR 20m(65.6ft), 4 independent zones with Auto/Manual level adjustment
• Network

• Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression: H.265/H.264: Main/High, MJPEG
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: s기
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• TPM 2.0 with FIPS 140-2 level2
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2slots 512GB (256GBx2) / SD card encryption support
• Memory: 8GB RAM, 4GB Flash
• Environmental & Electrical

• Operating Temperature / Humidity:
• - Normal : -40°C~+55°(-40°F ~ +131°F) /
• - Intermittent : -40°C~+60°C(-40°F ~ +140°F), 8Hrs
• - Less than 95% RH(Non-condensing)
• * Startup should be above -30℃ “
• Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification: IP66, IK10, NEMA4X
• Input Voltage: PoE+ (IEEE802.3at, Class4), 12VDC
• Power Consumption: PoE+: Max 23.5W, Typical 18.0W
• 12VDC: Max 20.5W, Typical 16.0W
• Mechanical

• Color / Material: White / Aluminum
• Hard-coated dome bubble
• RAL Code: RAL9003
• Product Dimensions / Weight: Ø9.96"x6.70 / 5.73lbs
