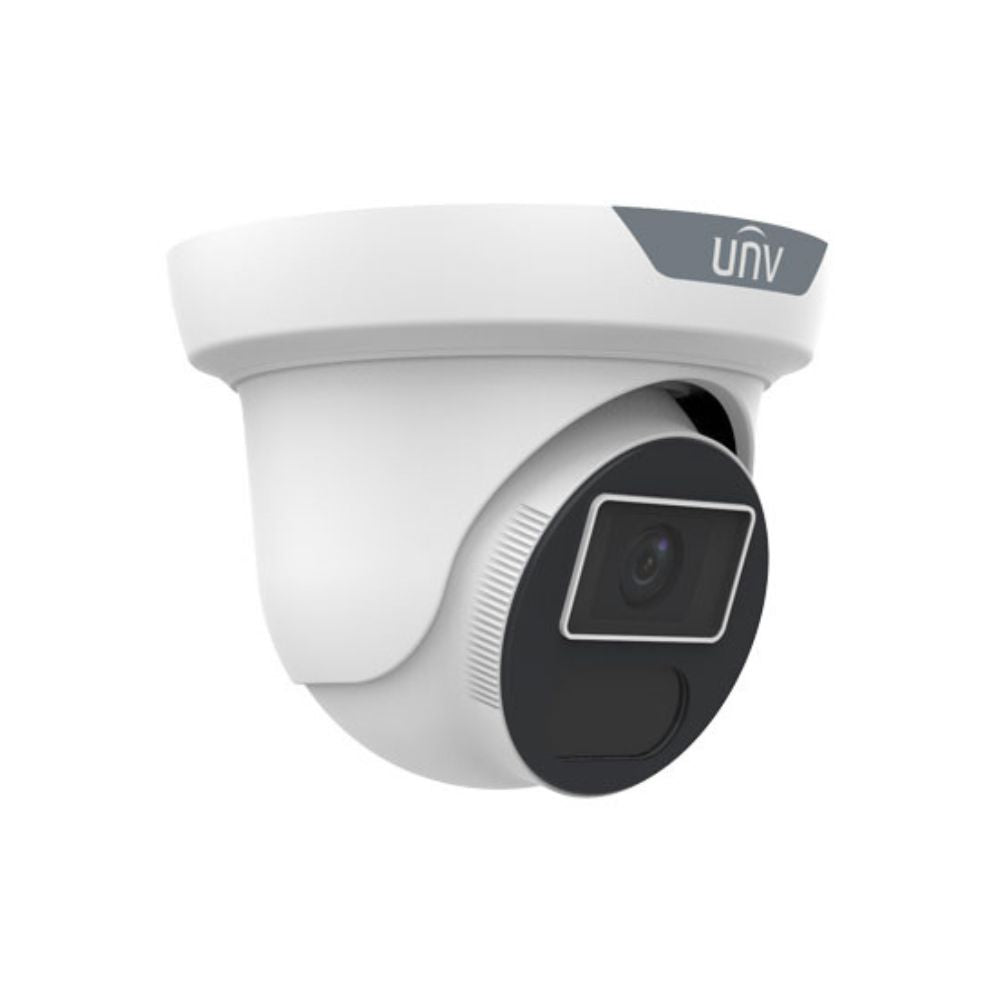

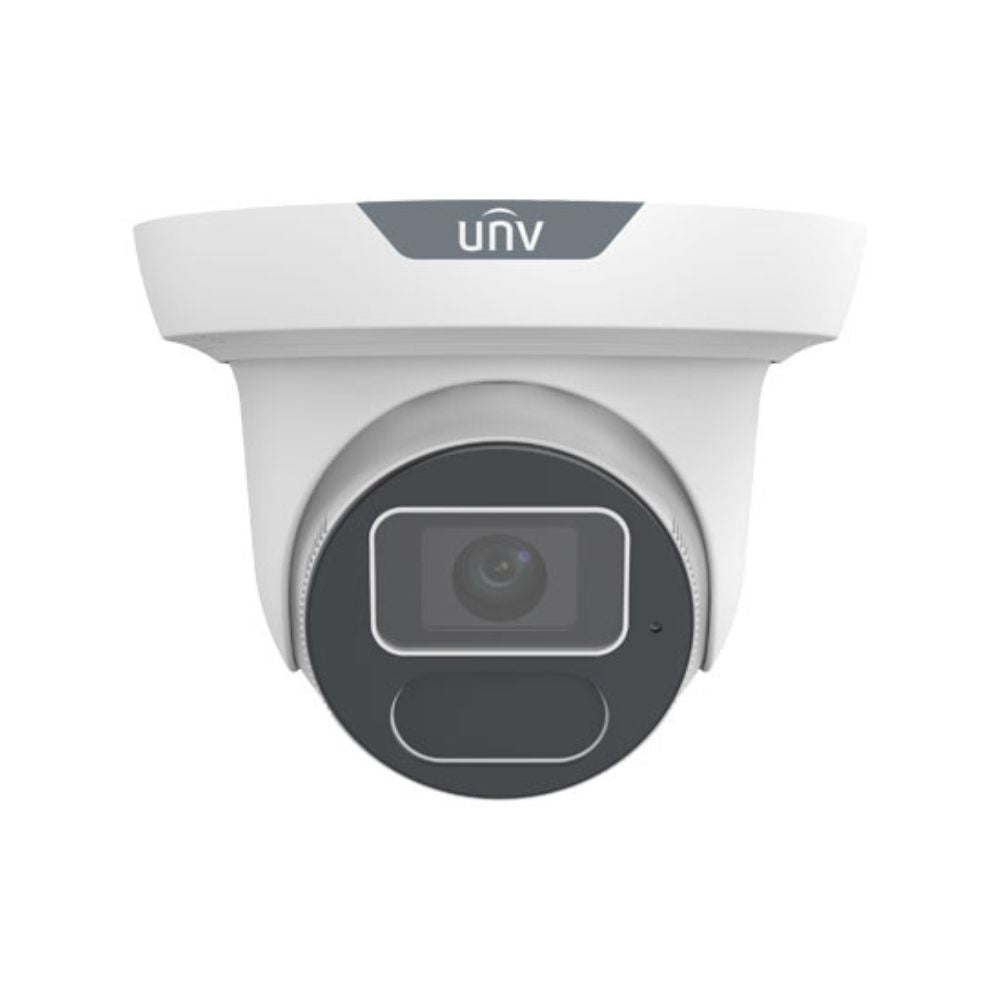

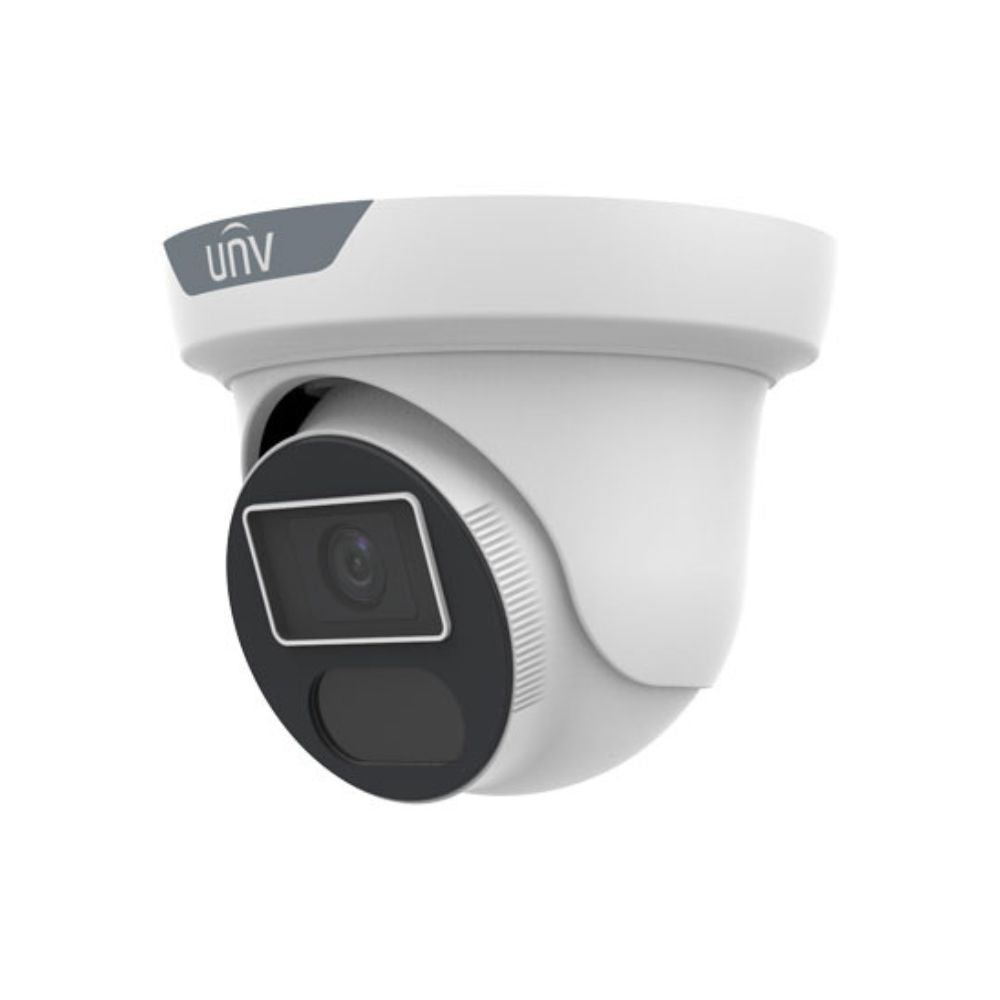

UNV 5MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera 4.0mm | UNV-IPC3615SS-ADF40K-I1

• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Smart intrusion prevention with Color retrieval
• Auto Scene Match (ASM)（Only WDR）
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 130dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 512 G Micro SD card
• IP67 protection

Camera

• Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Minimum Illumination - Colour: 0.002Lux (F1.6, AGC ON) 0 lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° ~ 360° / Tilt: 0° ~ 75° / Rotate: 0° ~ 360°
• WDR: 130dB
• S/N: >56dB

Lens

• Lens: 4.0mm@F1.6
• Iris: Fixed
• Field of View (H): 91.25°
• Field of View (V): 43.70°
• Field of View (D): 95.35°

DORI Distance

• Lens (mm): 4.0
• Detect (m): 90.0
• Observe (m): 36.0
• Recognize (m): 18.0
• Identify (m): 9.0

Illuminator

• IR Range: Up to 40m (131ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate

1. Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
2. Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
3. Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams


• Auto Scene Match (ASM): Support (Only WDR)
• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring
• Attribute Collection: SIP with color retrieval

Events

• Basic Detection: Motion detection, Ultra motion detection,Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 512GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation/EZView/EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above / Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
  FCC (FCC 47 CFR part 15 B)
• Safety: CE-LVD (EN 62368-1) / CB (IEC 62368-1) / UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 6.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ129 x 110mm (Ø5.1” x 4.3”)
• Weight: 0.43kg (0.95lb)
• Material: Metal+Plastic
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
• Web Client Language: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
