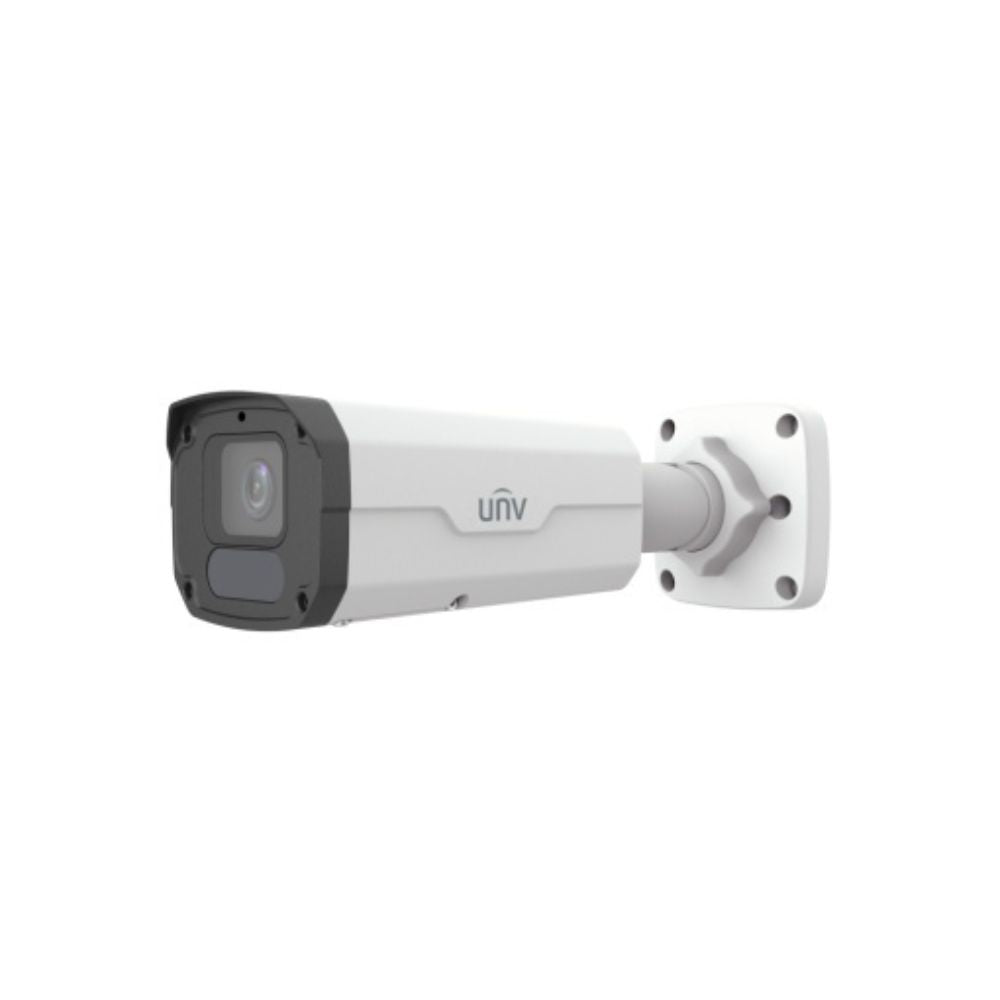

UNV 5MP WDR LightHunter IR Network Bullet Camera 2.8mm | UNV-IPC2225SB-ADF28KM-I1

• High quality image with 5MP,1/2.7’’ CMOS sensor
• 2880*1620@30fps in the mainstream
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support Cross Line and Intrusion based on human body and vehicle detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Support 9:16 Corridor Mode
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Support Smart IR, up to 80m IR range
• DC12V or PoE (IEEE 802.3af) power supply
• Audio 1 in and 1 out, Alarm 1 in and 1 out
• Built-in Mic
• IP67,IK10

Camera

• Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Minimum Illumination - Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: 120dB
• S/N: >56dB

Lens

• Lens: 2.8mm@F1.6
• Field of View (H): 108.5°
• Field of View (V): 57.9°
• Field of View (D): 141.1°

DORI Distance

• Lens (mm): 2.8
• Detect (m): 63.0(206.7ft)
• Observe (m): 25.2(82.7ft)
• Recognize (m): 12.6(41.3ft)
• Identify (m): 6.3(20.7ft)

Illuminator

• IR Range: Up to 80m (262 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate

1. Main Stream: 5MP (2880*1620),Max 30fps;
2. Sub Stream: 720P (1280*720), Max 30fps;

• Video Bit Rate: 128 Kbps~16 Mbps
• ROI: Up to 8 areas
• Video Stream: Dual streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas per scene


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection(based on human body and vehicle detection)

Events

• Basic Detection: Ultra Motion detection(based on human body and vehicle detection), Motion detection, Audio detection, Tampering alarm
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps,128kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8KHz,16KHz

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and common user
• Security: Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation/EZView/EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Interface

• Audio I/O: 1/1
• Alarm I/O: 1/1
• Built-in Mic: Support
• Built-in Speaker: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet

Certifications

• EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
  FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014)
• Safety: CE LVD (EN 62368-1:2014+A11:2017) / UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) / IK10 (IEC 62262:2002)

General

• Power: DC12V(±25%), PoE(IEEE 802.3af)
• Power consumption: Max 8W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: 245 x 87 x 86mm(9.6” x 3.4” x 3.4”)
• Weight: 0.82kg(1.81lb)
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
