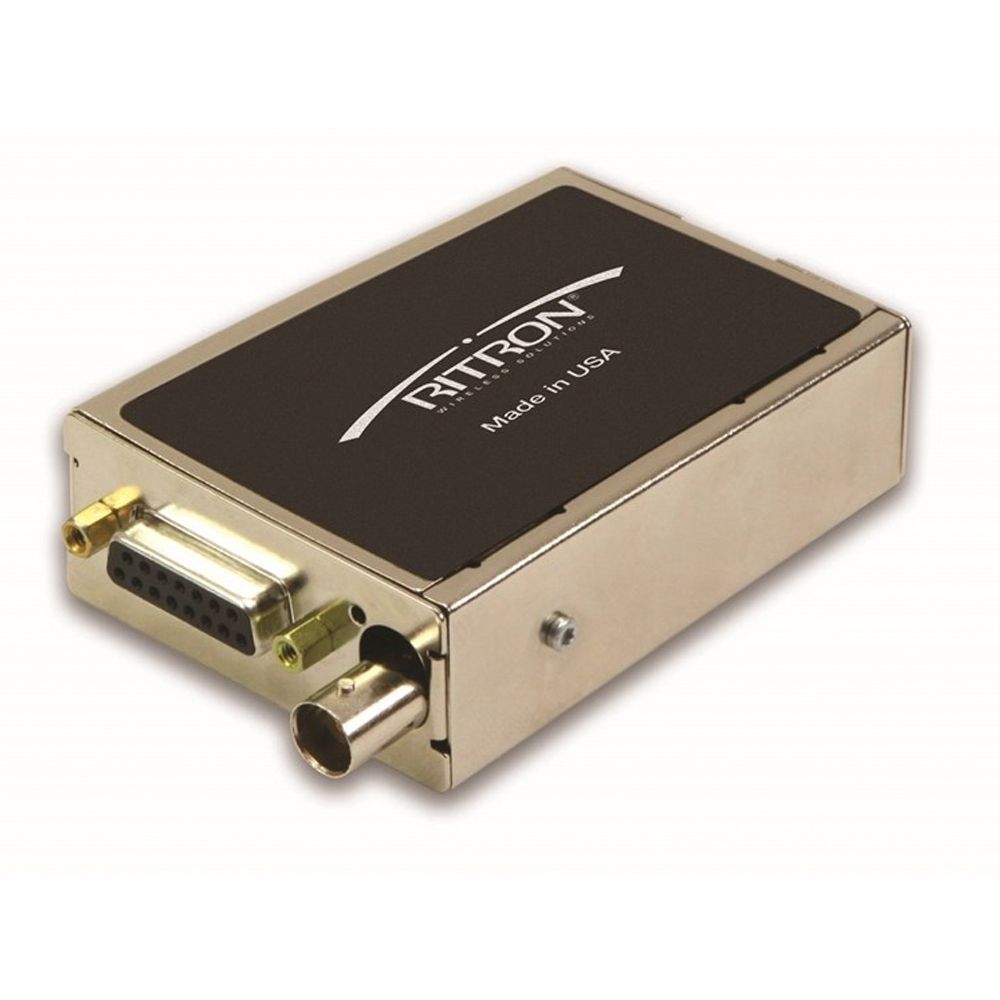

Ritron DTX PLUS Wireless Transceiver Data Module Enclosed Version Only UHF 450-470 MHz Narrow Band

RitronSKU: RIT-DTX-460-0BN3I

Model: DTX PLUS Wireless Transceiver Data Module Enclosed Version Only UHF 450-470 MHz Narrow Band 1-3 10-15 VDC
Price:
Sale price$545.71

Estimate shipping

Ritron DTX PLUS Wireless Transceiver Data Module Enclosed Version Only UHF 450-470 MHz Narrow Band

The DTX+ Series is ideal for any system design where high-performance RF specifications, fast TX/RX attack times, and compact size are a requirement. High specifications permit integration into systems demanding the utmost performance in congested frequency environments.

This compact design makes the DTX+ Series perfect as a retrofit to legacy RNet and JSLM installations. Direct modulation with low distortion and low group delay results in a low bit-error rate (BER) for enhanced system integrity and reliability. The Swift Lock synthesizer-loading algorithm reduces unit turn-on-time to less than 10ms for high-speed data throughput rates, and Controlled Envelope keying reduces adjacent channel “keyclicks”, resulting in spectrum-friendly operation.

Capable of 6.25kHz and 12.5 kHz channel spacing operation, the DTX+ Series can be installed in systems where refarming compliant narrowband frequencies have been assigned. For high performance, reliable and cost-effective wireless data solutions you can trust Ritron. The products are designed and made in the USA.

Includes
  • Synthesized RF Transceiver with Control Board
  • Enclosure, BNC Antenna Connector
  • DB-15 Data
  • Power Connector
Features
  • Supports 8 Programmable Channels
  • CTCSS and/or DCS Signaling on both TX & RX
  • Low Standby Current
  • Low TX Current
  • Fast TX & RX Attack Times
  • Closed-loop RF Power Control
  • Surface Mount Technology, Single Board Design
Technical Specifications
  • Description: UHF 450-470 MHz
  • Bandwidth: Narrow Band
  • Watts: 1-6
  • FCC: AIERIT33-4600
  • Industry Canada: 1084A-RIT334600
  • TX/RX Spacing (w/in frequency range): 20 MHz max.
  • Mode of Operation: Simplex/Half Duplex
  • Channel Increment (Synthesizer step size): 5/6.25 kHz
  • Emissions Bandwidth: Narrow Mode - 11 kHz
  • Frequency Stability (-30° to +60° C): 1.0 ppm
  • Frequency Stability (-30° to +65° C): 1.5 ppm
  • Supply Voltage (VDC): 7.5 or 11-16
  • RF Input/Output Connector: BNC
  • Power/Data Interface: 15 pin sub D
  • Operating Temperature: -30° to +65° C
  • Maximum Dimensions (L x W x H): 3.6 x 2.3 x 1.0
  • Weight: 6 oz
Manufacturer's Warranty
  • 1 Year
Product Literature
