EMX Ultrasonic Drive Thru Alert Kit | EMX-DAK-USVD

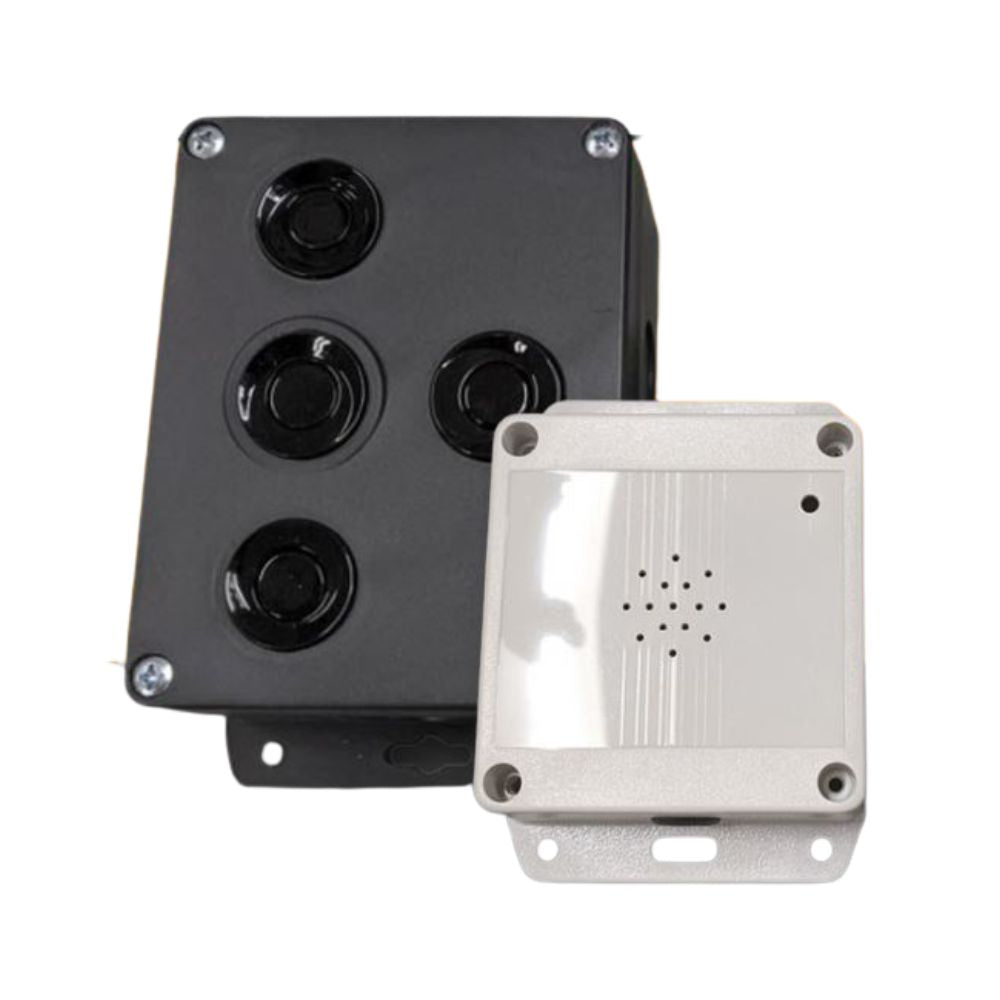

The ultrasonic drive-thru alert kit is comprised of two components: the CHIME-100 sound module, which provides an audio indication to team members, and the USVD-4X ultrasonic vehicle detector, which detects the presence of a vehicle. This system can be used in a wide variety of drive-thru applications, including parking, access control, car wash, banking, and fast food.

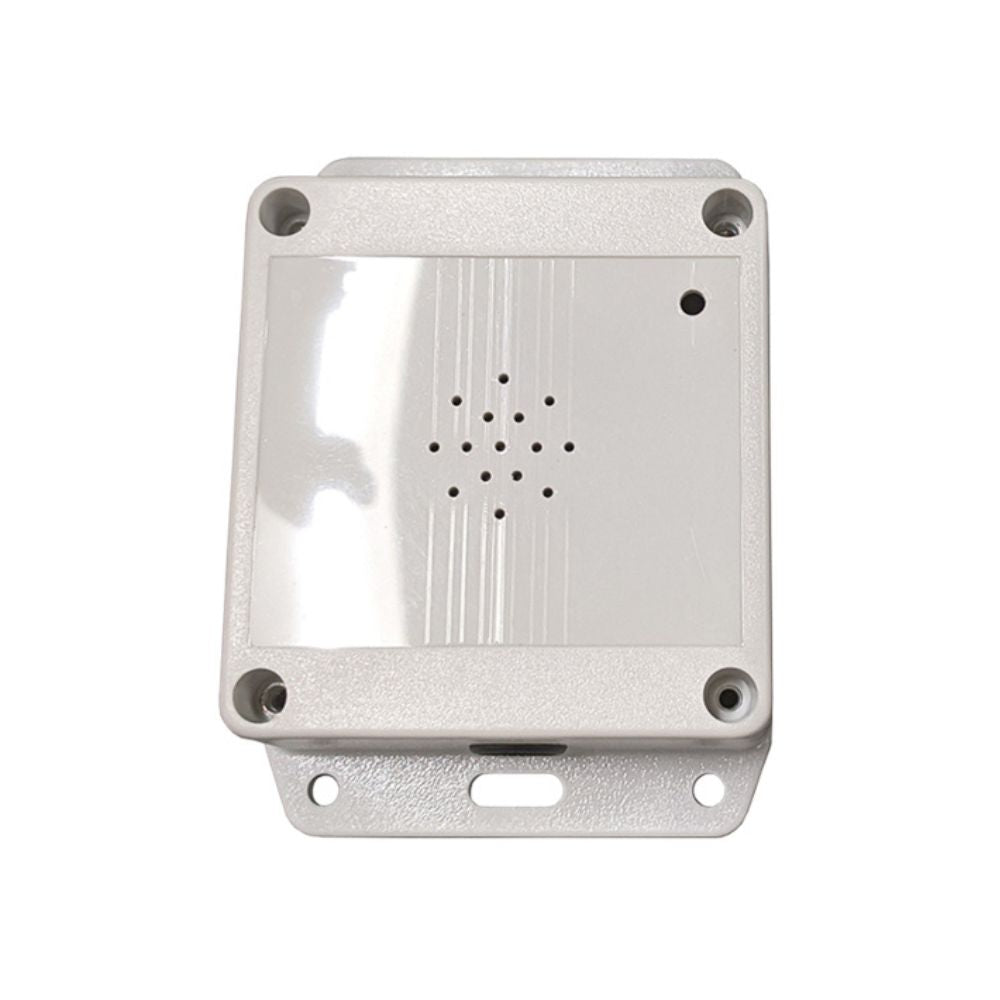

    Chime 100

    The CHIME-100 provides an audible chime when a vehicle first pulls in front of the vehicle detector. It is a compact, audio alert device designed for loud work environments. The CHIME-100 has adjustable volume control and can reach volumes of 100 dBA at 5 ft away making it easy to hear in noisy areas. It is easy to install with two mounting tabs and includes 25 ft of durable cable for connection to the USVD-4X. The CHIME-100 also features an output relay for daisy-chaining additional electronics and 6 melodies to choose from.

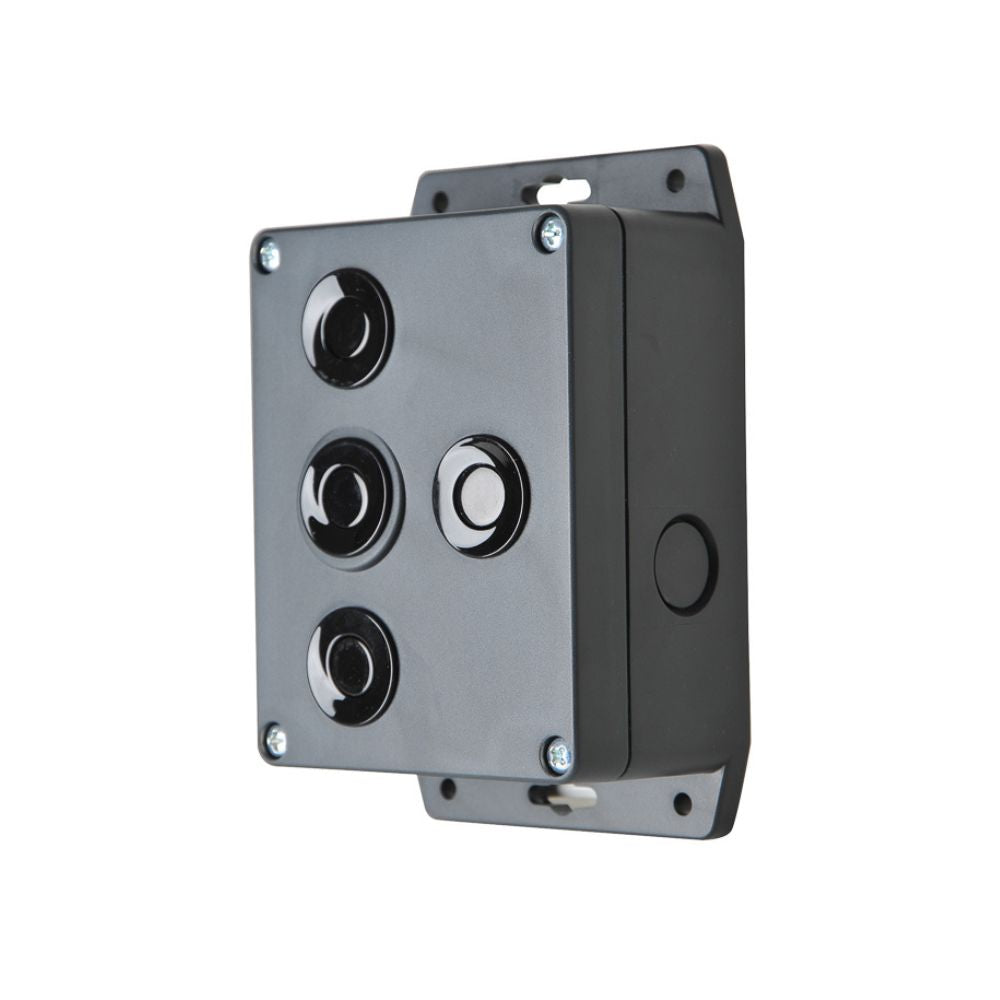

    USVD-4X

    The USVD-4X is mounted on a post, order box, or the side of a building and aimed at the desired location for vehicle detection. No additional setup or functional adjustments are necessary – unlike other vehicle detection systems. Also unlike other technologies, the USVD-4X does not require the installation of an inductive loop in the pavement. The detection head consists of 4 ultrasonic transducers that connect to the internal microprocessor-based control board. The USVD-4X “scans” the expected location for a vehicle and activates its output upon detection of a vehicle. It operates on 2-24 VDC/AC and provides two Form C relay contacts for vehicle presence detection, as well as Pulse on Entry, Pulse on Exit, or both.

    Features
    • Triangular Planar Array Technology
    • Aux. relay, settings for pulse on ENTRY, EXIT or BOTH
    • Output delay option for 1, 2 and 4 seconds
    • Operating range: 1ft. – 5ft.
    • Response time: 2.0 seconds
    • Supply Voltage12…24 VDC/VAC
    • Relay output configuration: 2 SPDT (form C)
    • Audible Chime w/ 6 melodies
    • Adjustable Volume (up to 100 dBA)
    • CE compliant
    Includes
    • EMX CHIME-100 Audible Chime EMX-5419-1
    • EMX USVD-4X Ultrasonic Vehicle Detector EMX-2700-1
    Manufacturer's Warranty
    • 2 Years
    Technical Specifications

    USVD-4X SPECS

    • Sensing Elements: 4 ultrasonic transducers
    • Operating Range: 1-5 ft
    • Response Time: 2.0 seconds
    • Relay Output Configuration: 2 SPDT (Form C)
    • Relay Contact Rating: 1 A @ 24 VDC
    • Power Indicator/No Vehicle: Green LED
    • Object In Range: Flashing green LED on each input, continuous LED on detect
    • Supply Voltage: 12-24 VDC/AC
    • Operating Current: 60 mA
    • Operating Temperature: -40?C to 85?C (-40?F to 182?F)
    • Dimensions: 5.7”(145 mm) x 3.6”(90 mm) x 2.3”(57 mm)
    • Weight: 0.6 lbs. (275 g)
    • Housing: ABS NEMA 4X
    • Connection: 10 position terminal block

    CHIME-100 SPECS

    • Supply Voltage: 9 VDC
    • Dimensions: 4.5” (114 mm) x 3.25” (83 mm) x 1.58” (40 mm)
    • Weight: 0.35 lbs.
    • Housing: Polycarbonate
    • Maximum Volume: 100 dBA @ 5 ft
    • Melody Options: 6
    • Included Cable: 25 ft – 5 conductors (0.25” outer diameter)
