FAAC S450H CBAC 24V Hydraulic Swing Gate Operator (Secondary Kit)

FAACSKU: FAA-10410015_5

Model: Regular
Price:
Sale price$1,560.99

Estimate shipping

FAAC S450H CBAC 24V Hydraulic Swing Gate Operator (Secondary Kit)

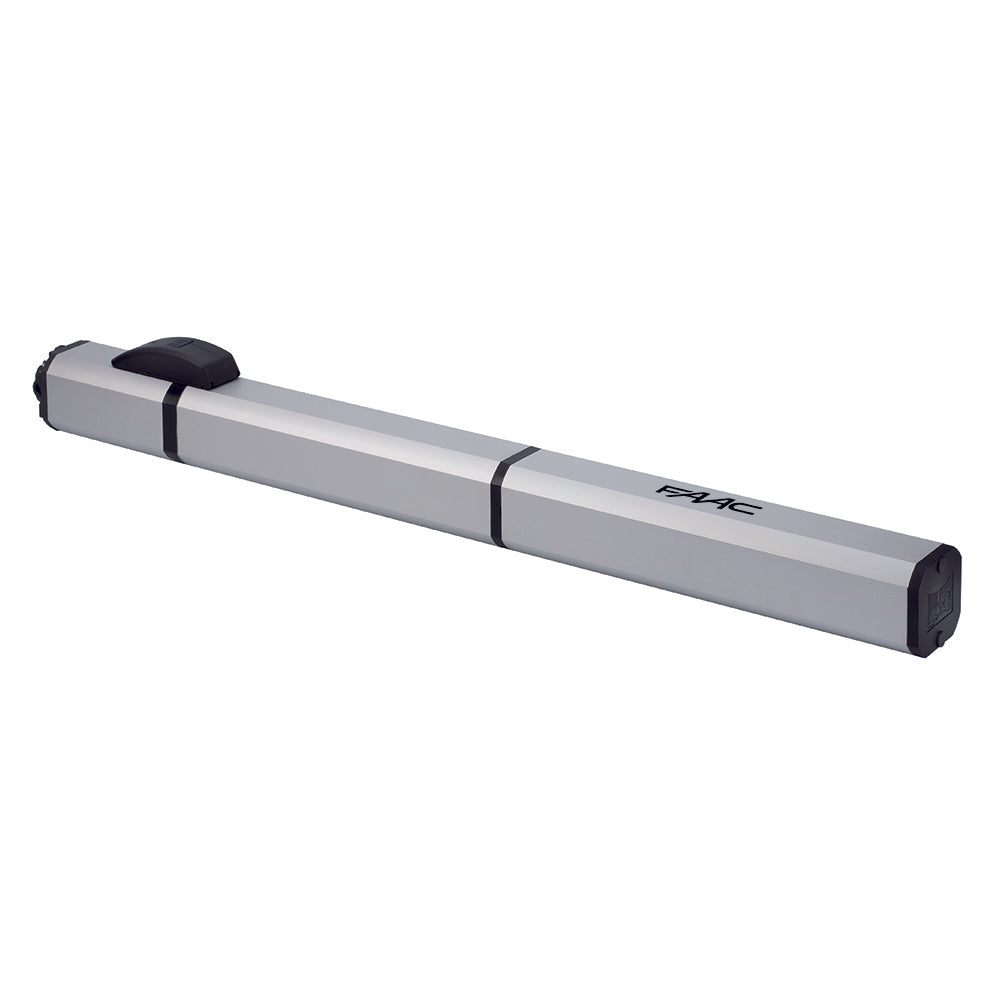

The self-contained FAAC S450H operator is an electro-hydraulic unit consisting of a low-voltage electric motor, a pump, a valve assembly, and a hydraulic cylinder, all housed in an anodized aluminum body.

The model with hydraulic locking does not require the installation of electric locks and guarantees that the leaf is mechanically locked when the motor is not running. The model without hydraulic locking needs one or more electric locks to guarantee that the leaf doesn't move when the motor is not running.

The S450H Operator is designed and manufactured to automate vehicular swing leaf gates. Do not use it for any other purpose.

Includes
  • 1 - Operator S450H
  • 1 - Junction Box for electrical connections - 3366.1
  • 40* - AWG 12 - 2 conductors cable (operator) - 1ft - 2197
  • 40 - AWG 22 - 2 conductors cable (encoder) - 1 ft - 2193

(*) The AWG 12 cable can be used for connections of up to 50’ in length between the operator and the control board.

Manufacturer's Warranty Period
  • 3 years
Notes
  • Mounting dimensions, wind factor, and gate design will affect the performance specification
  • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it
  • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m)
Note: This product has an updated part number.
  • New Part Number: 10410015_5 (Old Part Number: 10410015.5)
  • New Part Number: 10410015177_5 (Old Part Number: 10410015177.5)
