USAutomatic Patriot RSL Solar Charged Slide Gate Operator with LCR | USA-020430

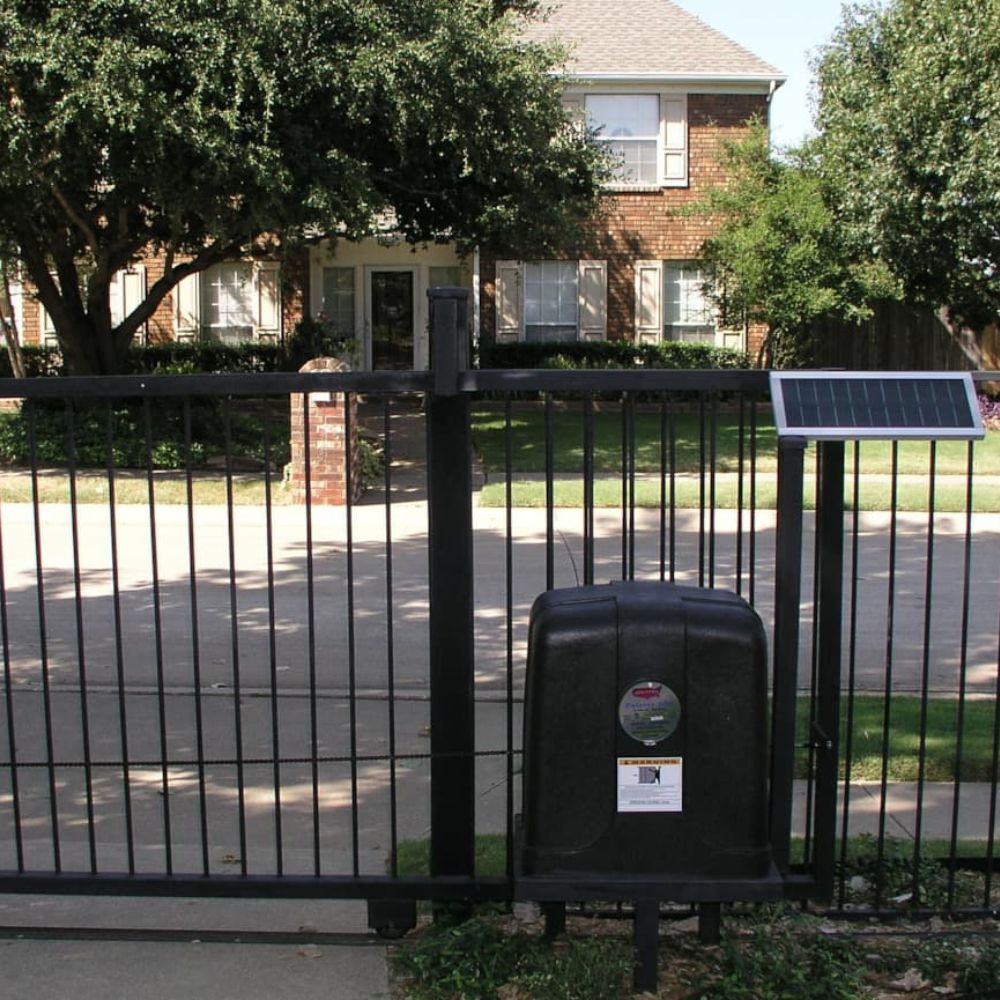

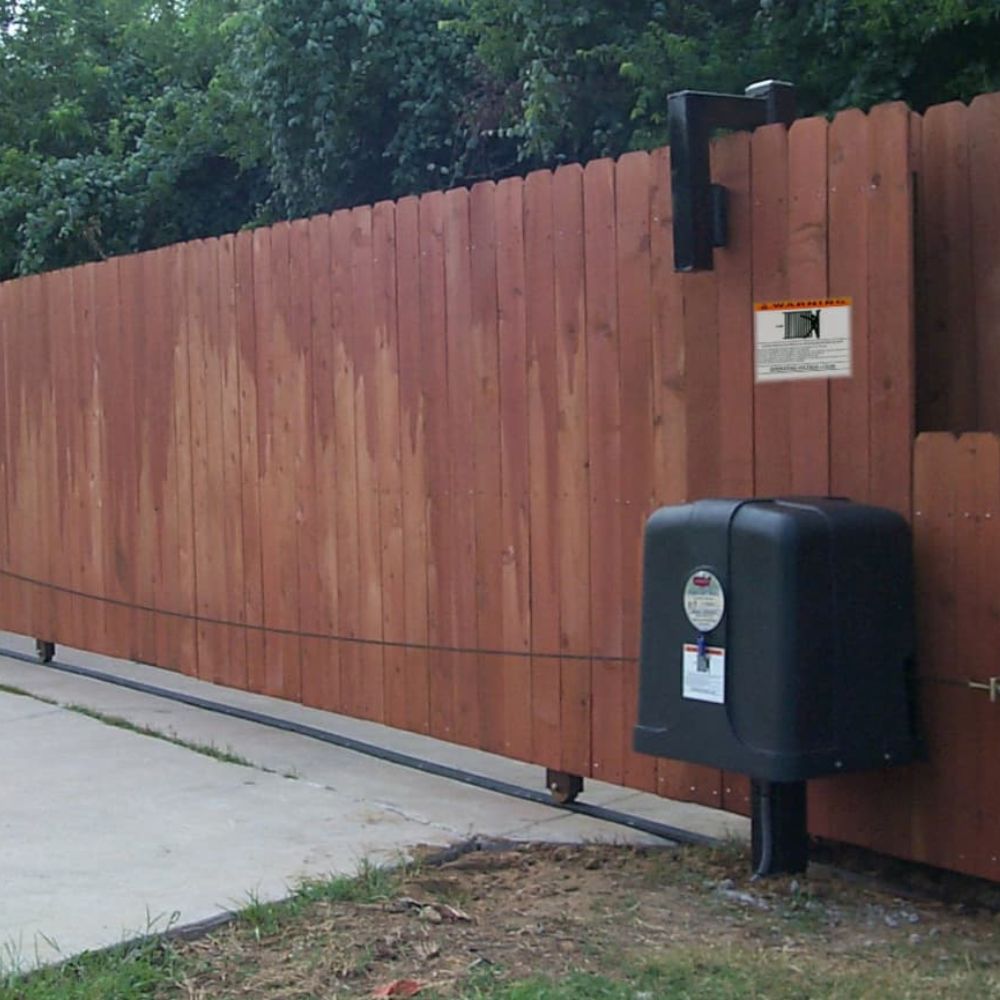

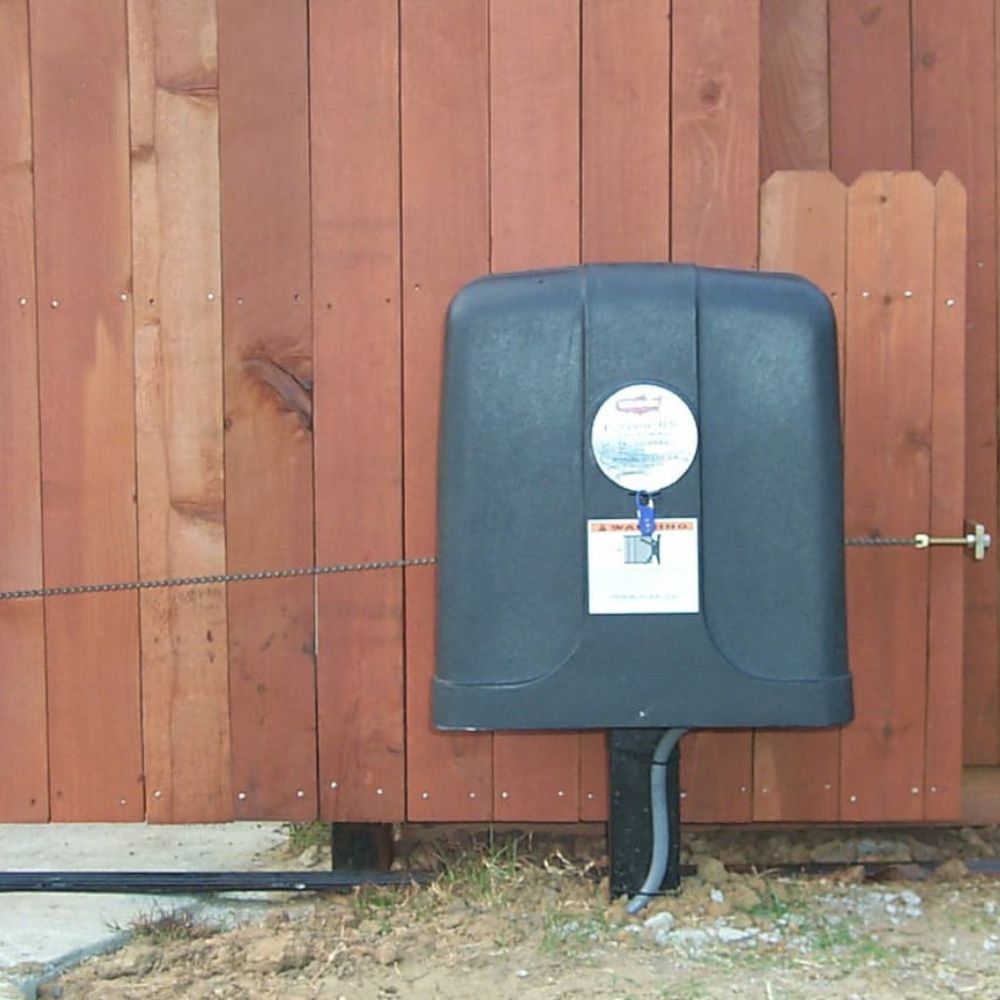

The USAutomatic Patriot RSL Solar-Charged Slide Gate Opener Kit with LCR supports gates up to 32 feet long and 1000 lbs. It can be mounted on a pad or post. Featuring the Patriot control board with advanced PEPM software, it efficiently manages photo eye power, enabling compatibility with any photo eye on all USAutomatic operators without requiring extra solar panels.

Note: Battery Required for Operation (Battery not included)

Manufacturer's Warranty Period

• 3 years for components / 5 years for control board

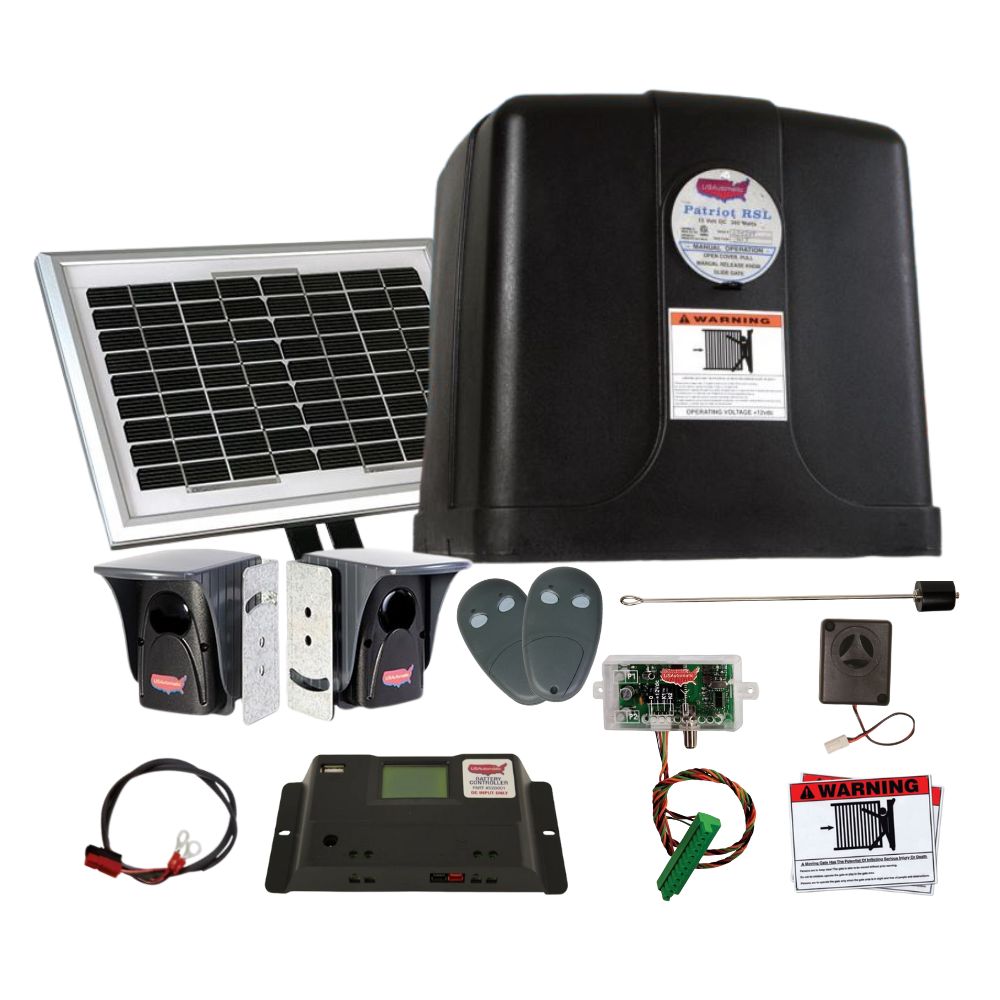

Includes

• 1 Slider Frame 590010

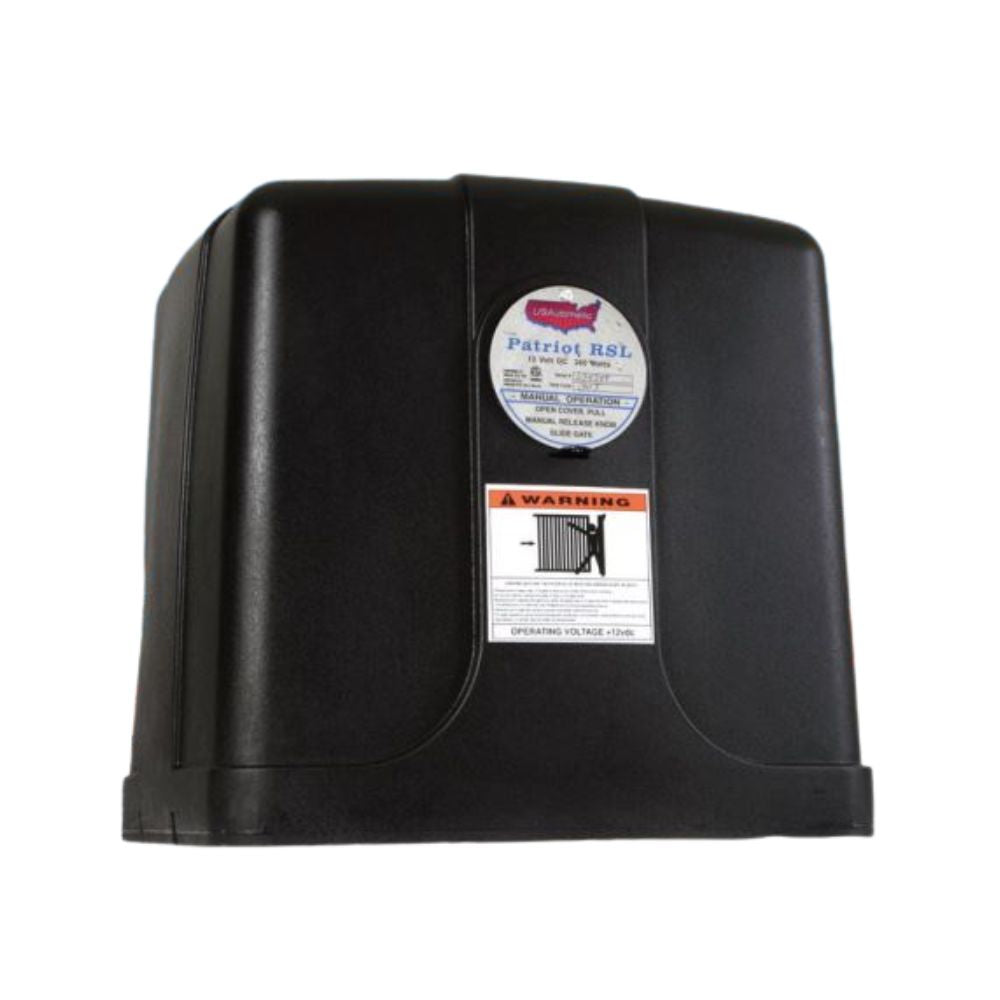

• 1 Slider Cover 590020

• 1 Emergency Release Access Cover 590030

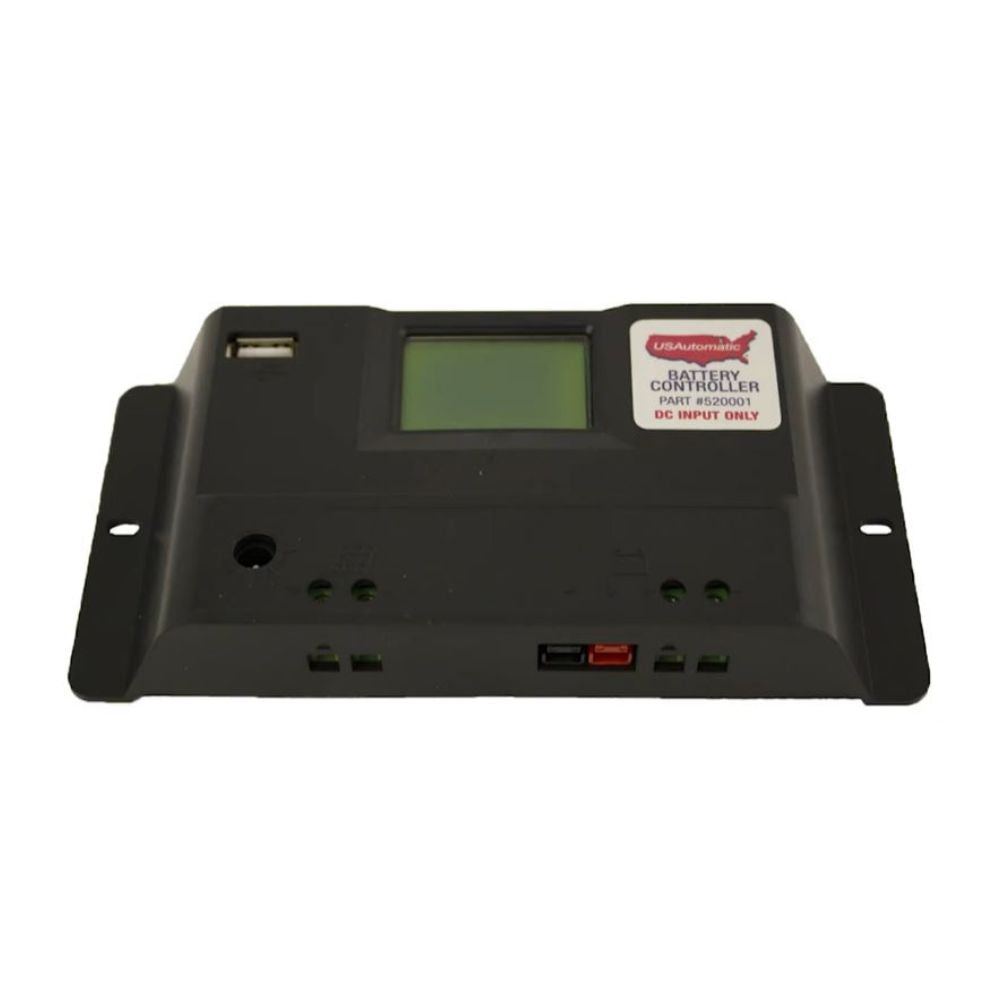

• 1 Battery Controller 520001

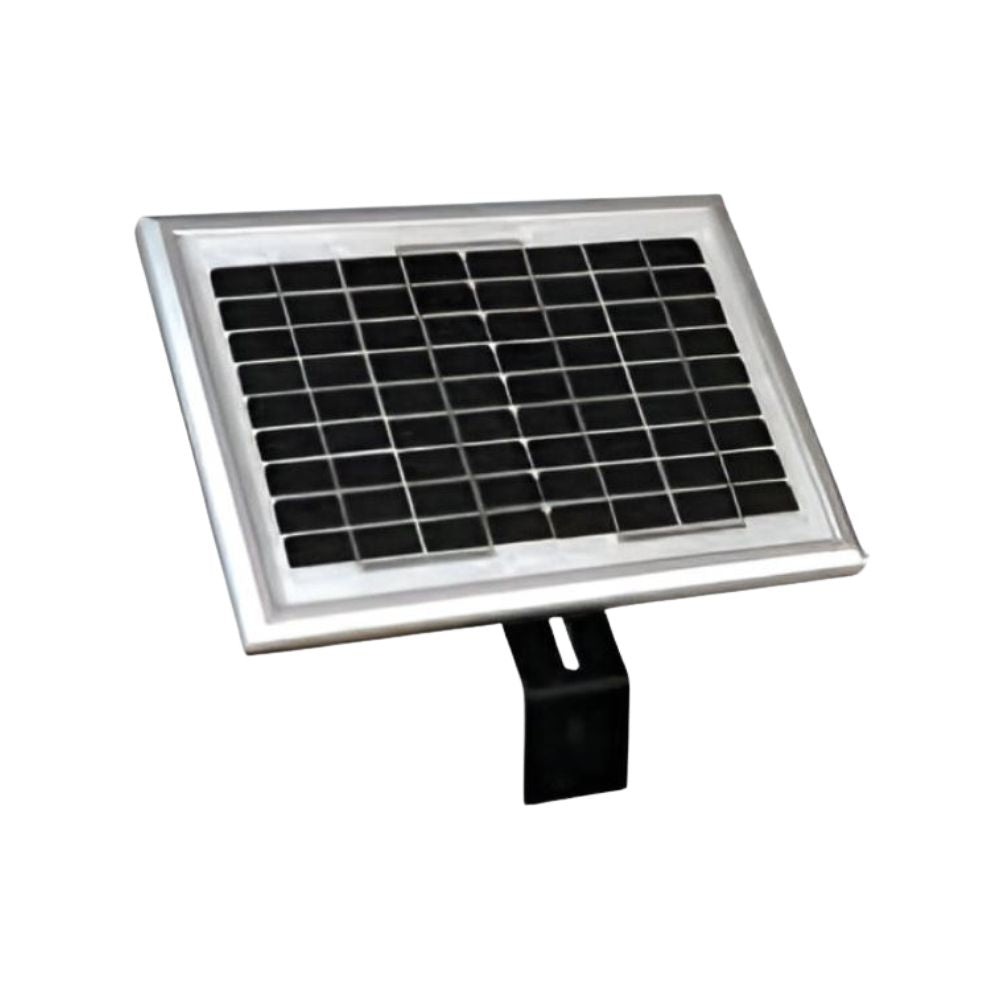

• 1 Solar Charging Kit - 10 Watt 520026

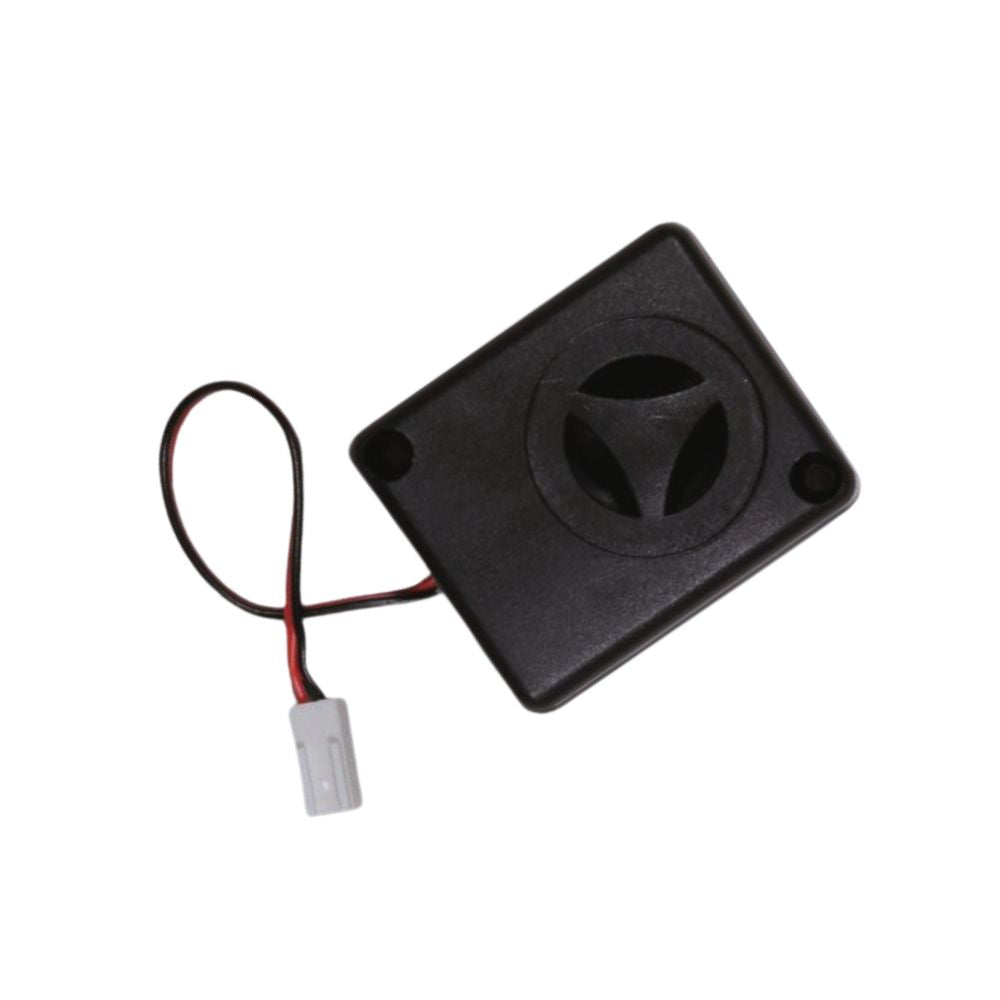

• 1 Entrapment Siren 530010

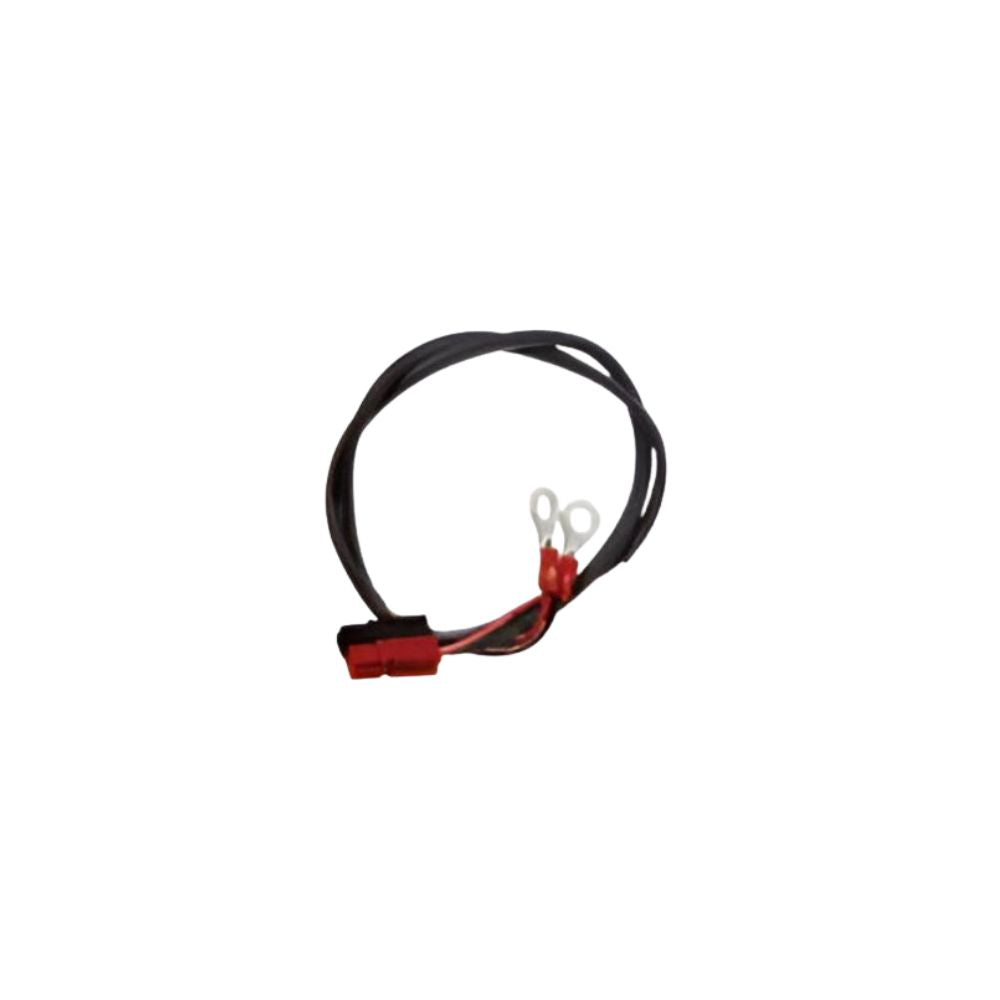

• 1 Charge Control Harness 630100

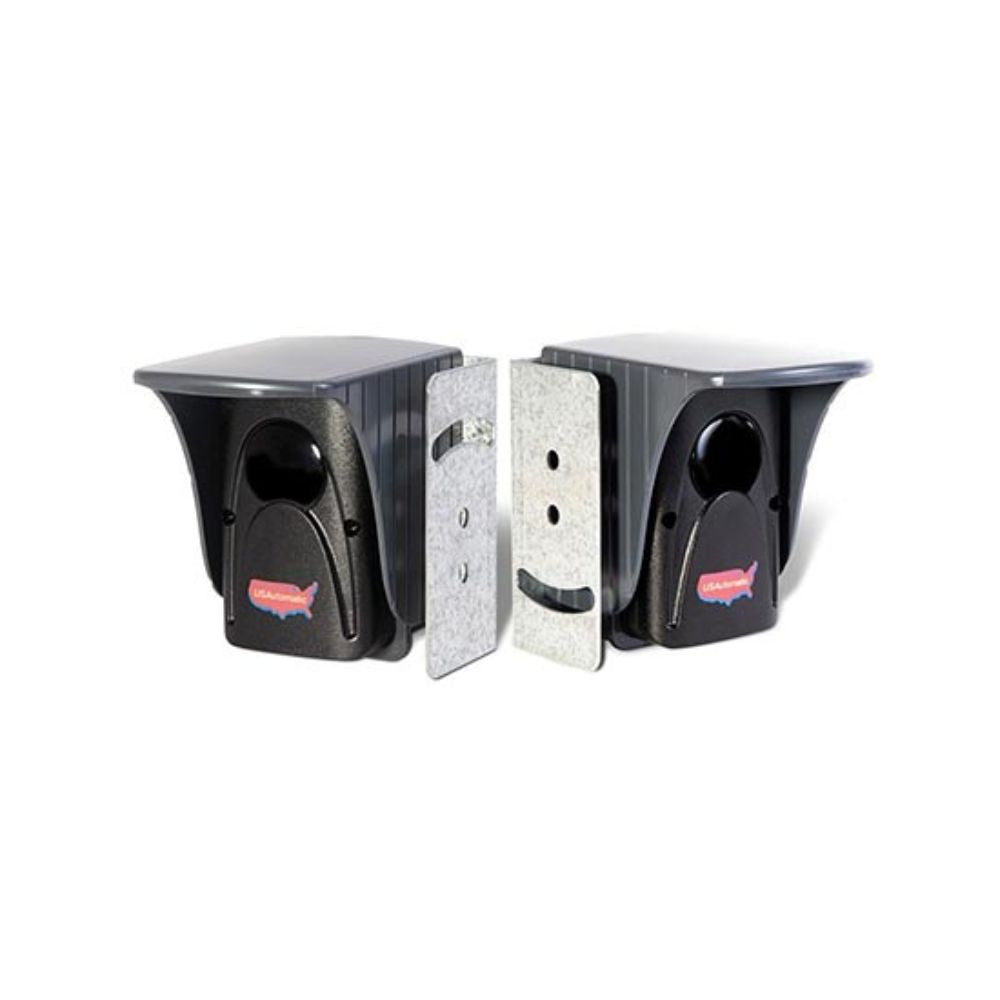

• 1 Set of Photo Eyes 550010

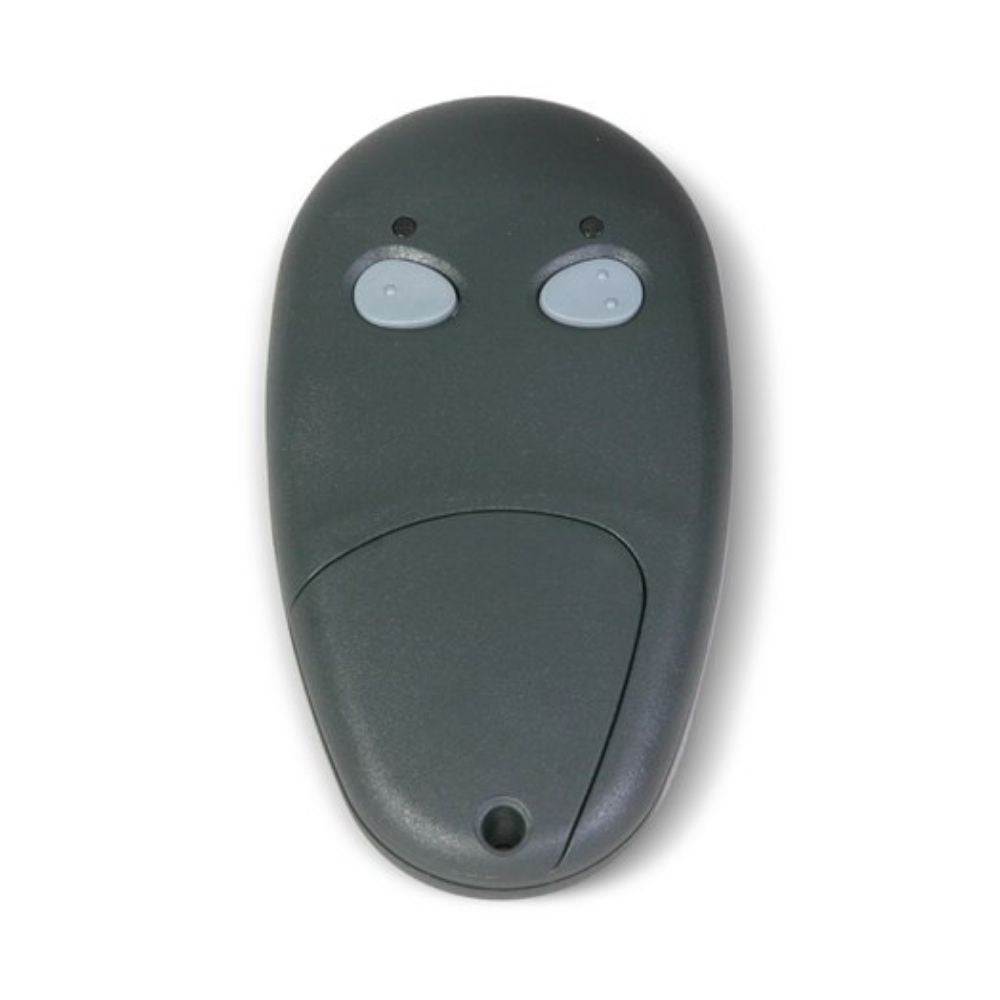

• 2 Wireless 2-Button Transmitter 030210

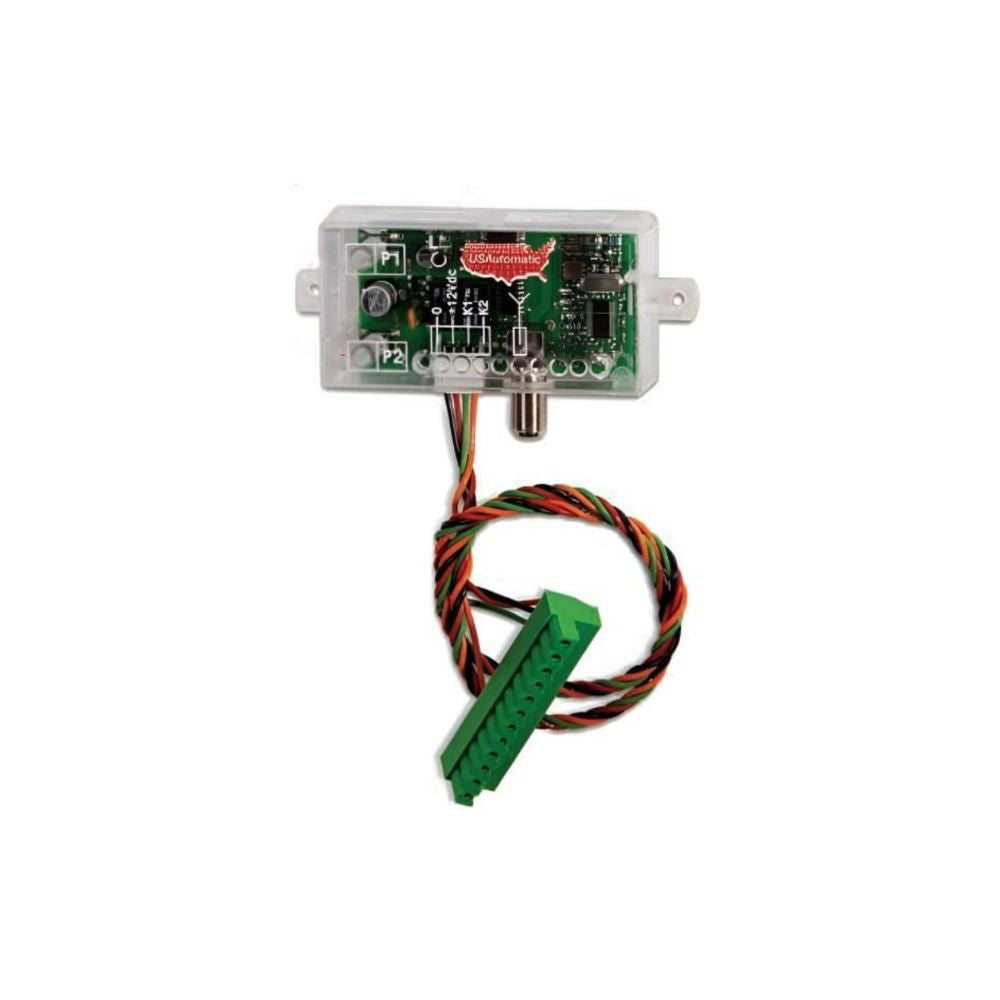

• 1 LCR Radio Receiver and Wire Harness 030205

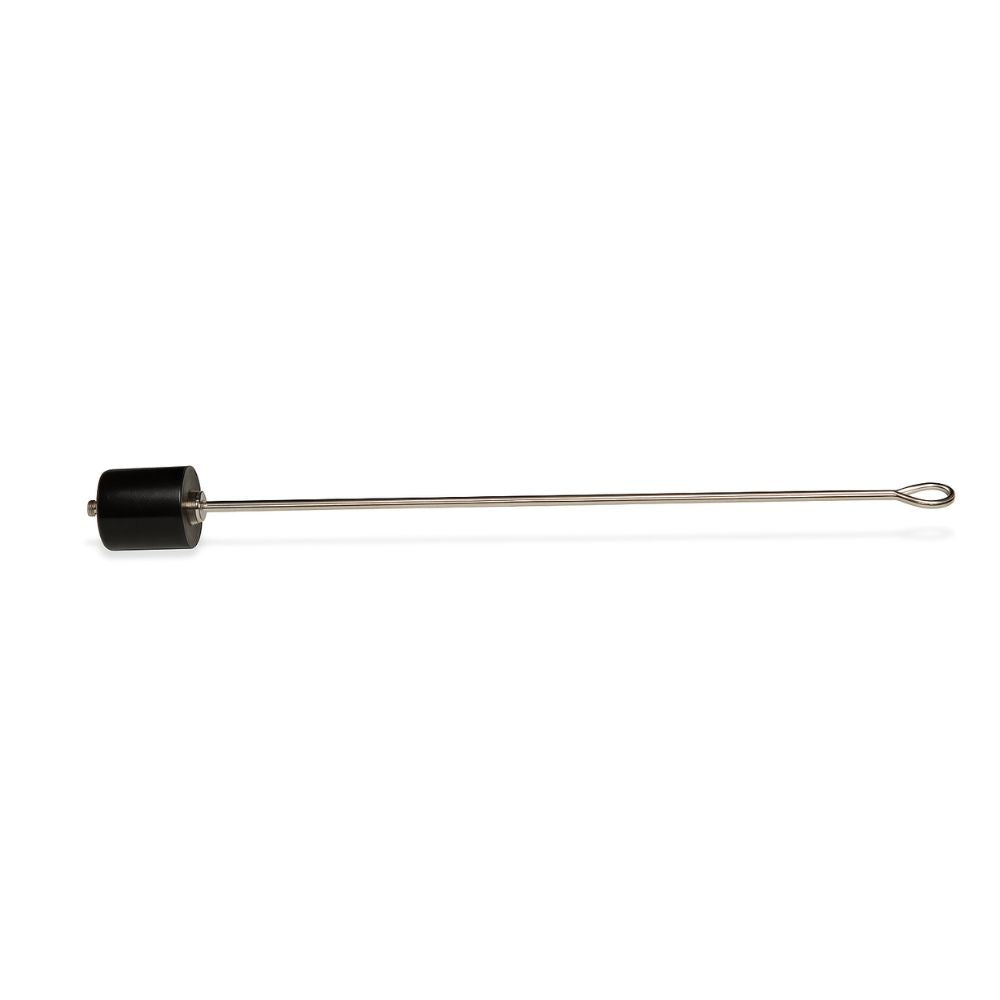

• 1 Antenna 030208

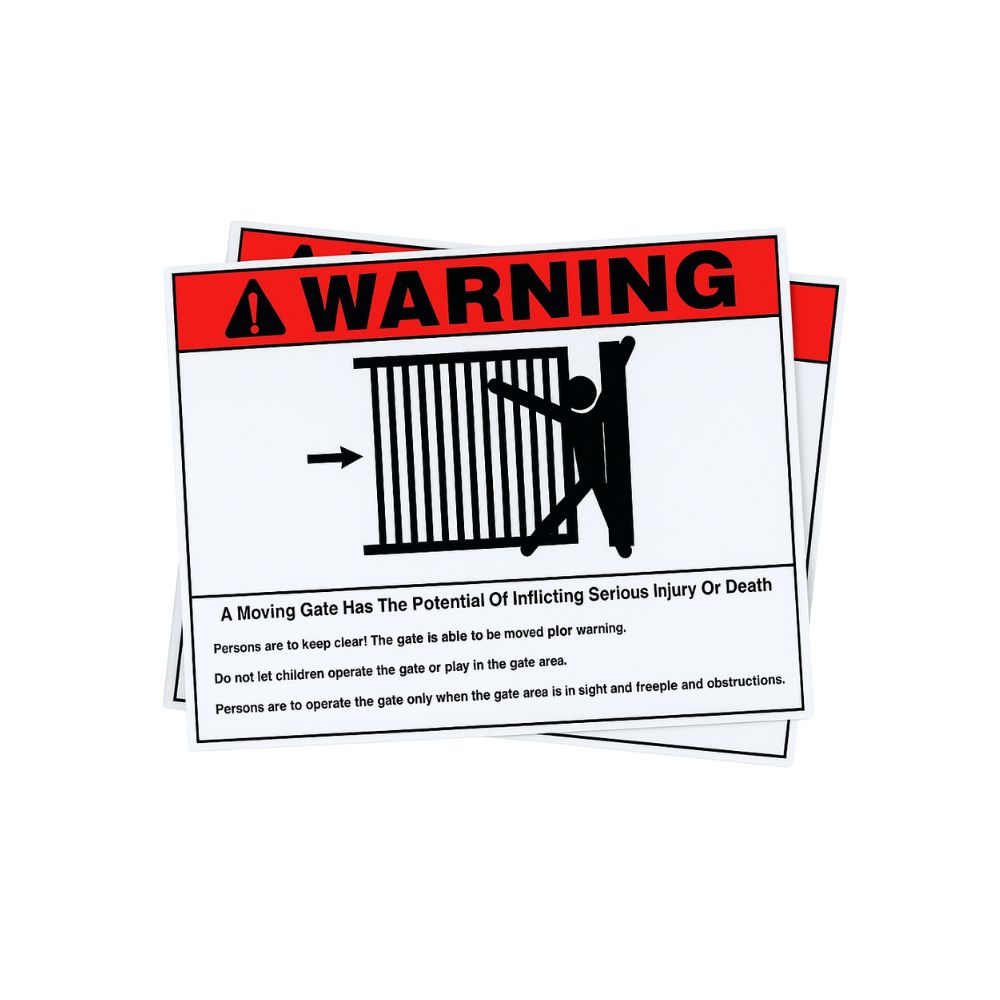

• 2 Safety Signs 601025

Features

• Fast opening speed for 1 foot per second
• Includes two sets of safety photo eyes and two remotes
• Backed by a 3-year component and 5-year control board warranty
• Capable of sliding gates up to 32 feet and 1000 pounds
• Pad or post mount installation
• PWM soft start and soft stop
• Battery under load monitoring
• Low battery audible notification
• USAutomatic gate app-compatible
• Adjustable rotary limit assembly
• Synchronized brake prevents gate movement when the gate is stationary

• Designed to operate with a variety of common accessories
• Photo eye power management solar friendly software
• Gate opening speed - 12 inches per second
• Tested and certified to meet the current UL325 gate operator safety standards
• Easy manual release activation

Technical Specifications

• Style: Slide
• Gate Setup: Single
• Applications: Residential, light commercial, farm, ranch
• Max. Gate Width: 32’ of travel distance
• Max. Gate Weight: 1000 lbs.
• Power Input: 12-volt DC battery, Solar-charged
• Drive: Inline gear motor with built-in brake assembly
• Speed: 1 ft. per second
• Radio Receiver: Pre-wired solar-friendly LCR dual channel receiver; optional extended range antenna
• Remote Control: Two 2-button remotes included
• Adjustable Soft/Start/Stop: Yes, using pulse width modulation software
• Limit Control Type: Mechanical adjustable rotary limits
• Timer to Close: Built-in, adjustable from 2 to 120 seconds
• Safety Photo Eyes: 2 sets included
• Control Box Enclosure: Painted galvanized steel frame; heavy-duty non-corrosive ABS molded cover
• Control Box Latch: Enclosure is padlock compatible

• Manual Release: Easy access pull knob release
• Installation: Concrete pad or 4" square post mount
• Safety: ETL tested and certified to meet UL 325 safety regulations for Class I, II, III, and IV installations
• Country of Manufacture: United States

Recommended Battery Type

Battery 12-volt, Group U-1; sealed (maintenance-free); 30 amp-hour minimum. This type of battery is commonly known as a lawn tractor or wheelchair battery. You can easily find them at stores like Walmart, Sam's Club, etc.

Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.

If the installation is located in an area that has frequent power outages (AC-charged systems) or might experience weeks of no sunshine, then a larger amp-hour battery needs to be considered. A 70 amp hour battery minimum would be recommended for those locations.

Caution!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.

Product Literature

• USAutomatic Patriot RSL Manual
• USAutomatic Patriot RSL Brochure
• USAutomatic Patriot RSL Troubleshooting
• USAutomatic Patriot Solar Gate Cycles
