Chain sliding motor for residential applications.

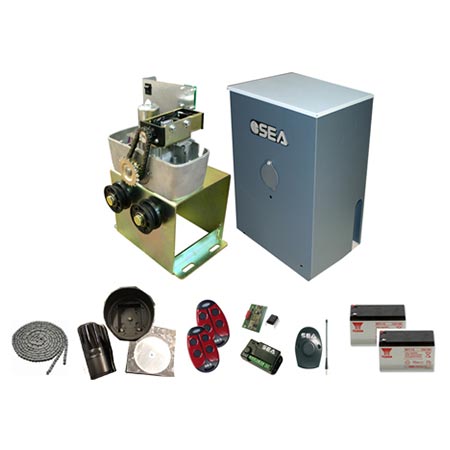

SEA Orion Box FAST 900 24V BBU Chain Slide Gate Motor Model 112SZC3BOXF-CSA, for gates up to 900 lbs. or 25 feet with a receiver, photocell, two batteries, two remotes and 20ft of chain
Chain sliding motor for residential applications
Included in Kit:- 1 Operator ORION BOX
- 1 24V USER 1 DG control board 2300A24U1MDGR
- 1 20 Feet Chain #40
- 1 Receiver 23120547
- 2 Remote controls 433 MHz 23110495
- 1 Reflex Photocell (1 pair) 23120547
- 2 Batteries
- 1 Installation accessories Kit
- 1 Installation instructions and general notice
- 1 Warning signboard
Special Feature: SEA Gate Openers are all equipped with an on-board built-in Safety Buzzer that can be activated to alert you when the gate opener is moving or obstructed.
Specifications
SEA Orion Box 24V Fast Chain Slide Gate Motor Specification
- CSA Certified
- UL Compliant
- Residential electromechanical chain sliding operator for gate up to 700 lbs.
- It is very smooth and exceptionally quiet
- It is a unique compact motorized gear box
- Metal cover with cataphoretic treated box
- Slow down in opening/closing with USER 1 - 24V DG
- Reverse on obstruction
- Very easy manual release with key
- Mechanical limit switch
- Receiver included
- Ball bearing on the wheels
- Buzzer alarm.
- Built -in battery back up system
- In option solar panel (KIT SUNNY)
- Battery back-up 7 Ah included
- Duty Cycles*: This operator can handle up to 800 cycles per day.
**Duty Cycles depend on gate size and installation
Photocell #23102230 Specification:- Adjustable lens horizontal/vertical position
- Built-in resistance 10k for monitoring under UL 325
- Factory set as N.O. but can also be wired as N.C.
- Connection time saving due to Power supply only on one side and reflecting on the other side
- Adjustable sensitivity
- Metal fixing support
- Monitored output: N.C., 10kΩ Resistor
- Weatherproof (IP55) construction for indoor/outdoor use
- Hood included
- Anti-condensation housing
