HySecurity SlideDriver 80-M UPS | HYS-SlideDriver80-M-UPS

HySecuritySKU: HYS-SlideDriver80-M-UPS-1PH-115

Size: HySecurity SlideDriver 80-M UPS Single Phase 115V
Price:
Sale price$18,774.00

HySecurity SlideDriver 80-M UPS | HYS-SlideDriver80-M-UPS

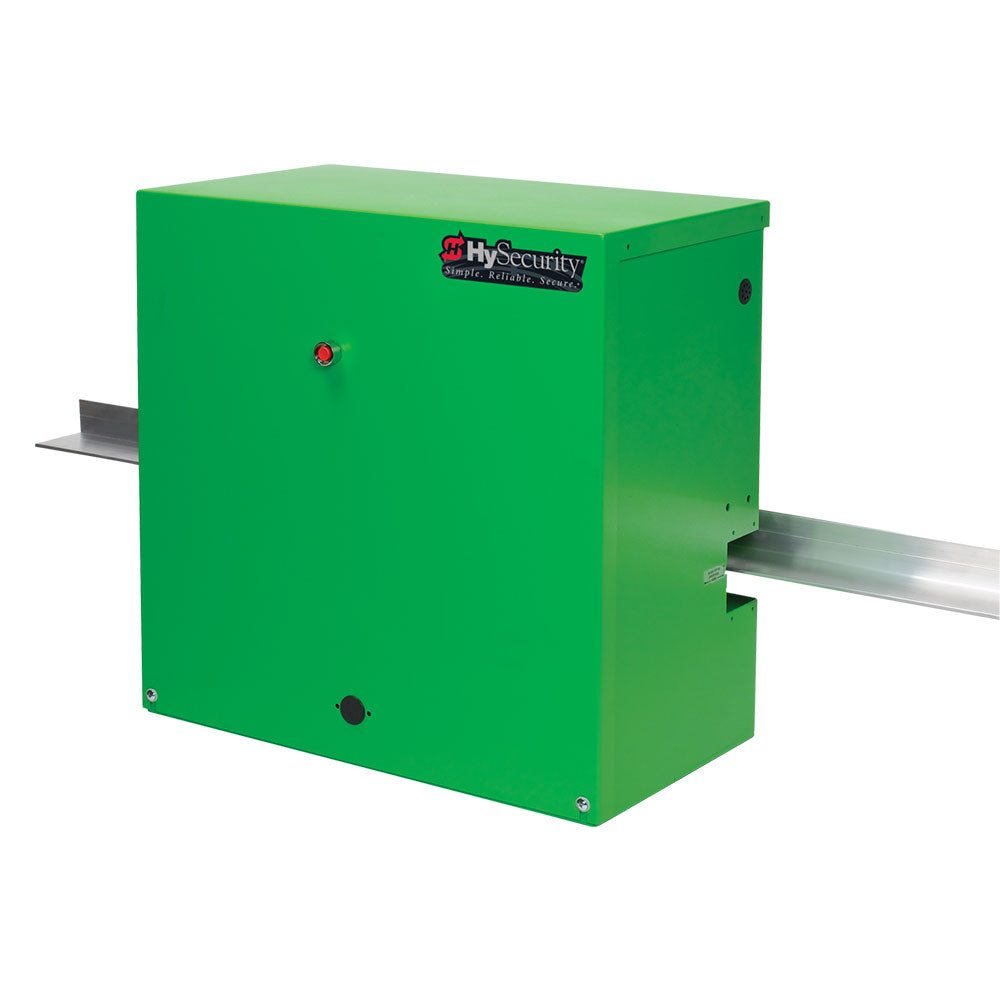

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel* after AC power loss. Motor, hydraulic pump, and electric controls are located in a remote enclosure to accommodate unique mounting, high security, environmental concerns or sites requiring quiet operation. Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. Includes XtremeDrive™ System.

Listed and restricted to UL 325 usage class III, IV.

Note: XtremeDrive™ System requires XtremeDrive™ rack and a drive rail. Operator price includes 27 ft (8 m) of rack, but no drive rail. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features
  • Move the longest, heaviest gates up to 20,000 lb
  • DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.

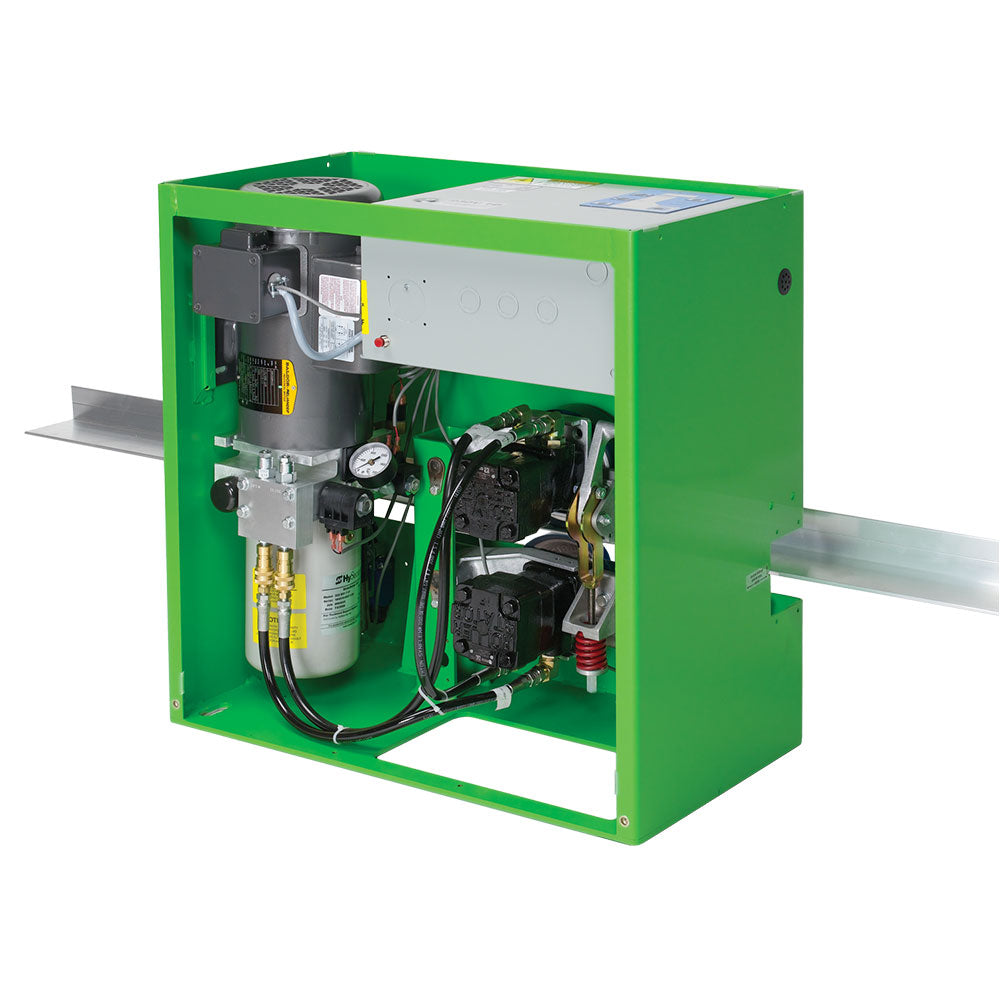

  • Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security or sites requiring a very quiet operator.
Operator Components

Model: SlideDriver 80-M UPS Drive Unit

  • Part Number: 333 DX1
  • Est. Ship Weight: 200 lb
  • Shipping Dimensions: 26"w x 30"d x 35"h
  • Shipping Class: 70

Model: SlideDriver 80-M UPS Power Unit

  • Part Number: 333 DX1 ST
  • Est. Ship Weight: 261 lb
  • Shipping Dimensions: 40"w x 40"d x 50"h
  • Shipping Class: 70

Model: DC Power Supply 120

  • Part Number: DCPS-120
  • Est. Ship Weight: 335 lb
  • Shipping Dimensions: 39"w x 28"d x 39"h
  • Shipping Class: 70
