HySecurity SlideDriver 80-C UPS | HYS-SlideDriver80-C-UPS

HySecuritySKU: HYS-SlideDriver80-C-UPS-1PH-115

Size: HySecurity SlideDriver 80-C UPS Single Phase 115V
Price:
Sale price$16,565.90

HySecurity SlideDriver 80-C UPS | HYS-SlideDriver80-C-UPS

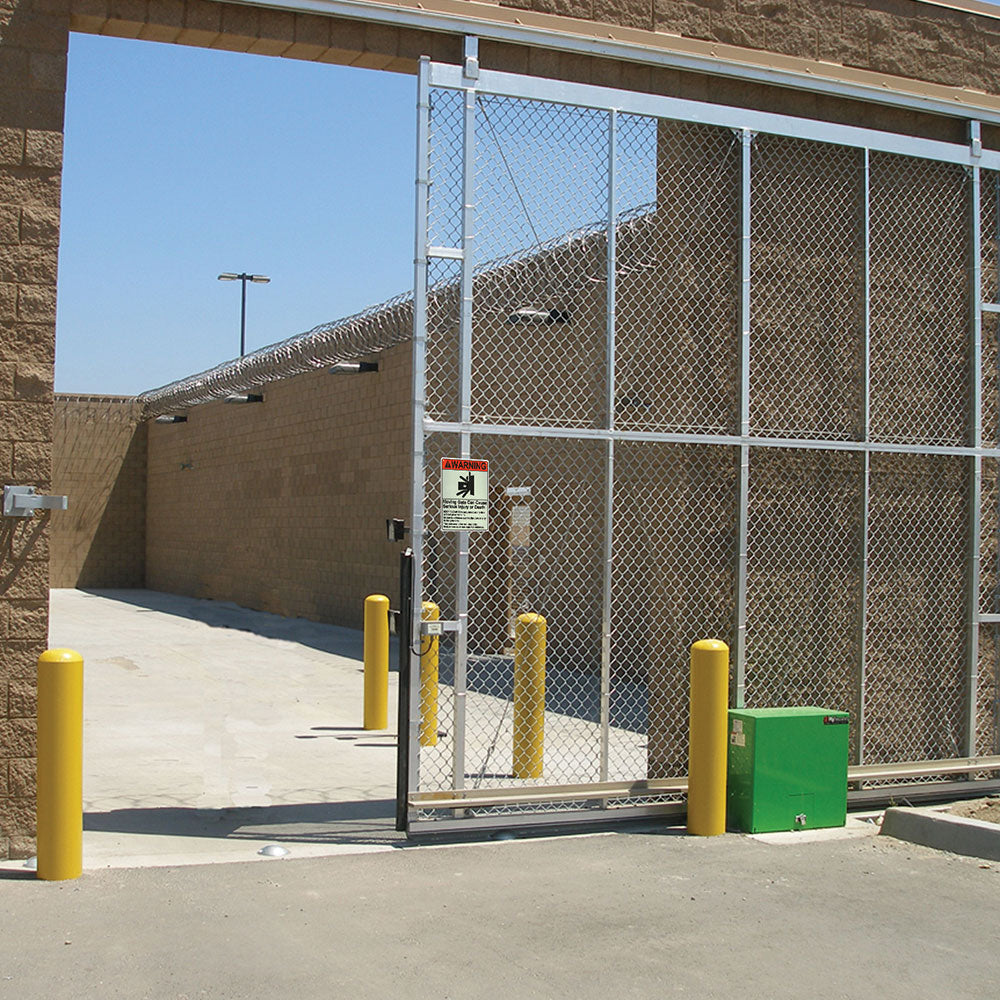

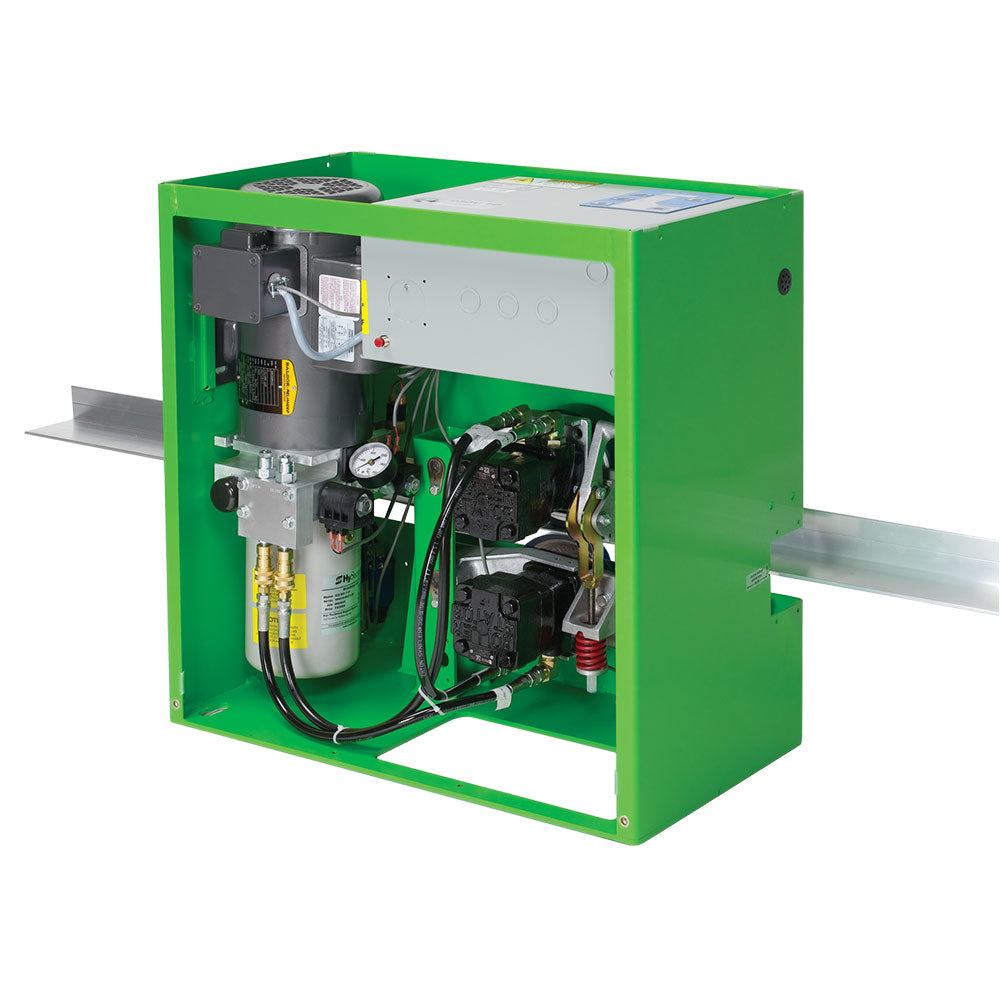

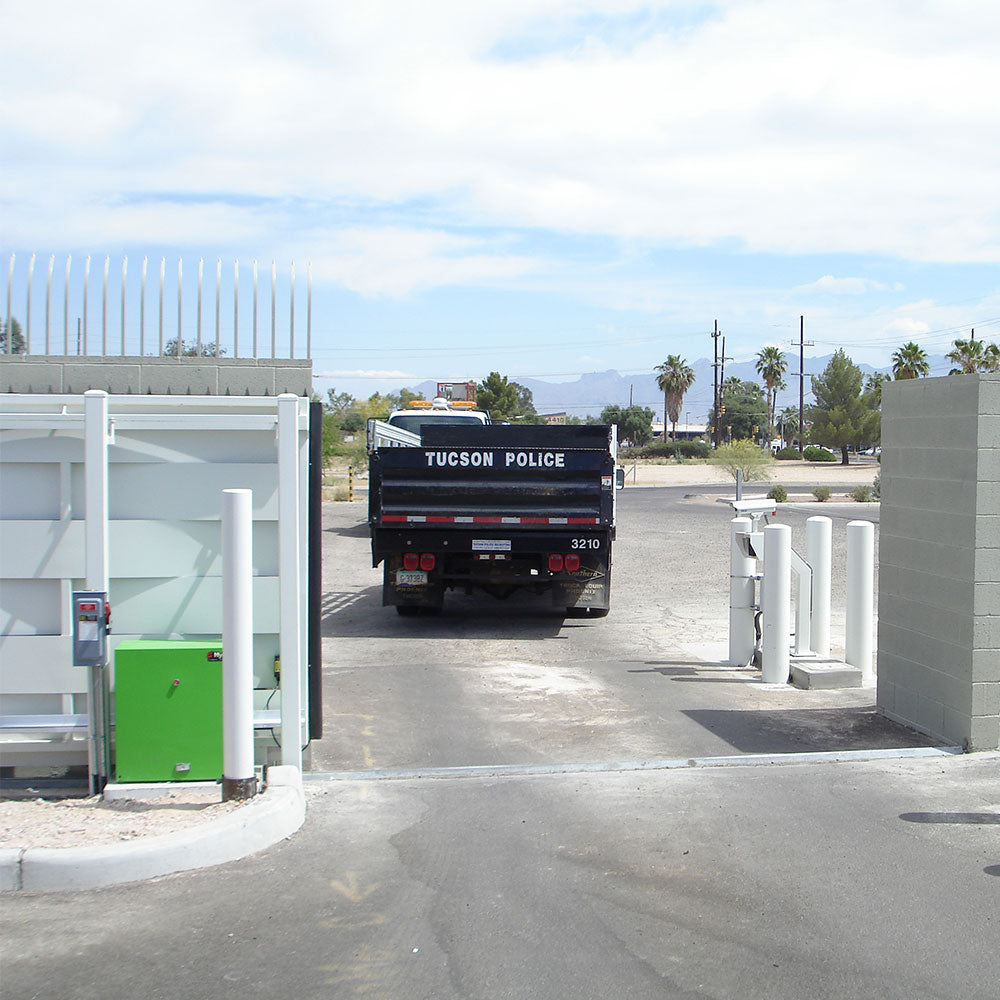

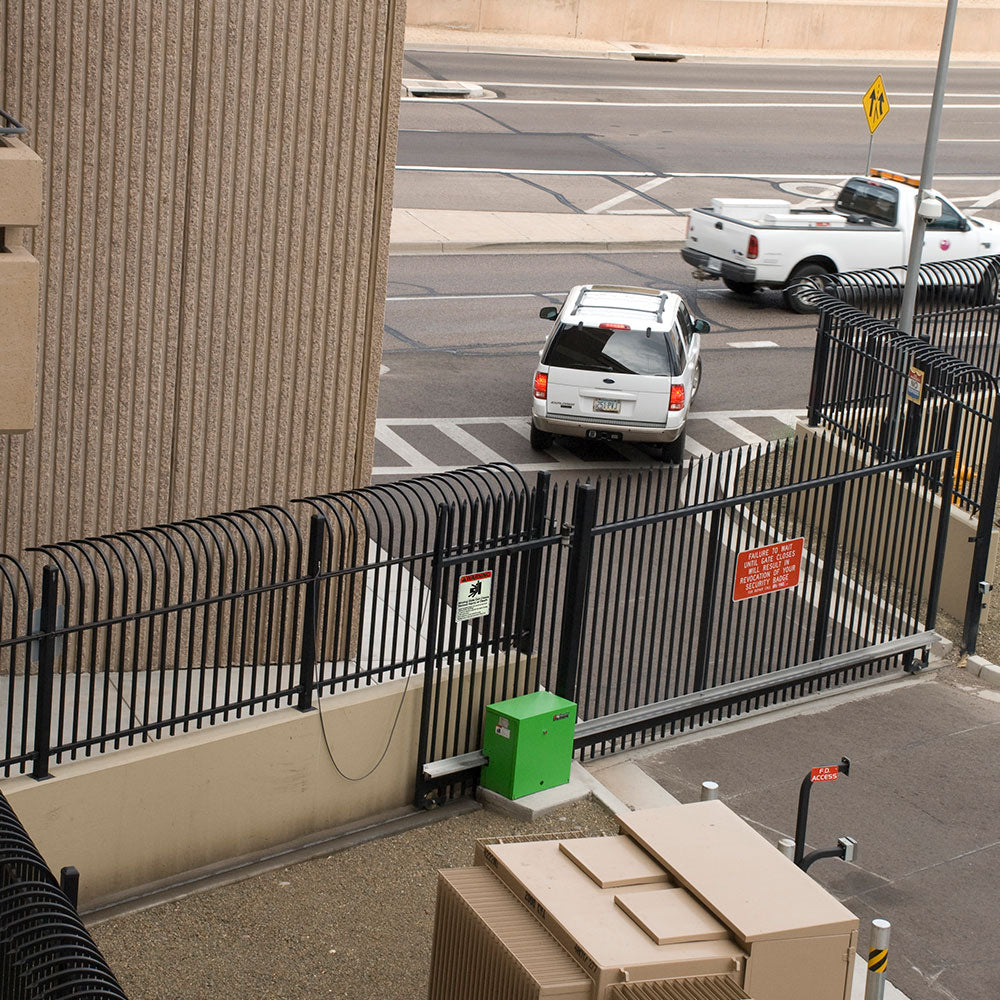

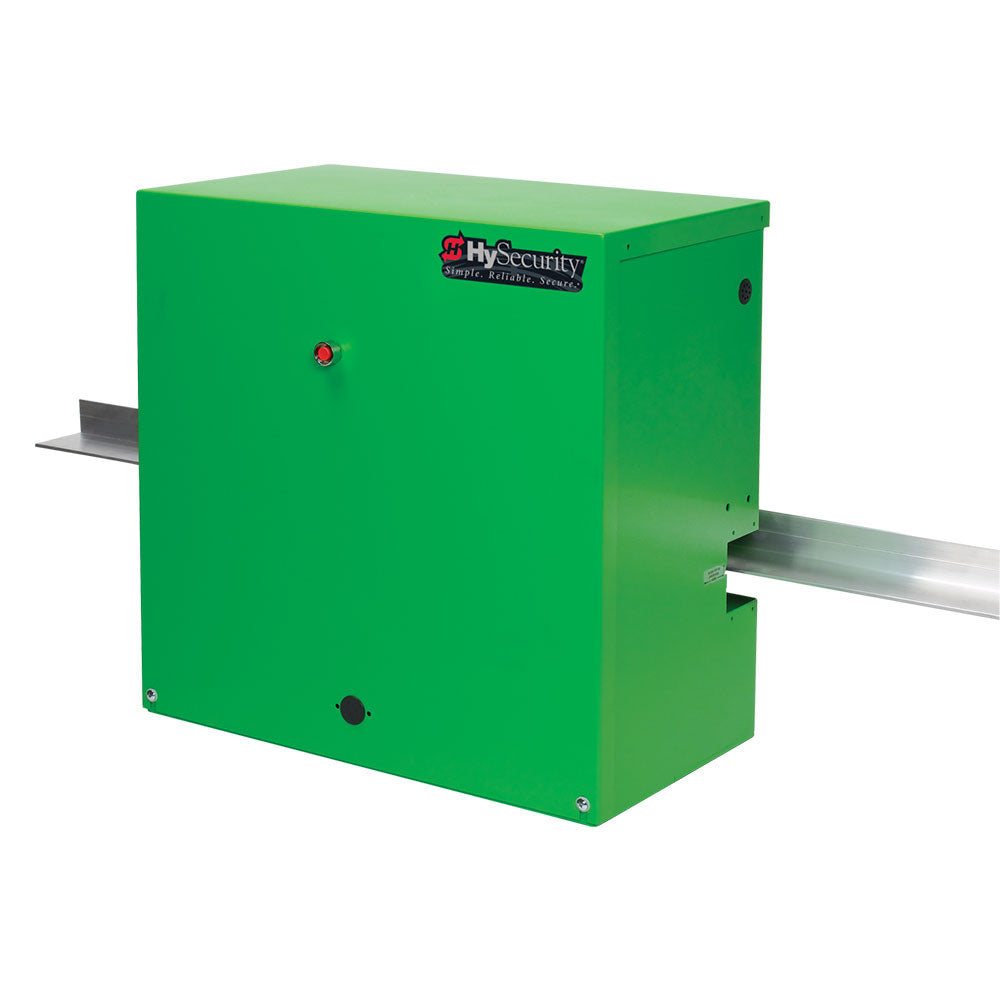

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel* after AC power loss. Correctional facility models come standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities. Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. Includes XtremeDrive™ System.

Listed and restricted to UL 325 usage class III, IV.

Note: XtremeDrive™ System requires XtremeDrive™ rack and a drive rail. Operator price includes 27 ft (8 m) of rack, but no drive rail. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz.  If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features
  • Move the longest, heaviest gates up to 20,000 lb
  • DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.
  • Correctional Facility Model (-C): The correctional facilities model comes standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities.
Operator Components

Model: SlideDriver 80-C UPS

  • Part Number: 222 DCX1 ST
  • Est. Ship Weight: 280 lb
  • Shipping Dimensions: 26"w x 30"d x 35"h
  • Shipping Class: 70

Model: DC Power Supply 120

  • Part Number: DCPS-120
  • Est. Ship Weight: 335 lb
  • Shipping Dimensions: 39"w x 28"d x 39"h
  • Shipping Class: 70
Product Literature
