Description
HySecurity SlideDriver 30F UPS | HYS-SlideDriver30F-UPS
SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
The Uninterruptible DC Power Supply provides up to 3,000 ft (914 m) of gate travel after AC power loss.* Almost twice the speed of traditional slide gate operators. SlideDriver 30F’s soft-start system (key to smoothly moving slide gates faster than 1 ft/s) combined with a high flow rate pump, cycles heavy, up to 3,000 lb gates, at just 1.7 ft/s (1,361 kg / 50 cm/s). Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. Listed and restricted to UL 325 usage class III, IV due to high speed.
Note: Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Move the longest, heaviest gates up to 20,000 lb
- DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.
Operator Components

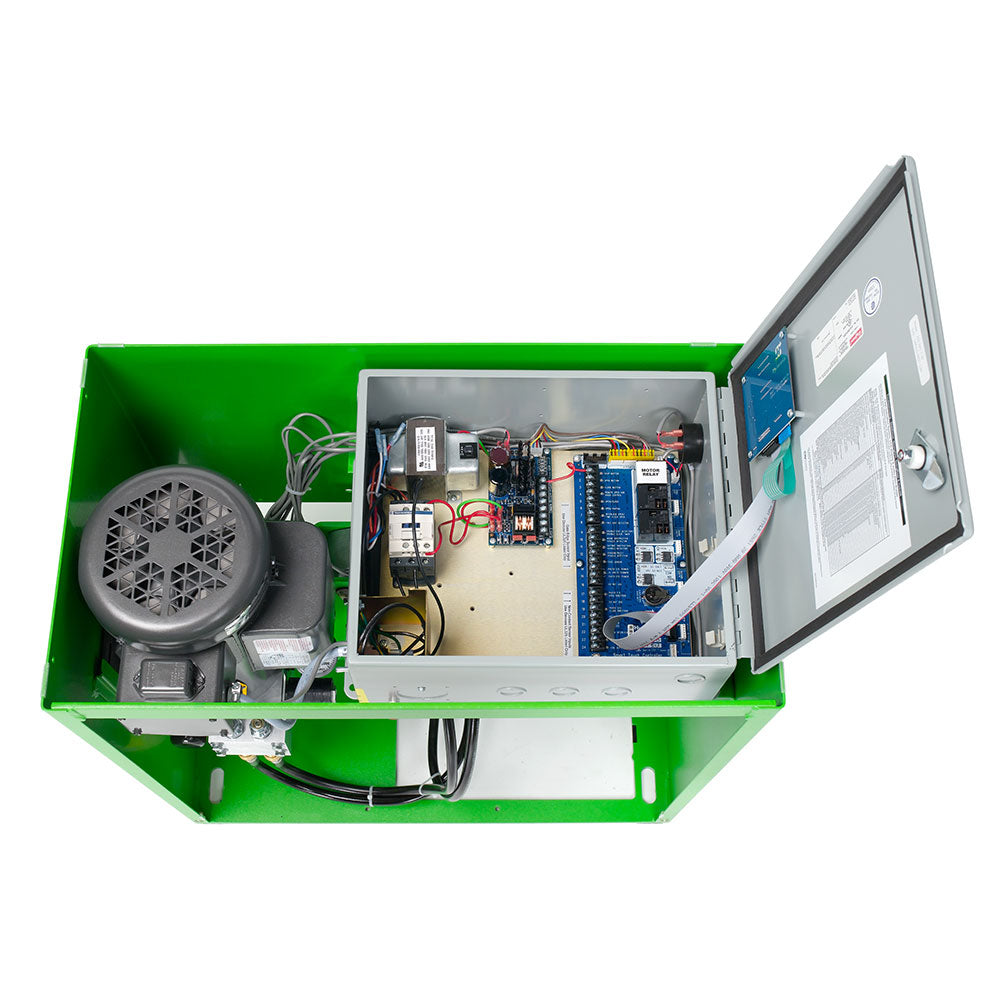

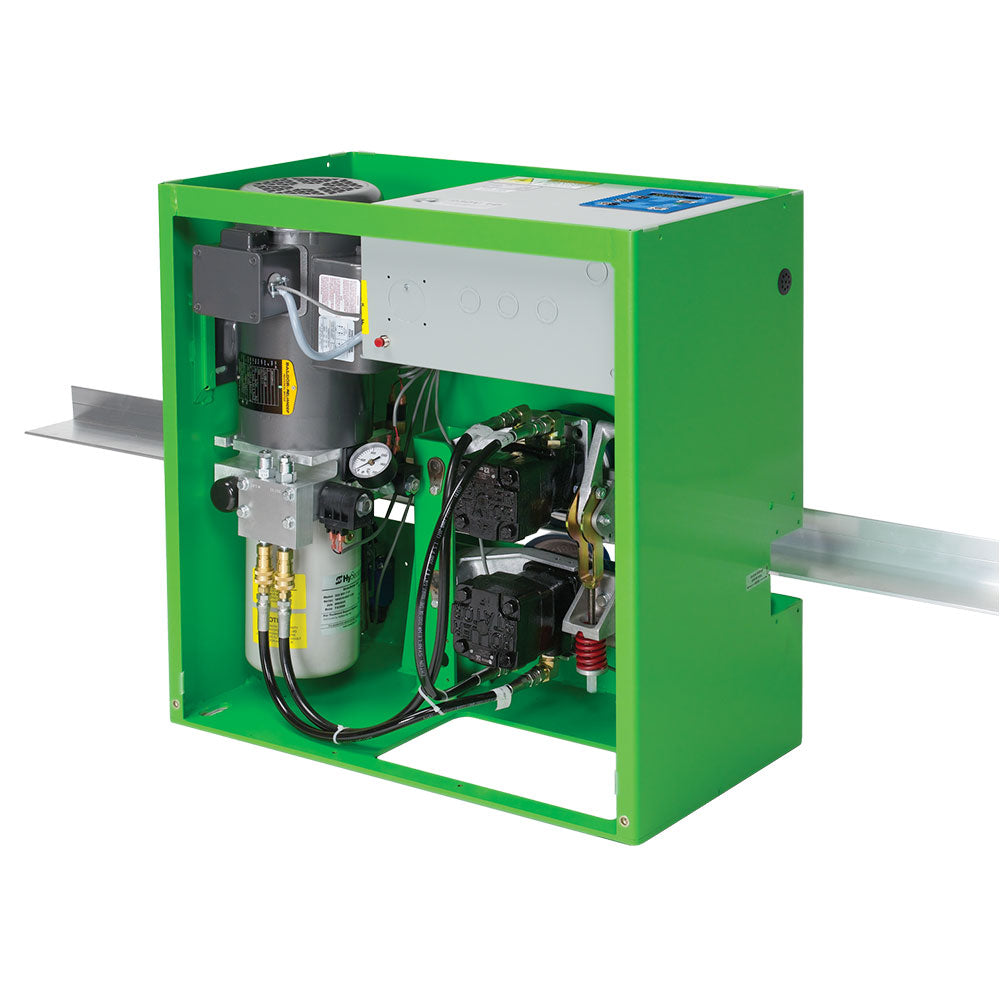

Model: SlideDriver 30F UPS
- Part Number: 222 DX 1.7 ST
- Est. Ship Weight: 249 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
Model: DC Power Supply 120
- Part Number: DCPS-120
- Est. Ship Weight: 335 lb
- Shipping Dimensions: 39"w x 28"d x 39"h
- Shipping Class: 70
