HySecurity SlideDriver 30F-C UPS | HYS-SlideDriver30F-C-UPS

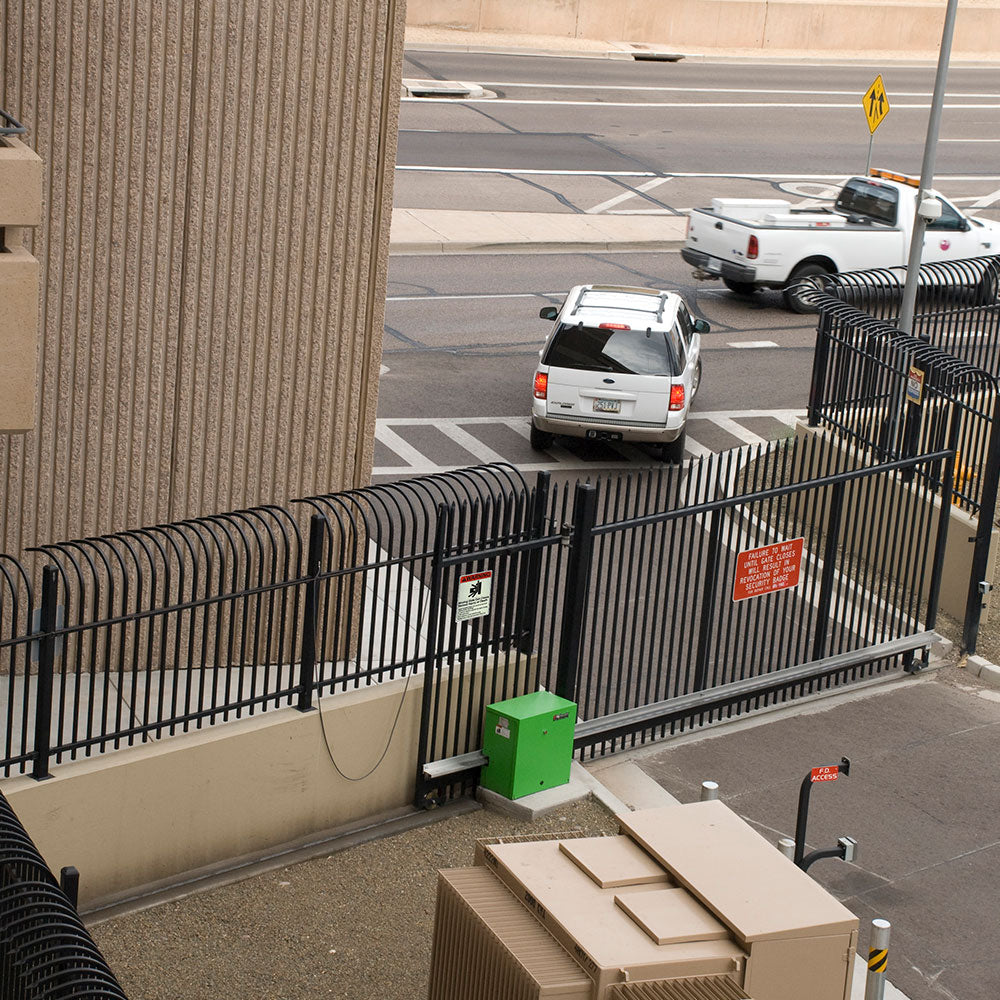

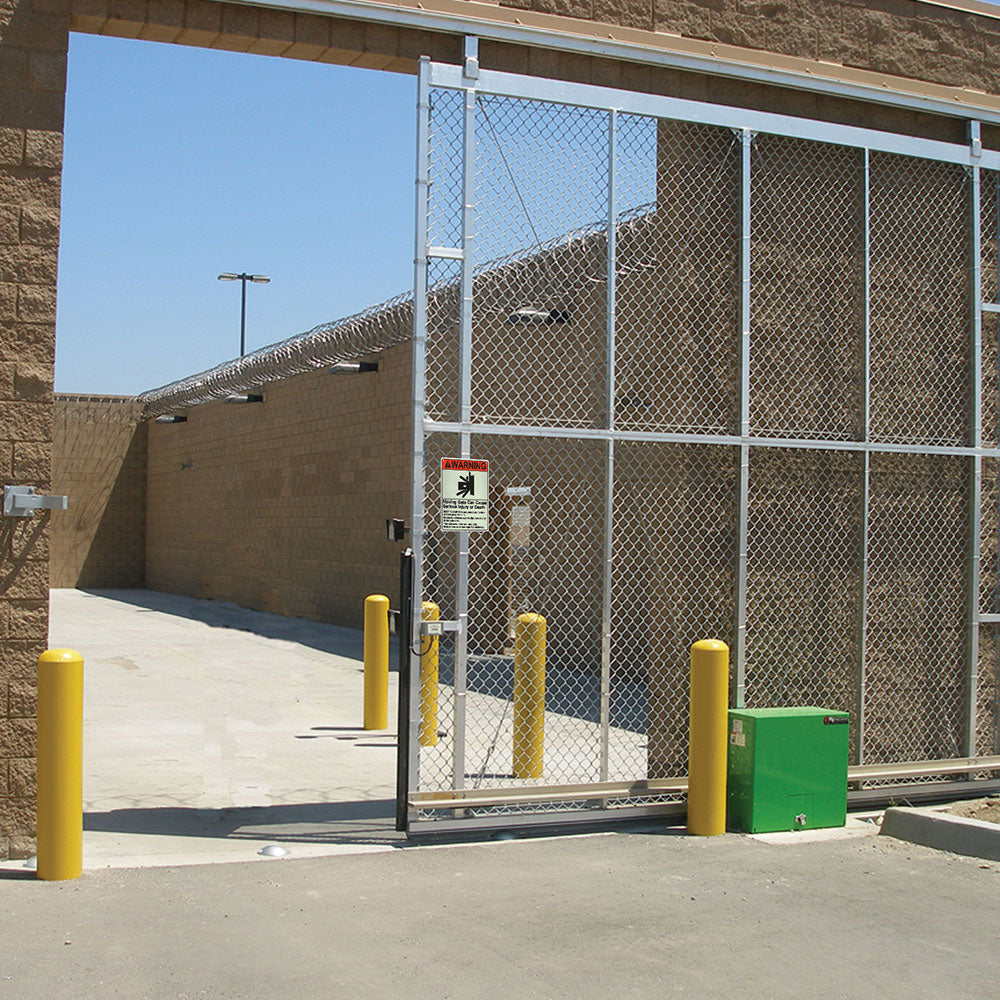

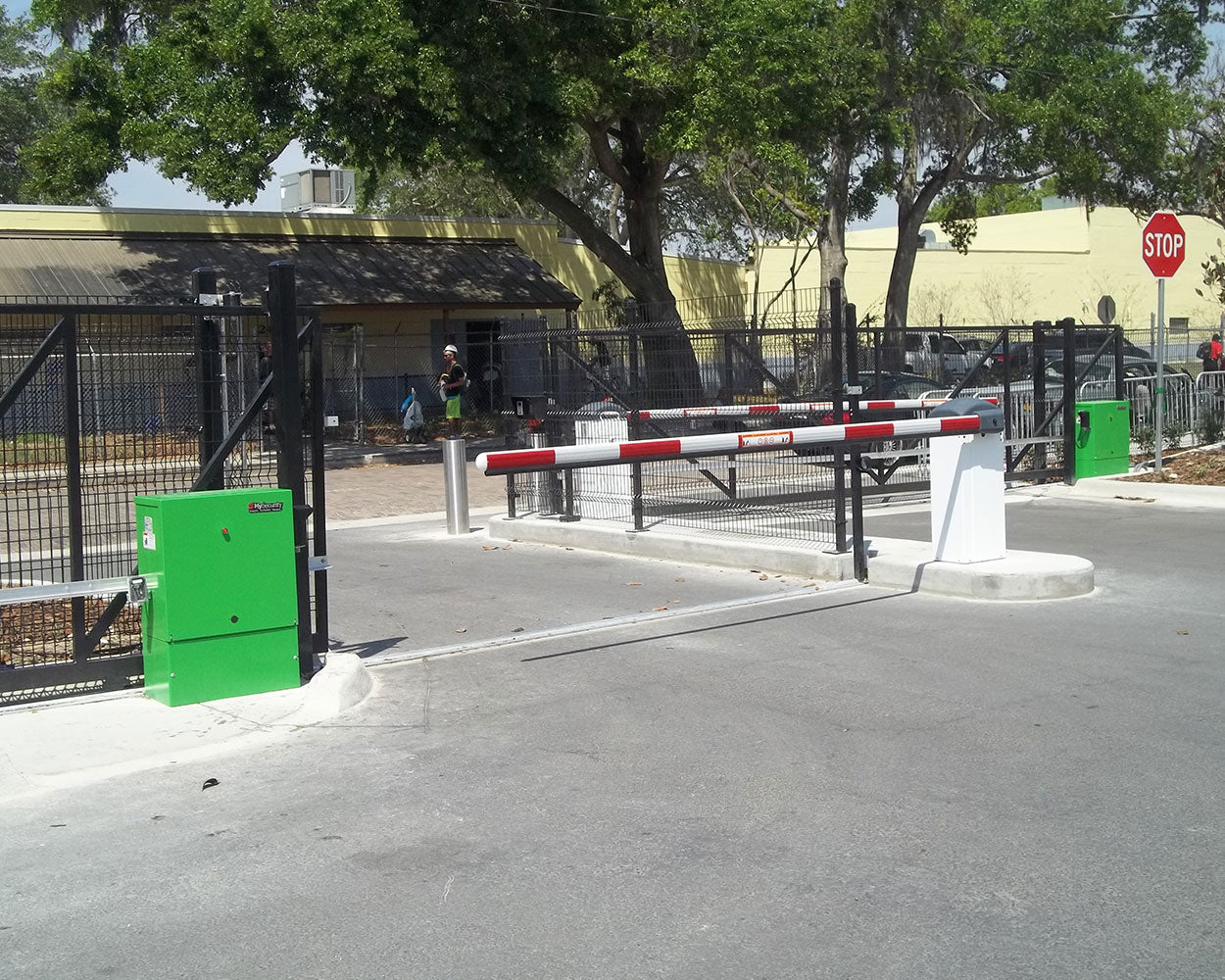

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
The Uninterruptible DC Power Supply provides up to 3,000 ft of gate travel* after AC power loss. HySecurity correctional facility gate operators come standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities. Available in single phase only: Low voltage: 115V 60/50Hz (requires 30A branch circuit) or High voltage: 208-230V 60/50Hz (requires 15A branch circuit). Be certain to order the correct HyCharger DC™ voltage model as chargers are not field convertible. Listed and restricted to UL 325 usage class III, IV due to high speed.
Note: See Options & Accessories for high security lock options. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Features
- Move the longest, heaviest gates up to 20,000 lbs.
- DC Power Supply (UPS): Uninterruptible Power Supply provides a minimum of 3,000 ft (914 m) of gate travel using 24VDC batteries.
- Correctional Facility Model (-C): The correctional facilities model comes standard with all the software and additional control wiring needed to interface with the many options and interlocks commonly used at correctional facilities.
Operator Components

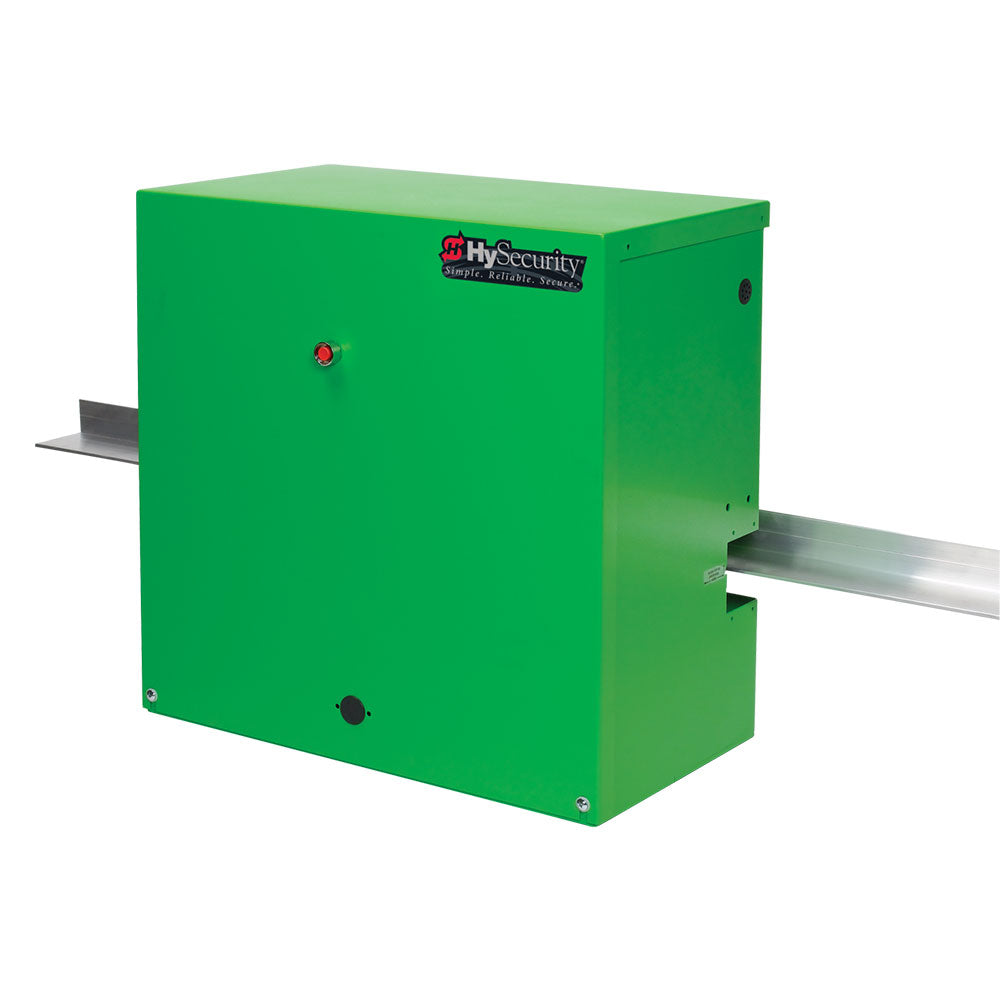

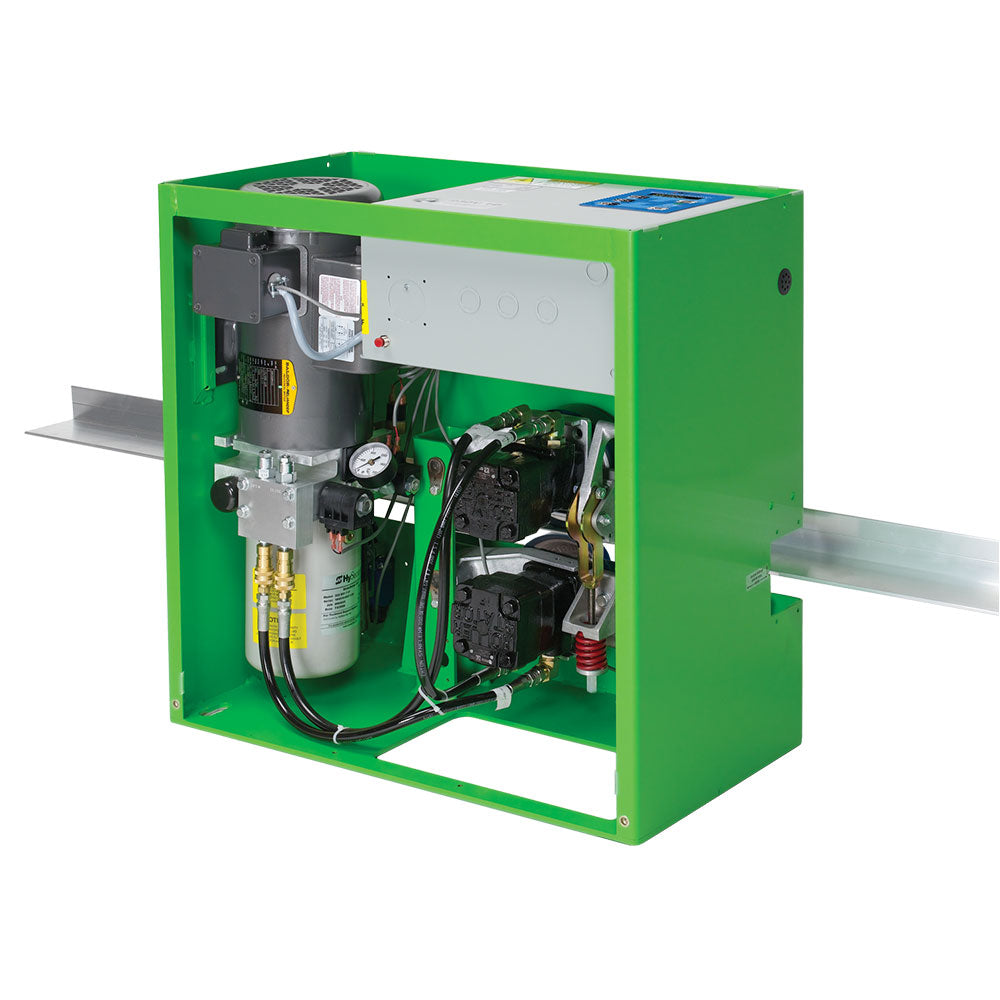

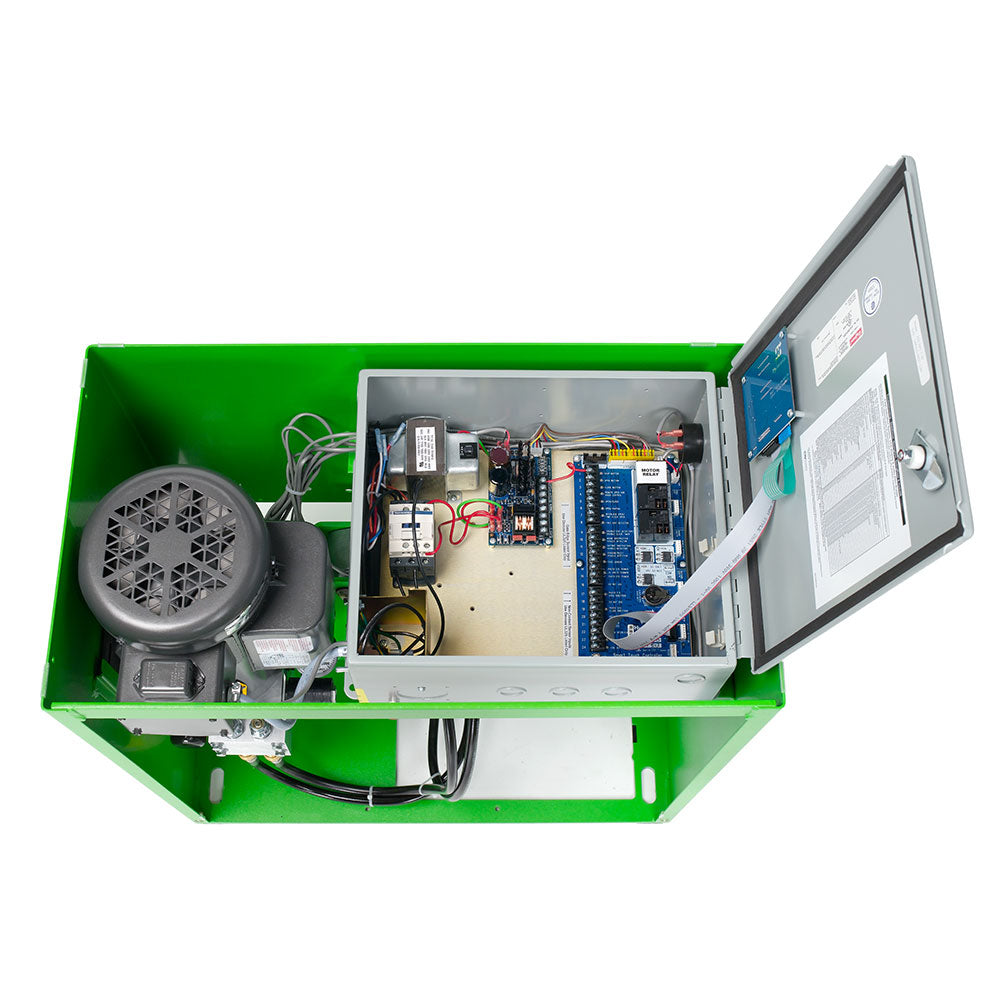

Model: SlideDriver 30F-C UPS
- Part Number: 222 DCX 1.7 ST
- Est. Ship Weight: 280 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
Model: DC Power Supply 120
- Part Number: DCPS-120
- Est. Ship Weight: 335 lb
- Shipping Dimensions: 39"w x 28"d x 39"h
- Shipping Class: 70
