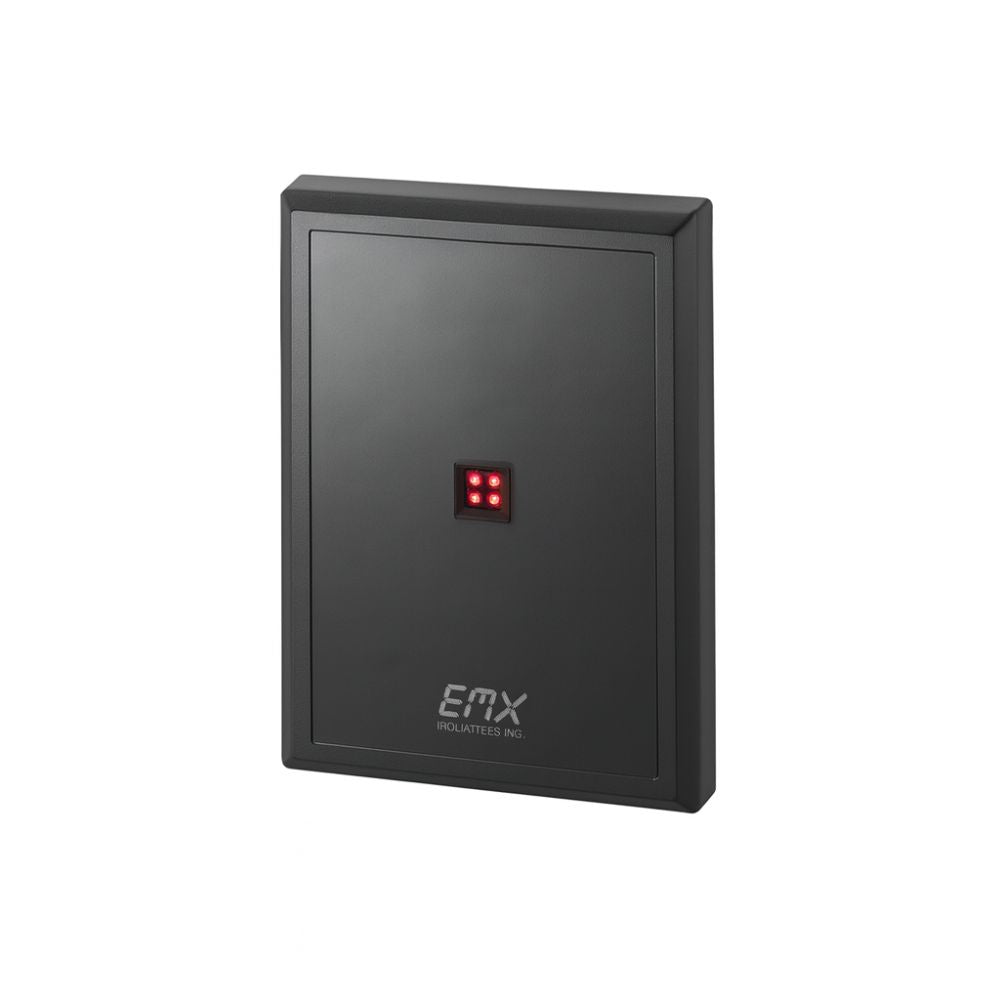

EMX P-710-HA Proximity Reader | EMX-TRES-100-P-710-HA

EMXSKU: EMX-TRES-100-P-710-HA

Price:
Sale price$312.50

Estimate shipping

EMX P-710-HA Proximity Reader | EMX-TRES-100-P-710-HA

The TRES-P-710 Proximity Reader delivers robust and durable performance, with excellent compatibility across a range of electronic access control systems. This versatile device, operating on 125-kHz Proximity RFID technology, can be mounted on various surfaces and supports multiple proximity card and tag technologies. With a reliable read range up to 15 inches and a maintenance-free operation, this reader epitomizes efficiency and adaptability. With dimensions of 6″W x 8.5″H x 1″D, it seamlessly integrates into diverse applications.

Its outstanding compatibility and dependability make the TRES-P-710 Proximity Reader a comprehensive and robust solution for managing access control systems effectively and securely, thus enhancing your overall security operations.

Features
  • Flexible mounting options – capable of installation on diverse surfaces including metal door and window frames
  • Employs the reliable and trusted 125-kHz Proximity RFID technology
  • Robust yet compact design: 6″W x 8.5″H x 1″D (216 mm x 152 mm x 25.4 mm)
  • Compatible with a broad array of electronic access control systems
  • Supports a variety of proximity card and tag technologies including Pyramid Series Proximity Cards and certain HID and AWID 125-kHz Proximity protocols
  • Provides a consistent read range up to 15 inches (378 mm)
  • Flexible mounting options – capable of installation on diverse surfaces including metal door and window frames
  • Operates at a voltage of +5 – 16 VDC with a typical current draw of 215 mA, and a peak at 600 mA at 12 VDC
  • Compliant with multiple certifications including FCC, ICC, CE, C-Tick, UL Standard 2941, and IP67, affirming its quality, safety, and resistance to environmental conditions
Technical Specifications
  • RFID Type: Proximity RFID
  • Operating Frequency: 125 kHz
  • Dimensions: 6″W x 8.5″H x 1″D (216 mm x 152 mm x 25.4 mm)
  • Read Range: Up to 15 inches (378 mm)
  • Current Draw: 215 mA typical, 600 mA peak @ 12 VDC
  • Cabling: 24 AWG minimum, multiconductor stranded with an overall foil shield
  • Interface: Wiegand ABA II
  • Mounting Options: Mullions, including metal door and window frames, and other surfaces
  • Weight: 20 oz (567g)
  • Color: Black snap-on cover included standard
  • Audio Tone: Beeper included standard
  • Indoor & Outdoor Installation: Electronics sealed in weather-and tamper-resistant epoxy potting
  • Applications: Electronic Access Control Systems
  • Power Supply: +5 -16 VDC, 215 mA typical, 600 mA peak@ 12 VDC
  • LED: Four-state standard (red, green, amber, and off)
  • Operating Temperature: -40° F to 149° F (-40° C to +65° C)
  • Certifications: FCC, ICC, CE, C-Tick, UL Standard 2941, IP67
  • Technologies Supported: TRES-P-710: Pyramid Series Proximity Cards and Tags, TRES-P-710-H: Pyramid+ certain HID 125-kHz Proximity protocols, TRES-P-710-A: Pyramid + certain AWID 125-kHz Proximity protocols, TRES-P-710-H-A: Pyramid+ certain HID Proximity protocols+ certain AWID 125-kHz Proximity protocols
  • Warranty: Limited lifetime warranty
