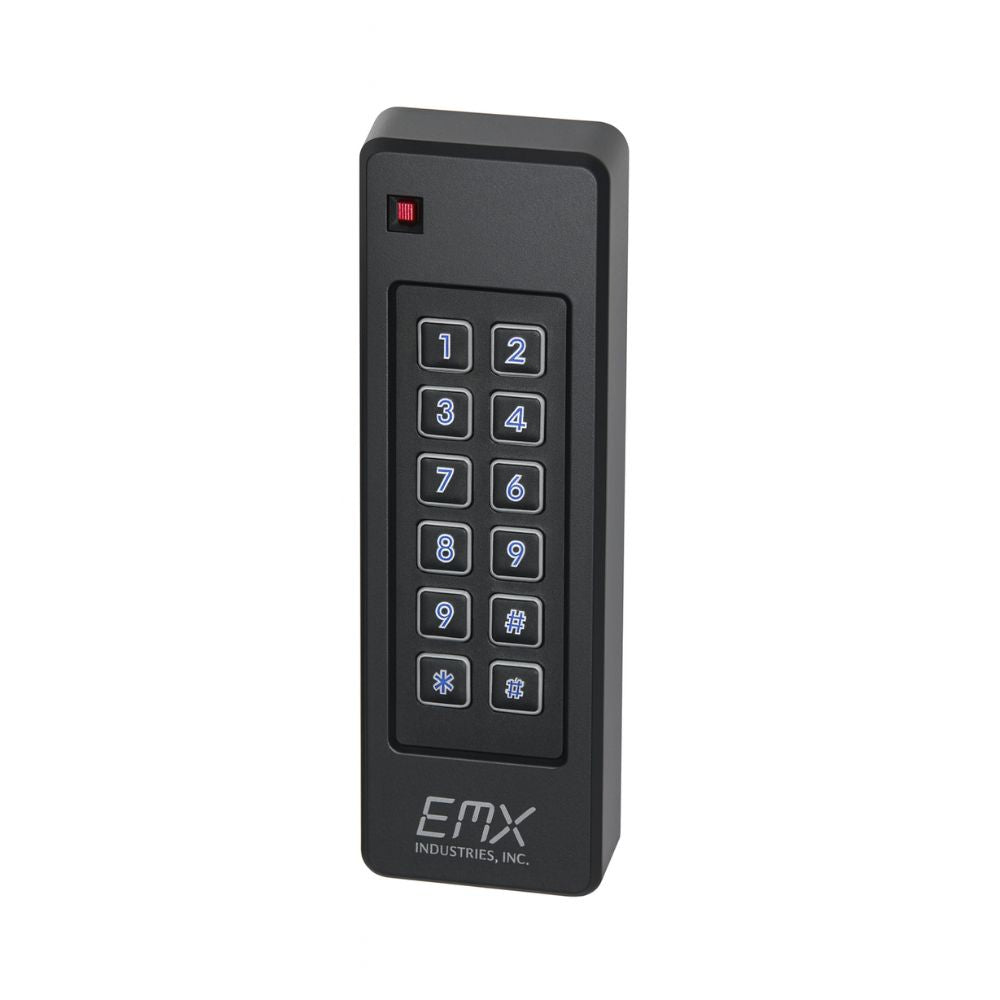

EMX P-620-HA Mullion-Mount Reader and Keypad | EMX-TRES-100-P-620-HA
P-620-HA Mullion-Mount Reader & Keypad is a flagship offering from Farpointe Data’s renowned EMX Pyramid Series Proximity®. Setting the pinnacle in electronic security for 125-kHz proximity readers, cards, and tags, this device is built on the foundation of tried-and-true contactless digital radio frequency identification (RFID) technology. It’s designed to seamlessly interface with a wide array of electronic access control systems, thanks to its compliance with the Wiegand communication protocol. Users will appreciate its value-added features, notably MAXSecure™ and fleaPower™. A standout feature is its adaptability – it can be tailored to support multiple proximity card and tag technologies. Plus, with Pyramid cards and tags being passive devices, maintenance is a breeze; there’s no need for batteries. All in all, the EMX-P-620-HA promises to be an indispensable tool for any modern security system, combining efficiency, adaptability, and reliability.
Features
- Advanced 125-kHz Proximity RFID technology
- Dimensions: 1.78″W x 6.1″H x 0.91″D (45 mm x 155 mm x 23 mm)
- Interfaces with diverse electronic access control systems via Wiegand
- Key features include MAXSecure™M and fleaPower™M
- Supports multiple proximity card and tag technologies
- Impressive read range up to 5 inches (126 mm)
-
Adaptable mounting on mullions, metal door and window frames, and other surfaces
-
Battery-free passive design, minimizing maintenance
-
Endorsed by certifications: FCC, ICC, CE, C-Tick, UL Standard 2941
-
IP67 protection rating ensures durability
-
Optimal operating voltage of +5 – 16 VDC
- Support for both Pyramid Series and specific HID and AWID 125-kHz Proximity protocols
Technical Specifications
- Product Model: TRES-P-620-HA
- Technology: Proximity
- Frequency: 125 kHz
- Mounting: Mullions, metal door and window frames, and other surfaces
- Dimensions: 1.78″W x 6.1″H x 0.91″D (45 mm x 155 mm x 23 mm)
- Weight: 4 oz (113g)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 2941
- IP Code: IP67
- Voltage: +5 – 16 VDC
- Current Draw: 70 mA typical, 110 mA peak @ 12 VDC
- Read Range: Up to 5 inches (126 mm)
- Technologies Supported: TRES-P-620: Pyramid Series Proximity Cards and Tags, TRES-P-620-H: Pyramid + certain HID 125-kHz Proximity protocols, TRES-P-620-A: Pyramid + certain AWID 125-kHz Proximity protocols, TRES-P-620-H-A: Pyramid + certain HID and AWID 125-kHz Proximity protocols
