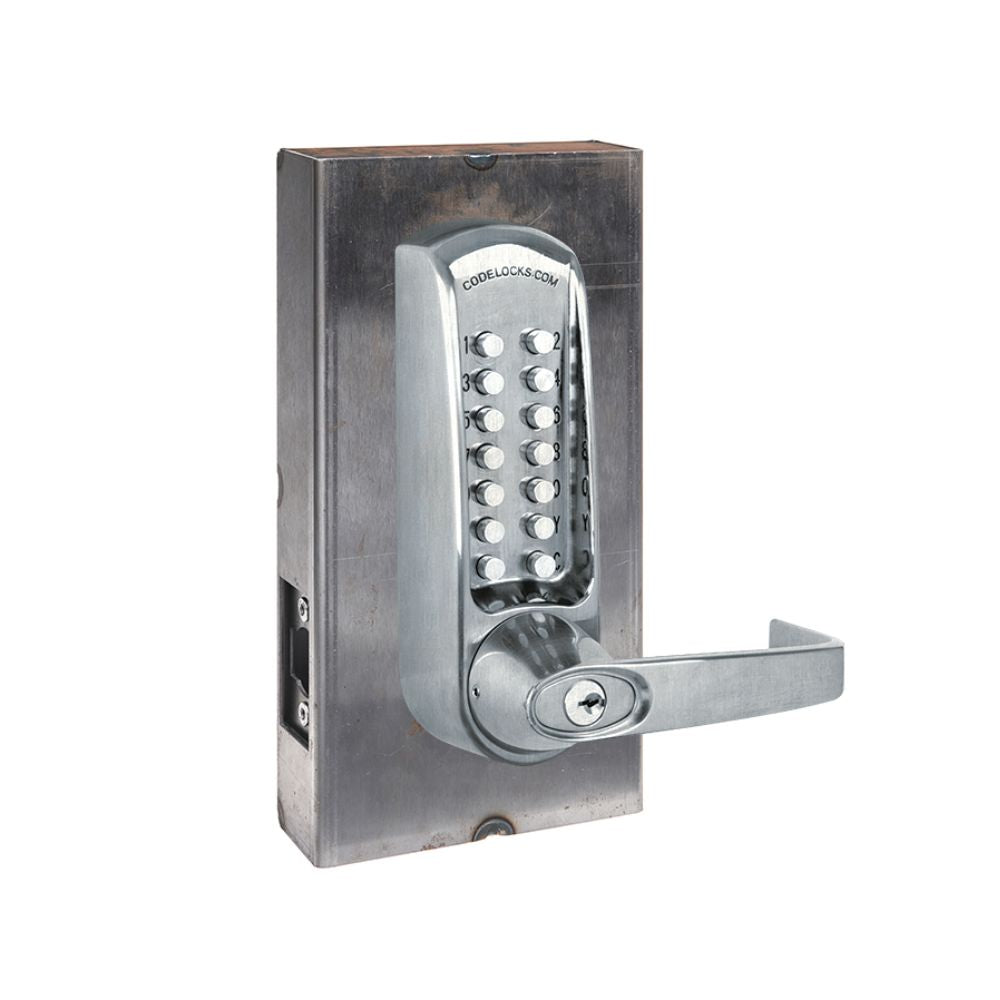

D&D Technologies CodeLocks CL610 (Non Code Free) Gate Box Kit | DND-DD98075
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

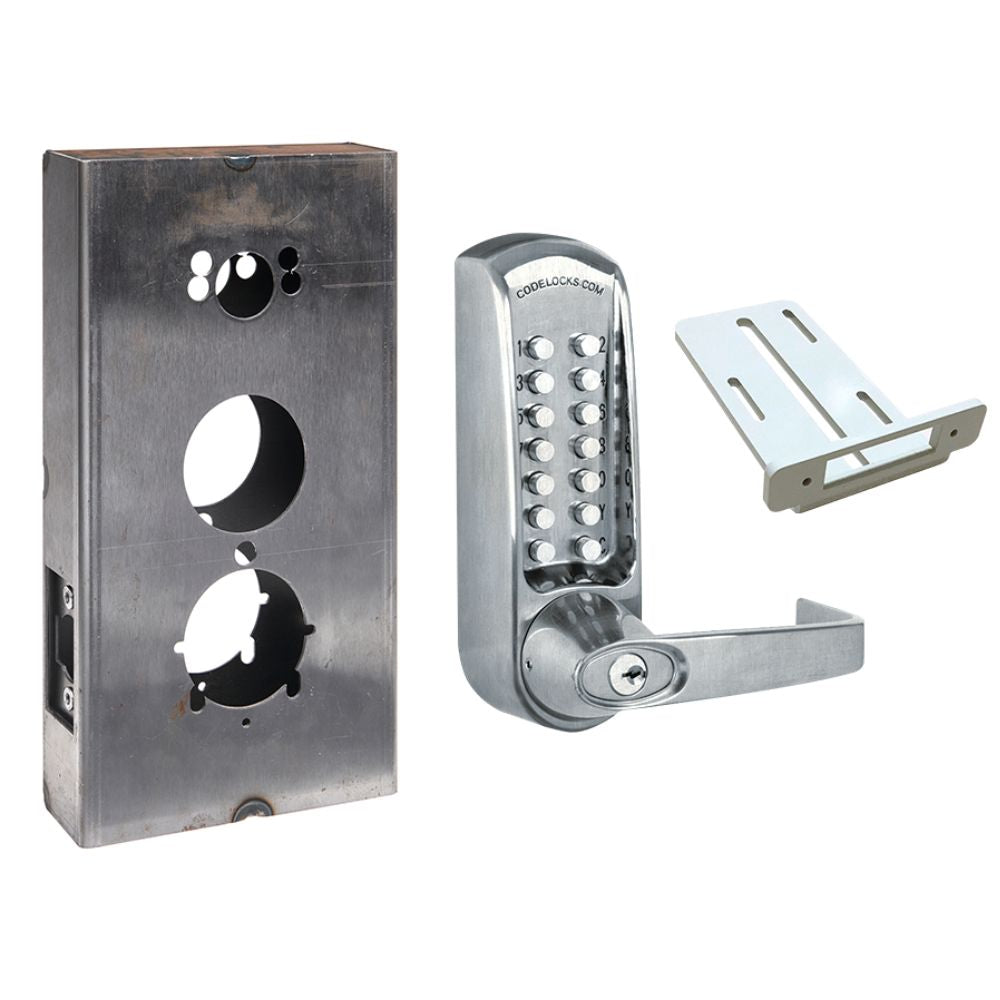

Gate Box Kit Includes
- CL610 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Brushed steel finish
About the CL610 Tubular Latchbolt Mechanical Codelocks
Heavy-duty locks with on-door code changes and key override. Code free passage function, back-to-back options and SFIC prep available.
- Tubular mortise latch
- Quick Code change - no need to remove lock from door
- Mechanical Codelock
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Tested to Grade 2 - ANSI - A156.2
Specifications
- Brand: Gate Solutions by Codelocks
- Buttons: 2 x 7
- Code Change Method: QuickCode (On Door)
- Codes: Single code storage - 8,191 nonsequential combinations available
- Finish: Brushed Steel
- Gate Box Dimensions: 10.25” (H) x 5.5” (W) x 1.75” (D)
- Gate Box Material: 14-gauge steel
- Gate Kits By Codelocks: Gate Solutions by Codelocks
- Handed: Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike: Available
- Keypad: 14 stainless steel buttons
- Latch Type: Tubular Latchbolt
- Lock Material: Zinc Alloy
- Orientation: Vertical
- Spindle: Two-part 5⁄16" (8mm) spring-loaded spindle
- Suitable For: Internal, External
- User Types: Code
