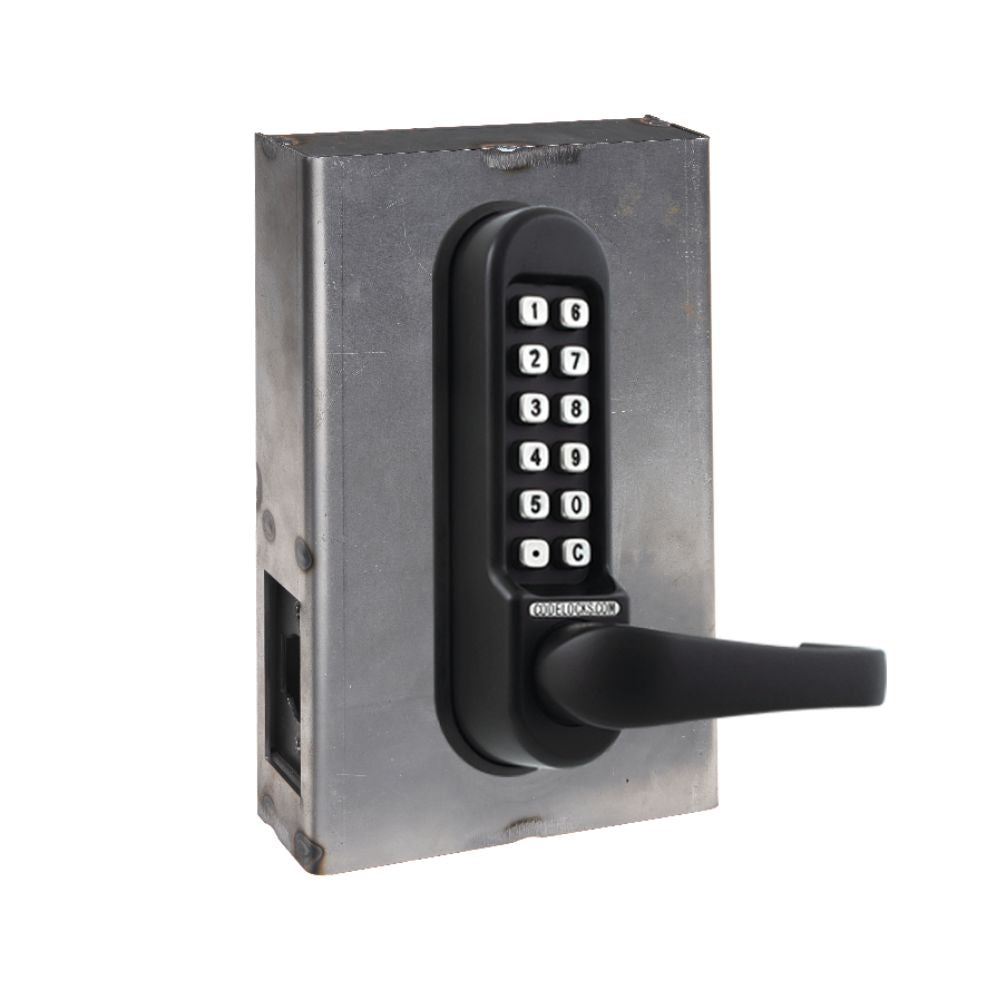

D&D Technologies CodeLocks CL510 (Non Code Free) Marine Grade Gate Box Kit | DND-DD90828
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

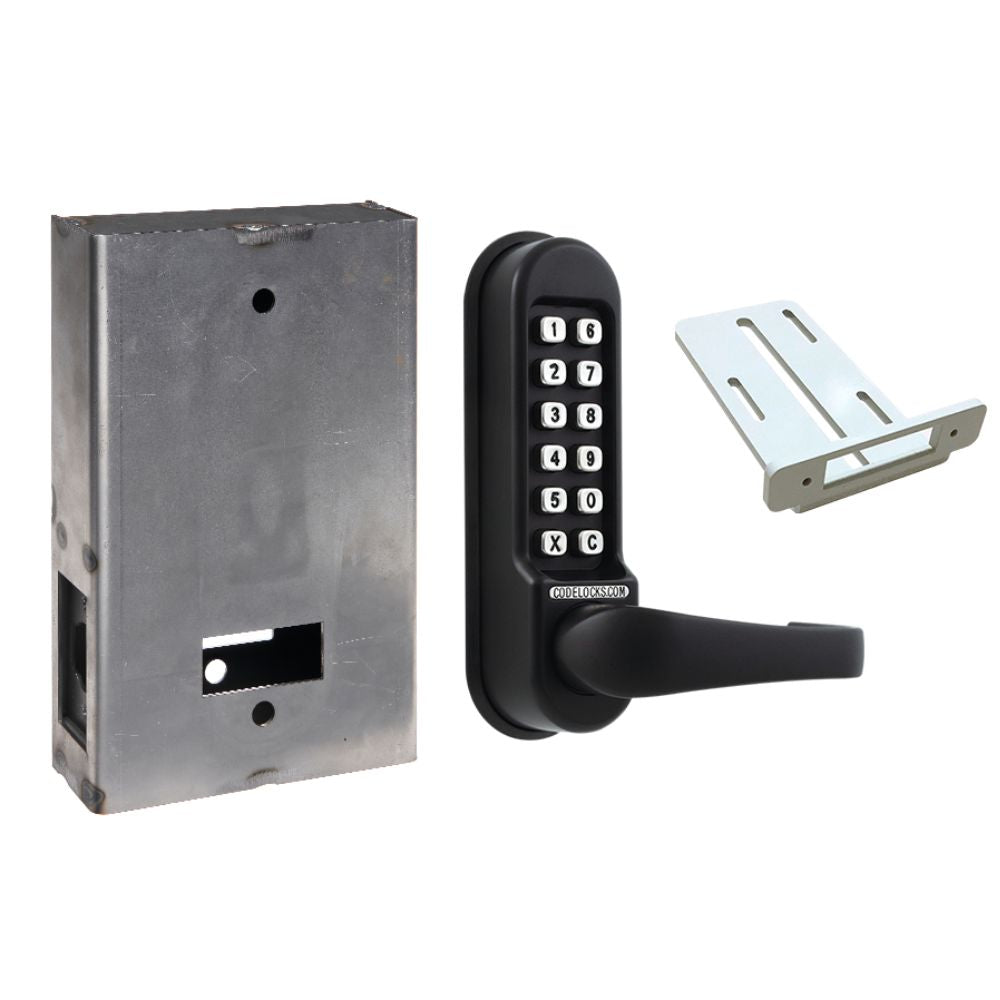

Gate Box Kit Includes
- CL510 Marine Tubular Mortise Latch
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- Supplied as raw steel, ready to paint
- Marine grade finish
About the CL510 Marine Tubular Mortise Latch Mechanical Codelock
Heavy-duty lock with tubular latch and full-size lever handles, suitable for high-traffic use. Code free passage function and back to back options available.
- Salt spray tested
- Durable marine grade black finish
- Specially enhanced finish for harsh environments
- Large full-size lever handles with return to door
- Code Free access option
- Tumbler alignment for easy code change
- Large three-coil lever return spring suitable for high-traffic use
- Neoprene seals included
Specifications
- Brand: Gate Solutions by Codelocks
- Buttons: 2 x 6
- Code Change Method: Tumblers (Off Door)
- Codes: Single Code - 2,047 nonsequential code combinations available
- Finish: Black
- Gate Box Dimensions: 8.5” (H) x 5.5” (W) x 1.75” (D)
- Gate Box Material: 14-gauge steel
- Gate Kits By Codelocks: Gate Solutions by Codelocks
- Handed: Non-Handed - Locks will fit doors hung on the left or right
- Keypad: 12 stainless steel buttons
- Lock Material: Zinc Alloy
- Marine By Codelocks: Marine by Codelocks
- Orientation: Vertical
- Spindle: Two-part 5⁄16" (8mm) spring-loaded spindle
- Suitable For: Internal, External
- User Types: Code
