ASE Deluxe Wireless Entry Magnetic Lock Kit | FAS-KITMAGDELUXE

Save $105.49
All Security EquipmentSKU: FAS-KITMAGDELUXE

Price:
Sale price$299.00 Regular price$404.49

ASE Deluxe Wireless Entry Magnetic Lock Kit With Proximity Cards And Key Fobs KITMAGDELUXE

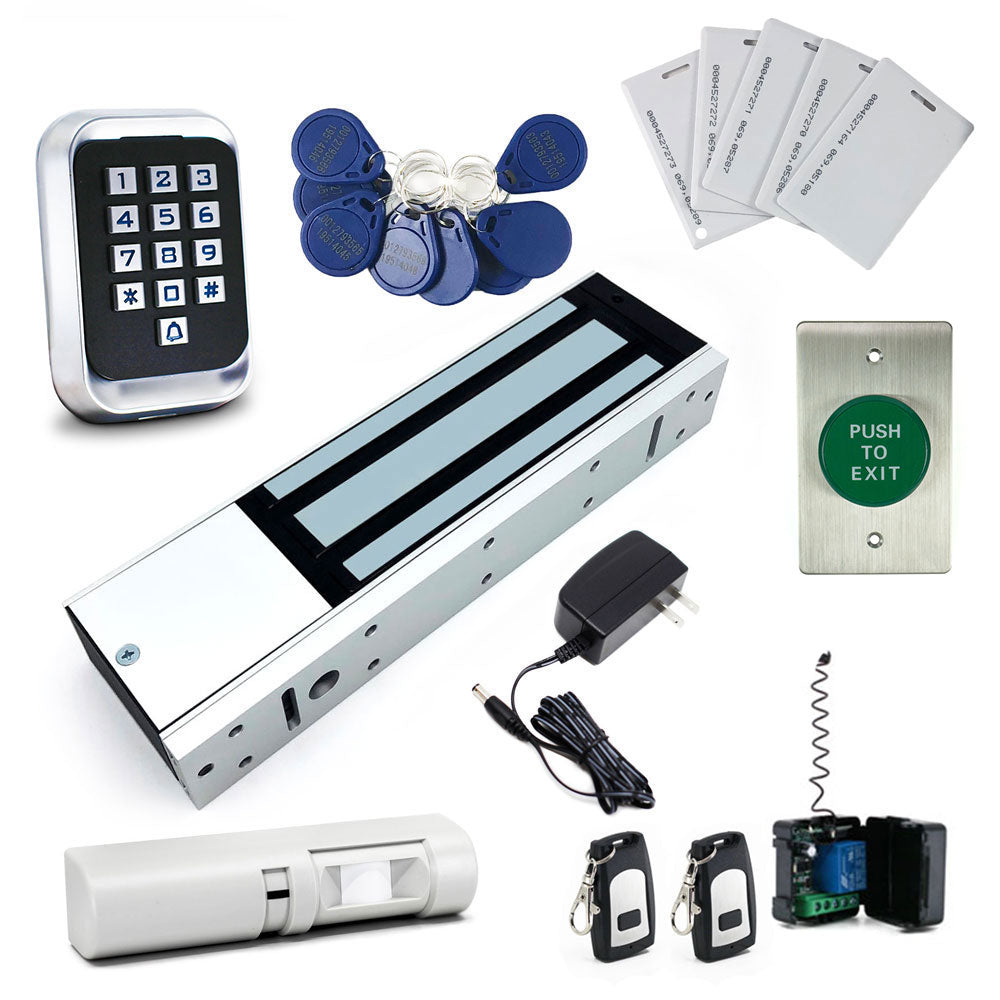

This Magnetic Lock KITMAGDELUXE Kit Includes:
  • 10 FAS-SS-CARD-SEQ Prox Cards
  • 10 FAS-SS-FOB Key Fobs
  • 1 Magnetic Lock W1200LDT
  • 1 Mini Receiver 1 Channel MINIRX1CH
  • 2 FAS Mini Remote 1 Channel MINITX1CH
  • 1 C2-15-12V1000MARS 1000mA Power Supply
  • 1 Illuminated Outdoor Keypad with WG26 and RFID FAS-KP70
  • 1 Bosch Motion Sensor DS150i
  • 1 Large Push To Open Button Model FAS-H-PB4RP (G)

PLEASE NOTE: Mag Lock Bracket Set FAS-H-B1002 is required for Inswing Door Applications.

Magnetic Lock Features:
  • MOV provides spike and surge protection
  • Zero residual to release armature plate
  • Magnetic bond sensor & LED monitor door status
  • 0~60s adjustable time delay for door to close
  • Top-plate, armature-plate and fixings included
  • Surface mount
  • Silver anodised aluminum housing
  • Relay: COM/NO/NC
Magnetic Lock Specifications:
  • Holding force per door: up to 1200lbs
  • Dual voltage = 12Vdc 500mA / 24Vdc 250mA (selected)
  • Voltage tolerance: +/-15%
  • Operating temp: -10°C to +55°C
  • Magnet :266(L) X 76(W) X40mm(T)
  • Armature zinc plated:185(L) X61(W) X16.5mm(T)
  • Weight: 10 lbs(approx)
Items Included in this Kit Features: Magnetic Lock 12V 1000mA Power Supply Features:
  • Small size and easy to conceal
  • Input: 100-120V-50/60Hz 0.5A
  • Output: +12VDC --- 1A
  • UL Listed / Approved
Illuminated Outdoor Keypad with WG26 and RFID FAS-KP70 Features:
  • Card type: EM Card
  • Digital backlit touch keypad
  • WG interface: WG26 Input / output
  • Capacity: 2000 cards / codes
  • Three accesses: card, pin, card + pin
Bosch DS150i Motion Sensor Features:
  • Single or Double Door Use
  • Wall and Ceiling Mountable
  • Internal Vertical Pointability
  • Wrap-Around Coverage Pattern
  • 12 or 24 AC or DC Operation
  • Up to 60 Second Adjustable Latch Time
  • Selectable Relay Trigger Mode
  • Selectable Fail Safe/Fail Secure
  • UL Listed
  • CE Approved
Push To Open Button Model FAS-H-PB4RP (G) Features:
  • Green or Red depending on stock
  • Illuminated Button
  • Stainless Steel Face Plate
  • Micro Switch: NO (normally open) & NC (normally closed)
  • Current Draw: 12VDC, 20mA
  • Dimension: 115L×70W×5H (mm) / 4.53” x 2.76” x 0.2”
Product Literature
