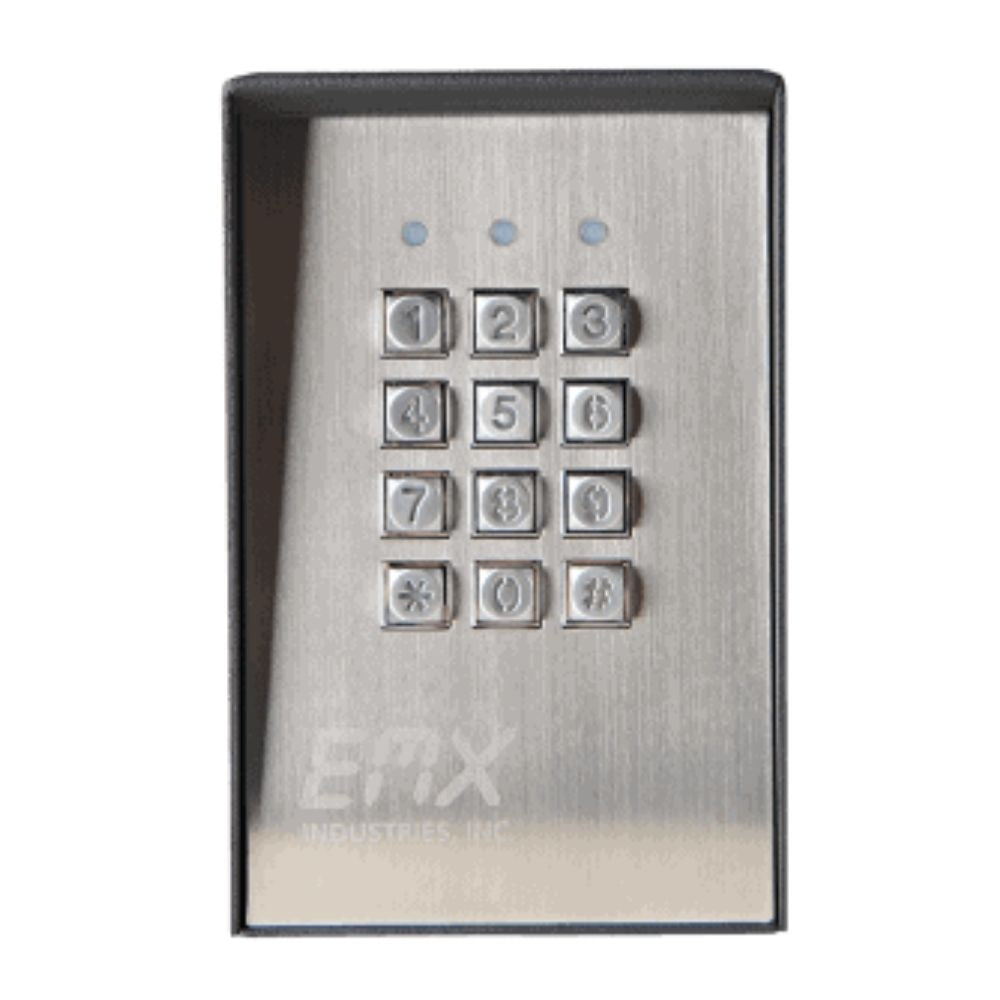

EMX Programmable Keypad - 100 Users | EMX-KPX100
The KPX-100 is a dual relay output, programmable keypad. With its durable back-lit, all-metal key buttons and a rugged metal housing, the KPX-100 programmable keypad is designed to handle high-traffic and harsh environments. The keypad fits on gooseneck mounts or posts, and walls. The KPX-100 has many features found in more expensive programmable keypads.
Features
- Stainless steel face with metal backlit keys
- Anodized and powder-coated steel outer housing that is vandal and weather resistant to IP66
- Dual relay outputs
- Over 100 Million 4-8 digit codes
- 12-24V AC/DC operation
- 100 user codes on Relay 1; 10 users relay 2
- Status indicator LEDs
- Universal mounting options for mounting on a wall, post, or gooseneck stand
Manufacturer's Warranty
- 2 years
Indicators & Controls
- The Red light is up when relay output 2 is activated.
- The Amber status indicator shows synchronization with internal pacifier tones.
- The Green light is up when relay output 1 is activated.
- Programming via keypad.
Technical Specifications
- Operational Voltage: 12V - 24V AC/DC (No jumper selection required)
- Current Consumption: 15 mA standby to 100 mA two relays activated.
- Ambient Temperature: -22°F – 159°F (30°C – 70°C)
- Humidity: 5.95% relative humidity non-condensing.
- Environmental: IP66 All weather.
- Dimensions: H=6.15in (156mm) x W=4.1in (103mm) x D=2.75in (70mm)
- Housing:
- Anodized Steel with powder coat paint ABS (plastic)
- Faceplate: 1.5mm stainless steel
- Key buttons: Cast metal back-lit
- Weight: 2.2 lbs. (980g) net
- Relay Contacts Ratings:
- Relay 1 100 user 5A @ 30VDC max. Normally Open / Common / Normally Closed
- Relay 2 10 user 1A @ 30VDC max. Normally Open / Common / Normally Closed
