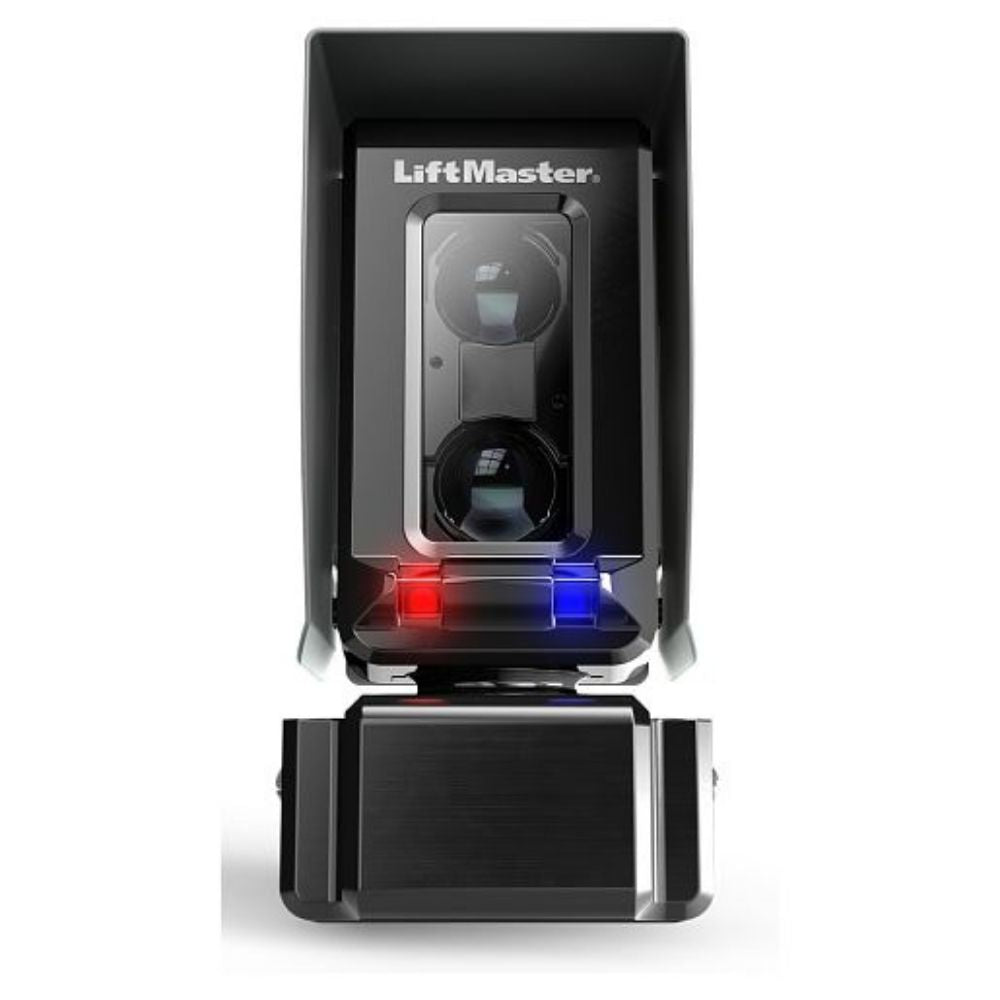

LiftMaster Monitored Through Beam Photo Eyes with Wider Beam | LIF-LMTBUL

LiftMasterSKU: LIF-LMTBUL

Price:
Sale price$233.99

Estimate shipping

LiftMaster Monitored Through Beam Photo Eyes with Wider Beam | LIF-LMTBUL

LMTBUL features integrated diagnostics with our 2018 UL® 325 Gate Operators.

Includes
  • Brackets
  • Hardware
  • 10ft. wire and hoods
Features

Reliable

  • Versatile Solution for entrapment protection.
  • Long-Range Sensing Distance of up to 90 ft. (LMTBUL)
  • Built-In Heater for dependable performance in most environments.
  • Increased Beam Angle for simple, reliable alignment.
  • Versatile Gimble Bracket for fine alignment and adjustability.
  • With 2 years warranty.

Smart

  • Alignment Strength Indicator signals optimal beam alignment.
  • Multi-View Led Lights indicate sensor status, simplifying installation.
  • Wireless Network Capability eliminates the need to wire between operators in dual-gate applications (LMTBUL).

Safe and Secure

  • Secure Mounting Hardware for versatile performance in harsh applications.
  • Hoods are included for durability and shielding from elements.
  • NEMA 4X Rated for superior weather resistance.
  • UL Recognized: tested and evaluated by UL and meet UL 325 requirements.

Diagnostics

  • Solid Blue—optimal alignment
  • Blinking Blue—LED blinks faster to indicate near alignment
  • Solid Red—misaligned or obstructed
Technical Specifications
  • Outdoor Rating: NEMA 4X
  • Cable Length: 10 ft. (3m)
  • Operating Temperature: -40 ̊C to 65 ̊C (-40 ̊F to 149 ̊F)
  • Max Range: 90 ft. (27.4 m)
  • Input Voltage and Current Draw Sensor: Black/Red Wires: 6.8V DC, 20mA
  • Heater: Green/White Wires: 10–40V DC or 8–28V AC, 2 Watts Max., 170mA at 120V DC/AC, 85mA at 24V DC/AC. Thermostatically controlled, NOT recommended for solar applications
  • Monitoring Technology: Pulsed system
  • Interface: 4-Wire connection (2 for Eye; 2 for heater)
  • Sensor Compatibility: LMRRUL emitter is not interchangeable with the LMTBUL emitter
  • Weight: 4.3 lbs.
  • Dimensions Photo Eye with Hood (H x W x D): 4.6” x 2.45” x 2.76”
  • Dimensions Photo Eye without Hood (H x W x D): 4.56” x 2.35” x 1.97”
  • Dimensions Reflector with Hood (H x W x D): 4.72” x 2.01” x 2.61”
  • Cover: Stainless steel sensor hood, durable polycarbonate reflector hood, powder-coated galvanized mounting brackets.
