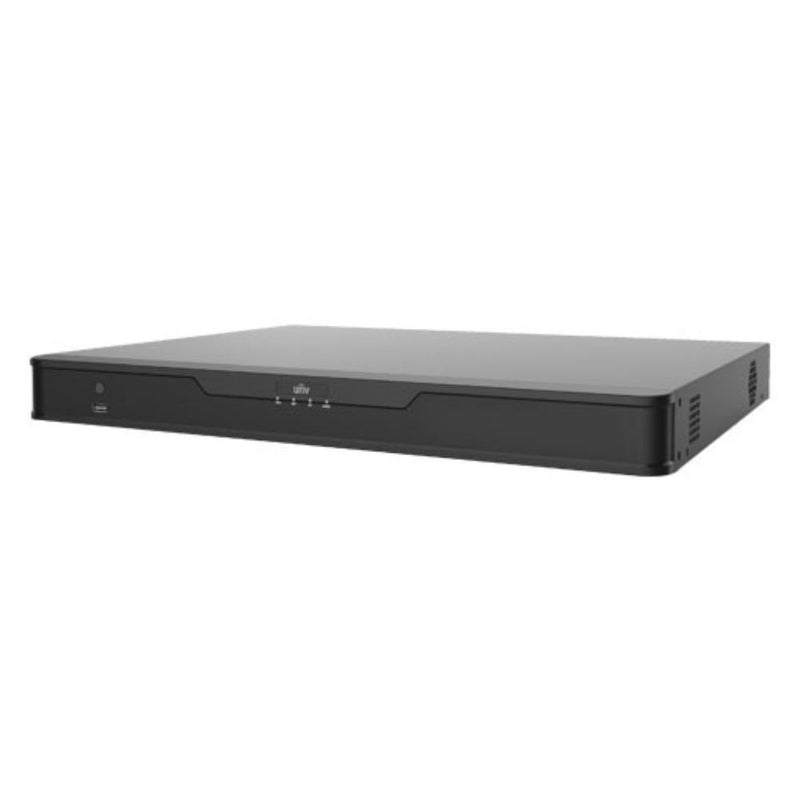

UNV 32 Channel 4 HDD NVR | UNV-NVR304-32S
Experience unparalleled surveillance capabilities with the UNV-NVR304-32S, a cutting-edge 32-channel Network Video Recorder (NVR) designed to meet the demands of large-scale security installations. This NVR combines advanced features and robust technical specifications to ensure your surveillance system operates at peak performance.
Features
- Support Ultra265/H.265/H.264 video formats
- 32-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- Accurate retrieval, instant playback
- 4 SATA HDDs, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Technical Specifications
Video/Audio Input
- IP Video Input: 32-ch
- Two-way Audio Input: 1-ch, RCA
Network
- Incoming Bandwidth: 160Mbps
- Outgoing bandwidth: 64Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
- Browser
- IE (IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome (version 45 and above) for Windows
- Edge (version 79 and above) for Windows
Video/Audio Output
- HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
- VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
- Recording Resolution: 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/ 2CIF/CIF
- Audio Output: 1-ch, RCA
- Audio Compression: G.711A, G.711U
- Synchronous Playback: 32-ch
- Liveview display: 1/4/6/8/9/16/25/36
- Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
Snapshot
- FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
Decoding
- Decoding format: Ultra 265/H.265/H.264
- Liveview/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF /CIF
- Capability: 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Hard Disk
- SATA: 4 SATA interfaces
- Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Smart
- VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
- VCA Search: Behavior Search
- People counting: People Flow Counting, Crowd Density Monitoring
- Smart Intrusion Prevention (SIP) by Camera: 8-ch
General Alarm
- General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
- USB Interface: Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
- Alarm In: NA
- Alarm Out: NA
- RS232: NA
- RS485: NA
General
- Power: 12V DC
- Power consumption: ≤ 15W( without HDD )
- Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)
- Dimensions (W×D×H): 440mm × 344mm ×50mm (17.3" × 13.5" ×2.0")
- Weight (without HDD): ≤ 3.15 Kg (6.94 lb)
Certification
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
- FCC: Part 15 Subpart B, ANSI C63.4
