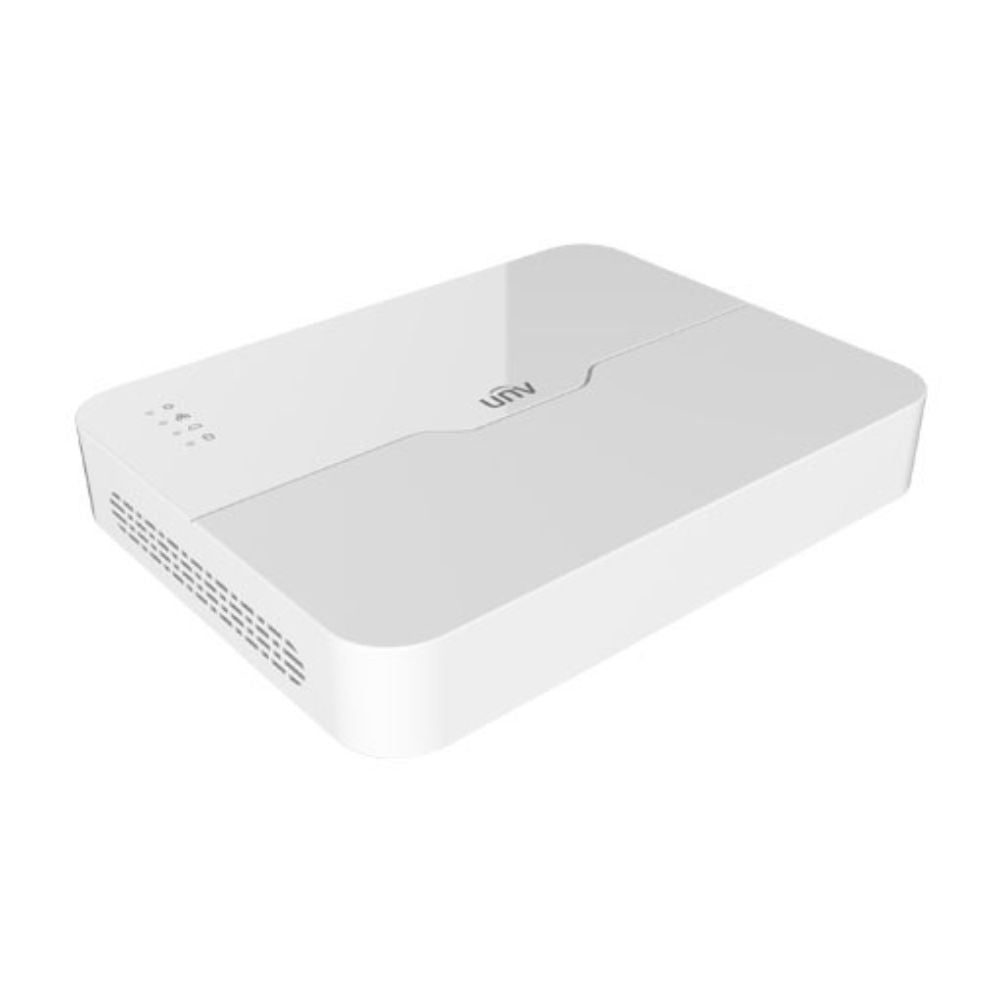

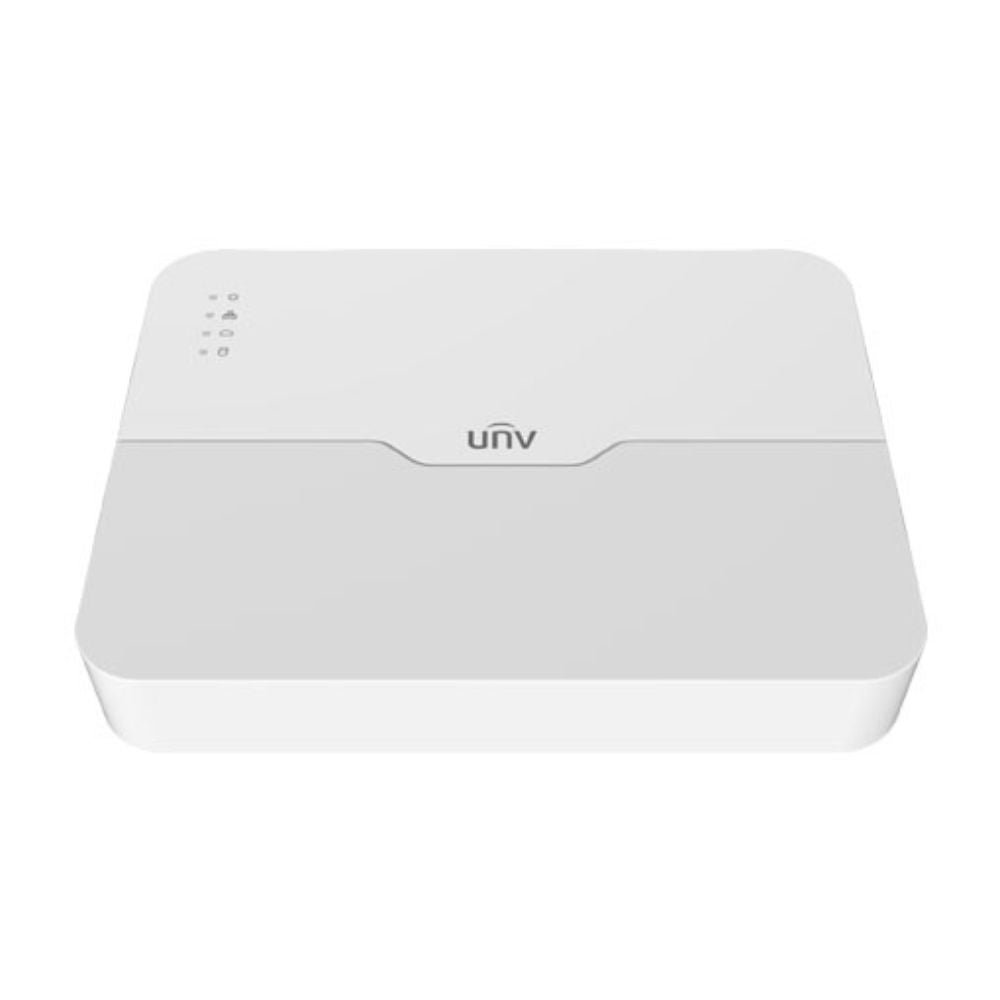

UNV 8 Channel 1 HDD NVR | UNV-NVR301-08LX-P8
Introducing the UNV 8 Channel 1 HDD NVR | UNV-NVR301-08LX-P8
In the ever-evolving landscape of surveillance technology, the UNV-NVR301-08LX-P8 emerges as a powerhouse of innovation and reliability, catering to the needs of modern security systems with its exceptional features and robust technical specifications.
Features
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, and HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
Technical Specifications
Video/Audio Input
- IP Video Input: 8-ch
- Two-way Audio Input: 1-ch, RCA
Network
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 64Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
- Browser
- IE (IE10/11) for Windows
- Firefox (version 52.0 and above) for Windows
- Chrome (version 45 and above) for Windows
- Edge (version 79 and above) for Windows
Video/Audio Output
- HDMI: 3840x2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output: 1-ch, RCA
- Audio Compression: G.711A, G.711U
- Synchronous Playback: 8-ch
- Liveview display: 1/4/6/8/9
- Corridor Mode Screen: 3/4/5/7/9
Snapshot
- FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
Decoding
- Decoding format: Ultra 265/H.265/H.264
- Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability: 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
Hard Disk
- SATA: 1 SATA interface
- Capacity: up to 6TB for each disk
Smart
- VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
- VCA Search: Behavior Search
- People counting: People Flow Counting, Crowd Density Monitoring
- Smart Intrusion Prevention (SIP) by Camera: 8-ch
General Alarm
- General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface: Rear panel: 1 x USB2.0,1 x USB3.0
- RS232: NA
- RS485: NA
- Alarm In: N/A
- Alarm Out: N/A
PoE
- Interface: 8 RJ45 10M/100M self-adaptive Ethernet Interface
- Max Power
- Max 30W for single port
- Max 75W in total
- Supported Standard: IEEE 802.3at, IEEE 802.3af
General
- Power: 52V DC
- Power consumption: ≤9 W (without HDD)
- Working Environment:-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H): 270mm × 205mm × 47mm (10.6"×8.1"×1.9")
- Weight (without HDD): ≤0.8kg (1.76lb)
Certification
- Certification: CE, FCC, UL, RoHS, WEEE
- CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
- FCC: Part15 Subpart B, ANSI C63.4
