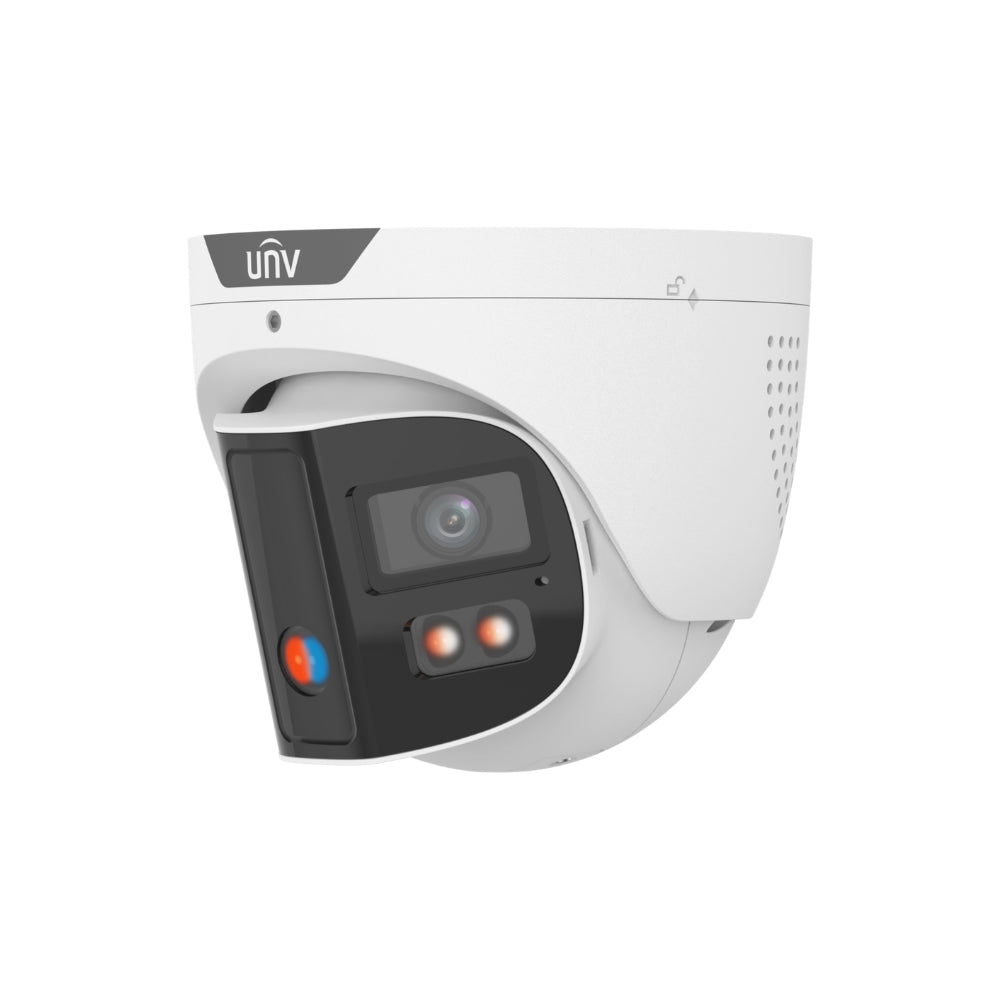

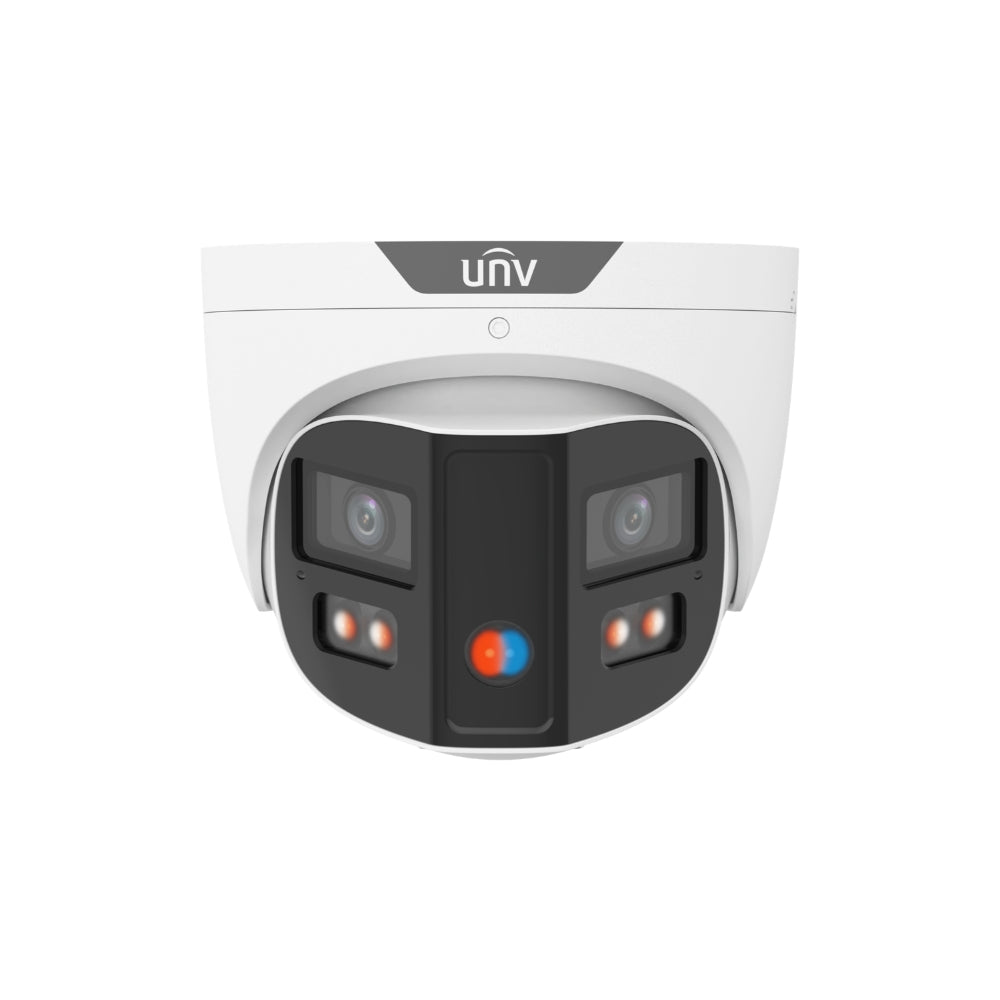

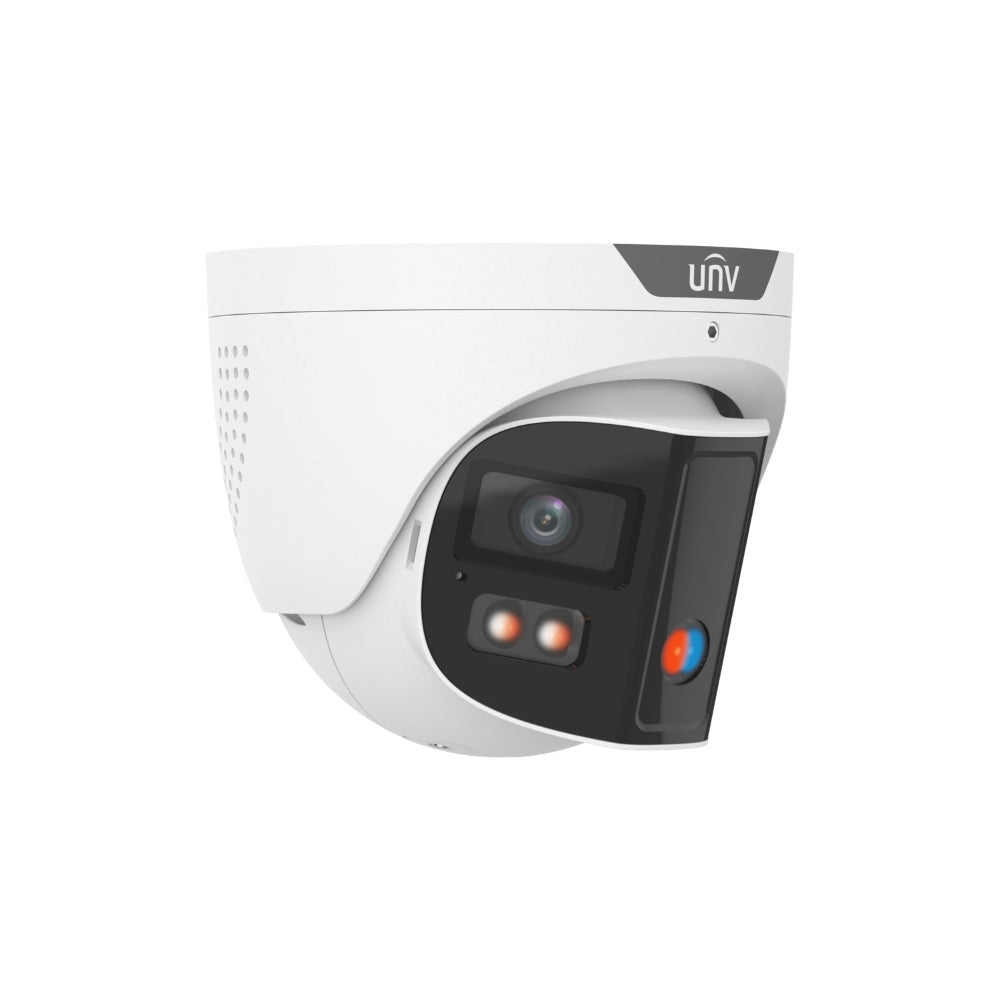

UNV IPC3K28SE-ADF28KMC-DL-I0 8MP Pano Double-Light Alarm Binocular Eyeball Network Camera

• High-quality image with 8 MP, 1/2.5" CMOS sensor
• 8 MP (4096 × 1860)@20 fps
• The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
• ColorHunter technology ensures 24-hour full-color images
• Supports red and blue warning lights
• 130 dB true WDR technology enables a clear image in a strong light scene
• Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on human, motor vehicle, and non-motor vehicle targets
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• MicroSD, up to 512 G

Camera

• Max Resolution: 8 MP
• Sensor: 1/2.5" CMOS
• Min. Illumination: Color: 0.002 Lux ( F1.0, AGC ON), 0 Lux with light
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 to 1/100000 s
• Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• S/N: >52 dB
• WDR: 130 dB

Lens

• Focal Length: 2.8 mm
• Iris Type: Fixed
• Iris: F1.0
• Field of View (H): 180°
• Field of View (V): 65°
• Field of View (D): 180°
• Lens Type: Fixed

DORI

• DORI Distance (Lens): 2.8 mm
• DORI Distance (Detect): 63.1 m (207.0 ft)
• DORI Distance (Observe): 25.2 m (82.7 ft)
• DORI Distance (Recognize): 12.6 m (41.3 ft)
• DORI Distance (Identify): 6.3 m (20.7 ft)

Illuminator

• Supplemental Light: Dual light
• Illumination Distance (IR): 30 m (98.4 ft)
• Illumination Distance (Warm Light): 30 m (98.4 ft)
• IR On/Off Control: Auto/Manual
• Wavelength: 850 nm
• Light On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate-Main Stream: 8 MP (4096 × 1860), max. 20 fps
• Frame Rate-Sub Stream: 2048 × 936, max. 20 fps
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Dual streams


• Auto Scene Match (ASM): Support (only WDR)
• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: N/A
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital defog
• Image Stabilization: N/A

Intelligent

• Smart Intrusion Prevention: Cross-line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)
• Statistical Analysis: N/A
• Attribute Collection: SIP with color retrieval

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
• Compatible Integration: API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
• User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
• Client: EZStation, APP
• Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
• Alarm I/O: 1/1
• Serial Port: N/A
• Built-in Mic: Built-in dual-mic
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part 15 B)
• Safety: CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529); IK10 (IEC 62262)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max. 12.6 W
• Power Interface: Ø5.5 mm coaxial power plug

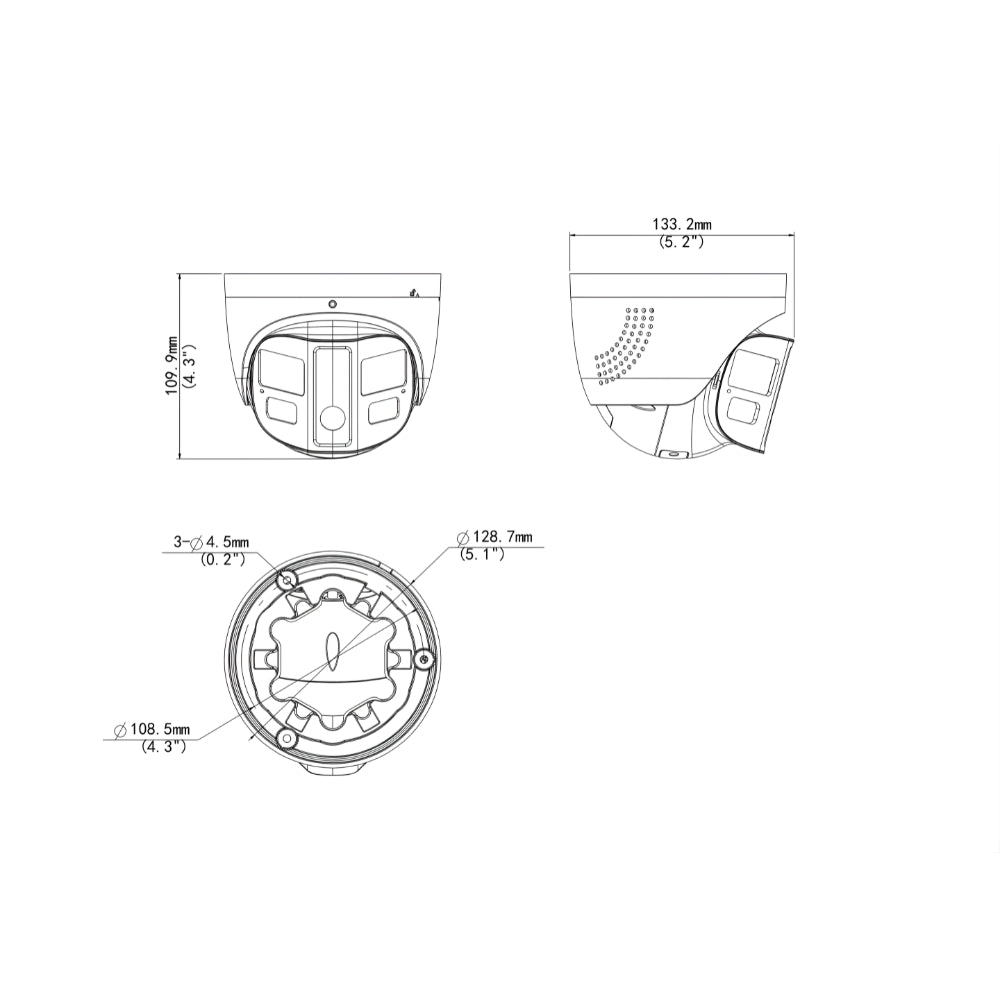

• Dimensions: Ø128.7 mm × 109.9 mm (Ø5.1" × 4.3") (Ø × H)
• Weight: 0.86 kg (1.90 lb)
• Material: Metal
• Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 4 KV
• Reset Button    Support
• Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
