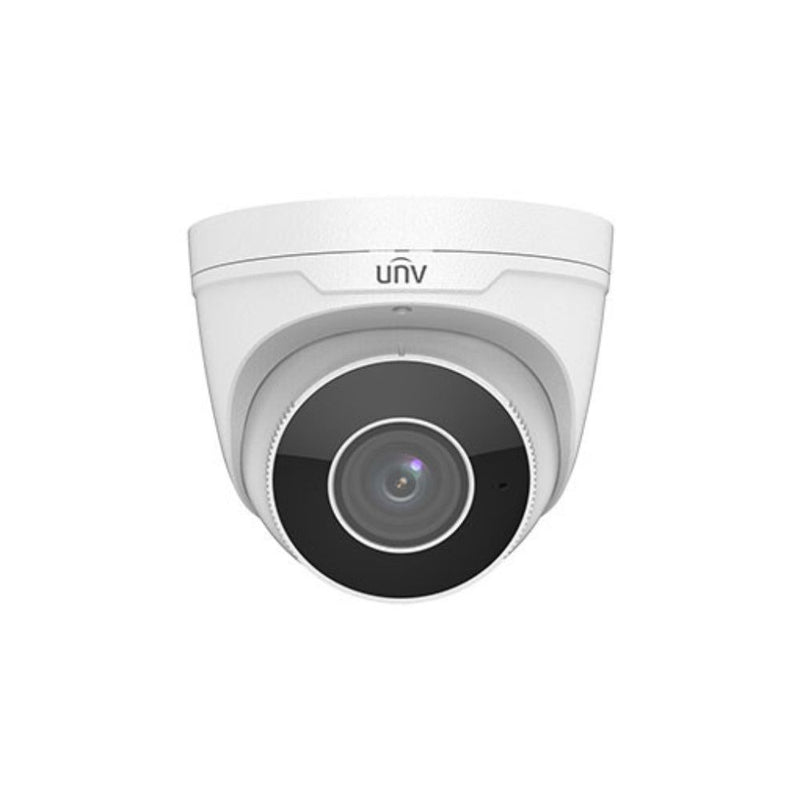

UNV 4MP HD IR VF Eyeball Network Camera (Only for USA) | UNV-IPC3634SR3-ADZK-G
Introducing the UNV 4MP HD IR VF Eyeball Network Camera (Only for USA) - UNV-IPC3634SR3-ADZK-G - Redefining Security Excellence
Elevate your security game with the UNV-IPC3634SR3-ADZK-G, a state-of-the-art network camera meticulously crafted for the USA market. Engineered with precision and loaded with advanced features, it sets new standards in surveillance technology, ensuring unparalleled protection for your peace of mind.
Features
- High-quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables a clear image in a strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Technical Specifications
Camera
- Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
- Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
- DORI Distance
- Lens (mm): 2.8 / 12
- Detect (m): 42 / 180
- Observe(m): 16.8 / 72
- Recognize (m): 8.4 / 36
- Identify (m): 4.2 / 18
- Angle of View (H): 102.79°~ 30.86°
- Angle of View (V): 54.50°~ 17.49°
- Angle of View (O): 106.94°~35.49°
- Adjustment angle
- Pan: 0° ~ 360°
- Tilt: 0° ~ 75°
- Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination
- Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Digital noise reduction: 2D/3D DNR
- S/N: >56dB
- IR Range: Up to 40m (131ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main Profile, High profile
- Frame Rate
- Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- 9:16 Corridor Mode: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
Audio
- Audio Compression: G.711
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS (NFS)
Smart
- Behavior Detection
- Cross line, intrusion (based on human body detection)
- Motion detection, tampering alarm, audio detection
- General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication.
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Client: EZStation/EZView/EZLive
- Web Browser
- Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Network: 10M/100M Base-TX Ethernet
- Built-in Mic: Supported
Certifications
- UL: UL60950-1
- FCC: FCC Part 15
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 8.0W
- Dimensions (Ø x H): Φ129 x 110mm (Ø5.1” x 4.3”)
- Weight: 0.67kg (1.48lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 6KV
- Ingress Protection: IP67
- Reset Button: Supported
