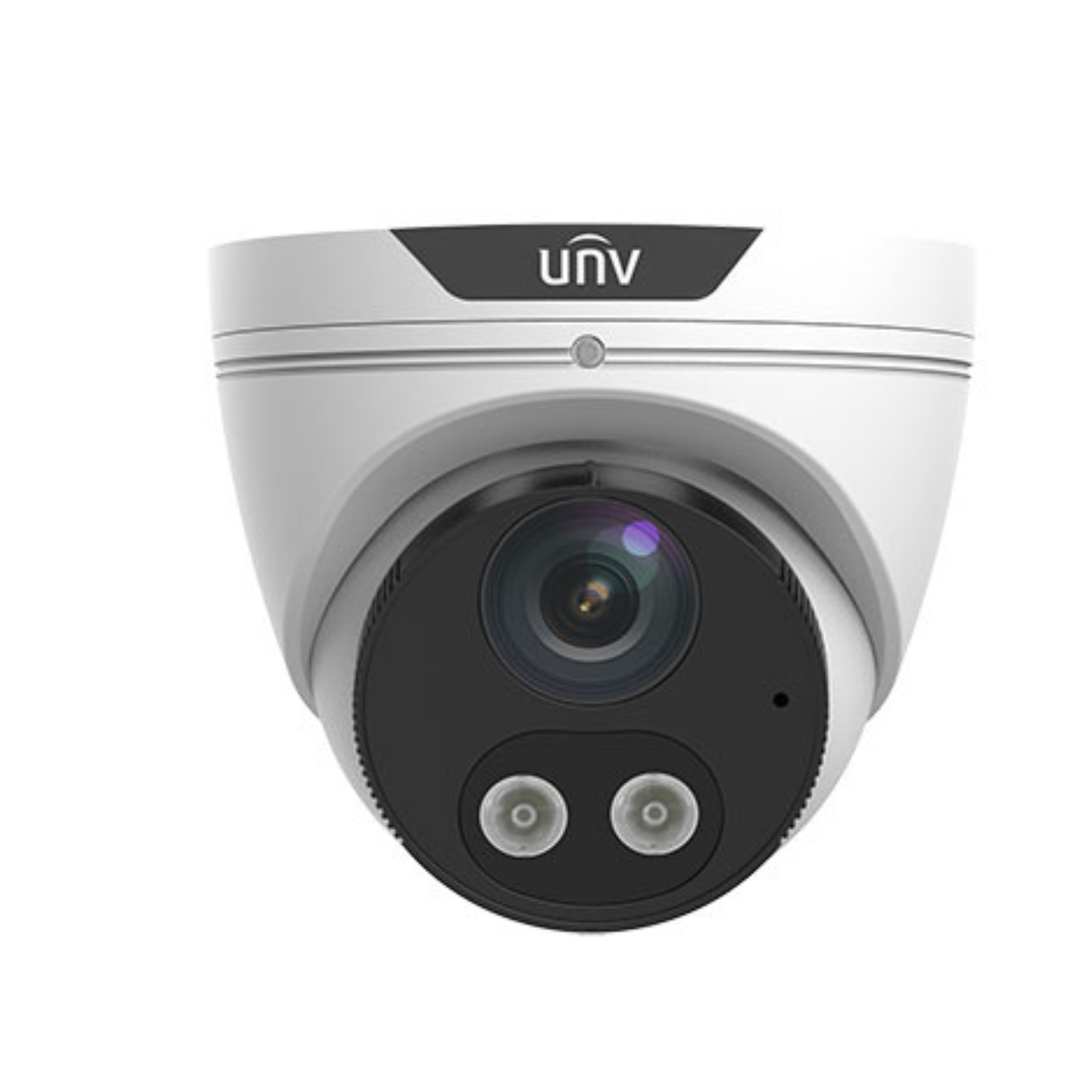

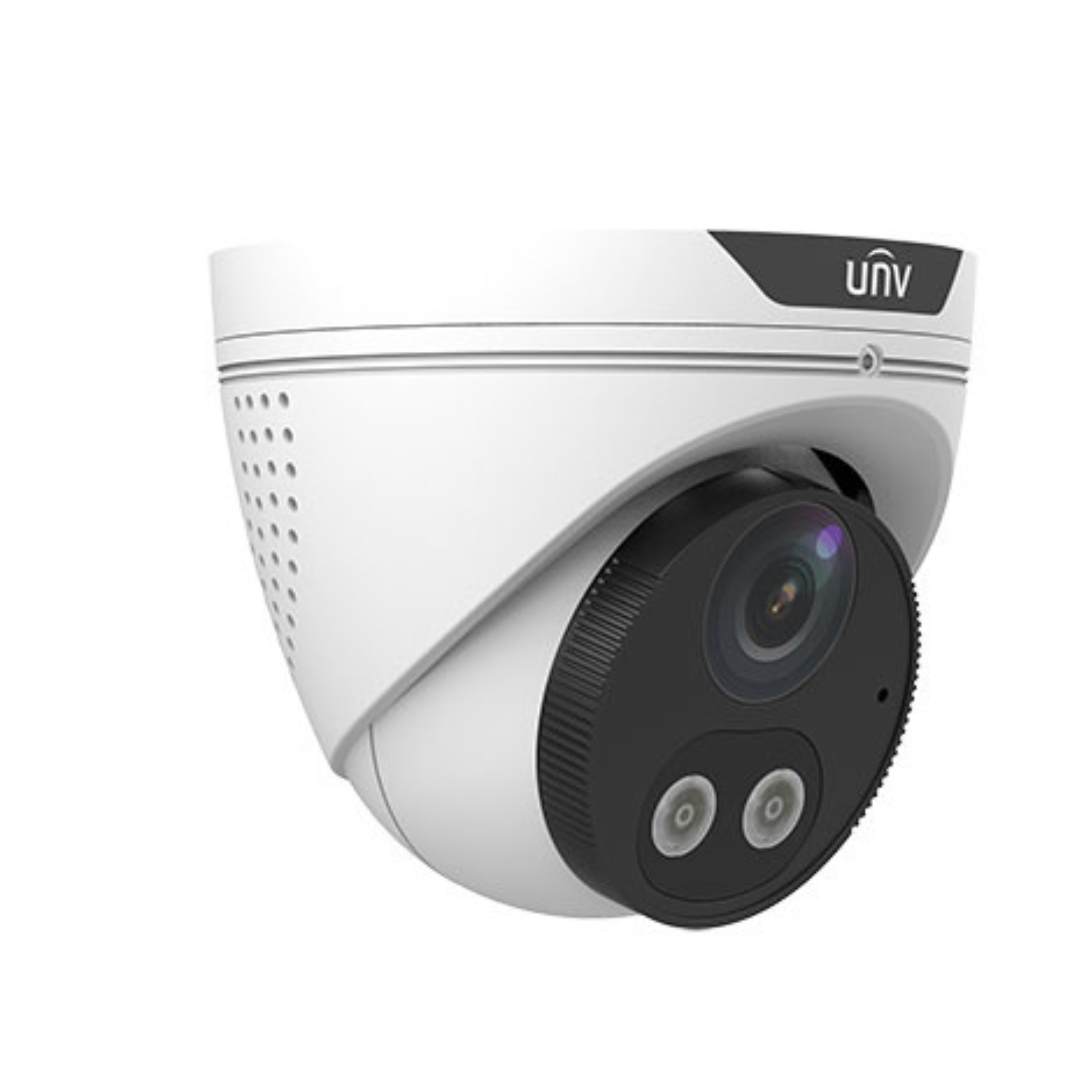

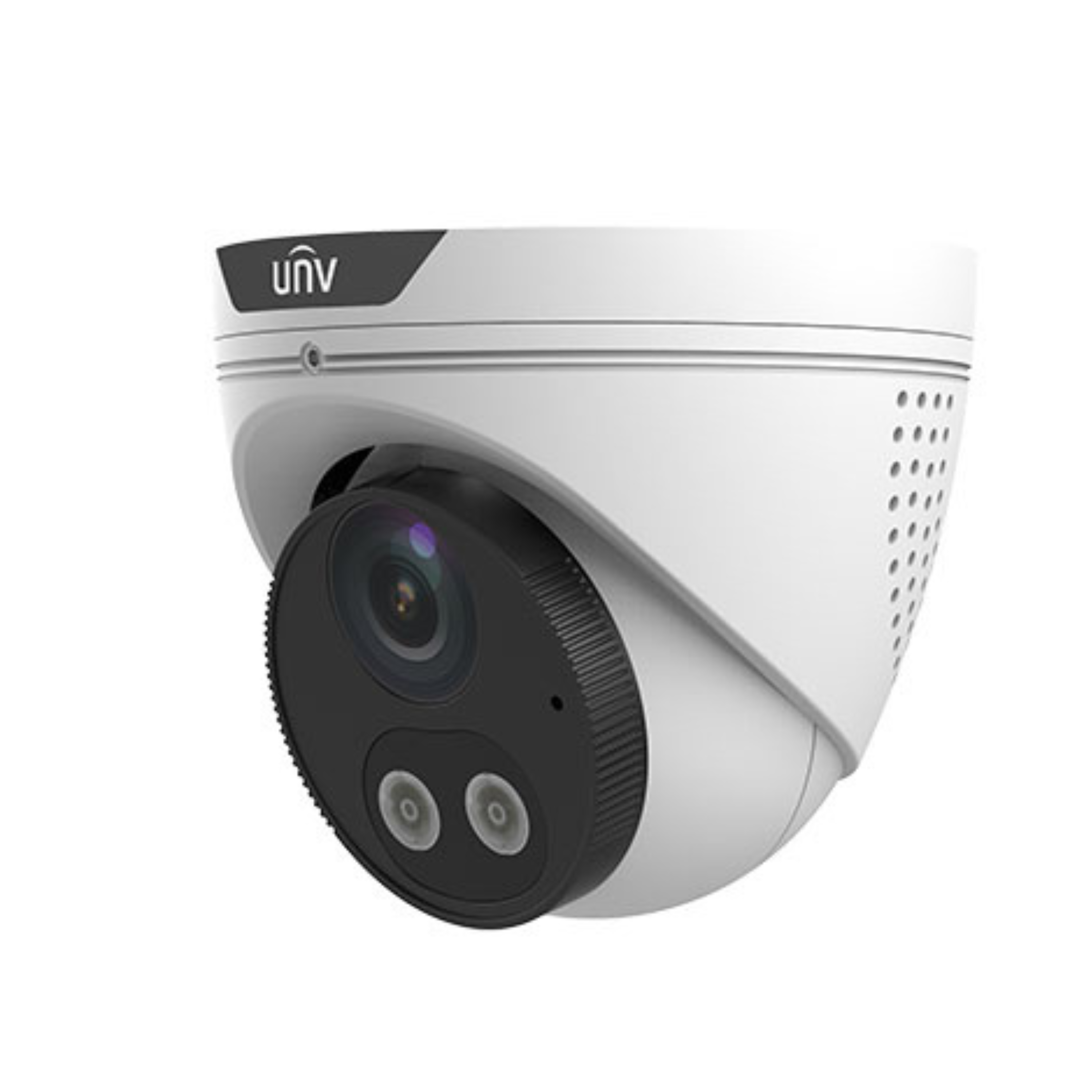

UNV 4MP HD Dual Light Fixed Eyeball Network Camera (Only for USA) | UNV-IPC3614SR3-ADF28KMC-DL

UNV 4MP HD Dual Light Fixed Eyeball Network Camera (Only for USA) | UNV-IPC3614SR3-ADF28KMC-DL

Introducing the UNV 4MP HD Dual Light Fixed Eyeball Network Camera, exclusively designed for the USA - model UNV-IPC3614SR3-ADF28KMC-DL. This advanced surveillance solution is meticulously engineered to provide exceptional security features and cutting-edge technology. With a high-resolution 4-megapixel sensor, the UNV-IPC3614SR3-ADF28KMC-DL ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis

Technical Specifications

Camera

• Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.003Lux ( F1.6, AGC ON)
• 0Lux with light
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
• S/N: >52dB
• WDR: 120dB

Lens

• Lens Type: 2.8mm and 4.0mm @1.6, Fixed-focal
• Lens Mount: M12
• Angle Of View (H): 112.9°
• Angle Of View (V): 59.1°
• Angle Of View (O): 121.2°

DORI

• DORI Distance
• Lens (mm): 2.8
• Detect (m): 63.0
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3

Illuminator

• IR Range: Up to 30m (98ft) IR range
• White Light Range: Up to 30m (98ft) white light range
• Wavelength: IR：850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection: Cross-line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 128 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security Password: protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation / EZView / EZLive
• Web Browser:
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Built-in Mic: Supported
• Built-in Speaker: Supported

Certification

• EMC: FCC: FCC Part 15
• Safety:
• CE: EN 60950-1
• UL: UL60950-1
• IEC 60950-1

General

• Power DC: 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ118 x 96mm (Φ4.6” x 3.8”)
• Weight: 0.30kg (0.66lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
• Ingress Protection: IP67
