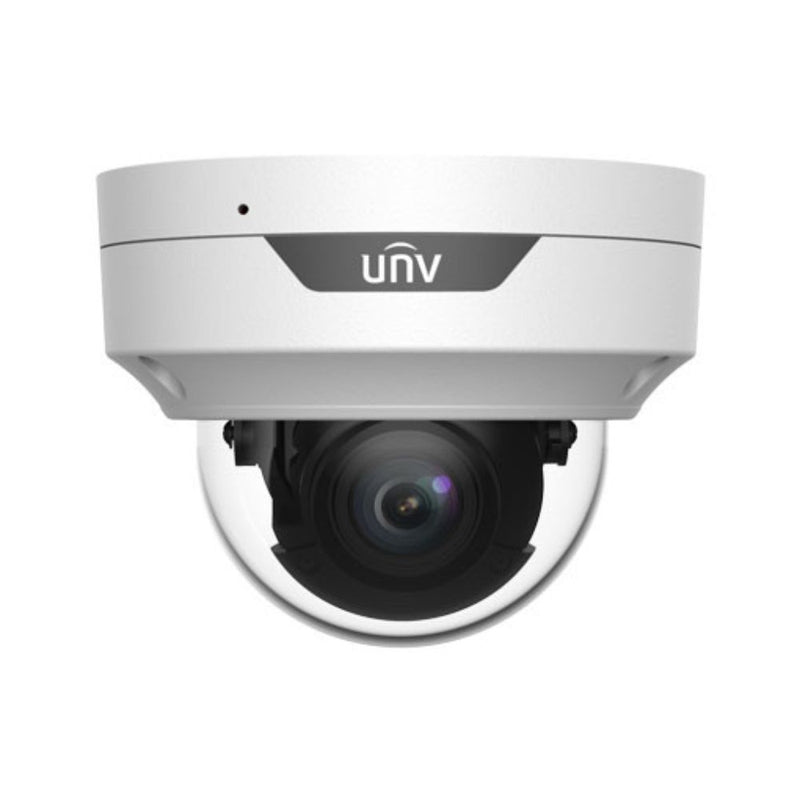

UNV 5MP HD IR VF Dome Network Camera (Only for USA) | UNV-IPC3535SR3-ADZK-G

UNV 5MP HD IR VF Dome Network Camera (Only for USA) | UNV-IPC3535SR3-ADZK-G

Introducing the UNV 5MP HD IR VF Dome Network Camera (Only for USA) - UNV-IPC3535SR3-ADZK-G - Elevate Your Surveillance Game

Prepare to revolutionize your surveillance experience with the UNV-IPC3535SR3-ADZK-G. This cutting-edge dome network camera, designed exclusively for the USA market, combines powerful features with uncompromising quality, offering top-tier security solutions.

Features

• High-quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis

Technical Specifications

Camera

• Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• DORI Distance
• Lens (mm): 2.8 / 12
• Detect (m): 63.0 / 270.0
• Observe(m): 25.2 / 108.0
• Recognize (m): 12.6 / 54.0
• Identify (m): 6.3 / 27.0
• Angle of View (H): 108.79°~ 33.23°
• Angle of View (V): 56.90°~ 18.33°
• Angle of View (O): 112.56°~37.46°
• Adjustment angle
• Pan: 3° ~ 360°
• Tilt: 0° ~ 70°
• Rotate: 3° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination
• Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital noise reduction: 2D/3D DNR
• S/N: >56dB
• IR Range: Up to 40m (131ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Defog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main Profile, High profile
• Frame Rate
• Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Smart

• Behavior Detection: (Cross line intrusion) based on human body detection, motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication.

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client: EZStation/EZView/EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

• Network: 10M/100M Base-TX Ethernet
• Built-in Mic: Supported

Certifications

• UL: UL60950-1
• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 7.5W
• Dimensions (Ø x H): Φ128mmx100mm (Ø5.0” x 3.9”)
• Weight: 0.65kg (1.43lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: Supported

Product Literature

• UNV IPC3535SR3-ADZK-G Data Sheet
• UNV Camera Installation Guide V1.00

• UNV Network Cameras User Manual V2.08
