UNV IPC328SR-ADF28KM-H 8MP WDR Fixed IR Mini Dome Network Camera (2.8mm Focal)

Name: UNV IPC328SR-ADF28KM-H 8MP WDR Fixed IR Mini Dome Network Camera (2.8mm Focal)
Brand: UNV
SKU: UNV-IPC328SR-ADF28KM-H
Price: 429.0 USD
Availability: InStock

Write a review

Free US Shipping

UNVSKU: UNV-IPC328SR-ADF28KM-H

Price:

$429.00

Quantity:

Required fence width (Linear feet):

Country

Province

Zip code

UNV IPC328SR-ADF28KM-H 8MP WDR Fixed IR Mini Dome Network Camera (2.8mm Focal)

The UNV IPC328SR-ADF28KM-H delivers elite 4K Ultra-HD surveillance in a compact, low-profile mini dome form factor. This model features Uniview’s proprietary EasyStar technology, which utilizes a high-sensitivity sensor to maintain clear color images in significantly lower light levels before switching to infrared mode.

This 8MP camera includes a three-axis adjustment mechanism, allowing for precise positioning on both walls and ceilings. With 120dB True WDR and a 2.8mm wide-angle lens, it provides expansive, balanced coverage even in environments with challenging backlighting, such as glass-front lobbies or retail entrances.

Camera

Max Resolution: 8 MP
Sensor: 1/2.8" CMOS
Min. Illumination: Support Easystar: color: 0.005 Lux ( F1.6, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N: >52 dB
WDR: 120 dB

Lens

Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 98.7°
Field of View (V): 53.9°
Field of View (D): 103.6°

DORI

DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 86.9 m (285.1 ft)
DORI Distance (Observe): 34.8 m (114.2 ft)
DORI Distance (Recognize): 17.4 m (57.1 ft)
DORI Distance (Identify): 8.7 m (28.5 ft)

Illuminator

Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate: 128 Kbps to 16 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
IK10 (IEC 62262)

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 4.9 W
Power Interface: Ø5.5 mm coaxial power plug

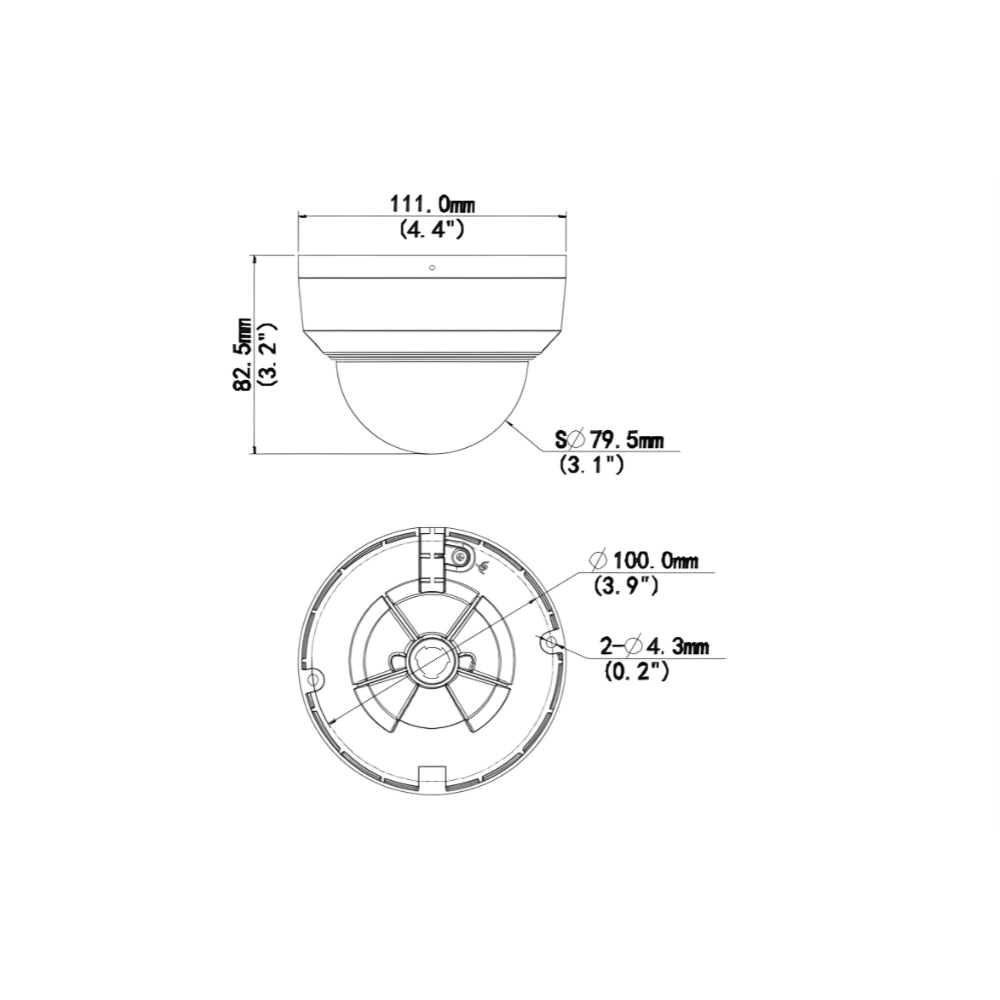

Dimensions: Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight: 0.36 kg (0.79 lb)
Material: Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
