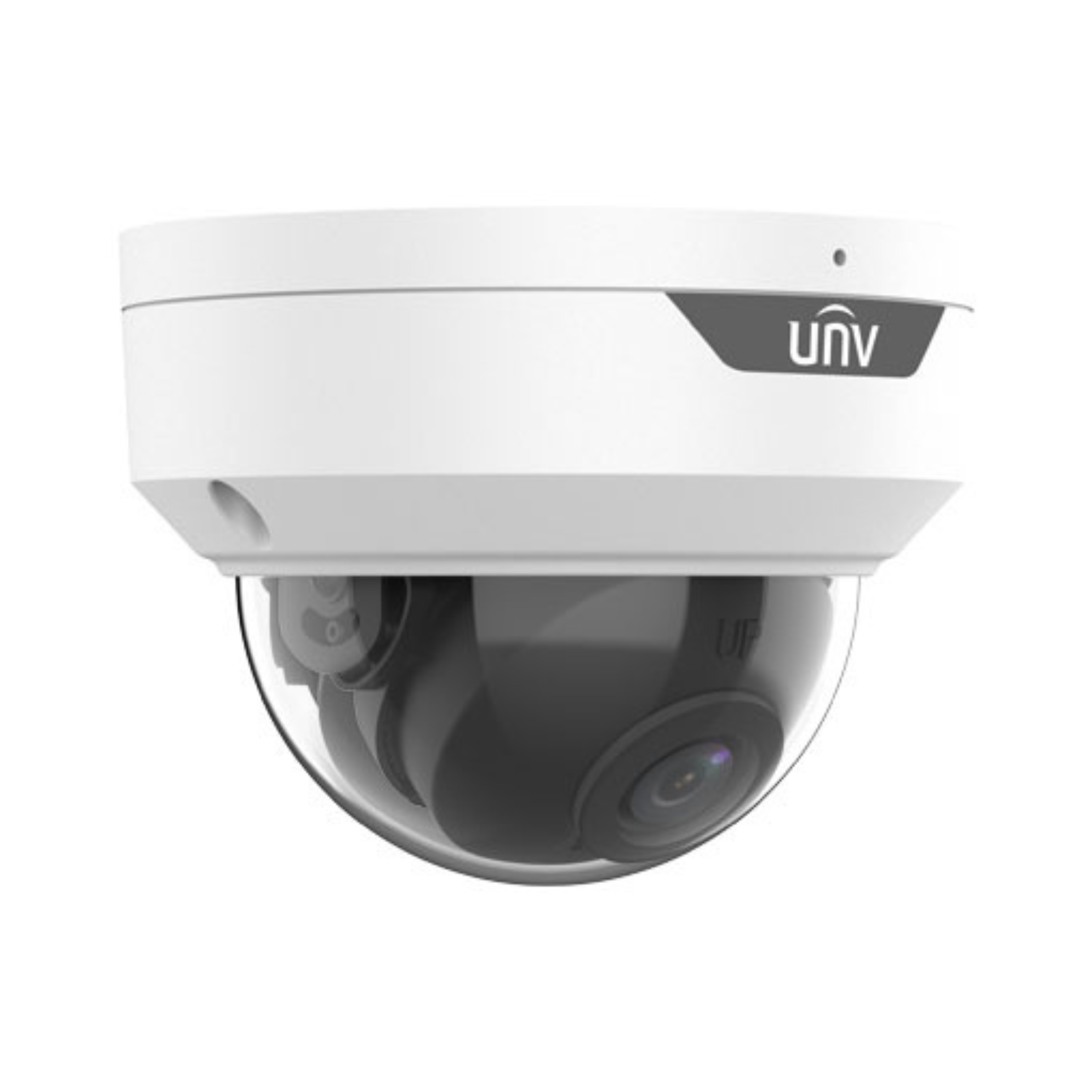

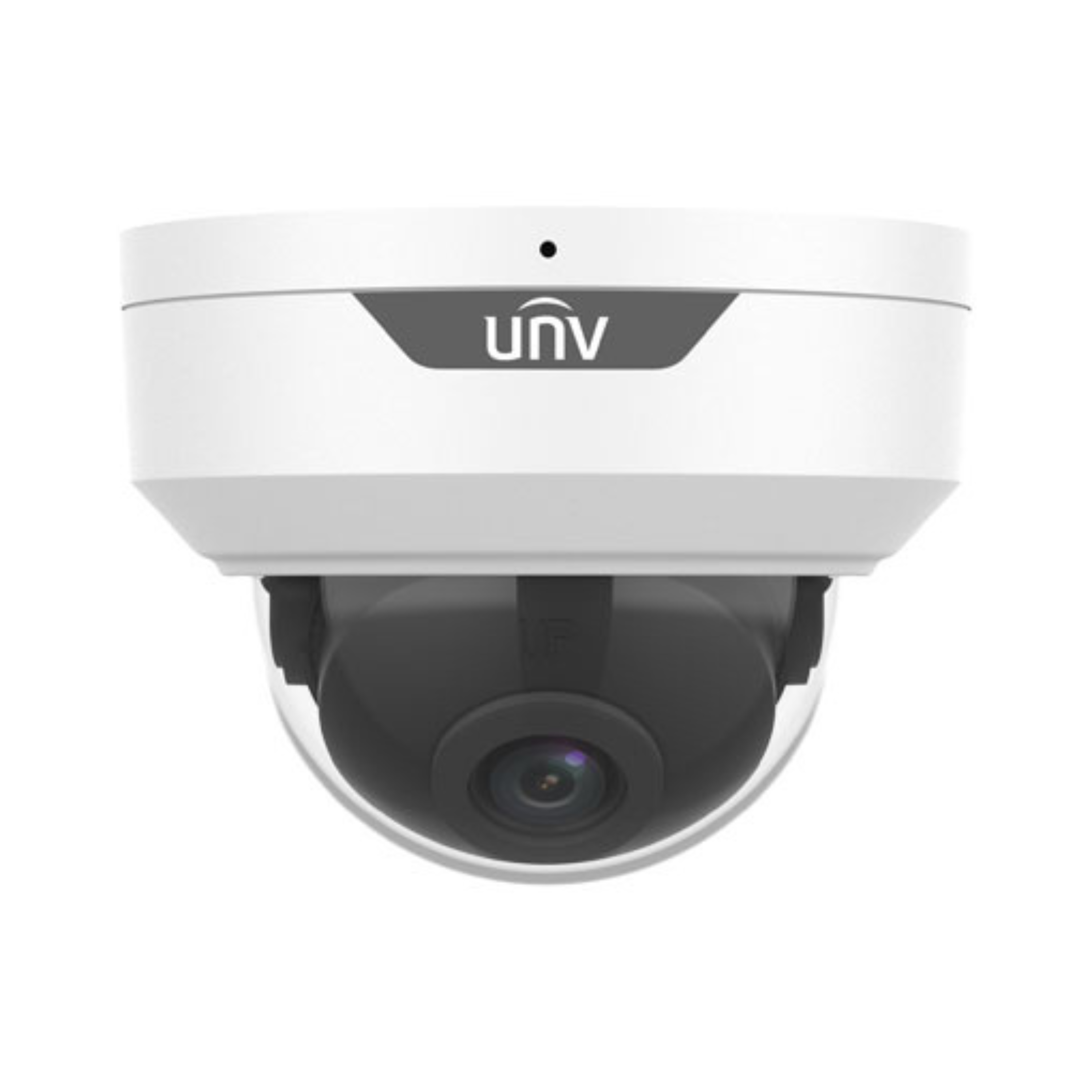

UNV 2MP WIFI Fixed Dome Network Camera | UNV-IPC322LB-AF28WK-G

UNV 2MP WIFI Fixed Dome Network Camera | UNV-IPC322LB-AF28WK-G

Experience the next level of wireless surveillance with the UNV 2MP WiFi Fixed Dome Network Camera. The UNV-IPC322LB-AF28WK-G combines cutting-edge technology, sleek design, and ease of installation to bring you a reliable and efficient security solution for a variety of environments.

Features

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• 3-Axis

Technical Specifications

Camera

• Sensor: 1/2.9", progressive scan , 2.0 megapixel, CMOS
• Min. Illumination:
• Color: 0.01 lux (F2.0, AGC ON)
• 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1~1/100000 s
• Adjustment angle:
• Pan: 0°~352°
• Tilt: 0°~70°
• Rotate: 0°~350°
• S/N: >52dB
• WDR: DWDR

Lens

• Lens Type: 2.8mm @F2.0
• Iris: Fixed
• Field of View (H): 101.1°
• Field of View (V): 55.0°
• Field of View (D): 111.0°

DORI Distance

• Lens Detect(m):  2.8mm
• Detech(m): 45.0
• Observe(m): 18.0
• Recognize(m): 9.0
• Identify(m):  4.5

Illuminator

• IR Range: Up to 30m (98 ft) IR range
• Wavelength: 850nm
• IR On/Off: Control Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main Profile, High profile
• Frame Rate:
• Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~6 Mbps
• U-code: Support
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video stream: Dual streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

• Basic Detection: Human body detection, Motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: N/A
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 128GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Wi-Fi

• Wireless Standards: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth :20 MHz Support
• Modulation Mode:
• 802.11b: CCK, QPSK, BPSK
• 802.11g/n: OFDM/HT
• Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK
• Transmit Power:
• 802.11b: 17±1.5dBm @11Mbps
• 802.11g: 14±1.5dBm @54Mbps
• 802.11n: 12.5±1.5dBm @150Mbps
• Receive Sensitivity:
• 802.11b: -90dBm @11Mbps (Typical)
• 802.11g: -75dBm @54Mbps (Typical)
• 802.11n: -74dBm @150Mbps(Typical)
• Transmission Rate:
• 802.11b: 11Mbps
• 802.11g: 54Mbps
• 802.11n: up to 150Mbps

Interface

• Audio: I/O N/A
• Alarm: I/O N/A
• RS485: N/A
• Built-in: Mic Support
• Built-in: Speaker N/A
• WIFI: Support
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020). FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• RF: FCC ID (FCC CFR 47 part15 C). CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
• Safety: CE LVD (EN 62368-1:2014+A11:2017). CB (IEC 62368-1:2014). UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006).
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013). IK10 (IEC 62262:2002)

General

• Power: DC 12V±25%
• Power consumption: Max 4.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ109 x 83 mm (Ø4.29” x 3.3”)
• Weight: 0.32 kg (0.71 lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ +60°C (-22°F ~ 140°F),
• Humidity :≤95% RH(non-condensing)
• Storage Environment: -30°C ~ +60°C (-22°F ~ 140°F),
• Humidity:≤95% RH(non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
