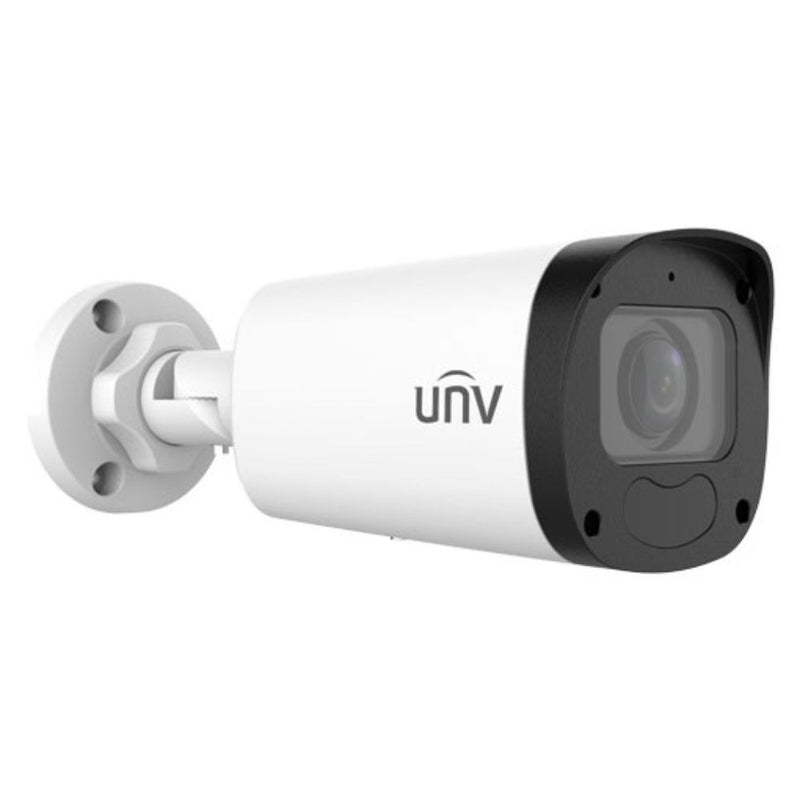

UNV 5MP HD IR Bullet Network Camera (Only for USA) | UNV-IPC2325SR5-ADZK-G
Features
- High-quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables a clear image in a strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Technical Specifications
Camera
- Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
- DORI Distance
- Lens (mm): 2.8 / 12
- Detect (m): 63.0 / 270.0
- Observe(m): 25.2 / 108.0
- Recognize (m): 12.6 / 54.0
- Identify (m): 6.3 / 27.0
- Angle of View (H): 108.79°~ 33.23°
- Angle of View (V): 56.90°~ 18.33°
- Angle of View (O): 112.56°~37.46°
- Adjustment Angle
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotate: 0° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination
- Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Digital noise reduction: 2D/3D DNR
- S/N: >56dB
- IR Range: Up to 50m (164ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main Profile, High profile
- Frame Rate
- Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- 9:16 Corridor Mode: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
Audio
- Audio Compression: G.711
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS (NFS)
Smart
- Behavior Detection
- Cross line, intrusion (based on human body detection)
- Motion detection, tampering alarm, audio detection
- General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication.
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Client: EZStation/EZView/EZLive
- Web Browser
- Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
- Network: 10/100M Base-TX Ethernet
- Built-in Mic: Supported
Certifications
- UL: UL60950-1
- FCC: FCC Part 15
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 8.5W
- Dimensions (L × W × H): 206 × 74 × 74mm (8.1” × 2.9” × 2.9”)
- Weight: 0.55kg (1.2lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 6KV
- Ingress Protection: IP67
- Reset Button: Supported
