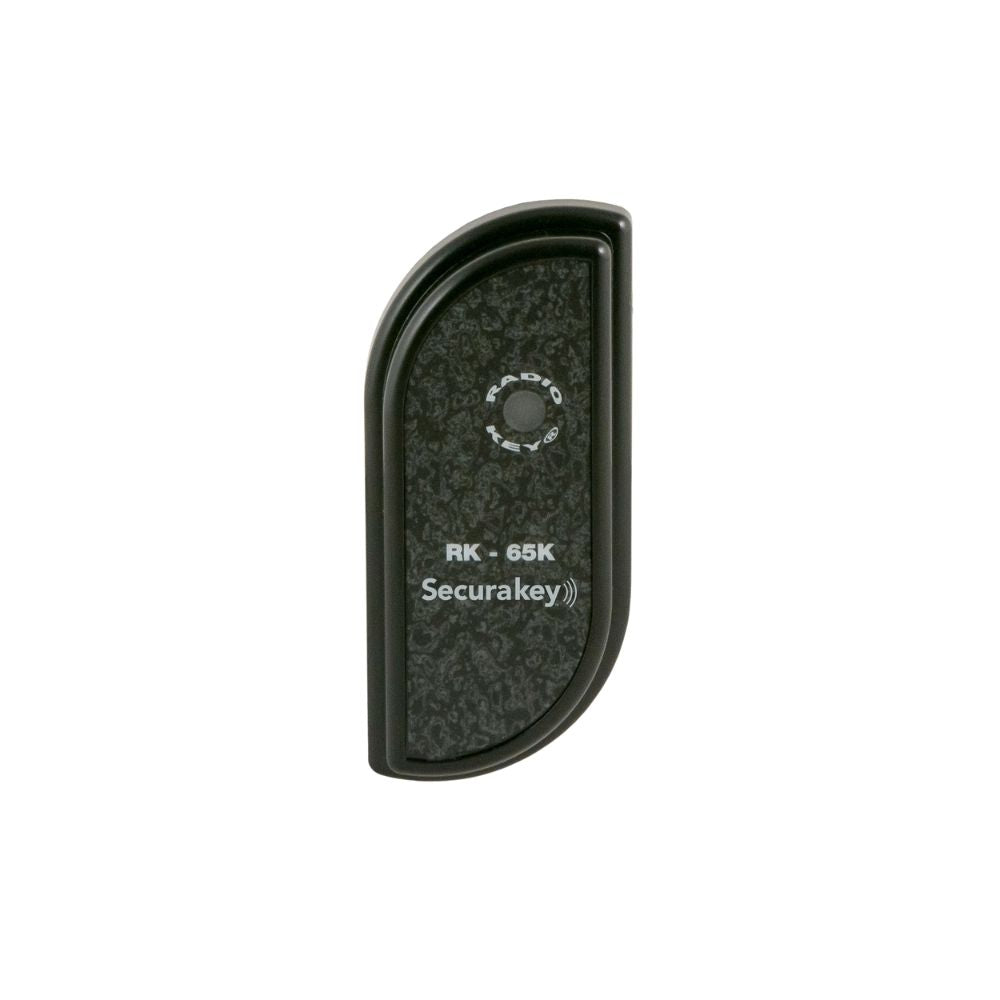

SecuraKey LF Standalone Reader "S" Shaped Mullion Reader | SKY-RK65K-DT
These readers can manage up to 65,000 individual users with sequentially-numbered cards or tags. Users are added and deleted easily with an RK-HHP handheld programmer or an RK-PD1 program card deck. The latch timer can be set from ¼ second up to 18 hours, or to toggle (on/off). RK65K and RK65KS can be used with the optional SecuRelay™ smart relay module, which separates the lock/gate control relay from the access control unit for added tamper protection.
A Wiegand output allows the reader to be connected to multi-door access control or telephone entry system if desired. When used as part of a larger system, the local card memory and relay may be used for degraded mode or other special functions.
Features
- Low Priced Single Door Proximity Entry System
- Weather Resistant Units for Outdoor Locations: RK600e conformal coated, RK65K epoxy potted
- 125 kHz Proximity Technology • Dynascan® Auto-Tuning for Superior Read Range
- Up to 6” Read Distance • No Control Panel Required
- Program with Handheld Programmer or Proximity Card Deck (RK600e/RK65K/RK65KS)
- Wiegand Output for Future Expansion (RK65K)
- Connect PC or Serial Printer with Optional Audit Trail Module (RK600, RK600e)
- Optional Auxiliary Reader for High-Security / Extreme Weather Conditions (RK600, RK600e)
- UL294, FCC and CE Regulatory Approvals
Technical Specification
- Dimensions (H, W, D): 3.50” x 1.60” x 0.60” 8.89 x 4.06 x 1.52 cm
- Mounting: Mullion, wall, post
- Weight: 2.88 oz (81.65gm)
- Material: ABS
- Color: Black
- Power Requirements: 40mA/90mA avg/peak @ 5-14VDC
- Latch Relay: SPST solid state relay 1A max @ 60 VAC/DC or use SecuRelay®
- Shunt Relay: N/A
- Inputs: Program as Request to Exit (SPST) or Red and Green LED (ground to activate) Option to activate buzzer with Green LED
- Communications: Wiegand - any format up to 40 bits
- Cable required: Wiegand Mode: Up to 500 ft 5-6 cond. 20 AWG Shielded
- Environmental: Operating Temperature: -40° to +158° F(-40° to +70° C) Relative Humidity: 0-100% Non-Condensing
- Operating Frequency: 125 kHz
- Read Range: Molded Card up to 6” (15.24 cm), ISO Card/key tag up to 5” (12.70 cm)
- User Capacity: 65,000 sequentially numbered cards
- Memory: Non-Volatile (Programming retained, even if power is lost)
- Operating Modes: Card Only
- Latch Timer: Programmable: 0.25 sec.- 18 hrs or Toggle Mode
- Programming: HHP Hand-held programmer keypad or RK-PD1 programming deck
- Reports: N/A
- Compatible Cards: RKCM-02 (Molded Clamshell); RKCI-02 (ISO); RKKT-02 (Key tag) Sequentially numbered with up to 10 FC’s
- Regulatory: Approvals UL/cUL294, Part 15 Class B FCC, CE Mark
- Warranty: These Secura Key products are warranted against defects in materials and workmanship for life. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See price list for complete terms and conditions.
