SEA Half-Tank AC 10" Stroke Gate Opener | SEA-104AC3S0-1A-CSA

Hydraulic swing gate operator for condominium use. Max leaf length up to 20 feet or 1100 lbs.

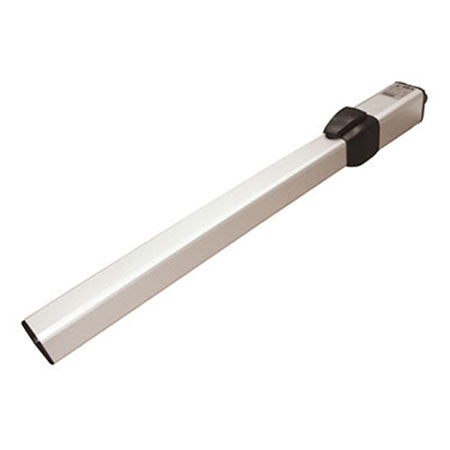

SEA Half-Tank AC 10" Stroke Swing Gate Opener 104AC3SO-1A-CSA (Actuator Arm Only) for gate up to 1100 lbs. or 20 feet (Max Cycles 55 Per Hour)

HYDRAULIC SWING GATE OPENER FOR CONDOMINIUM USE MAX LEAF LENGTH up to 20 feet

SEA 104AC3SO-1A-CSA Specification

• Max Leaf Weight: 1,100lbs.
• Max Leaf Length: 20 feet
• Max Opening Degree: 120 degrees
• Max Cycles / Hour: 55
• PCS Per Pallets: 40
• SEA Total Quality: all parts are manufactured and tested in-house
• The hydraulic system grants high and long term performances
• By-pass valves as an Anti-Crush safety system
• Available versions with hydraulic slow down in both opening and closing
• Aluminum oscillating back fixing fork
• Linear encoder for the best setting on reverse and position management (optional)
• Manual release system in aluminum for the highest security (optional)
• Standard version with lock in both directions (AC)
• External manual release with metal box (optional)
• Available 270 mm / 10.63 inches piston stroke
• Duty cycles*: 55 per hour. Duty cycles depend on gate size and installation.

SEA 104AC3SO-1A-CSA Manuals

• SEA Half-Tank AC Brake Hydraulic Swing Gate Operator Specs
