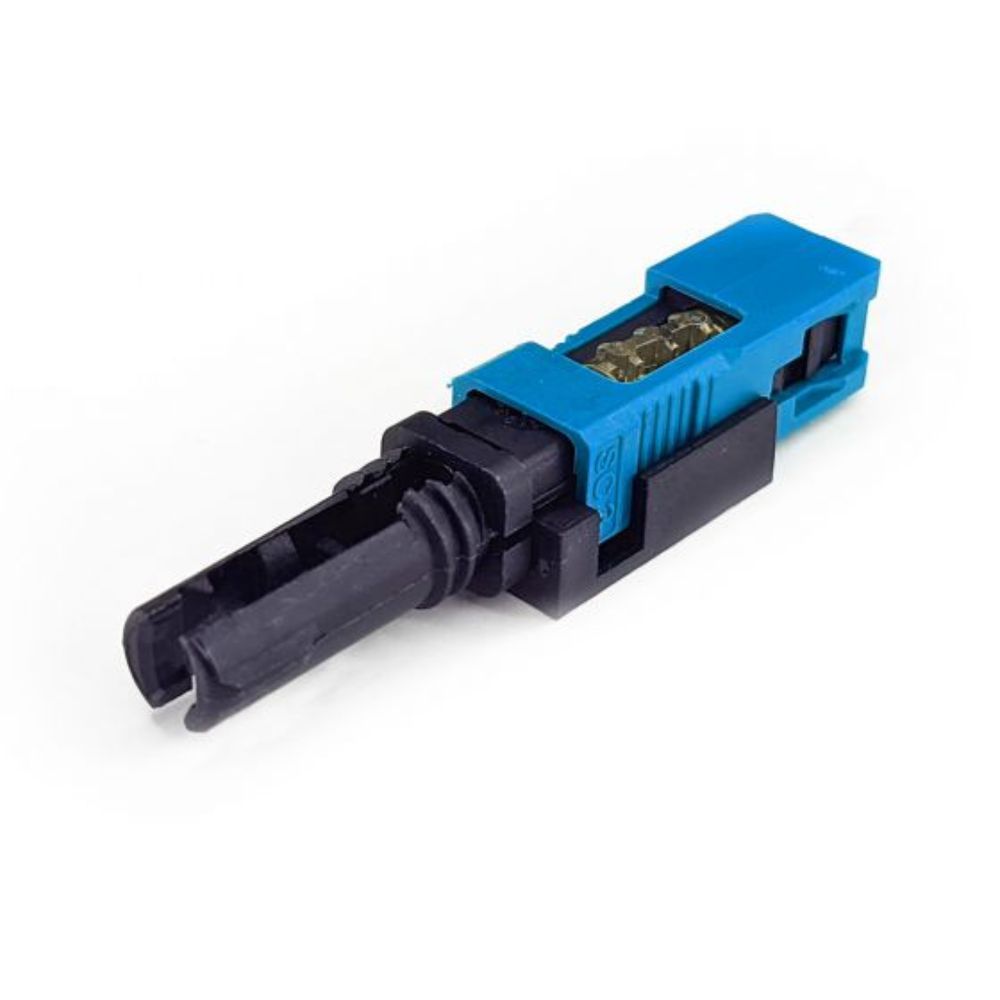

SCP EasyFiber® Premium SC Simplex Single Mode Field Installable Connectors (10pcs./Pack) | SCP-EF-CON-SM-SC
SCP EasyFiber® Premium SC Simplex Single Mode 250µm/900µm Distribution & 2.0mm Duplex Zip Cable, OS2 9/125 Prepolished Field - Installable Mechanical Fiber Optic Connector, Blue.
SCP-EasyFiber® Field Installable Connectors are used to terminate optical fiber cable without all the fuss. Field Installable means that the termination can easily be done at the jobsite. For LAN, AV, MDU, FFTH/FFTD, and most other applications, high-quality mechanical connectors are usually the preferred choice by integrators as they have lower initial investment costs; and are faster/easier to terminate in the field. These are professional-level, premium-performance connectors with very low terminated signal loss and reflection. These connectors provide fast terminations comparable in time to RJ45 termination.
Features
- SC type connectors
- Pre-polished for UPC (standard) & APC (angled) connections
- Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
- Compatible with 250µm, 900µm, 2.0mm & 3.0mm, including distribution and zip cord formats
- No proprietary tools required
- No epoxy, crimping, or polishing required
- Built-in verification window showing proper termination
- Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
- Built-in button for one-click termination & locking jig release
- Average termination time is around two minutes
- Re-usable (five or fewer termination cycles recommended)
Specifications
Physical
- Connector Type: SC (TIA / EIA 604-3)
- Recommended Maximum Re-Termination Times: 5 times
- Average Termination Strength
- 2.0mm & 3.0mm 6.5lbs of sustained tension
- 250µm & 900µm 2.0lbs of sustained tension
- Assembled Connector Dimensions: 51mm (length) x 9mm (height) x 9mm (width)
- Construction: Zirconia ferrule | Ultem plastic body | Internal index matching gel
Performance
- Insertion Loss
- Typical: 0.3dB
- Maximum: 0.5dB
- Return Loss
- APC: ≥60dB
- UPC: ≥50dB
- Operating Temperature: -40 degrees – 75 degrees C
- Storage Temperature: -45 degrees – 85 degrees C
- Certifications: RoHS, IEC 61754-20
