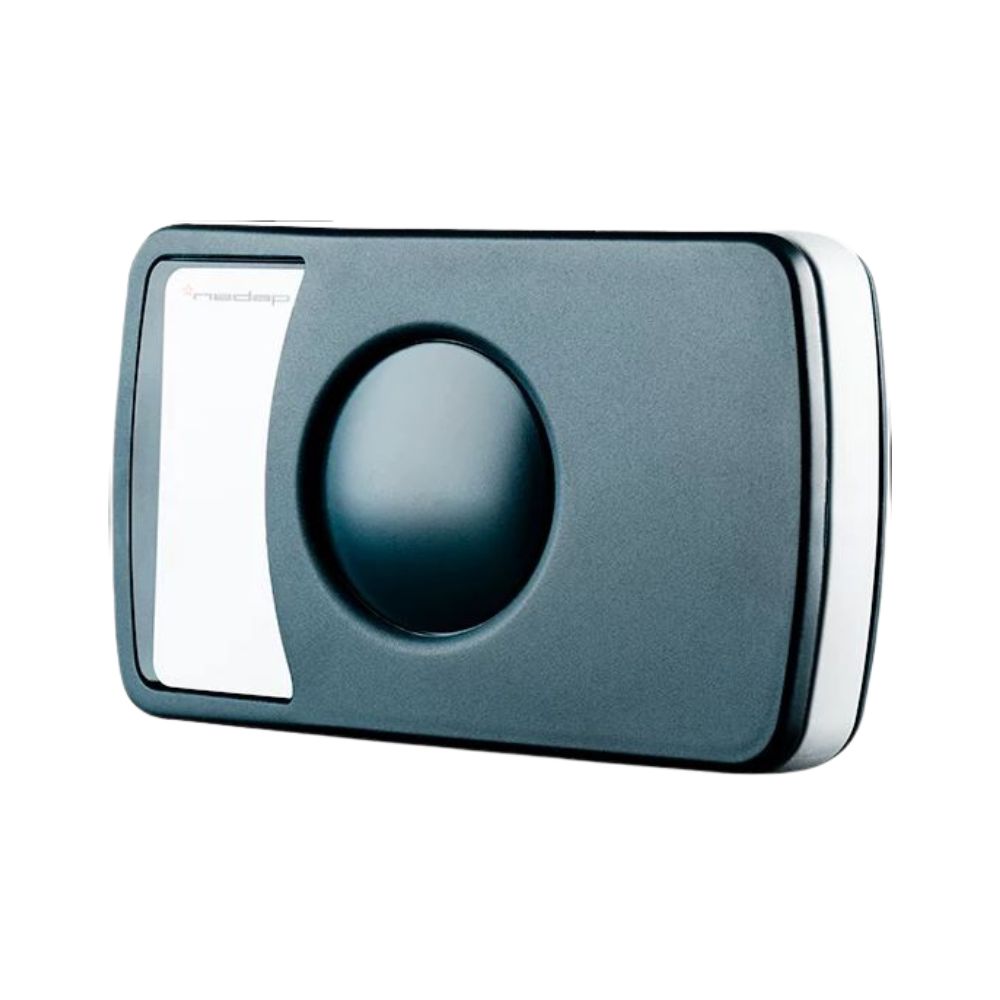

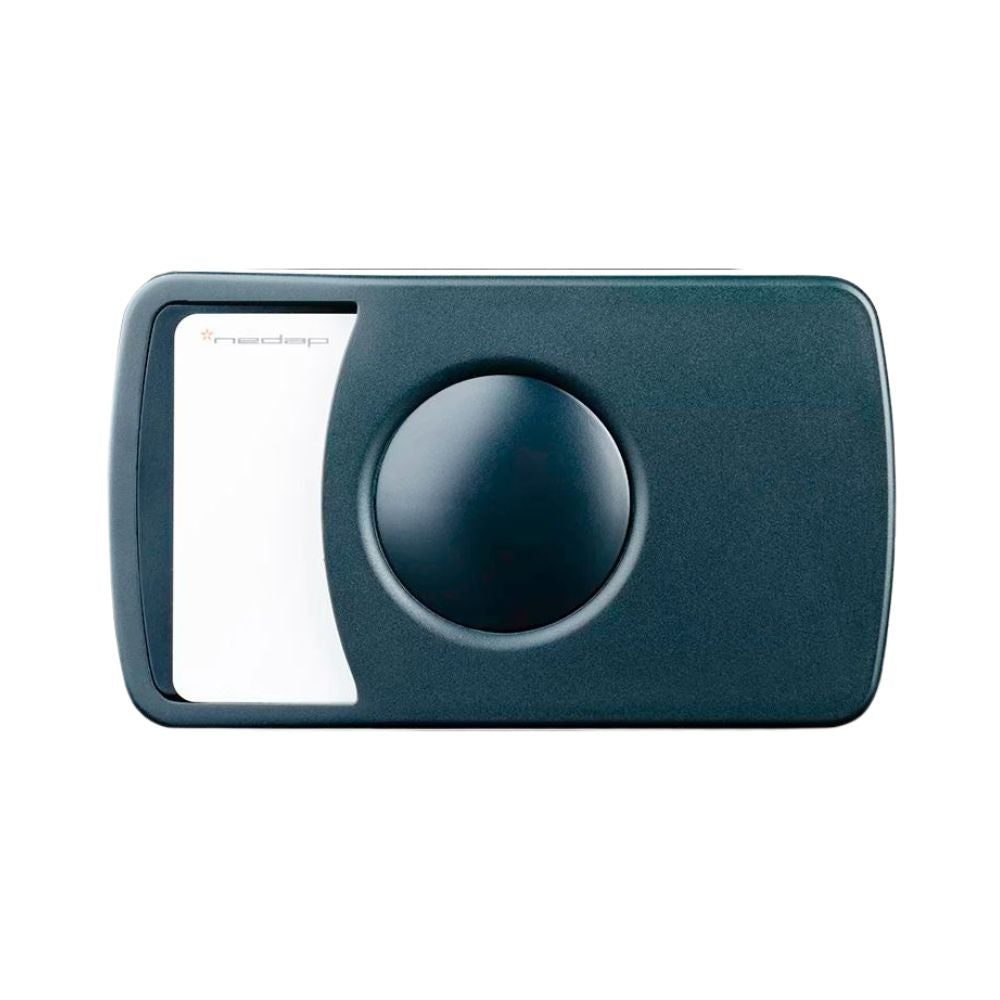

Nedap TRANSIT Smartcard Booster (Pack of 10)
The Smartcard Booster is a vehicle and driver identification tag. This patented solution ensures that a vehicle can only get access to a secured area when driven by an authorized driver. The Smartcard Booster is used in combination with (existing) personal access credentials. Based on semi-active RFID technology (2,45 GHz), the Smartcard Booster is identified up to 12 meters* (40 feet) with the TRANSIT Ultimate reader.
The variety of Boosters supports all leading RFID cards in a broad range from low to high frequencies, such as MIFARE (DESFire), LEGIC, and HID. Hereby is an overview of the different types of Boosters:
- Prox Booster 2G supports Nedap, HID®, and EM
- Smartcard Booster 2G supports among others MIFARE (DESFire)
- Smartcard Booster Ultimate supports advanced tag authentication and MIFARE (DESFire)
- Smartcard Booster End2End supports HID IClass®, HID Elite Keys, HID SEOS, HID
- SEOS® Mobile ID over NFC
- LEGIC Booster Ultimate supports LEGIC Advant and Prime
Note: In combination with the TRANSIT Ultimate reader. The maximum read range depends on the reader type, the installation, and the environment.
Key benefits
- Simultaneous vehicle and driver identification
- Identification up to 12 metres (40 feet)
- Patented Dual Identification Solution
- Supported credentials: MIFARE (DESFire), LEGIC (Advant), HID iClass CSN and Calypso
- Easy mounting to vehicle's windshield
Typical applications
- Vehicle identification with the highest accuracy and security standard for critical infrastructure and industrial applications.
- Applications where vehicles must be assigned to specific drivers
Driver based identification
The driver-based vehicle identification solution consists of two elements: a building access card and an in-vehicle Booster. The Booster is mounted on the inside of a vehicle’s windshield. The booster assists the TRANSIT reader to identify and authenticate the card ID. The TRANSIT reader transmits the combination of the card ID and booster ID to any access control system. If this combination is authorized, access is granted and the gate opens automatically
Building access
By removing the access card from the Booster, it can be used for building access. The Booster solution eliminates the need to issue (new) cards, making it easy to integrate into existing installations. As the solution operates only when the access card and the Booster are combined, the removal of the access card ensures a high level of security.
Supported Cards
The TRANSIT Booster comes in five versions; a Booster for low-frequency cards, Smartcards, Smartcards including advanced tag authentication (Ultimate mode), an ultimate booster specifically for Legic cards, and an Ultimate Booster for HID cards.
Windshield mounting

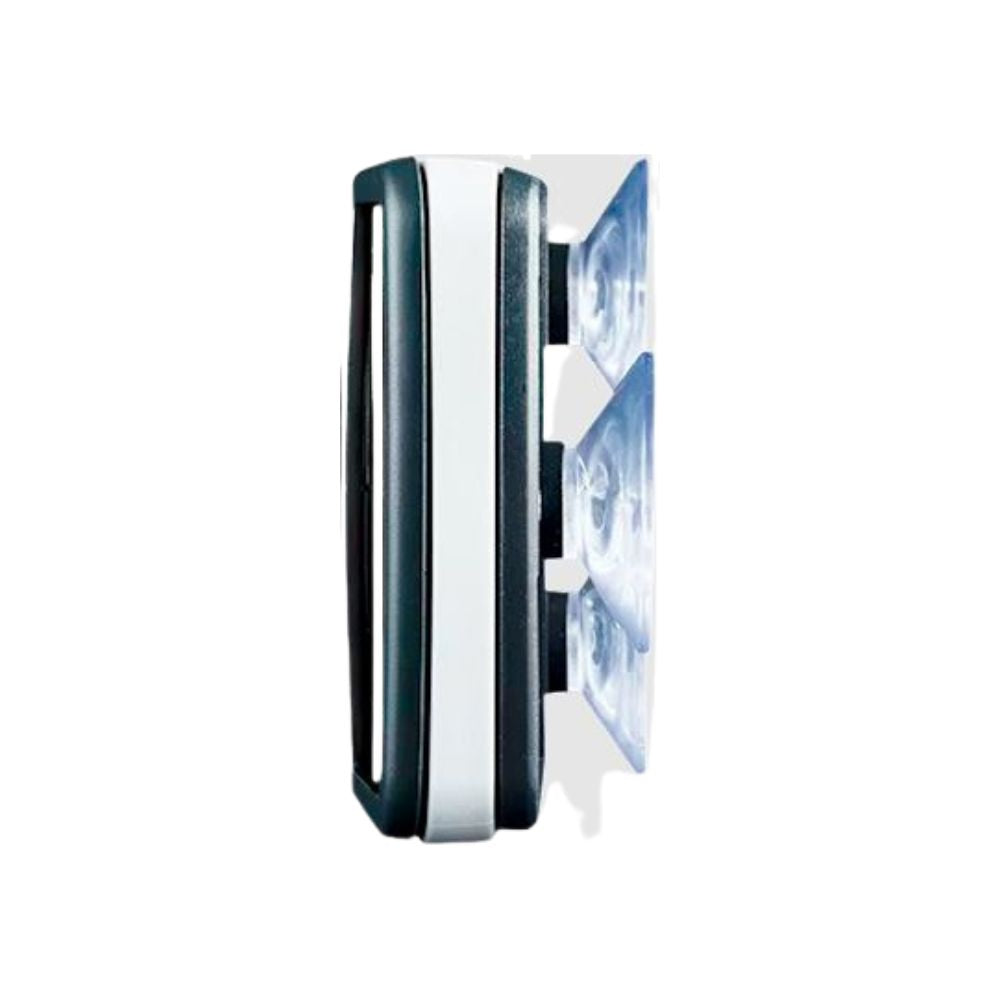

As the TRANSIT Booster is equipped with suction pads on the backside, it can be mounted onto the windshield easily. Thanks to this convenient design, installing the Booster only takes seconds.
Sustainable design
The TRANSIT Booster uses two AAA-type replaceable batteries with an expected lifetime of 5 years after which the batteries can be replaced for more years of service. The product is produced in The Netherlands with an eye for sustainable sourcing, processing, labor, and reducing the logistic footprint.
