Magnetic Autocontrol Traffic Barrier 10' Passage | MAG-TRAFFIC H1LE-SC01000

Magnetic AccessSKU: MAG-TRAFFIC H1LE-SC01000

Price:
Sale price$5,331.43
Add to cart

Description

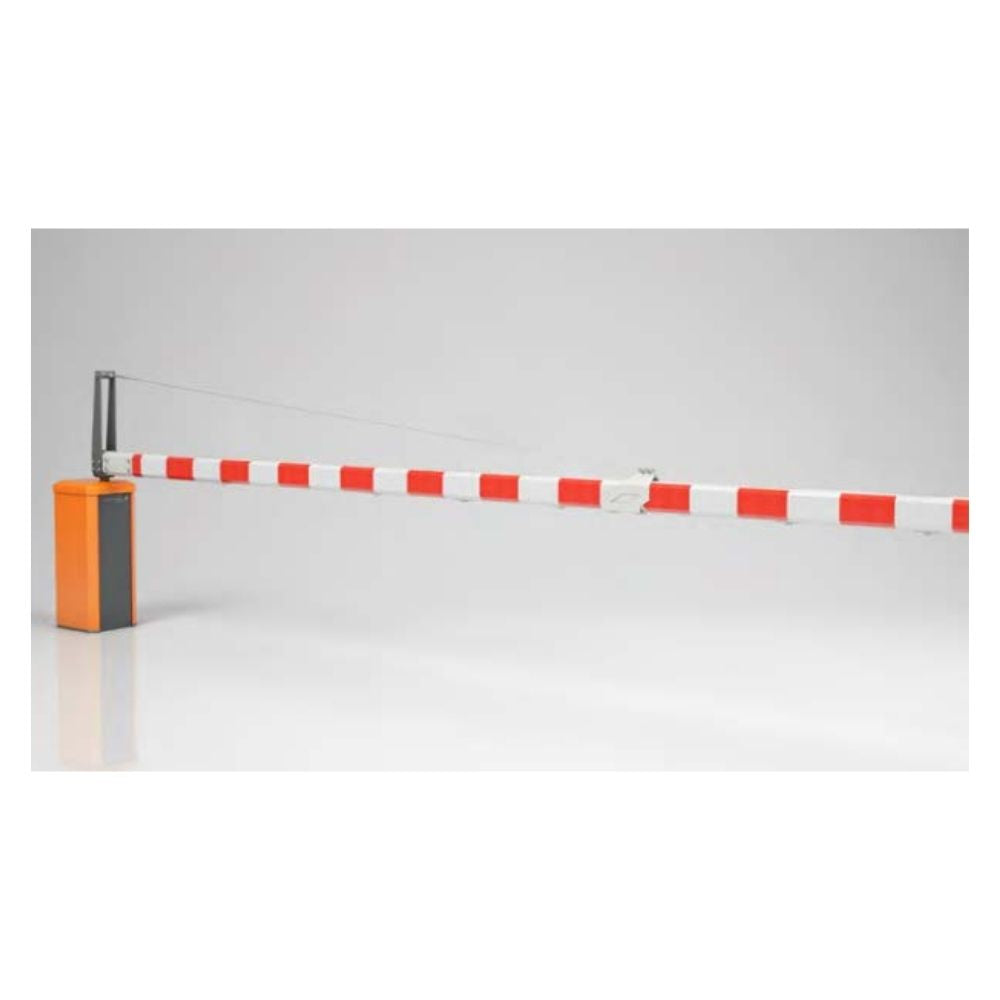

Magnetic Autocontrol Traffic Barrier 10 ft. Passage | MAG-TRAFFIC H1LE-SC01000

Traffic Barrier 10 ft. Speed of 4s.

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

Features
  • High functionality for numerous special applications
  • Patented folding barrier arm for safety at indoor crossings with differing lane widths
  • Low power consumption for economical operation
  • Optimum accessibility for particularly simple maintenance
  • Form-based on the prizewinning design of the Access barriers
  • MicroBoom-H1 barrier arm type
  • MGC Pro control system
  • Standard integrated 2-channel detector for induction loops
  • Freely expandable for modular expansion of control system
  • Standard variable I/O assignment
  • 8 number of digital inputs
  • 6/4 number of relay/digital outputs
  • Standard input for safety photoelectric switch with test
  • Standard selectable closing/opening speed
Technical Specifications
  • Barrier opening width: 10 ft.
  • Opening/closing time speed: 4.0 s
  • Power consumption: max. 45 W
  • Drive technology: MHTM™
  • Voltage: 85–264 VAC, 50/60 Hz
  • Housing dimensions (W x D x H) without support: 12.2 x 14.2 x 37 in.
  • Housing dimensions (W x D x H) with support: 12.2 x 14.2 x 53.4 in.
  • Standard Color: Orange (RAL 2000)
  • Enclosure rating: IP 54
  • Temperature range: −22 to +131 °F
  • Weight (without barrier arm): 121.3 lb.
Manufacturer's Warranty Period
  • 2 years or 2 million cycles (whichever occurs first)
Product Literature
