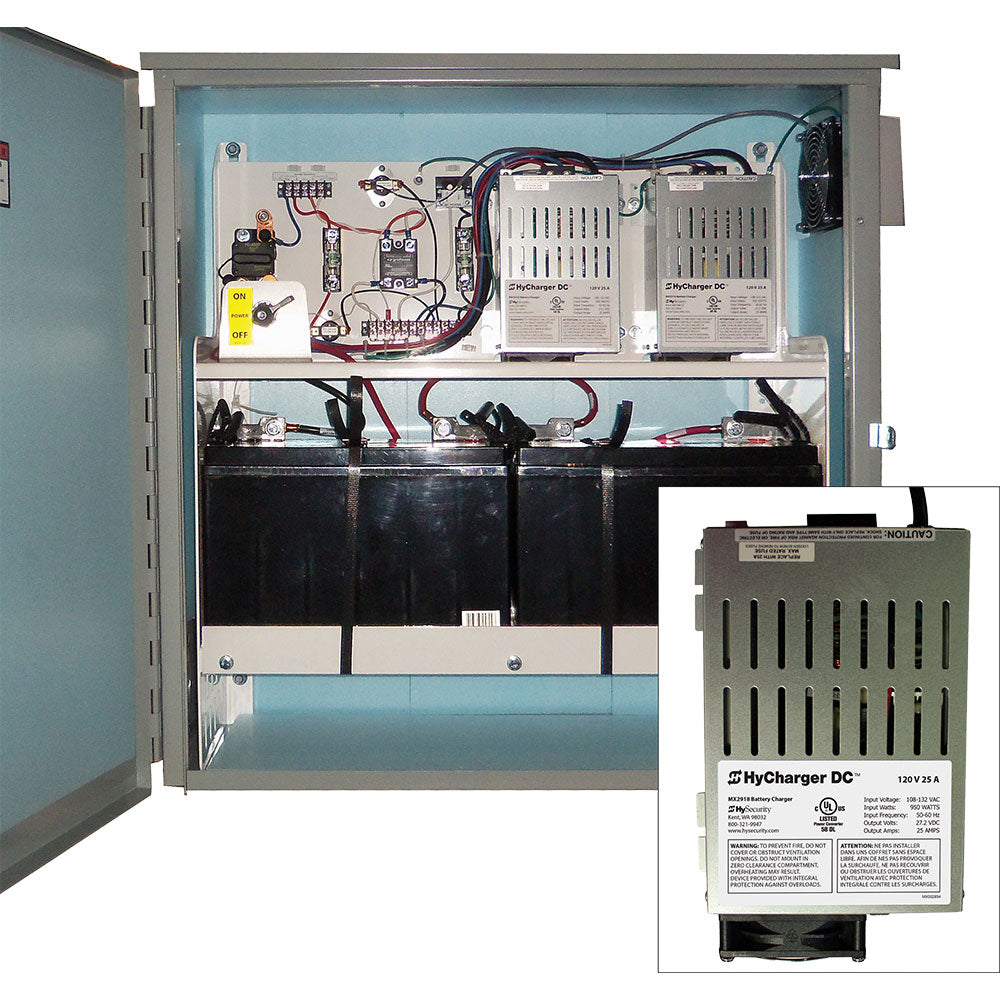

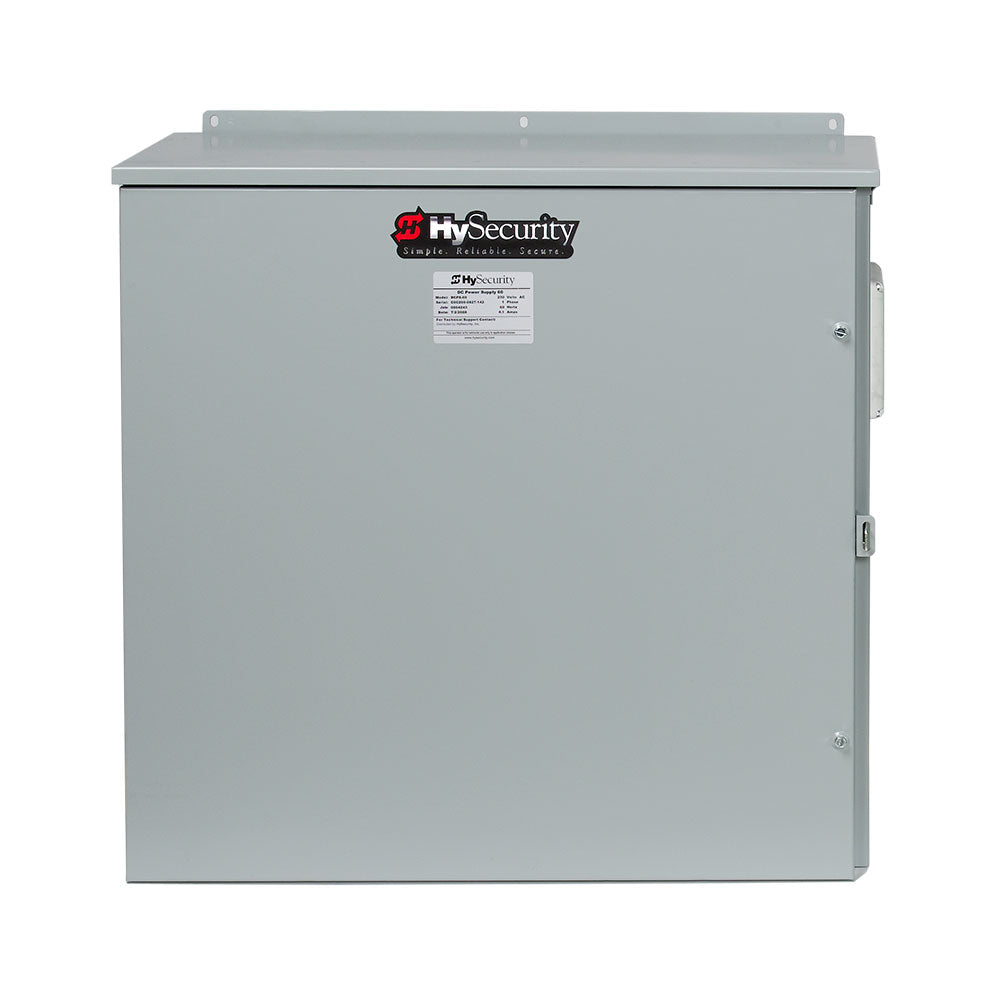

HySecurity DC Power Supply with HyCharger DC | HYS-O-DCPOWERSUPPLY
DC Power Supply with HyCharger DC provides a 24VDC UPS (Uninterruptible Power Supply) for HySecurity hydraulic industrial operators that have been specially built to run on 24VDC.
The DC battery backup can only be integrated with DC motor-driven hydraulic industrial operators, thus, DC motor based hydraulic operators are purchased together with a DC Power Supply as an integrated pair. See individual hydraulic operator models for specifications.
Features
- Keep your gate operating after AC power loss
- Available as integrated UPS solution for nearly all HySecurity hydraulic operators
- Available for input voltages of 115VAC or 208-230VAC 60Hz or 110VAC or 220VAC 50Hz
- Redundant chargers double the reliability. 50A of 24VDC power is supplied on continuous basis to both motor drive circuit or charger circuit.
- Burst mode supplies additional energy to gate operator, when needed
- Includes two 110Ah sealed, AGM batteries for extended cycles
- Smart Charger optimizes battery life
- Fast recharge after AC power restored
- Easily retrofit earlier HySecurity DC UPS backup systems
Note
Operators
- SlideDriver 15UPS, 30F UPS, 40 UPS, 80 UPS*, 200 UPS
- StrongArm 14F UPS, 20 UPS, 28 UPS, 36 UPS*
- SwingRiser - All UPS models; HydraLift - All UPS models (includes 1 an 2 hp operators)
Note: * 115V requires 30A branch circuit
