HySecurity HydraLift 20F Vertical Lift Operator | HYS-HYDRALIFT-20-F

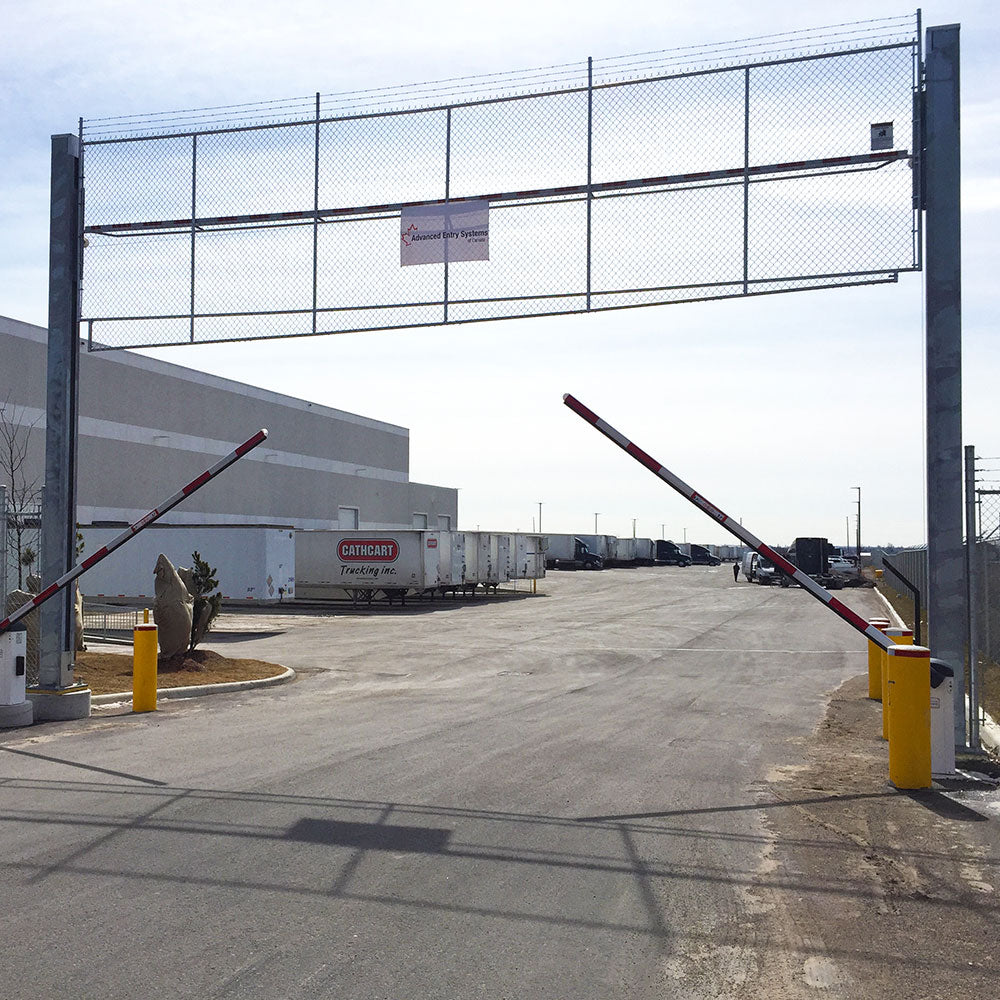

HydraLift offers the perfect solution for entrances with no space to open a swing or slide gate and a need for quick opening for multiple traffic lanes. This continuous duty, hydraulic vertical lift gate operator raises up to 2,000 lb (907 kg) gate panel to full 16 ft (5 m) clear opening in 8 seconds (fast models). Post height and panel size are customizable options.

FAST. Clears multiple traffic lanes very quickly, at twice the speed of HydraLift 20. Reach a 16 ft high overhead clearance in just 8 seconds. The 24 ft standard post height lifts an 8 ft tall, 2,000 lb gate panel at 2 ft/s with ease. (2.4 m tall, 907 kg gate panel at 60 cm/s). Maximum gate length is 80 ft (24 m). Post height and gate panel size are customizable options. A separate HydraSupply enclosure contains Smart Touch Controller and hydraulic power unit.

Note: Separate HydraSupply contains Smart Touch Controller, electric motor, and pump pack. Submit completed and signed HydraLift operator and hose order forms with each order.

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

  • Lifting posts are hot dipped galvanized for superior anti-corrosion protection.
  • Proven reliable hydraulics and industrial grade components mean low maintenance and long operator life
  • Easily configure gate operation to specific site requirements with HySecurity's Smart Touch Controller. PC interface provided for easy configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Three configurable user relays plus optional Hy8Relay™ - an extended relay module providing eight additional programmable relay outputs
  • Seamless synchronization with all HySecurity operators for dual gate, sally port or sequenced gate applications
Operator Components

Model: HydraLift 20F Post Set

  • Part Number: HVG 460 EX POST SET
  • Est. Ship Weight: 2,940 lb
  • Shipping Dimensions: 300"w x 60"d x 30"h
  • Shipping Class: 70

Model: HydraLift 20F Power Unit

  • Part Number: HVG 460 EX ST
  • Est. Ship Weight: 261 lb
  • Shipping Dimensions: 40"w x 40"d x 50"h
  • Shipping Class: 70

Model: Anchor Bolt Cages, Pair

  • Part Number: MX000871
  • Est. Ship Weight: 297 lb
  • Shipping Dimensions: 60"w x 44"d x 26"h
  • Shipping Class: 50
