FAAC Photo Eye Retroreflective | FAA-2800

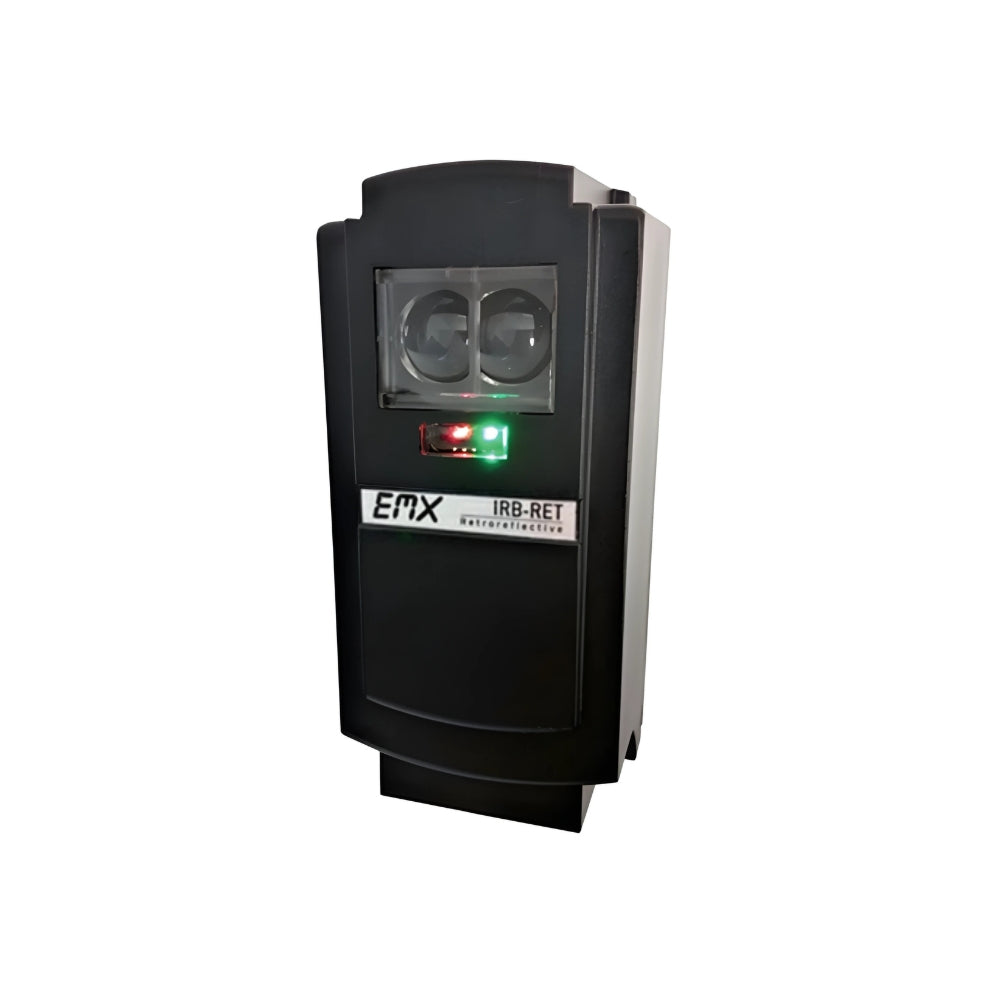

The IRB-RET retroreflective photo eye is an external entrapment protection device type B1, a non-contact sensor for use with automatic gates and doors. The light beam is near-infrared and pulses at a rate of 300/second (300Hz). Since the reflector directs the beam back to the photo eye, wiring to the other side of the roadway is not required. The IRB-RET provides a signal to the gate or door operator that the beam is not obstructed. The operating range is up to 60ft. The IRB-RET operates over a wide range of 6-40VDC and 12-24VAC (dependent on configuration selection).
A red alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy. A green LED indicates power.
The IRB-RET includes 3 selectable operating configurations and provides 5 monitoring options for compatibility with most operators that accommodate monitored external entrapment protection devices. The IRB-RET complies with UL325 requirements effective Jan.12, 2016. Refer to operator manufacturer’s instructions to assure compatibility.
Includes
- Reflector
- Mounting bracket with hardware
Features
- Five monitoring interfaces:
- Normally closed: Cycle power to the transmitter while monitoring the receiver contacts for proper operation
- Two-wire pulsed (2 freq): Provides 300Hz “heartbeat” unobstructed, 0Hz obstructed over power supply lines
- Two-wire pulsed (3 freq): Provides 300Hz “heartbeat” unobstructed, 2Hz obstructed, and 0Hz failure over power supply lines
- Four-wire pulsed: Provides 300Hz “heartbeat” unobstructed, 0Hz obstructed over a separate connection
- Resistive termination: Provides a measurable resistance when unobstructed
Manufacturer's Warranty Period
- 1 year
Technical Specifications
- Operating Mode: Retroflective
- Operating range: 5ft. (1.5m) to 60 ft. (18.3m)
- Current Draw: 60 mA
- Protection Class: Nema 4X
- Power Supply: 6-40 Vdc
- Power Protection: Thermal Fuse
- Sensitivity Adjustment: Potentiometer
- Contacts Type: N.O. / N.C.
- Operating Ambient Temperature: -40°F - 140°F (-40°C - +60°C)
- Power Indicator: Green LED
- Detect Indicator: Flashing green LED
- Mode selection switch 3 modes: relay output, pulsed (3 frequency), pulsed (2 frequency)
- Relay Output Operation: Light ON/dark ON
- Resistive Termination: 10K ohm across NO contact (jumper selectable)
- Transmitter Power Cycle: >300mS (for use in configuration 0 Monitored)
- Current (Config. 1 & 2): 15mA (12VDC, includes TX and RX wired in parallel)
- Dimensions (L x W x H): 3.1” (79mm) x 2.7” (69mm) x 6.6” (168mm)
- Weight: 0.7 lbs. (320g)
- Connections: 7 terminals
Compatibility
- FAAC S418 Electromechanical Swing Gate Operator
- FAAC S450H Hydraulic Swing Gate Operator
- FAAC S800H ENC In-ground Hydraulic Operator
- FAAC 390 Electromechanical Swing Gate Operator with Articulated Arm
- FAAC 415 Electromechanical Swing Gate Operator
- FAAC 746 ER Slide Gate Operator
- FAAC 770 In-ground Electromechanical Operator
- FAAC 844 ER Slide Gate Operator
Note
- UL 325 compliant when used with 455D, 780D, and E024U control boards.
