FAAC 400 CBAC Standard Basic Single Kit

FAACSKU: FAA-10420112.5

Model: 115V (Regular)
Price:
Sale price$2,476.19

Estimate shipping

FAAC 400 CBAC Standard Basic Single Kit

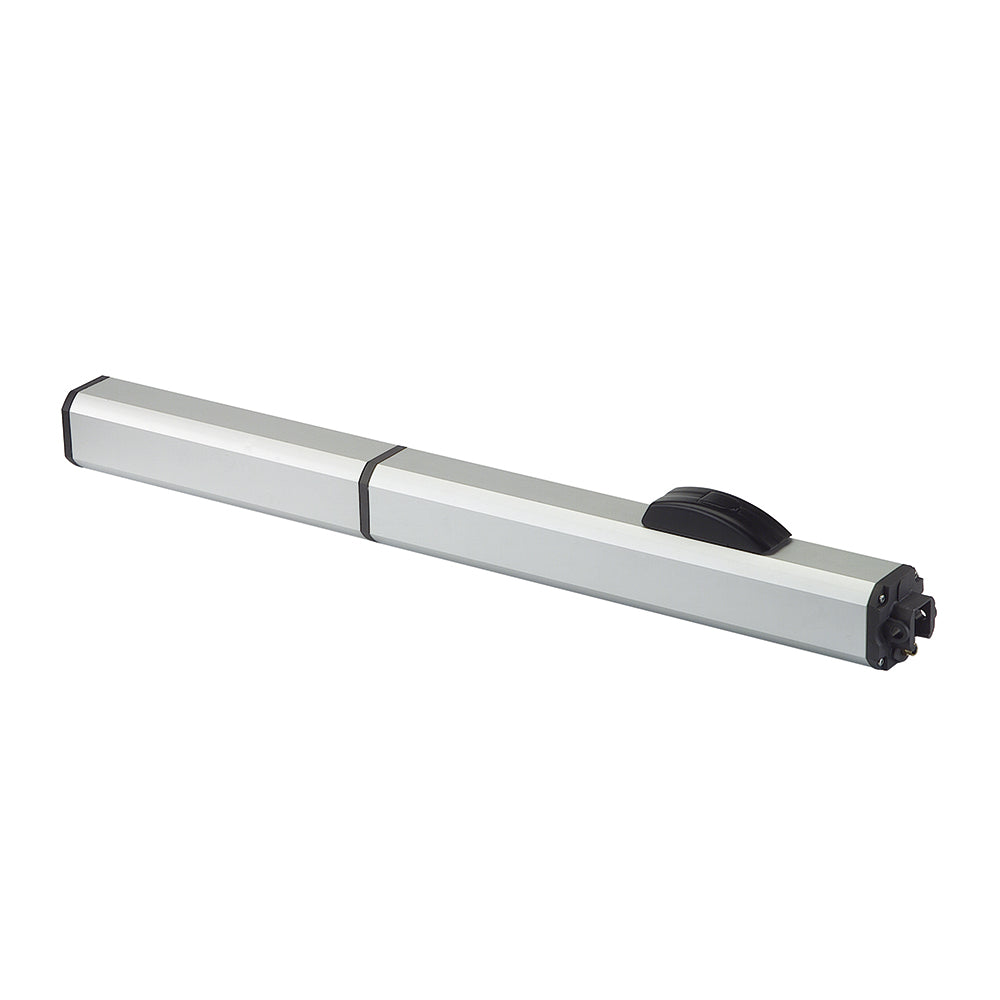

The FAAC Model 400 Swing Gate Operator consists of an electric pump and a hydraulic piston that transmits drive to the gate leaf.

Models with hydraulic locking do not require the installation of electric locks, as they provide mechanical locking of the leaf when the motor is not operating. Models without hydraulic locking require the installation of electric locks to ensure that the leaf is mechanically locked.

The 400 Operators were designed and built to automate swing leaf gates. Do not use it for any other purpose.

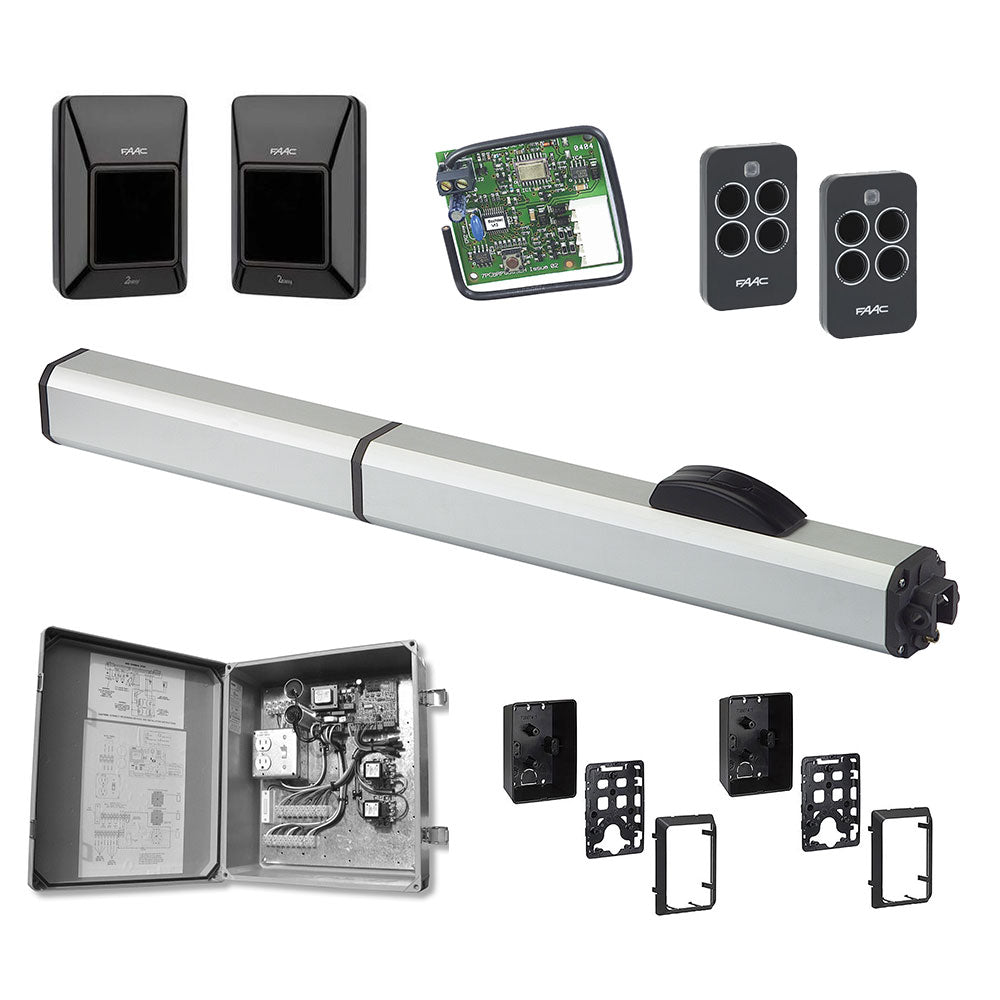

Includes
  • 1 - Operator 400 CBAC
  • 1 - 455D with 18 x 16 in. metal enclosure - 455D115.1 (for 115V models) or 455D220.1 (for 220V models)
  • 1 - Receiver 433 RC Plug-In - 787856
  • 2 - 4-channel transmitter XT4 433 RC - 787453
  • 1 - Pair of XP 30 photobeam photocells - 785105
  • 2 - XP 30 adapters for conduit connection - 401064
    Features
    • Wide and versatile range from residential to heavy industrial gates
    • Hydraulic lock of the gate in an open and/or closed positions
    • Quiet operation
    • Self-lubricating for a long life
    • Key-protected manual release
    • Compliant with UL325 for Class I, II, III, and IV applications
    Technical Specifications
    • Input voltage: 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
    • Power: 220 W
    • Current: 2A (115V) - 1 A (230V)
    • Motor: Asynchronous single-phase
    • Thrust capacitor: 25uF (115V) - 8uF (230V)
    • Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
    • Thermal protection on motor: 248 °F (120 °C)
    • Weight: 19 lbs.
    • Protection Class: IP 55
    • Dimensions (L x D x H): 40.5 x 4.4 x 3.3 in
    • Hydraulic Locking: Opening and Closing
    • Minimum Leaf Length: 6 ft.
    • Maximum Leaf Length: 16 ft.
    • Maximum Leaf Weight: 1300 lbs.
    • Thrust force: 1390 lbs.
    • Pump flow rate: 1 l/m
    • 90° opening time: approx. 18 sec
    • Effective rod stroke: 10.25 in
    • Use Frequency (cycles per hour): 70
    Notes
    • Mounting dimensions, wind factor, and gate design will affect performance specification
    • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it
    • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6m)
    • Positive gate stops, which limit gate travel, are required in the opened and closed positions
    Manufacturer's Warranty Period
    • 3 years
