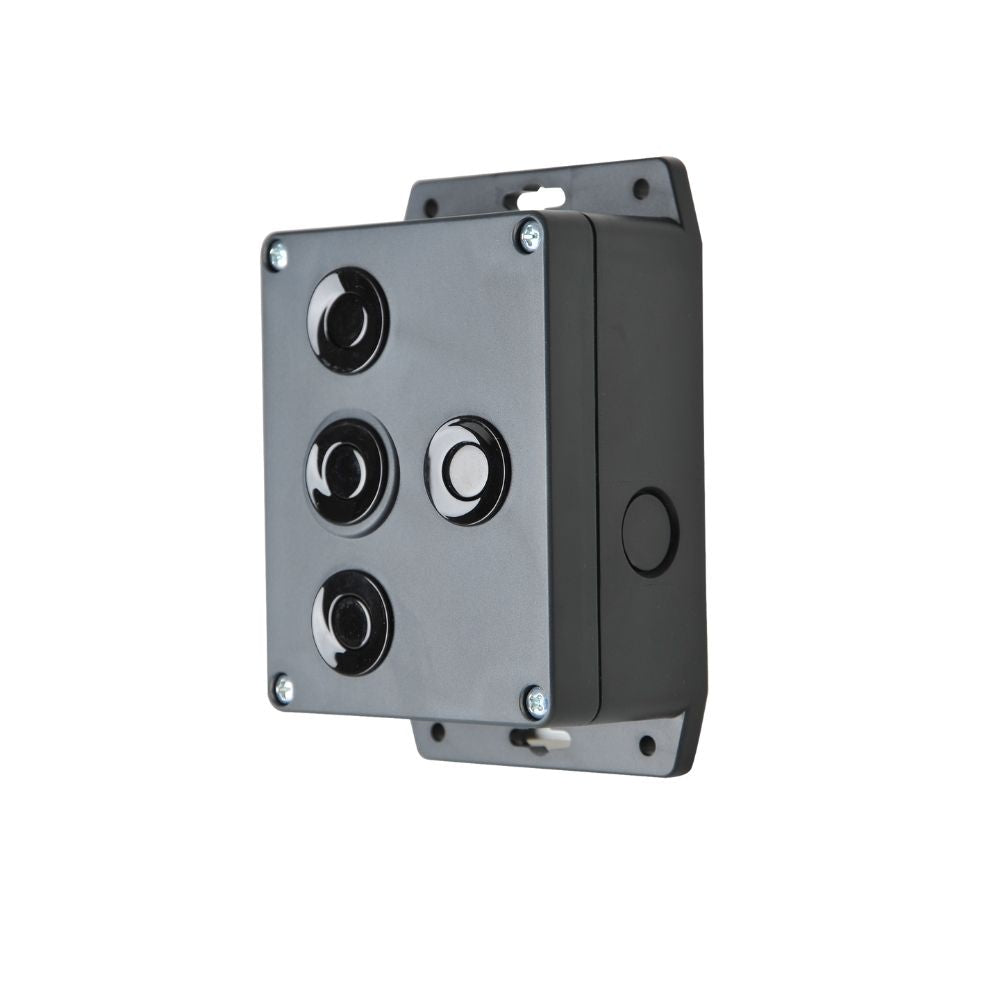

EMX Ultrasonic Vehicle Detector | EMX-USVD-4X
The device uses ultrasonic technology to reliably detect the presence of a vehicle in
a wide variety of drive-thru applications including parking, access control, car wash,
banking and fast food. Unlike a vehicle loop detector configuration that requires the
installation of a loop in the pavement, the USVD-4X may be simply mounted on a
post or order box and aimed at the location of the vehicle when in position to perform
a transaction or place an order. Also, unlike other technologies, the USVD-4X does
not require any set up or functional adjustments, other than simply installing and
aiming. The USVD-4X greatly reduces the cost associated with installation of vehicle
detection capabilities compared to loop detectors for these types of applications.
The USVD-4X requires 12-24 VDC/AC and provides two form “C” relay contacts that
indicate vehicle presence, pulse on entry or pulse on exit.
The detection head consists of 4 ultrasonic transducers that connect to the internal
microprocessor-based control board. The USVD-4X “scans” the expected location for
a vehicle and activates its output upon detection of a vehicle.
Features
- Easy set-up
- Reduces cost
- Ultrasonic technology
- Streamlining operation
- Robust design
- Aux. relay, settings for a pulse on entry, exit or both
- Output delay option for 1, 2, and 4 seconds
Manufacturer's Warranty
- 2 Years
Technical Specification
- Sensing Elements: 4 ultrasonic transducers
- Operating Range: 1ft. – 5ft.
- Response Time: 2.0 seconds
- Relay Output Configuration: 2 SPDT (form C)
- Relay Contact Rating: 1A @ 24VDC
- Power Indicator/No Vehicle: Green LED
- Object In Range: Flashing Green LED on each input, continuous LED on DETECT
- Supply Voltage: 12-24 VDC/AC
- Operating Current: 60mA
- Operating Temperature: -40˚C-+85˚C (-40˚F-+182˚F)
- Weight: 0.6 lbs. (275g)
- Dimensions: 5.7”(145mm) x 3.6”(90mm) x 2.3”(57mm)
- Housing: ABS NEMA 4X
- Connection: 10 position terminal block
