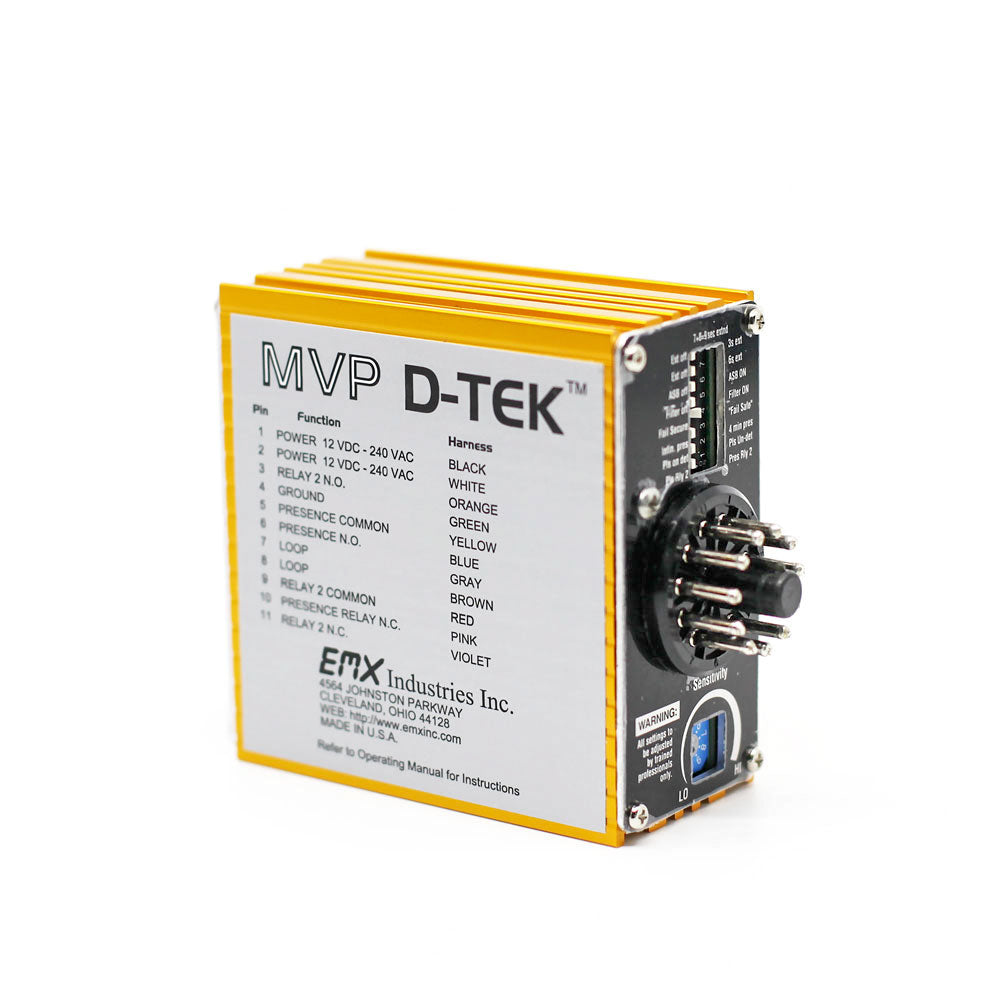

EMX Multi-Voltage Loop Detector | EMX-MVP-D-TEK

The MVP D-TEK vehicle loop detector makes it easy to manage your stock. All you need is one detector in your stock room and on your truck. With an input power range of 12 VDC to 240 VAC, the MVP D-TEK solves the problem of not knowing which voltage is required for a service call or installation. Reduce inventory costs by stocking only one universal vehicle detector.

Features
  • Aluminum housing
  • Automatic sensitivity boost (ASB)
  • Fail-safe/fail-secure options in case of power failure

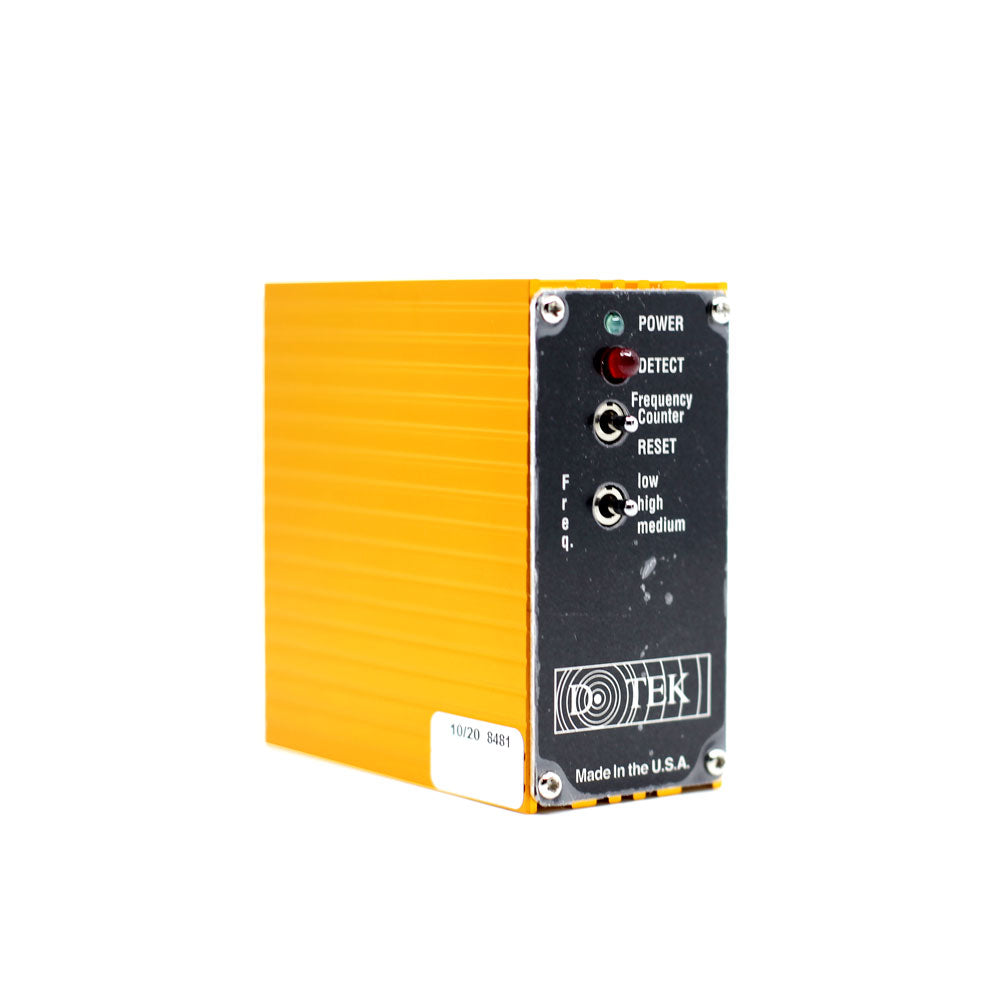

  • Indicators (LED) Power, frequency, loop fail, detect, extend output •
  • Controls Sensitivity, Pulse On Entry, Pulse On Exit, 4 Minute Limit, Infinite Presence, Second Presence Relay, Frequency, Fail Safe / Fail Secure, Filter, Automatic Sensitivity Boost, 3, 6, 9 Second Extend Detect Output
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Power Supply: 12 VDC to 240VAC
  • Current Consumption: 18.8 mA @ 12VAC/DC, 17.3 mA @ 24VAC, 9.5 mA @ 24VDC, 13.5 mA @ 115VAC 11.0 mA @ 237VAC
  • Operating Temp: -40o F to +180o F
  • Surge Protection: Zener Diode /MOV
  • Output Relays (2): 1Amp 30 VDC
  • Loop Input: Transformer isolation, lightning, and transient protection
  • Loop Inductance Range: 20 – 2000 uH Q-factor of 5 or higher
  • Tuning: Automatic on reset or power-up
  • Tracking: Automatic for environmental changes
  • Size: Height 3.25” (83mm) Width 2.56” (40mm) Length 3.65” (90mm)
  • Housing: Extruded Anodized Aluminum
  • Connector: 86CP11 11 pin male
