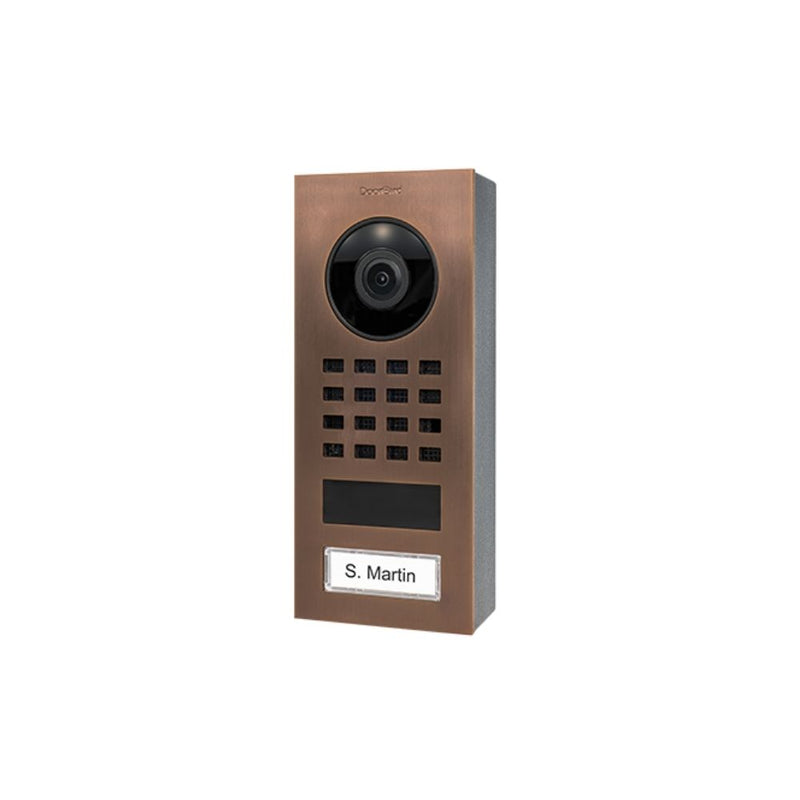

DoorBird IP Video Door Station Surface-mount (Compact Edition)

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Advantages

• Open API
• Video and audio call
• Smart Transmission Mode (STM)
• Smart Home & NVR compatible
• Microphone

Features

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• Night vision
• HDTV Video
• Light sensor
• One freely configurable bistable latching relay
• Easy self-install
• Call button
• Motion sensor with 4D technology
• Noise reduction and echo cancellation (AEC, ANR)
• Easy connection to the network
• WiFi intégré

Technical Specifications

• Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with bronze finish V4A
• Mounting housing (backbox): Polycarbonate
• Mounting Type: Surface-mounted, flush-mounted version sold separately
• Call button: Illuminated
• Nameplate: Plastic
• Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Connectors
• LAN/PoE (T+, T-, R+, R-)
• Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for an electric door opener
• External input for external door opener button
• 15 V DC input (+, -), max. 15 W
• Relays can be expanded/detached with DoorBird I/O Door Controller
• Weatherproof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471, Wi-Fi CERTIFIED™
• Dimensions: 5.98 x 2.56 x 1.26 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
• Scope of Delivery
• 1x Main Electrical Unit
• 1x Front panel
• 1x Surface-mounting housing (backbox)
• 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
• 1x RJ45 adapter
• 1x Screwdriver
• 1x Quick start guide with Digital Passport
• 1x Installation manual
• 1x Small parts
• System Requirements
• Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
• Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
• Network: Ethernet Network, with DHCP
• Recommended installation height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height
• Video
• Camera: HDTV 1080p, dynamic (VGA – HDTV)
• Lens: High-end ultra-wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
• Audio
• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full-duplex
• Network
• Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
• WiFi: 2.4 GHz b/g/n
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
• Motion Sensor
• Type: Active
• Detection angle: 80° (H), 50° (V)
• Range: 1 - 6 m (3.3 - 19.7 ft), depending on the environment, configurable in 1 m (3.3 ft) steps.
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via App, e.g.
• Range (1 - 6 m / 3.3 - 19.7 ft)
• Movement direction (coming, leaving, both)
• Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
• Individual schedules
• Integrated Wireless Modules
• Bluetooth: Bluetooth Low Energy (BLE), enabled with future firmware and App update
• WiFi: 2.4 GHz
• Sensor: 24 GHz, can be disabled
• Simultaneous video streams: One, for event-based recording

Product Video

Product Literature

• DoorBird IP Video Door Station Surface-mount (Compact Edition) Datasheet
