DoorBird IP I/O Door Controller | DBR-A1081

DoorBird IP I/O Door Controller | DBR-A1081

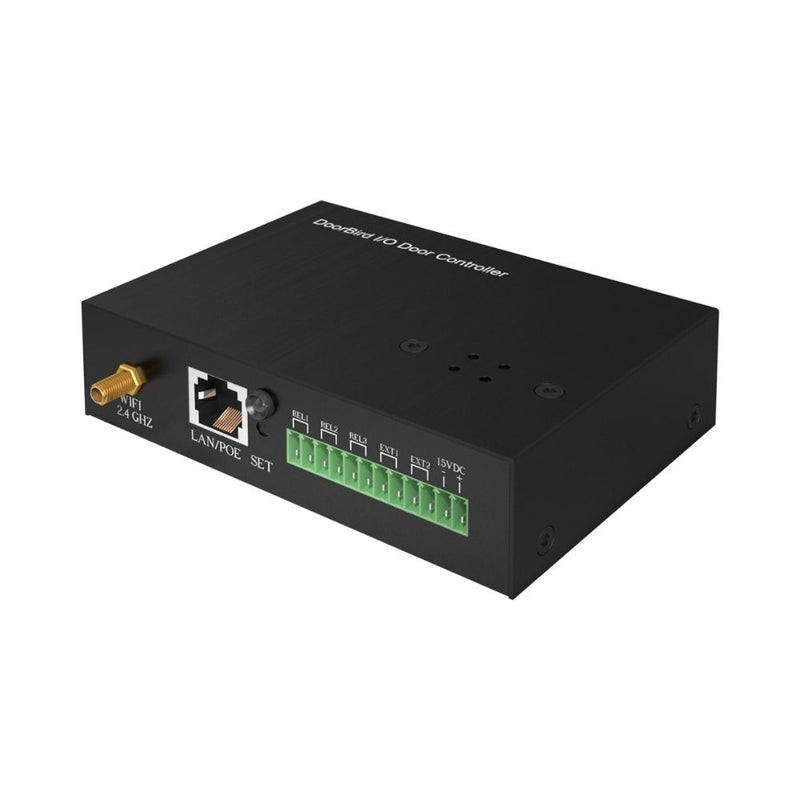

The A1081 DoorBird I/O Door Controller offers tamperproof control of up to three doors or gates over a network. It can be installed in a protected interior area, such as a control cabinet in the basement and can be connected to the DoorBird IP video door station via the network. No physical wires have to be connected between the door or gate and the door station. The DoorBird I/O Door Controller, therefore, eliminates the risk of shorting and activating the electric door opener in case of unauthorized removal of the door station and makes your property/building safer. The connection of the DoorBird I/O Door Controller to the network can be accomplished via network cable (PoE capability) or WIFI.

Features

• Tamperproof control of up to three doors or gates
• Encryption based on banking standards
• Monitoring of two external sensors
• Three freely configurable, bi-stable switching relays (permanently open, permanently closed, toggle)
• The switching relays keep their state even in the case of loss of power
• Wireless network, Ethernet, PoE
• Alarm notification via push notification on smartphones and tablet
• Can be mounted on walls, ceilings, or in control cabinets

Technical Specifications

• Dimension: 4.8 x 3.39 x 1.26 in (L x W x H)
• Power Supply: 15 V DC or Power over Ethernet (PoE 802.3af mode A)
• Operating Conditions: -25 to 55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)
• Connectors: SMA, RJ45 (10/100 Base-T) for LAN/PoE, 12-pin screw terminal for
• 15 V DC input (+, -)
• Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere
• Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere
• Bi-stable latching relay #3, max. 24 V DC / AC, 1 Ampere
• External input 1 (potential-free)
• External input 2 (potential-free)
• PoE: IEEE 802.3 af/at (Mode-A)
• System Requirements
• Mobile end device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet
• Internet: High-speed landline broadband Internet connection, DSL, cable or fiber, no socks or proxy server
• Network: 802.11 b/g/n 2.4 GHz or Ethernet Network, with DHCP
• Compatible with all DoorBird IP Video Door Stations.
• Scope of Delivery
• 1 x I/O Door Controller
• 1 x Network Cable
• 1 x Power supply unit (mains adaptor) with four country-specific adaptors (110 - 240 V AC to 15 V DC)
• 1 x DIN-Rail adapter
• 1 x Drilling template
• 1 x Small parts
• 1 x Installation manual
• Approvals: CE, FCC, UL, RoHS, IP50
• Weather-Proof: No
