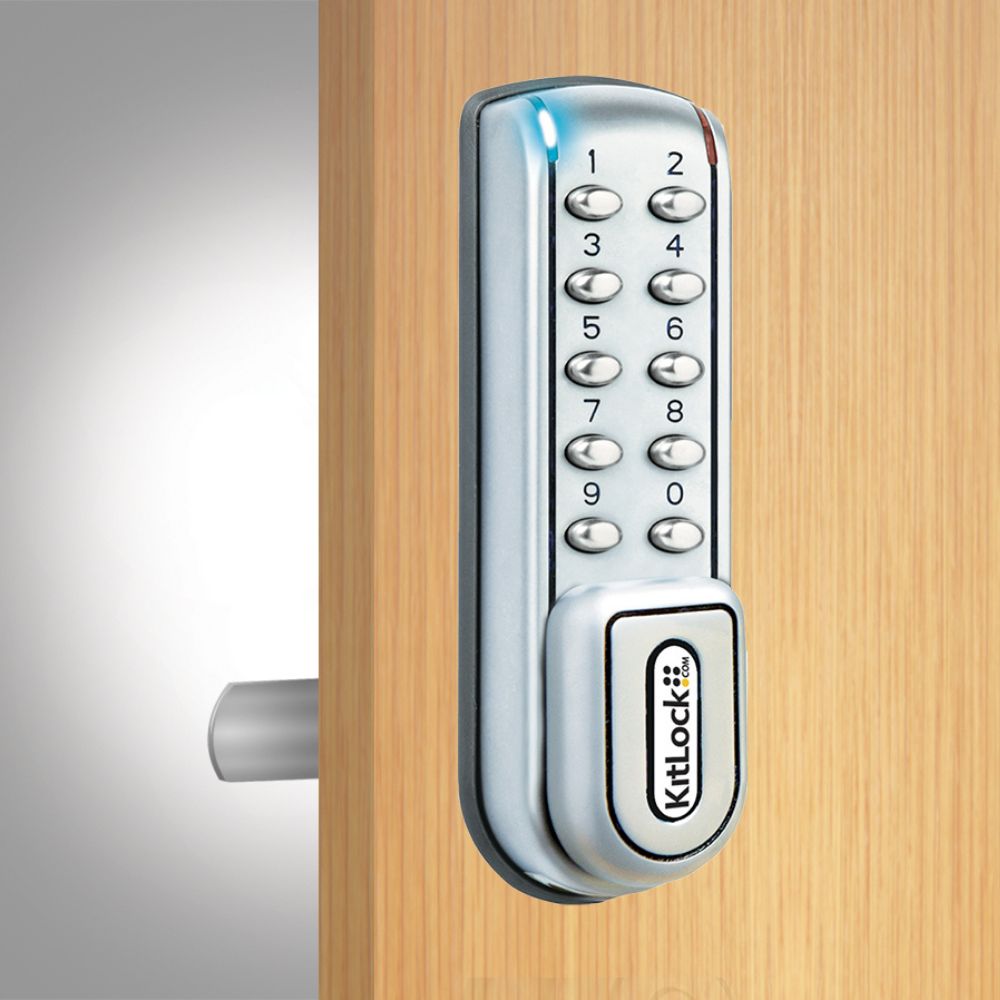

D&D Technologies CodeLocks KL1200 KitLock Locker Lock - Silver Gray
The KitLock 1200 locker locks is a popular choice for more challenging environments. A tougher, more robust lock range with all the benefits of the KL1000 Classic plus additional features and functions.
The locks are easy to fit, providing additional programming features, stainless steel buttons, dual fixing points, and an improved number of operations from two AAA cells.
The KL1200 is supplied as standard with two cams, but will accept the majority of other cam variations that will fit onto the KL1200’s 8mm square spindle. The lock is supplied with all the necessary fixings, templates and operating instructions to fit the lock to the cabinet, locker, or cupboard.
The KL1200 has 4 code levels available:
- 8-digit Master Code
- 8-digit Sub-Master Code
- 4-digit User Code
- 6-digit Technician Code
How does a KL1200 operate?
Private Use
This is the most common function and is used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.
Public Use
In this function, the KitLock operates with a single User Code. The guest enters a personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next user. This function is used for short-term, multi-occupancy applications, e.g. a locker in a leisure center.
Features
- Easy fit
- 11 individual stainless steel buttons
- 50,000 openings from 2 x AAA cells (supplied)
- 2 independent fixing points
- Auto unlock facility
- Audible keypad
- Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- IP54 rated whe used with door gasket
- Not suitable for a Chlorine environment
Specifications
- Battery Override: A 9-volt PP3 battery can be placed against external contacts
- Brand: KitLock by Codelocks
- Buttons: 2 x 5 + Programming
- Code Change Method: Keypad (On Door)
- Door Thickness: Ready to fit doors up to 1" (25mm)
- Finish: Silver Grey
- Handed: Non-Handed
- IP Rating: IP54 when fitted with gasket
- Keypad: 11 individual round buttons
- Latch Type: Cam
- Lock Dimensions: 5 5⁄8" (H) x 1 5⁄8" (W) x 1 7⁄16" (D)
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Memory: Non-volatile memory will be retained
- Operations: Up to 50,000 opening per 2 x 1.5 AAA batteries
- Orientation: Vertical, Right Handed
- Power: 2x AAA
- Suitable For: Internal, External
- User Levels: Master, Sub Master, Technician, Standard User
- User Types: Code
Product Literature
- D&D Technologies CodeLocks KL1200 Brochure
- D&D Technologies CodeLocks KL1200 Vertical Installation Instructions
- D&D Technologies CodeLocks KL1200 Vertical Programming & Operating Instructions
- D&D Technologies CodeLocks KL1200 Right Hand Installation Instructions
- D&D Technologies CodeLocks KL1200 Right Hand Programming & Operating Instructions
- D&D Technologies CodeLocks KL1200 Installation Template
