Bolide ETL Solid Copper Core Listed RG59+18/2 Siamese Cable 1000' White | BTG-BP0033/CW1000

Bolide Technology GroupSKU: BTG-BP0033/CW1000

Price:
Sale price$218.00
Add to cart

Description

Bolide 1000FT ETL Solid Copper Core 95% Coverage RG59+18/2 Siamese Cable | BTG-BP0033/CW1000

1000FT ETL Solid Copper Core 95% Coverage RG59+18/2 Siamese Cable, White.

Features

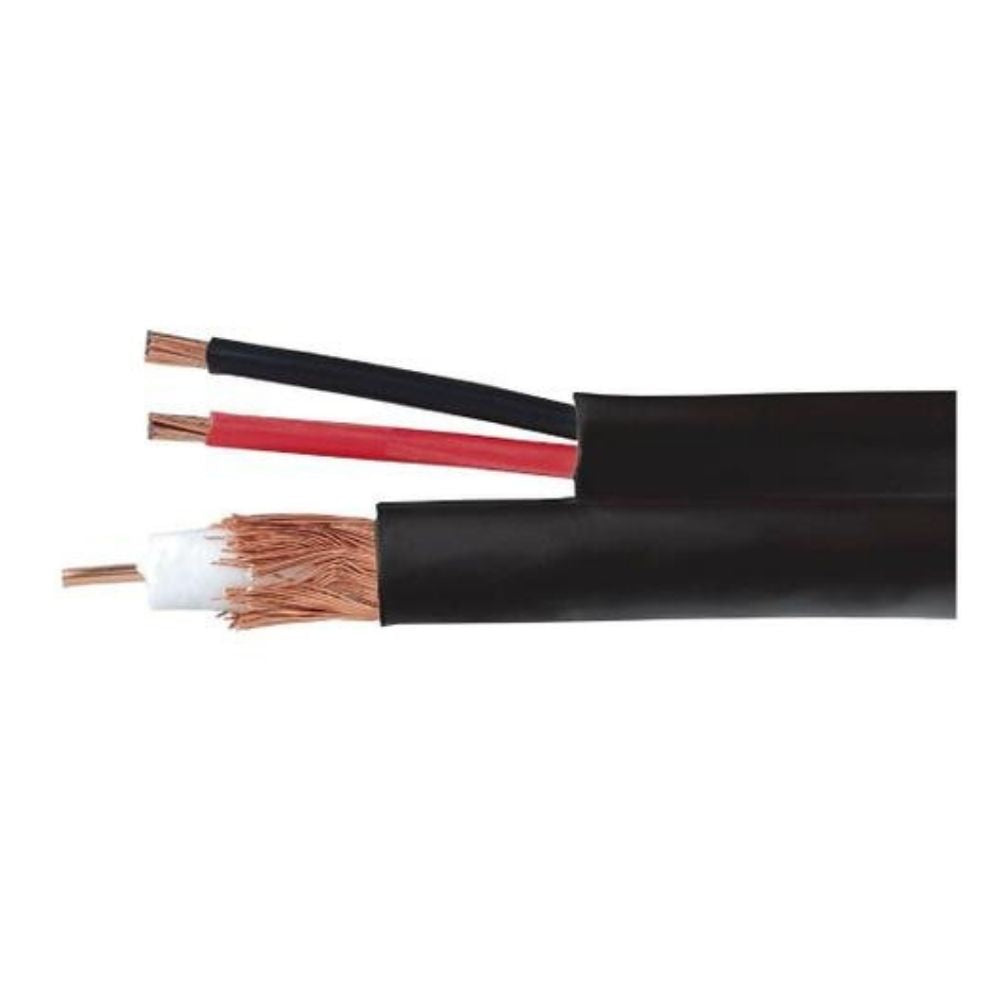

  • RG59 combo coax cable with 18 gauge 2 conductor heavily shielded cable is Ideal for Composite Video, RGBHV Video, Component Video and even Surveillance Systems
  • Attached 2 Stranded copper 18AWG 7x0.385mm Black/Red Power Cable
  • UL Listed 20AWG Center Conductor
  • ISO 9000 Certified* 95% Coverage Braid Shield in Spool Box
  • The advantage to using RG59 cable is that its more durable and can be run in long distances without interference. You can also cut each security camera run the exact length that you need
Technical Specifications
  • Color: White
  • Length: 1000 FT
  • Dialectric: Gas Injected Foam POE
  • Conductor: CCAM (Copper Clad Aluminum Magnesium)
  • Shielding: 95% Braid Coverage
  • Jacket: 75° PVC U/V BLACK
  • Nom. Imp (Ω ): 75
  • Nom. Vel of Prop.: 82%
  • Attenuation (100ft): Freq. 1 MHz, 033 dB Freq. 10 MHz, 0,88 dB Freq. 50 MHz, 1,85 dB Freq. 100 MHz, 2,51 dB Freq. 200 MHz, 3,58 dB Freq. 4000 MHz, 5,29 dB Freq. 700 MHz, 7,45 dB Freq. 900 MHz, 8,7 dB Freq. 1000 MHz, 9,31 dB
  • Product Dimensions: 13.2 x 12.8 x 12.8 inches
  • Item Weight: 37.8 pounds
Product Literature
